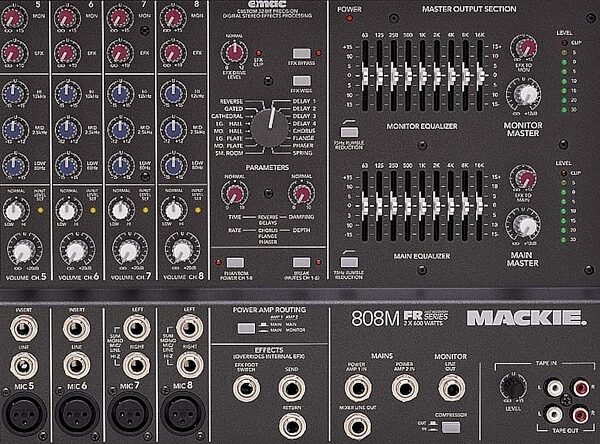

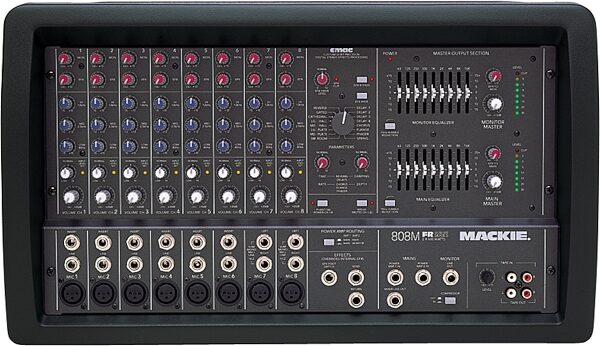

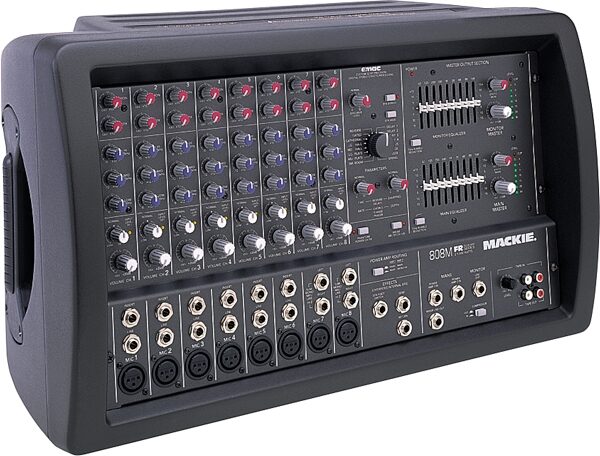

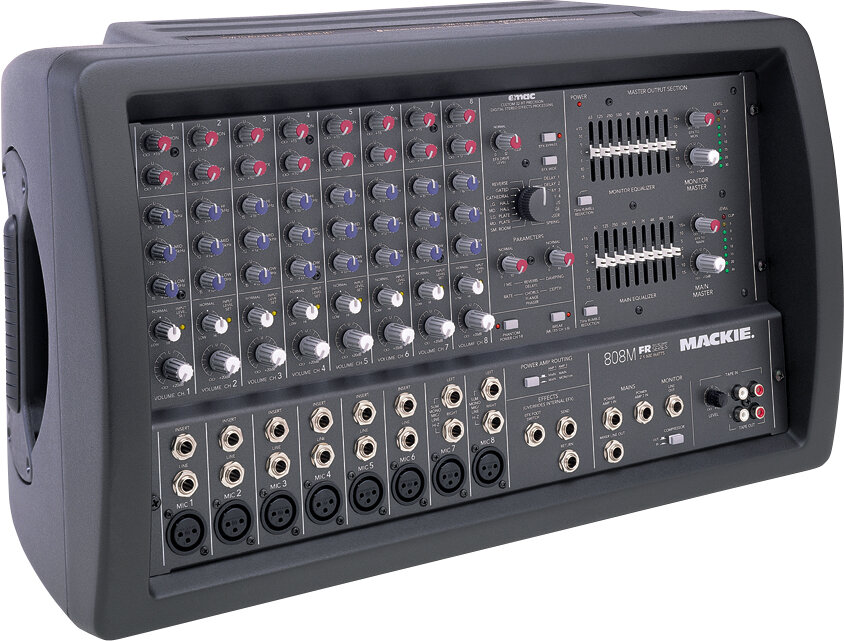

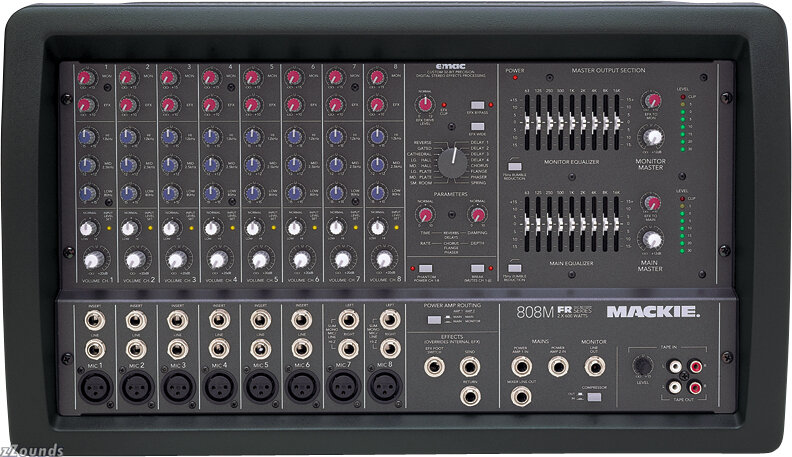

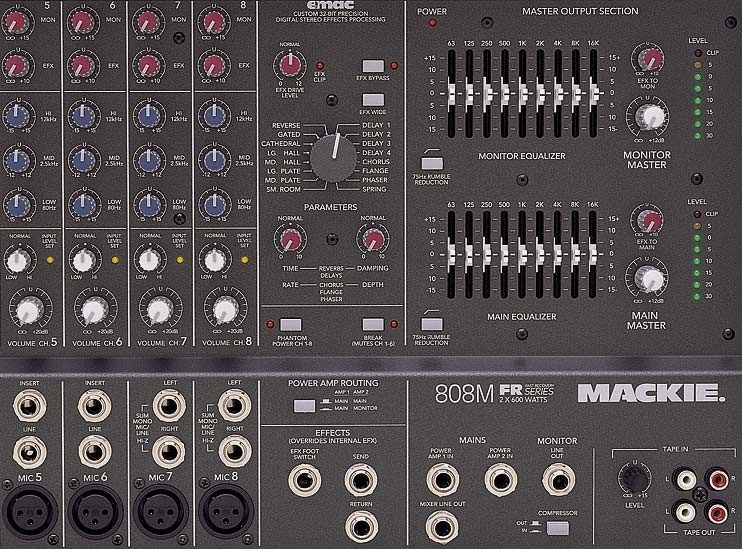

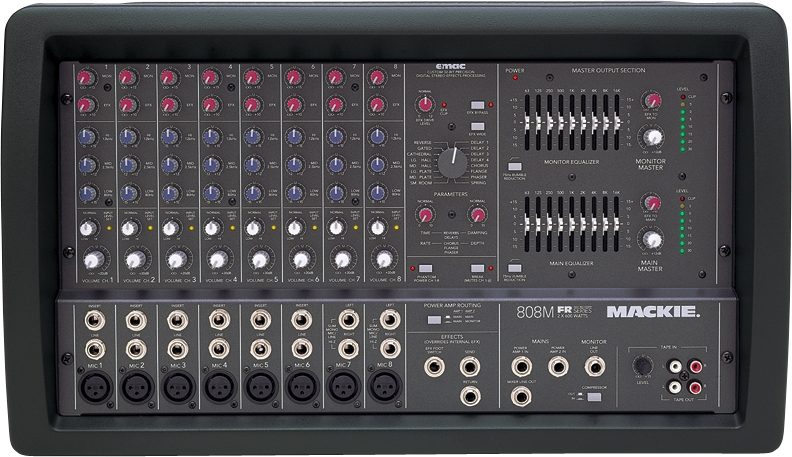

Mackie 808M Powered Mixer (Mono)
No longer available at zZounds
zZounds Gear Experts Say...
1200 Watts. 2 Ohms.
Overview
The whole point of a powered mixer is lots of power, right? That's why there's a real FR Series High-Current, Fast-Recovery power amp inside every PPM(TM) Series Powered Mixer.
It's designed to run all night into brutally low impedances and sound clean even when driven hard. Mackie starts with a massive toroid transformer and 2 unusually large storage capacitors with 720 joules of energy storage capacity. In fact, the PPM power supply is so robust that it can run on as little as 80 volts at the end of a long, skinny extension cord during a brown-out. Then they add their Fast Recovery circuitry that reduces latching distortion so PPM Series mixers sound good even when driven well into clipping. Also included is an SCR crowbar circuit for speaker protection.
Visit a Mackie dealer and run a side-by-side comparison with the competition. You'll be amazed by how much louder and cleaner PPM Powered mixers sound--even when driving huge PA cabinets.
Ingenious Break Switch
Mutes Channels 1-6 during set breaks so you can play music (via the tape input and stereo channels 7 or 8) without having to mess up your levels, deal with feedback loops, or risk having somebody grab a mic and start spouting existentialist poetry.
EFX Wide Switch
When you hear the PPM Series' ultra-realistic 32-bit EMAC(TM) effects, you'll be impressed. But Mackie also gives you extra effects control--via dual parameter controls and with the EFX WIDE button. It psycho-acoustically adds width and/or depth to reverbs,… read more chorus, and flange...perfect for set-ups where your speakers have to be placed close together.
75Hz Rumble Reduction
75Hz low-cut filters in both built-in 9-band EQ sections remove microphone thumps, P-pops, and stage rumble. Sharp 18dB/octave circuitry works without cutting audible bass.
Features
1200 real watts/2 ohms from twin 600-watt FR Series High-Current power amps
Power amps switchable as mains or main plus monitor
8 mic/line channels with master phantom power
Dual line inputs on channels 7 and 8
Inserts on channels 1-6
Active 3-band EQ on each channel
2 separate 9-band, audiophile-quality graphic EQs--one on mains and one on monitor
All PPM Series Powered Mixers Feature:
Rugged injection-molded chassis resists impacts that would destroy a rat-fur-covered wood box powered mixer. Built-in handle can be used by folks who don't have the foggiest idea of what injection molding is.
A real Mackie Designs mic/line mixer section! Based on Mackie's world-famous MicroSeries 1202-VLZ and enhanced with new mic preamps and about a gazillion ingenious extra features.
Rugged, sealed rotary controls resist dust, moisture, and other contamination.
Expensive, studio-grade, 9-band program equalizers for mains and monitor that utilize multiple summing amplifiers and precision infinite feedback band-pass filters, which yield superior linear-phase and combining properties. What this means is the graphic EQs are exceptionally low-noise, low-distortion, sound great, and don't suffer from any nasty phase-shift problems.
Level-setting control and LED on every PPM mixer channel--makes setting input levels a snap.
Mil-spec fiberglass circuit boards (instead of cheap phenolic) resist physical impact.
Amp routing switch assigns power amps to mains or mains + monitors.
Hefty 10,000uf storage capacitors for high peak power reserves.
Massive toroid transformer for high current output.
Mega-cool die-cast heat sink. One-piece die-cast heat sink is custom-cast for maximum heat dissipation and minimum car upholstery destruction. Black coating improves efficiency by 15%. Running Man figure improves coolness-factor by 150%. read less
It's designed to run all night into brutally low impedances and sound clean even when driven hard. Mackie starts with a massive toroid transformer and 2 unusually large storage capacitors with 720 joules of energy storage capacity. In fact, the PPM power supply is so robust that it can run on as little as 80 volts at the end of a long, skinny extension cord during a brown-out. Then they add their Fast Recovery circuitry that reduces latching distortion so PPM Series mixers sound good even when driven well into clipping. Also included is an SCR crowbar circuit for speaker protection.
Visit a Mackie dealer and run a side-by-side comparison with the competition. You'll be amazed by how much louder and cleaner PPM Powered mixers sound--even when driving huge PA cabinets.
Ingenious Break Switch
Mutes Channels 1-6 during set breaks so you can play music (via the tape input and stereo channels 7 or 8) without having to mess up your levels, deal with feedback loops, or risk having somebody grab a mic and start spouting existentialist poetry.
EFX Wide Switch
When you hear the PPM Series' ultra-realistic 32-bit EMAC(TM) effects, you'll be impressed. But Mackie also gives you extra effects control--via dual parameter controls and with the EFX WIDE button. It psycho-acoustically adds width and/or depth to reverbs,… read more chorus, and flange...perfect for set-ups where your speakers have to be placed close together.
75Hz Rumble Reduction
75Hz low-cut filters in both built-in 9-band EQ sections remove microphone thumps, P-pops, and stage rumble. Sharp 18dB/octave circuitry works without cutting audible bass.
Features
1200 real watts/2 ohms from twin 600-watt FR Series High-Current power amps
Power amps switchable as mains or main plus monitor
8 mic/line channels with master phantom power
Dual line inputs on channels 7 and 8
Inserts on channels 1-6
Active 3-band EQ on each channel
2 separate 9-band, audiophile-quality graphic EQs--one on mains and one on monitor
All PPM Series Powered Mixers Feature:
Rugged injection-molded chassis resists impacts that would destroy a rat-fur-covered wood box powered mixer. Built-in handle can be used by folks who don't have the foggiest idea of what injection molding is.
A real Mackie Designs mic/line mixer section! Based on Mackie's world-famous MicroSeries 1202-VLZ and enhanced with new mic preamps and about a gazillion ingenious extra features.
Rugged, sealed rotary controls resist dust, moisture, and other contamination.
Expensive, studio-grade, 9-band program equalizers for mains and monitor that utilize multiple summing amplifiers and precision infinite feedback band-pass filters, which yield superior linear-phase and combining properties. What this means is the graphic EQs are exceptionally low-noise, low-distortion, sound great, and don't suffer from any nasty phase-shift problems.
Level-setting control and LED on every PPM mixer channel--makes setting input levels a snap.
Mil-spec fiberglass circuit boards (instead of cheap phenolic) resist physical impact.
Amp routing switch assigns power amps to mains or mains + monitors.
Hefty 10,000uf storage capacitors for high peak power reserves.
Massive toroid transformer for high current output.
Mega-cool die-cast heat sink. One-piece die-cast heat sink is custom-cast for maximum heat dissipation and minimum car upholstery destruction. Black coating improves efficiency by 15%. Running Man figure improves coolness-factor by 150%. read less
Specs
Mixer Section
Frequency Response
Mic Input to Main Mixer Output (Trim at 0 dB): +0, -1 dB: 32Hz to 20kHz, +0, -3 dB:16Hz to 80kHz
Mic Input to Power Amp Output at rated power output: +0, -1 dB: 32Hz to 20kHz, +0, -3 dB: 16Hz to 55kHz
Distortion
THD and SMPTE IMD; 20Hz to 20kHz
Mic Input to Main Mixer Output: < 0.005% at +4dBu output
Mic Input to Power Amp Output: < 0.15% 250mW to rated power
Common Mode Rejection Ratio (CMRR)
at 1kHz, Trim at 0 dB: 60dB
Noise
20Hz-20kHz bandwidth, 150-ohm source impedance
Equivalent Input Noise (EIN): -127dBu
Residual Output Noise with Main Mixer, Monitor, and Effects outputs, Channel and Master levels off: -95dBu
Main Mixer Output Noise with Master at nominal (-10dB), all channels off: -92dBu
Main Mixer Output Noise with Master and one input at nominal (-10dB and -20dB), Trim at 0dB: -85dBu
Crosstalk
at 1 kiloHertz
Adjacent Inputs or Input to Output: -90 dB
Fader Off: -90 dB
Break Switch Mute: -80 dB
Input Level Trim Control Range
0 to -40dB
Phantom Power
+15V DC
Equalization
Rumble Reduction: 75hz, -18dB/octave
Channel EQ High: +/-15dB at 12kHz
Channel EQ Mid: +/-12dB at 2.5kHz
Channel EQ Low: +/-15dB at 80Hz
Graphic EQ: 9 bands, +/-15dB, Q=1.414: ISO octave centers at 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16KHz
Main Mixer Section Rated Output
Main Mixer, Monitor, and Effects: +4 dBu
Maximum Main Mixer Section Output: +20 dBu
Maximum Input Levels
Mic Input Trim at HI (0dB): -20dBu
Mic Input Trim at LOW (-40dB): +20dBu
Line Input Trim at HI (0dB): 0dBu
Line Input Trim at LOW (-40dB): +40dBu
Insert Input: +20dBu
Stereo Line Input: +20dBu
Tape Input: +20dBu
Effects Return: +20dBu
Power Amp In :+22dBu
Input Sensitivity
Minimum Input Level to produce +4dBu at Main Mixer Output
Mic Input: -68dBu
Insert Input: -28dBu
Line Input: -48dBu
Stereo Line Input: -28dBu
Tape Input: -18dBu
Effects Return: -18dBu
Maximum Voltage Gain
Mic Input to Insert Output: 40dB
Mic Input to Tape Output: 60dB
Mic Input to Main Mixer Output: 72dB
Line Input (Mono) to Insert Output: 20dB
Line Input (Mono) to Tape Output: 20dB
Line Input (Mono) to Main Mixer Output: 52dB
Stereo Line Input to Tape Output: 20dB
Stereo Line Input to Main Mixer Output: 32dB
Tape Input to Tape Output: 10dB
Tape Input to Main Mixer Output: 22dB
Effects Return to Main Mixer Output: 22dB
Effects Return to Monitor Output: 22dB
Input Impedance
Mic Input balanced: 3 kilohms
Insert Input unbalanced: 10 kilohms
Line Input balanced: 40 kilohms
Stereo Line Input unbalanced: 10 kilohms
Tape Input unbalanced: 10 kilohms
Effects Return unbalanced: 10 kilohms
Power Amp In unbalanced: 10 kilohms
Output Impedance
Main Mixer Output: 150 ohms
Insert Output: 150 ohms
Tape Output: 150 ohms
Monitor Output: 150 ohms
Effects Send: 150 ohms
Power Amp Out: 0.032 ohms at 1kHz
Digital Effects
Resolution: 32-bit EMAC internal processing, 2-channel
Sample Rate: 31.25kHz
Bandwidth: 15.6kHz
VU Meters
Main and Monitor, 8 segments: Clip, +5, 0, -5, -10, -15, -20, -30
Power Amplifier Section
Maximum Power at 1% THD, midband
(both channels driven)
2 ohms: 600W x 600W per channel
4 ohms: 450W x 450W per channel
8 ohms: 300W x 300W per channel
2 ohms: 1200W total
Continuous Sine Wave Average Output Power
40Hz to 20kHz (both channels driven at rated power)
340W per channel 4 ohms: no more than 0.15% THD
240W per channel 8 ohms: no more than 0.10% THD
Power Bandwidth
<10Hz to 30kHz (+0, -1dB) at rated power into 4 ohms
Frequency Response
<10Hz to 30kHz (+0, -1dB)
<10Hz to 55kHz (+0, -3dB)
Distortion
THD, SMPTE IMD 4 ohms: <0.15%
THD, SMPTE IMD 8 ohms: <0.10%
Signal-to-Noise Ratio
<105dB below rated power into 8 ohms
Channel Separation
>75dB at1 kHz
Damping Factor
>250dB at1 kHz
Amp Input Impedance
10k ohms unbalanced, 20k ohms balanced
Continuous Sine Wave Average Output Power
(both channels driven at rated power into 4 ohms)
1.76V (+7.1dBu)
Gain
(amp in to speaker out)
26.4dB(21V/V)
Maximum Input Level
9.75V (+22dBu)
Rise Time
< 5us
Slew Rate
> 40V/us
Load Angle
8 ohms time independent: 8 (+/-jx)
4 ohms time dependent: 4 (+/-jx)
High Frequency Overload and Latching
No latch up at any frequency or level
High Frequency Stability
Unconditionally stable driving any reactive or capacitive load
Continuous Sine Wave Average Output Power
(Capable of operation from 75% to 110% of rated line voltage)
United States 120VAC: 60Hz
Physical
Dimensions (H x W x D): 11.7 x 20.5 x 13 in. (297 x 521 x 330mm)
Weight: 46 lbs. (14.5 kg)
Frequency Response
Mic Input to Main Mixer Output (Trim at 0 dB): +0, -1 dB: 32Hz to 20kHz, +0, -3 dB:16Hz to 80kHz
Mic Input to Power Amp Output at rated power output: +0, -1 dB: 32Hz to 20kHz, +0, -3 dB: 16Hz to 55kHz
Distortion
THD and SMPTE IMD; 20Hz to 20kHz
Mic Input to Main Mixer Output: < 0.005% at +4dBu output
Mic Input to Power Amp Output: < 0.15% 250mW to rated power
Common Mode Rejection Ratio (CMRR)
at 1kHz, Trim at 0 dB: 60dB
Noise
20Hz-20kHz bandwidth, 150-ohm source impedance
Equivalent Input Noise (EIN): -127dBu
Residual Output Noise with Main Mixer, Monitor, and Effects outputs, Channel and Master levels off: -95dBu
Main Mixer Output Noise with Master at nominal (-10dB), all channels off: -92dBu
Main Mixer Output Noise with Master and one input at nominal (-10dB and -20dB), Trim at 0dB: -85dBu
Crosstalk
at 1 kiloHertz
Adjacent Inputs or Input to Output: -90 dB
Fader Off: -90 dB
Break Switch Mute: -80 dB
Input Level Trim Control Range
0 to -40dB
Phantom Power
+15V DC
Equalization
Rumble Reduction: 75hz, -18dB/octave
Channel EQ High: +/-15dB at 12kHz
Channel EQ Mid: +/-12dB at 2.5kHz
Channel EQ Low: +/-15dB at 80Hz
Graphic EQ: 9 bands, +/-15dB, Q=1.414: ISO octave centers at 63Hz, 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz, 16KHz
Main Mixer Section Rated Output
Main Mixer, Monitor, and Effects: +4 dBu
Maximum Main Mixer Section Output: +20 dBu
Maximum Input Levels
Mic Input Trim at HI (0dB): -20dBu
Mic Input Trim at LOW (-40dB): +20dBu
Line Input Trim at HI (0dB): 0dBu
Line Input Trim at LOW (-40dB): +40dBu
Insert Input: +20dBu
Stereo Line Input: +20dBu
Tape Input: +20dBu
Effects Return: +20dBu
Power Amp In :+22dBu
Input Sensitivity
Minimum Input Level to produce +4dBu at Main Mixer Output
Mic Input: -68dBu
Insert Input: -28dBu
Line Input: -48dBu
Stereo Line Input: -28dBu
Tape Input: -18dBu
Effects Return: -18dBu
Maximum Voltage Gain
Mic Input to Insert Output: 40dB
Mic Input to Tape Output: 60dB
Mic Input to Main Mixer Output: 72dB
Line Input (Mono) to Insert Output: 20dB
Line Input (Mono) to Tape Output: 20dB
Line Input (Mono) to Main Mixer Output: 52dB
Stereo Line Input to Tape Output: 20dB
Stereo Line Input to Main Mixer Output: 32dB
Tape Input to Tape Output: 10dB
Tape Input to Main Mixer Output: 22dB
Effects Return to Main Mixer Output: 22dB
Effects Return to Monitor Output: 22dB
Input Impedance
Mic Input balanced: 3 kilohms
Insert Input unbalanced: 10 kilohms
Line Input balanced: 40 kilohms
Stereo Line Input unbalanced: 10 kilohms
Tape Input unbalanced: 10 kilohms
Effects Return unbalanced: 10 kilohms
Power Amp In unbalanced: 10 kilohms
Output Impedance
Main Mixer Output: 150 ohms
Insert Output: 150 ohms
Tape Output: 150 ohms
Monitor Output: 150 ohms
Effects Send: 150 ohms
Power Amp Out: 0.032 ohms at 1kHz
Digital Effects
Resolution: 32-bit EMAC internal processing, 2-channel
Sample Rate: 31.25kHz
Bandwidth: 15.6kHz
VU Meters
Main and Monitor, 8 segments: Clip, +5, 0, -5, -10, -15, -20, -30
Power Amplifier Section
Maximum Power at 1% THD, midband
(both channels driven)
2 ohms: 600W x 600W per channel
4 ohms: 450W x 450W per channel
8 ohms: 300W x 300W per channel
2 ohms: 1200W total
Continuous Sine Wave Average Output Power
40Hz to 20kHz (both channels driven at rated power)
340W per channel 4 ohms: no more than 0.15% THD
240W per channel 8 ohms: no more than 0.10% THD
Power Bandwidth
<10Hz to 30kHz (+0, -1dB) at rated power into 4 ohms
Frequency Response
<10Hz to 30kHz (+0, -1dB)
<10Hz to 55kHz (+0, -3dB)
Distortion
THD, SMPTE IMD 4 ohms: <0.15%
THD, SMPTE IMD 8 ohms: <0.10%
Signal-to-Noise Ratio
<105dB below rated power into 8 ohms
Channel Separation
>75dB at1 kHz
Damping Factor
>250dB at1 kHz
Amp Input Impedance
10k ohms unbalanced, 20k ohms balanced
Continuous Sine Wave Average Output Power
(both channels driven at rated power into 4 ohms)
1.76V (+7.1dBu)
Gain
(amp in to speaker out)
26.4dB(21V/V)
Maximum Input Level
9.75V (+22dBu)
Rise Time
< 5us
Slew Rate
> 40V/us
Load Angle
8 ohms time independent: 8 (+/-jx)
4 ohms time dependent: 4 (+/-jx)
High Frequency Overload and Latching
No latch up at any frequency or level
High Frequency Stability
Unconditionally stable driving any reactive or capacitive load
Continuous Sine Wave Average Output Power
(Capable of operation from 75% to 110% of rated line voltage)
United States 120VAC: 60Hz
Physical
Dimensions (H x W x D): 11.7 x 20.5 x 13 in. (297 x 521 x 330mm)
Weight: 46 lbs. (14.5 kg)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact
Phone: 800-898-3211
Email: support@mackie.com
Web: https://mackie.com/en/support/contact
Reviews
Submitted June 30, 2008
"I have been playing for years and researched and owned many different mixers. Trust me,this is the one you have been looking for"
I will keep this mixer as long as it holds out, and probably buy another.
Sound
Have owned the 808M for 3-years, it has worked perfectly. Use it app
2-3 gigs a week, no problem. All kinds of power. Have a 5-piece country band, 4-mics, added 2 Mackie S15s for mains and already had 2-Peavey 15" monitors, dynamite sound. Have owned many other same class mixers, none compare. Tough as nails and great quality for the money. Mackie hit a home run with this mixer.
Value
I know several other pick-up bands that own the 808M and they all say the same thing, its a great mixer
Manufacturer Support
Never had a problem with mixer, but have called for technical info
and always got good support.
The Wow Factor
The looks and design features are what a mixer should be.
Musical Background:
Active musician for 20+ years.
Musical Style:
Country, bluegrass and 60s rock.
18 of 20 people (90%) people found this review helpful. Did you?
Thanks for your opinion!
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
This is a carousel with product cards. Use the previous and next buttons to navigate.
People who bought this item also bought
JBL JRX215 2-Way PA Passive, Unpowered Loudspeaker
$399.00
- 8 x$49.88
- No Credit Check6 x$66.50
- No Credit Check4 x$99.75
Yamaha DXS15MKII Powered Subwoofer Speaker (1x15")
$1,049.99
- 12 x$87.50
- 8 x$131.25
- No Credit Check6 x$175.00
- No Credit Check4 x$262.50
Electro-Voice ELX200-12S Passive, Unpowered Subwoofer (1x12")
$699.00
- 12 x$58.25
- 8 x$87.38
- No Credit Check6 x$116.50
- No Credit Check4 x$174.75
Peavey PV215 Passive Unpowered PA Enclosure (2x15")
$399.99
- 8 x$50.00
- No Credit Check6 x$66.66
- No Credit Check4 x$100.00
Gemini PA SYS15 Complete Dual Speaker PA Package
$499.95
- 8 x$62.49
- No Credit Check6 x$83.32
- No Credit Check4 x$124.99
Peavey PVi 10 Passive, Unpowered PA Speakers (100 Watts, 1x10")
$199.99
- No Credit Check6 x$33.33
- No Credit Check4 x$50.00
Alesis Nitro Max Electronic Drum Set, 8-Piece
$399.00
- 8 x$49.88
- No Credit Check6 x$66.50
- No Credit Check4 x$99.75
Peavey PV15M Passive Unpowered Floor Monitor (500 Watts, 1x15")
$329.99
- 8 x$41.25
- No Credit Check6 x$55.00
- No Credit Check4 x$82.50
JBL JRX225 2-Way Passive, Unpowered PA Speaker
$629.00
- 12 x$52.42
- 8 x$78.63
- No Credit Check6 x$104.83
- No Credit Check4 x$157.25
