Pole Socket Size: 1-3/8" (35 mm)
Frequency Range, 1 meter on-axis, swept-sine inhalf space environment: 45 Hz to 21 kHz
Frequency Response, 1 meter on-axis, swept-sine in anechoic environment: 57 Hz to 20 kHz (±3 dB)
Usable Low Frequency limit (-10dB point anechoic): 43 Hz
Impedance: 8 Ohms
Power Handling:
- Power Rating (program): 400W
- Peak Power Capacity (peak): 800W
Sensitivity Sound Pressure Level, 1 Watt, 1 meter in anechoic environment: 97 dB SPL, (2.83V input)
Maximum Sound Pressure Level (1 meter): 120 dB SPL continuous, 126 dB SPL peak
Radiation Angle measured at -6dB point of polar response:
Nominal: 100° horizontal X 50° vertical(Axis of the vertical main polar lobe is angled down 10°, resulting in the angular pattern with respect to straight ahead being +15, -35°)
Transducer Complement:
- Heavy-duty 15” woofer with 2 3/8” voice coil & 50 oz. magnet
- RX14 1.4” titanium diaphragm dynamic compression driverBox
Tuning Frequency: 53 Hz
Crossover Frequency (internal passive): 2.6 kHz
Impedance (Z):
- Nominal: 8.0 Ω
- Minimum: 6.5 Ω

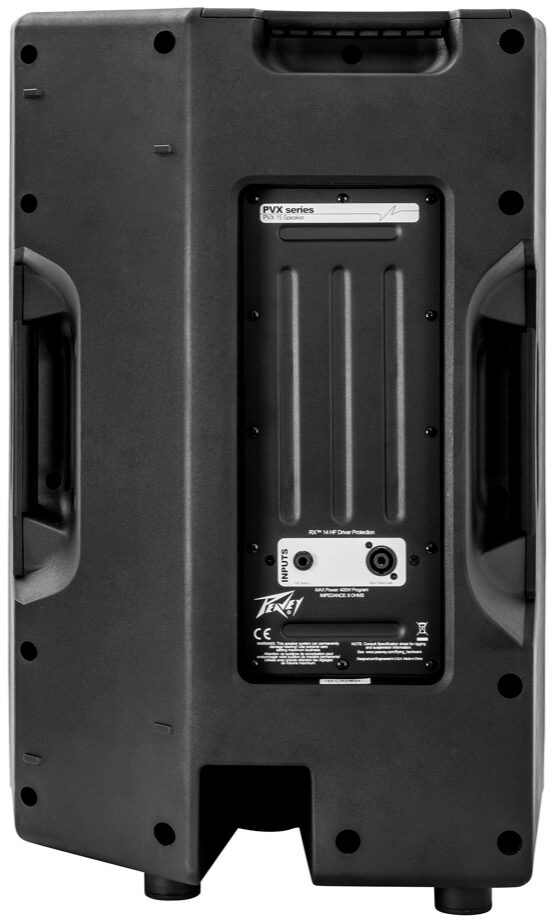

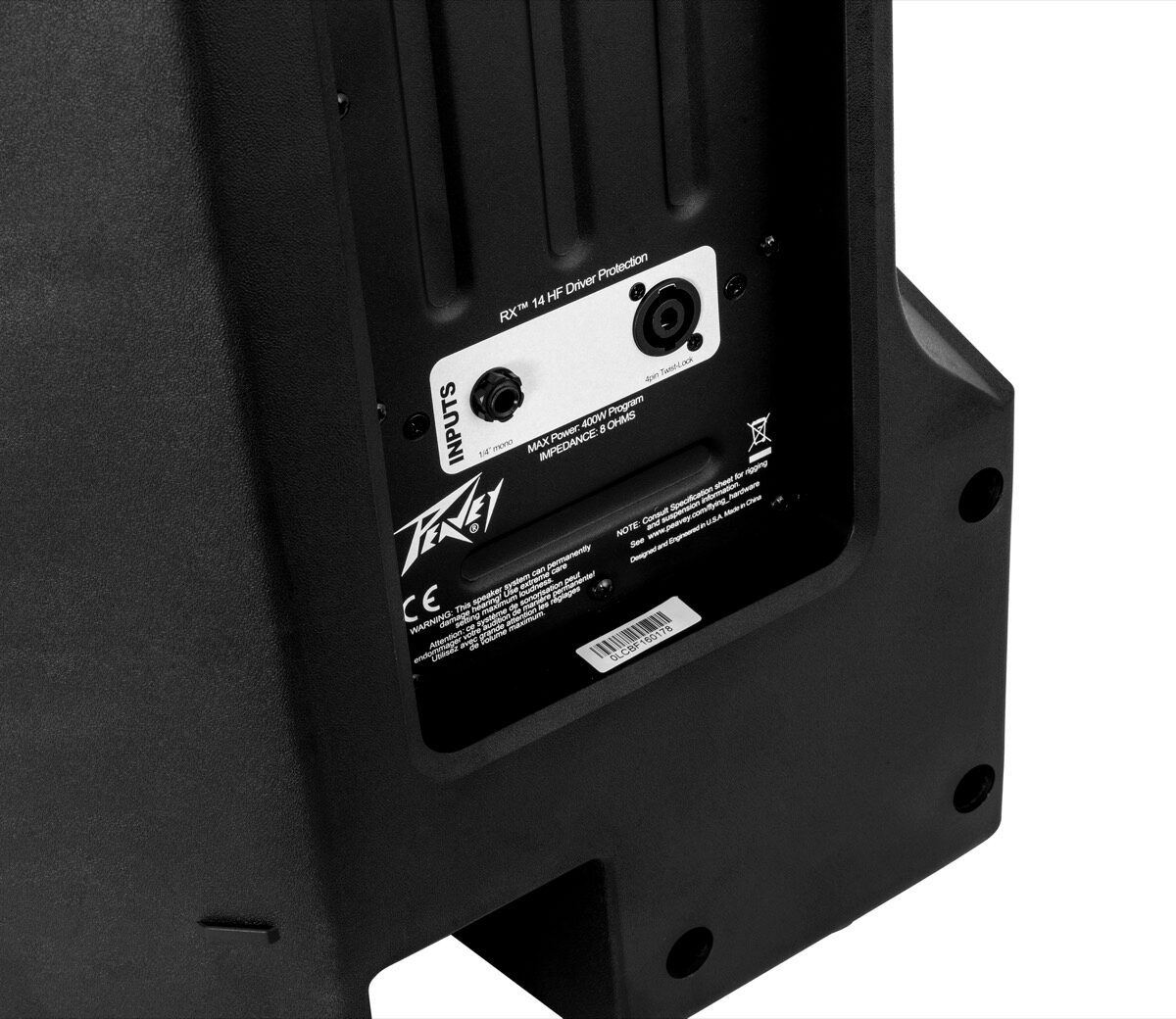

Input Connections: One four-pin twist-lock connector paralleled with a 1/4” jack

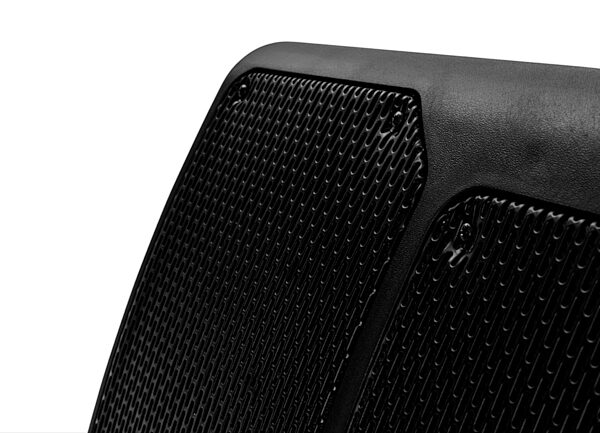

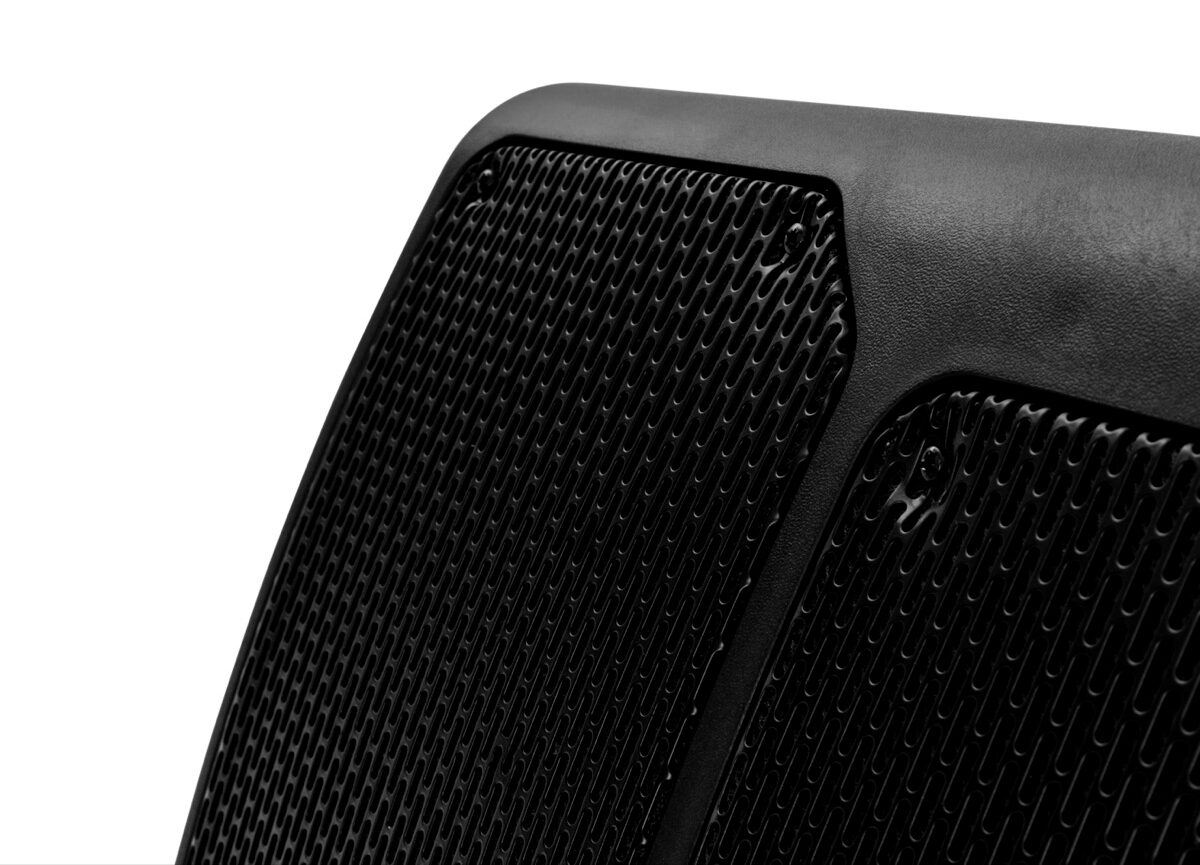

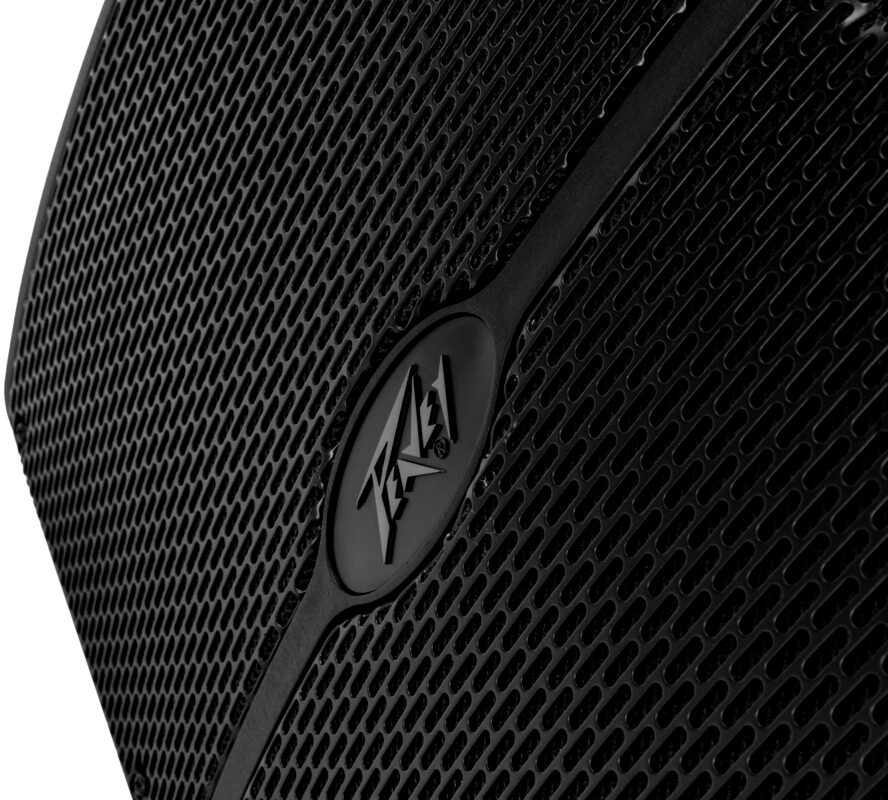

Enclosure Materials & Finish: Black ABS plastic with textured surface, black powder-coated perforated grille.

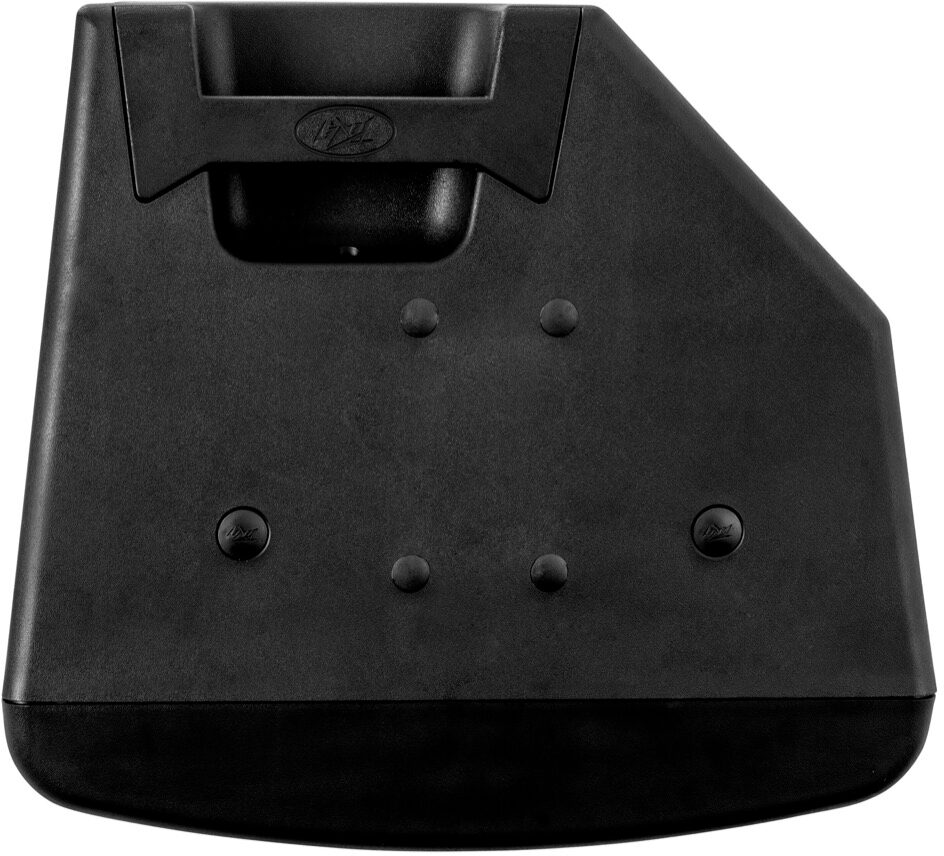

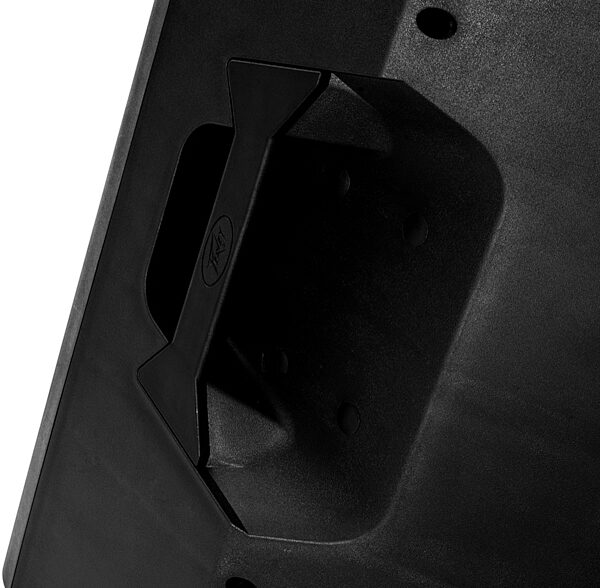

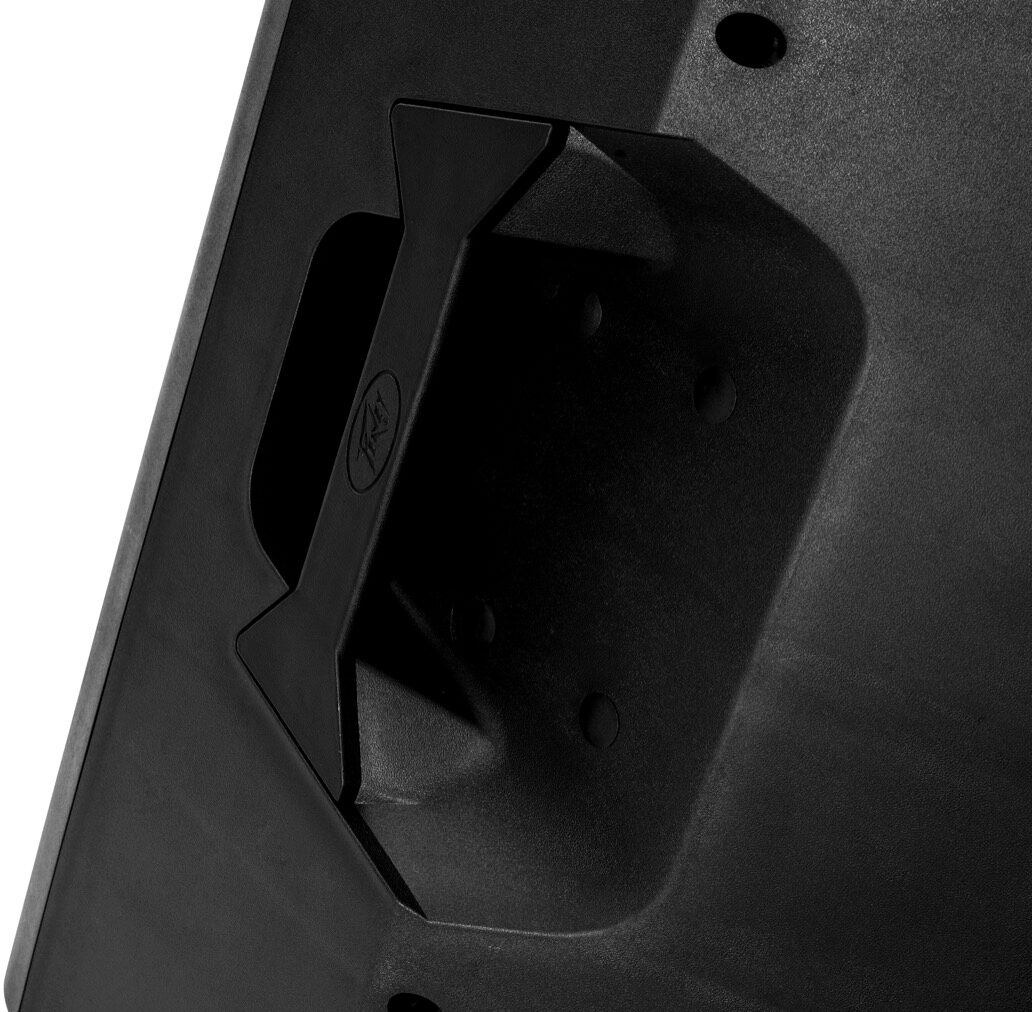

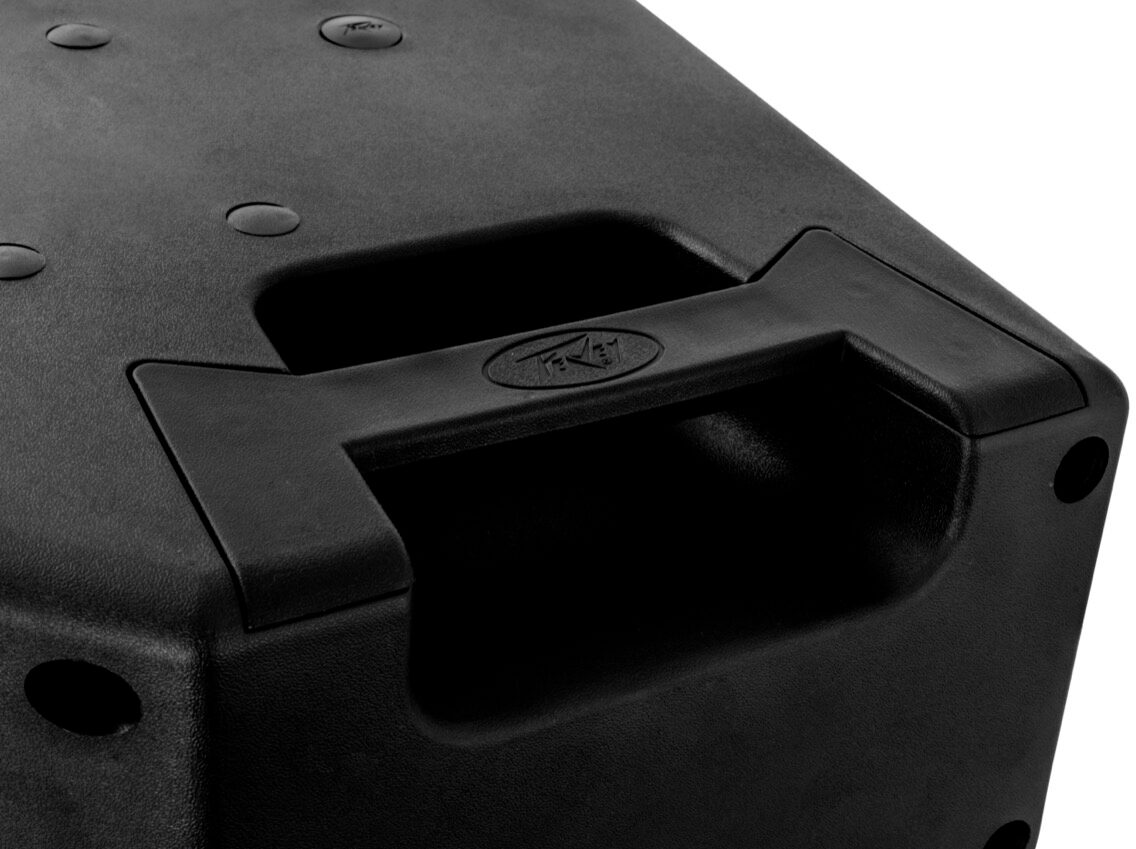

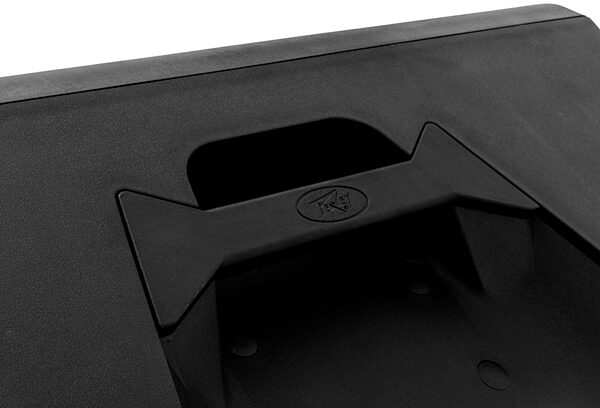

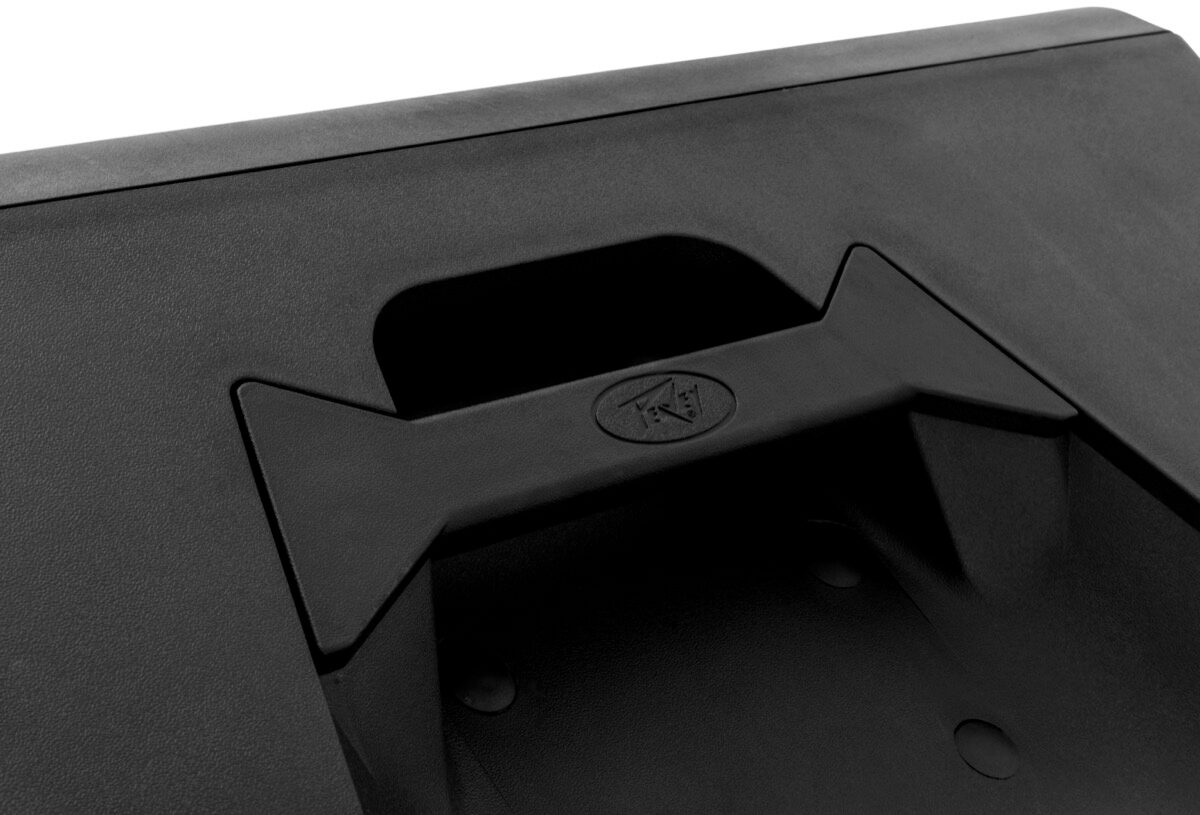

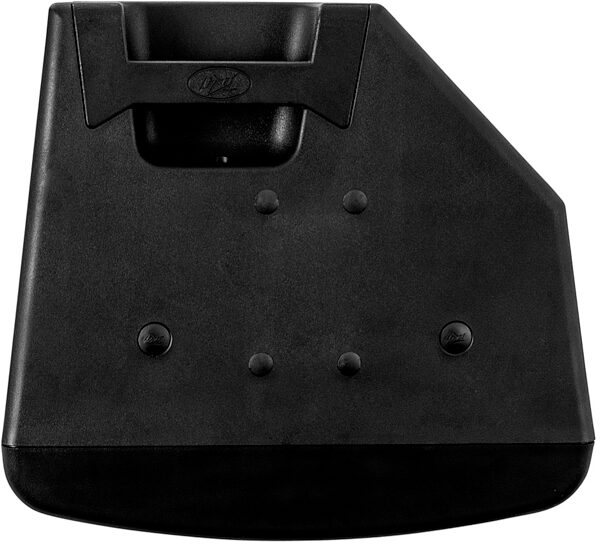

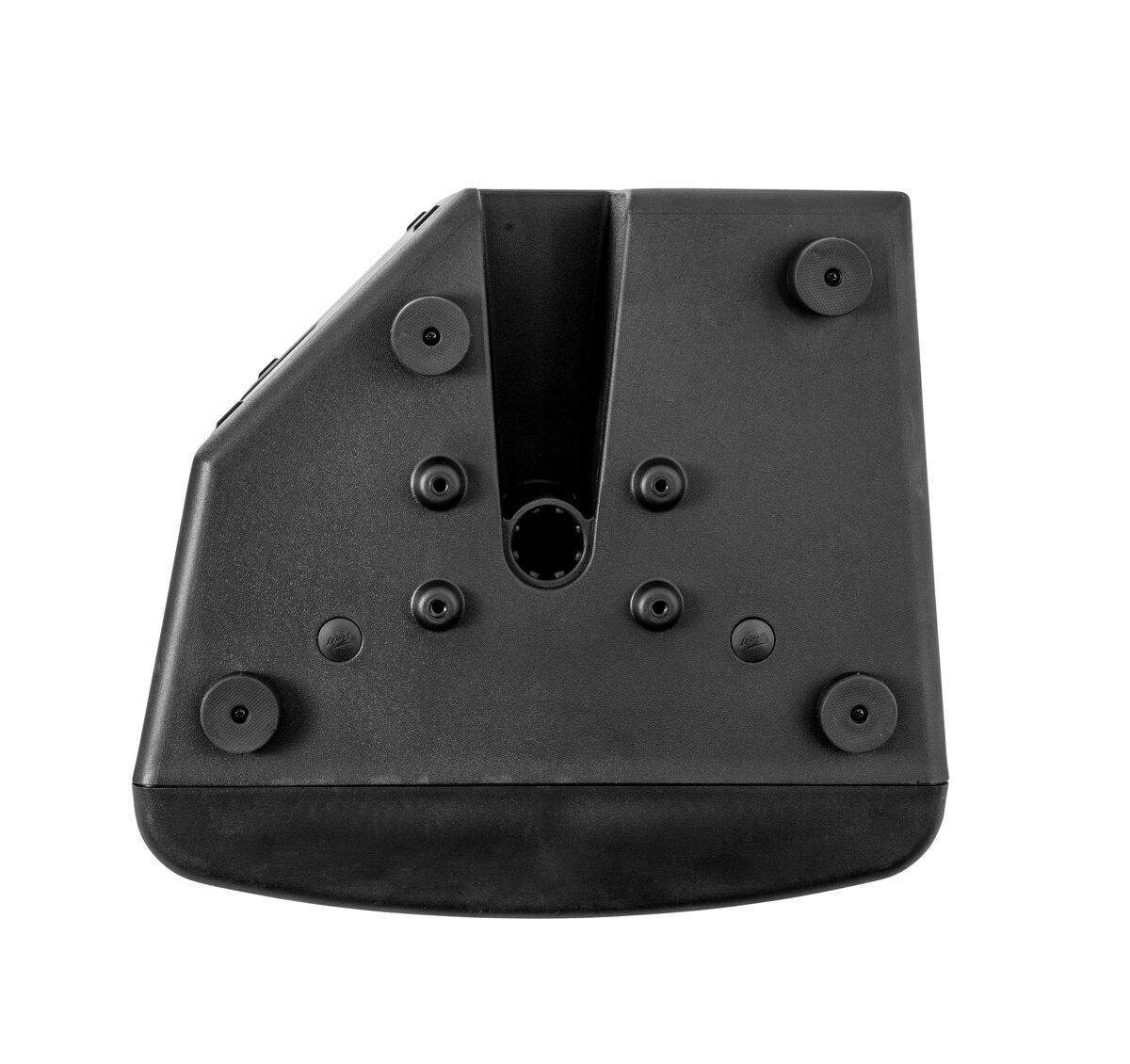

Mounting provisions: Unit has two sets of two M10 inserts, one pair on the top, and one pair on the bottom.Additional mounting points are a set of four M8 inserts on the top, and a set of four on the right side in the handle recess, and a set of four on the bottom, which use the Peavey VersaMount™ 70+ mounting bracket. Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup is on the bottom.
Dimensions (H x W x D):

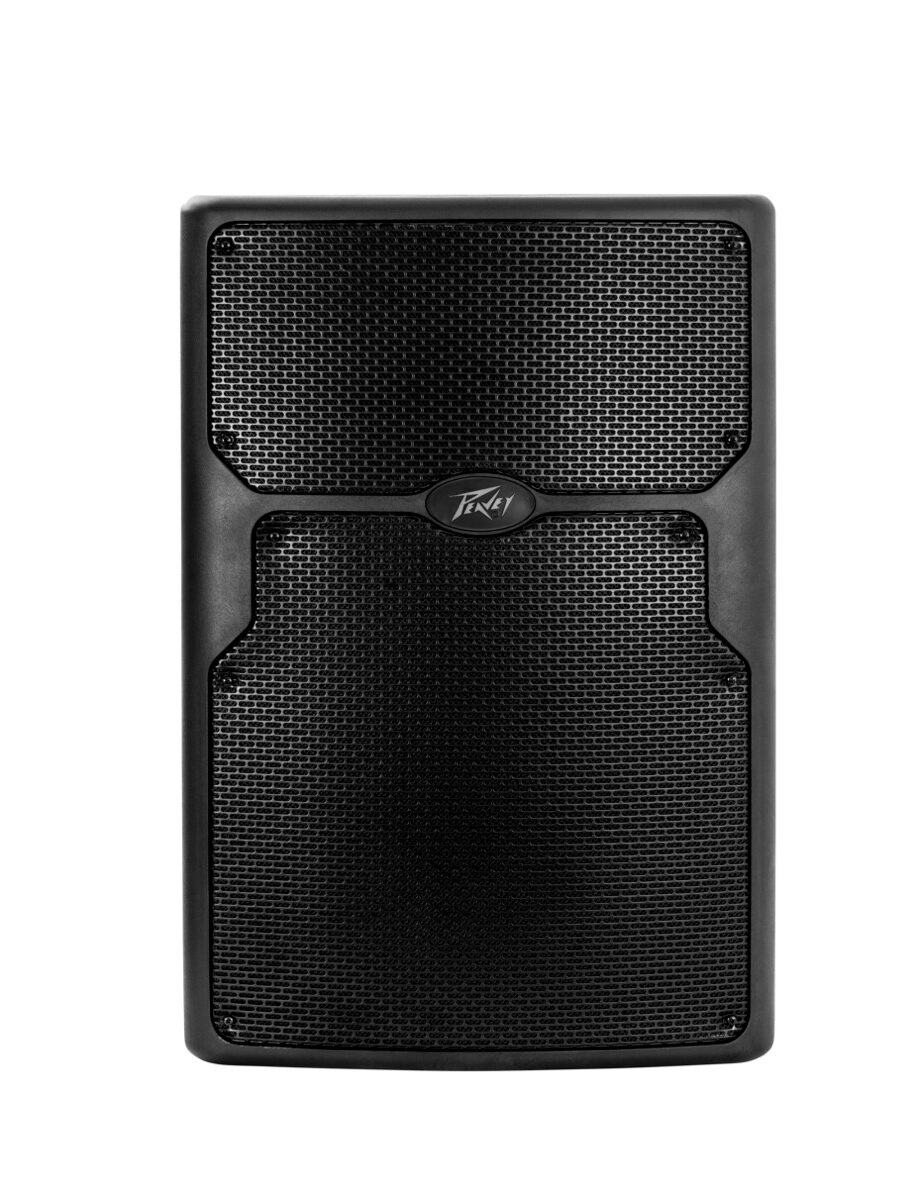

- Front: 28.25" x 18.90" x 18.71" (718 mm x 480 mm x 475 mm)
- Rear: 26.25" x 10.25" x 18.71" (667 mm x 260 mm x 475 mm)
- Net Weight: 47 Lbs. (21.4 kg)
- Dimensions and Weight in Packaging
- Base Item
-
Shipping Weight: 56.25 lbs
-
Shipping Dimensions: 32 x 22 x 20 in
-
Manufacturer Part Number (MPN): 03602430
- Pair
-
Shipping Weight: 112.5 lbs
