2000 Watts of Amplification and Power Conditioning
The Crown XTi2002 Power Amplifier is a 2000-watt rack mounted power amp that distinguishes itself with a number of extremely useful precision adjustment controls. It also serves as a fantastic power conditioner, assuring that your system will get clean AC even if you're working with less-than-optimal power sources.
A number of unique features on the Crown XTi2002 Power Amplifier allow you to control the subtlest details of your sonic output:
Multiband Parametric EQ on Inputs and Outputs
The system software includes a HiQnet Band Manager and System Architect. These allow you to control separate multiband parametric EQs both on the Input and the Outputs! Either EQ can be bypassed when you so desire. The Input EQ also includes High and Low Pass Shelving filters, with Bandpass Gain and Polarity control.
Up to 50 Milliseconds of Delay
The XTi2002's incredibly handy adjustable Delay control, which gives you 50 mS of delay so that you can get your speaker output perfectly aligned and eliminate any trace of phase discrepancy.
Peakx Plus Limiters
The XTi2002 excels even further with its sweet Crown Peakx Plus Limiters. These give you full control over Threshold, Attack, and Release on the peak limiters, to make sure that your dynamic extremes are smoothed out in a way that is sonically and musically agreeable.
There is also a Subharmonic Synth integrated into the XTi2002's design, so that you can fine tune Frequency, Gain and Filter Type, allowing for application-specific tuning.
Thoughtful I/O Design for Maximum Versatility
Each input has a single balanced XLR per channel. For audio output, the XTi2002 sports 2 x Neutrik Speakon NL4MP jacks. The Channel-1 Speakon is wired with Channel-1 and Channel-2 outputs for use with an optional 4-conductor cable. The unit also has a Loop-Thru signal from the input connector, allowing you to link each channel to another amplifier when necessary.
Efficient Design, Durable Construction
The Crown XTi2002 Power Amplifier is built rock solid with an all-steel chassis that takes up 1RU of space in a standard rack. The front panel is handsome cast-aluminum. The unit includes integrated cast-aluminum rack handles.
Get an overview of the Crown XTi2002 Power Amplifier with DSP in this video demo:
- Highly readable backlit liquid crystal display that shows Signal, Ready, Power, Preset, Peak, and Processing status
- Power Supply Temperature and AC Line Voltage.
- Onboard HiQnet Band Manager and System Architect control software
- Input EQ with bypassable 6-band parametric filter
- Input EQ with bypassable 8-band parametric filter
- Highpass and Lowpass filters on each channel
- Subharmonic Synth with Frequency, Gain, and Filter Type settings
- 3 User-defined fan mode controls
- Visible AC line voltage and Power Supply Temperature monitoring
- 29 user-definable preset
- Locking power cord clip
- Integrated cast-aluminum handles
- Delay adjustment for driver signal alignment
zZounds is an authorized dealer of Crown products.
8 ohms Stereo: 475 watts (per channel)
4 ohms Stereo: 800 watts (per channel)
2 ohms Stereo: 1000 watts (per channel)
8 ohms Bridge - Mono: 1,600 watts
4 ohms Bridge - Mono: 2,000 watts
Input EQ: 6 parametric filters per channel with adjustable Q, +/-15 dB boost/cut. Also adjustable high and low shelving filters. This 8-filter EQ section can be bypassed.
Crossover Filters: Highpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave. Linkwitz-Riley 24/48 dB per Octave. Also includes +/- 15 dB bandpass gain and polarity control.
Output EQ: 8 parametric filters per channel with adjustable Q, +/-15 dB boost/cut. This 8-filter EQ section can be bypassed.
Delay: For signal alignment of driver; 50 mS of total delay.
SubHarmonic Synth: Takes the low-frequency content of the input signal and "synthesizes" a signal that is the same as the input signal but one octave lower. The synthesized signal is then mixed with the original signal to create the effect. Users now have control over frequency, gain, and filter type.
Peakx(TM) Plus Limiter: User defeatable limiter that allows users to control Threshold, Attack, and Release times.
Presets: 30 total presets, 29 of which are user-definable.
Sensitivity (for full rated power at 4 ohms): 1.4 Vrms
Frequency Response (at 1 watt, 20 Hz - 20 kHz): +0 dB, -1 dB
Signal-to-Noise Ratio (below rated 1kHz power at 8 ohms):
- XTi1002/2002/4002: 100 dB (A weighted)
Total Harmonic Distortion (THD): < 0.5%
Damping Factor 20 Hz to 1 kHz: > 500
Crosstalk (below rated power): 20 kHz - 1 kHz: > 70 db
Input Impedance (nominal): 20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal: +22 dBu typical
AC Line Voltage and Frequency Configurations: 100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
AC Line Current: (120 VAC amplifier playing 1/8 power pink noise into 4 ohms per ch)
- XTi1002: 6.8A; no more than 38W at idle
- XTi2002: 8.3A; no more than 38W at idle
- XTi4002: 10.5A; no more than 38W at idle
- XTi6002: 15.3A; no more than 180W at idle
Operating Temperature: 0*C to 40*C at 95% relative humidity (non-condensing)

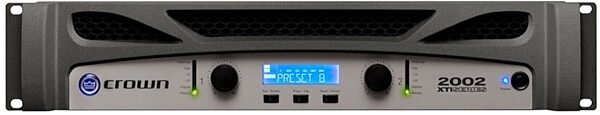

Level: Two front-panel rotary level controls, one for each channel
Power Switch: On/Off switch applies AC power to the amplifier
Sel/Prev/Next Buttons: Three buttons near the LCD screen that are used to access menu items and front panel lockout
LCD Screen: Backlit liquid crystal display that shows preset and processing status
Signal Indicator: Green LED, one per channel, illuminates when a very low-level signal is present at input (may be used for troubleshooting cable runs).
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.
-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip.
Ready Indicator: Green LED, one per channel, illuminates when the amplifier is ready to produce audio.
Clip Indicator: Red LED, one per channel, turns on at the threshold of audible distortion
Temp Indicator: Red LED, one per channel, illuminates under excessive temperature conditions
Power Indicator: Blue LED illuminates when the amplifier has been turned on and has power

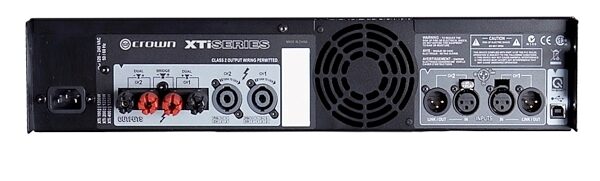

Input Connectors: XLR, one per channel
Link/Out Connector: Loop-thru signal from input connector for linking another amplifier, one per channel.
Output Connectors: Two Neutrik(R) Speakon(R) NL4MP output connectors. Channel-1 Speakon(R) is wired with Ch. 1 and Ch. 2 outputs for use with optional single 4-conductor cable. Two binding post outputs (in parallel with Speakon(R) connectors).
HiQnet(TM) USB Connector: Type B, connects to HiQnet(TM) network.
Front Panel: Cast-aluminum
Cooling: Proportional speed fan with front-to-rear airflow.
- XTi 1002/2002/4002: 19" (W) x 3.5" (H) x 12.25" (D)
Net Weight: XTi 1002/2002/4002: 18.5 lbs (8.4kg)
Shipping Weight: XTi 1002/2002/4002: 21.5 lbs (9.8kg)
- Weight, Dimensions, and Manufacturer Part Numbers
Manufacturer Part Number (MPN):
