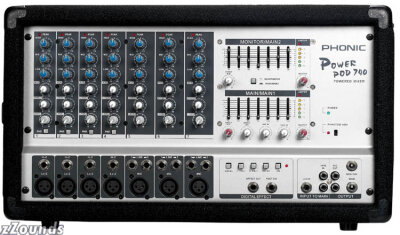

Since its introduction in 1998, the Powerpod740 (previously called Powerpod7) has proved to be an excellent choice for musicians and venues alike. The Powerpod740 offers power and flexibility that can withstand 'life on the road'. Two separate 200 watt amplifiers enable the user to configure the output in three different ways, either Main + Main, Main + Monitor or Main only (Bridged operation, 400W). The Powerpod740 has all the patching necessary to connect you to more amplifiers and an external processor or to accept more inputs via another mixer when circumstances require.
Features:
Built-in 200W + 200W/4Ohm. Amplifier which can be selected as Main+Main, Main+Monitor or Main only (bridged operation, 400W/8 Ohms)
4 types of digital effects allow you to add reverb or ambiance to the mix
7 input channels compatible with mic/line level(channels 5-7 accept stereo line inputs)
3-band EQ on each input channel
2 built-in limiters prevent excessive input levels to amp modules
Dual 7-band graphic equalizers are available for both main and monitor mixes
Switchable global phantom power for all mic input connectors
Effect out for external signal processing
Tape in and out (via RCA/phono connectors) allows for connection of a tape/CD player without taking up a main input channel
Technical Info
Power Amp Output Power in Watts (@THD<0.5%, 1KHz):
8 Ohms per channel: 150 watts
4 Ohms: 200 watts
8 Ohms (bridged mono): 400 watts
Number of Power channels: 2
Limiters: 2
Inputs:
Lo-Z/Hi-Z channels: 7
Balanced Mic/ST Line channels: 3
2T input: RCA
Aux in: TRS, unbalanced
Outputs:
Main Mono: TRS, unbalanced
Monitor: TRS, unbalanced
Effect out: TRS, unbalanced
Rec. out: RCA
Channel Strips:
Aux controls: Monitor, Effect
Pad in/out: Ch 1 ~ 4
Volume Controls: Rotary
Aux send masters: Monitor, Effect
Effects Return to Monitor: Yes
Rotary Fader: Monitor, Main
Metering:
Number of channels: 2
Segments: 5
Phantom Power Supply: +48VDC
Switches: Global
Built-in Digital Effect Processor: 4 programs
Built-in Graphic EQ (2 x 7-band):
Center Frequency: 60, 120, 360, 1K, 2.5K, 7K, 16K Hz
Range: +/-12dB
Noise (20Hz to 20KHz bandwidth, IHF-A weighted, line inputs to main output) Master output, all channel level at minimum: -78dBu
Power amp output, all channel level at minimum: -63dBu
THD+N:
Power output, 20Hz to 20KHz: <0.12% @100 watts, 4 Ohms
Any output, 20Hz-20KHz@ 4dBu output: <0.06%
CMRR (1 KHz @ -60dBu, Gain at maximum): 80dB
Crosstalk (1 KHz @ -60dBu, Gain at maximum): -63dB (Channel level @ minimum, other channels at unity)
Frequency Response (Mic input to output):
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +0/-2dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +0/-2dB
Maximum Levels:
Mic preamp input: +10dBu
All other inputs: +22dBu
Unbalanced outputs: +22dBu
Impedances:
Lo-Z input: 2.2KOhms
Hi-Z inputs: 5.5K Ohms
All other inputs: >10KOhms
RCA 2T outputs: 1.2KOhms
All other outputs: 560 Ohms
Equalization (3-band, +/-15dB):
Low EQ: 80Hz
Mid EQ: 2.5KHz
Hi EQ: 12 KHz
