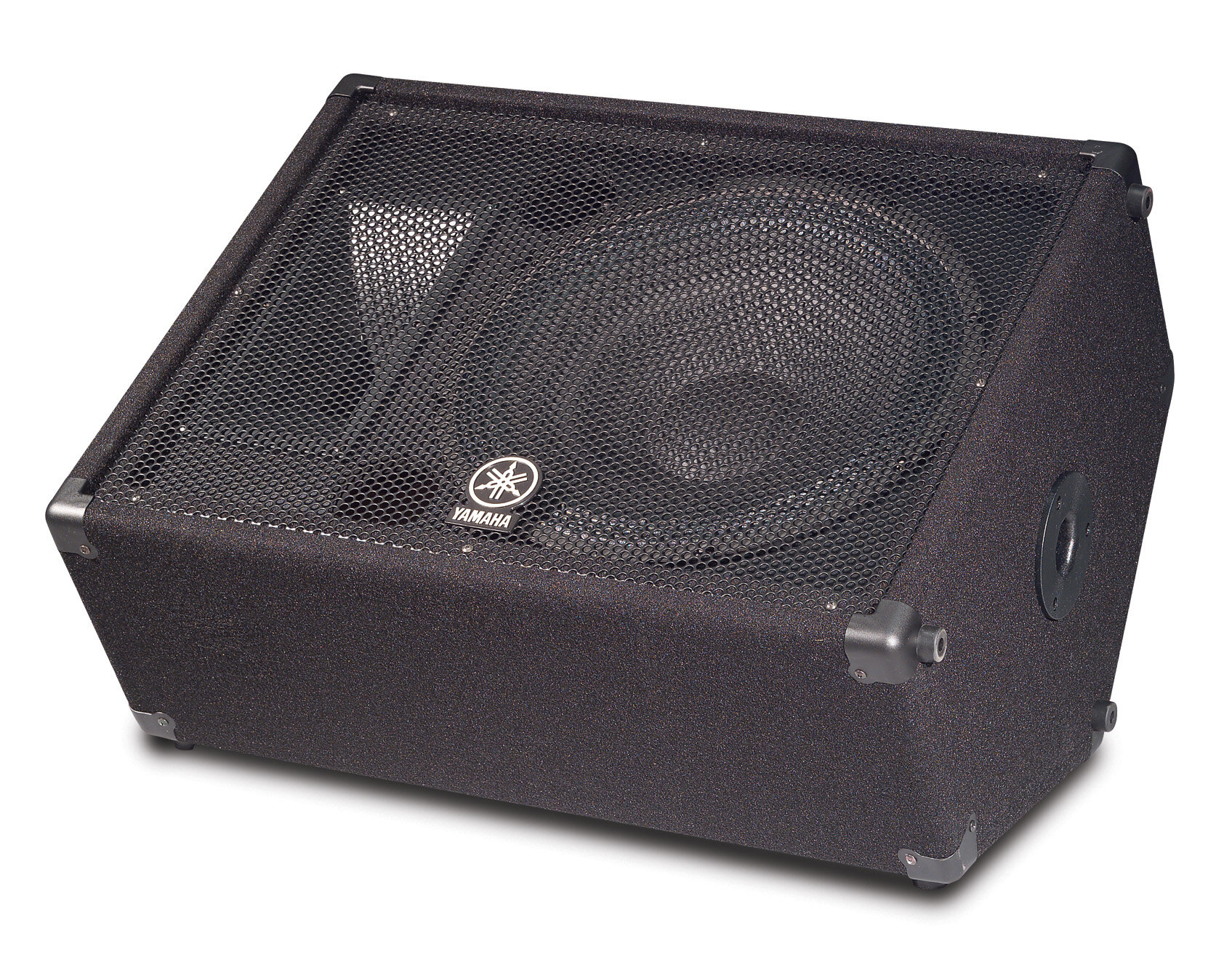

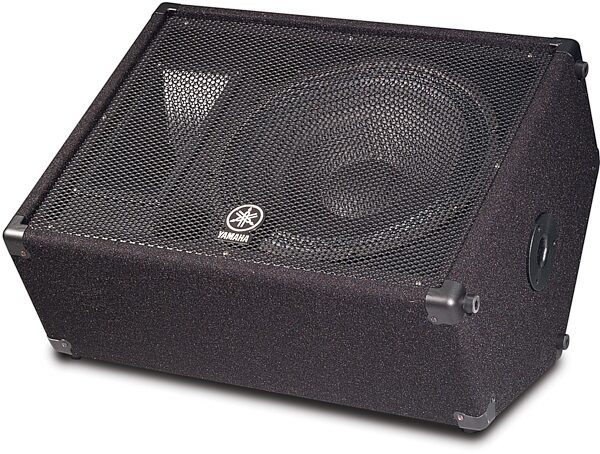

Yamaha BR15M Passive Unpowered PA Monitor Cabinet (400 watts, 15")

Gain max performance at an affordable cost with this Yamaha PA monitor. It has the full-frequency response and high output typical in high-priced cabinets. Unpowered. Requires separate power amplifier.
Need big sound in a small space? Set the Yamaha BR15M on stage and you'll get just that. Ideal for building a passive PA rig on a budget, the BR15M PA monitor is a high-performance bargain offering the full-frequency response, high output, and power handling that you'd expect of a more expensive model, but at a price that won't set you back.

Made for the Stage

Handling 400 watts program and 800 watts peak, these 12-inch passive speakers are powerful enough to run as floor monitors in a school or house of worship -- or even as your main in a small club. The BR15M's compact, lightweight build makes it easy to mount on a stand, using its built-in pole sockets, or to place it discreetly onstage. Large steel handles help you get the 34-pound unit from van to stage, and corner protectors safe-guard the monitor from impending kicks and drops.

The "BR" Stands for Bass Response

You don't need huge monitors to hear full-range sound. Yamaha's Bass Reflex technology backs the BR15M's superior low-frequency response, while a 1-inch titanium HF driver and 90- x 40-degree non-resonant horn yield sparkling highs. Versatility is the name of the game, as the BR15M can handle any kind of music across the frequency spectrum, from 60 Hz to 20 kHz. Since integral protection circuitry is built into the passive crossover, your music comes through loud and clear with near-zero distortion.

Features:

- High-performance, 15", 2-way passive stage monitor cabinet
- 1" titanium read more tweeter (compression driver)
- Frequency response (-10 dB): 60 Hz to 20 kHz
- 400 Watts program/800 Watts peak power handling
- Nominal Impedance: 8 ohms
- Nominal Dispersion: 90 degrees H x 40 degrees V C.D.
- 98 dB sensitivity (1W, 1m)
- (2) 1/4" headphone inputs
- Covered by Yamaha's 3-year warranty
- Dimensions: 25-3/4" (W) x 19" (H) x 14 1/2" (D)
- Weight: 46 lbs.

Note: Unpowered speaker, requires separate power amplifier.
read less
- Woofer: 15 in.
- Tweeter (diaphragm): 1 in. titanium
- Frequency Response (-10dB): 60Hz-20kHz
- Power Handling (noise*/program/peak): 200/400/800 Watts
- Nominal Impedance: 8 ohms
- Nominal Dispersion: 90 degrees H x 40 degrees V C.D.
- Sensitivity (1W, 1m): 98dB
- Input Connectors: 2 x 1/4 in. Phone
- Pole Socket Size: 1-3/8" (35 mm)
- Dimensions (Approximate W x H x D): 25 3/4" x 19 1/4" x 14 1/2"
- Weight: 46 lbs.

*(EIA RS426)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 50 lbs
Shipping Dimensions: 28 x 21 x 17 in
Manufacturer Part Number (MPN): YAM BR15M
For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support

Yamaha BR15M Stage Monitor

The BR15 from Yamaha combines affordability with high performance. Five BR models are designed to fit the budgets of performing musicians, small churches, and schools, while delivering the full frequency response and high output of more costly systems. While "BR" presents "bass reflex", it also proves very appropriate for describing the line's advanced feature set...

Built Right: Combining their knowledge of acoustics and advanced computer controlled woodworking, Yamaha Music Manufacturing in Thomaston, Georgia, crafts the BR15 of sound reinforcement loudspeakers to exacting standards. Each model's large steel handles, corner protectors, and built-in pole sockets, assure both durability and flexibility.

Better Response: BR15 cabinets are carefully designed for the best balance of small, easy to handle size and great low-frequency response, using Bass Reflex technology. High-frequency response is also enhanced with a 1" titanium HF driver and 90 degrees by 40 degrees non-resonant horn.

Best Reliability: All BR15 models are covered by a three-year warranty. With integral protection circuitry built into the passive crossover, you can expect a long life of high output and minimal distortion. Whichever model you choose, your message is sure to be heard using BR15 loudspeakers... and you can take the savings to the bank!

Note: Unpowered speaker, requires separate power amplifier.
