Hosa CBT-500 Cable Tester



zZounds Gear Experts Say...
Don't let a bad cable ruin your next gig. Test 3-pin XLR, 5-pin XLR, 1/4" TRS and TS, speakON, RCA, DIN, Ethernet, USB and more cables with the Hosa CBT-500.
Overview

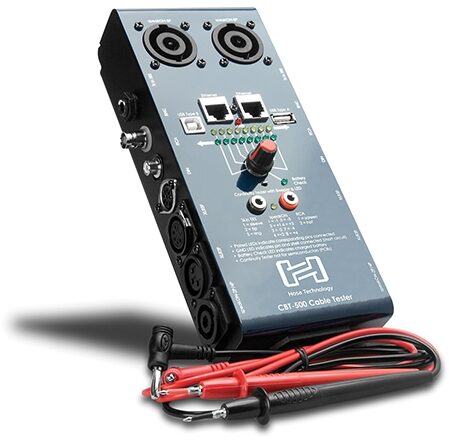

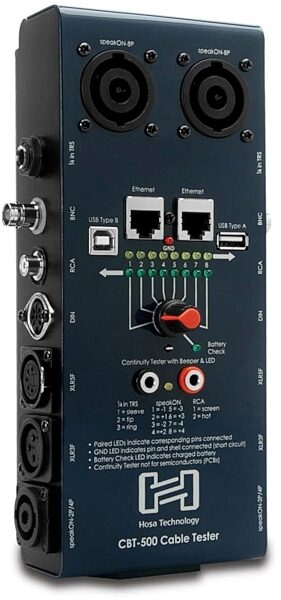

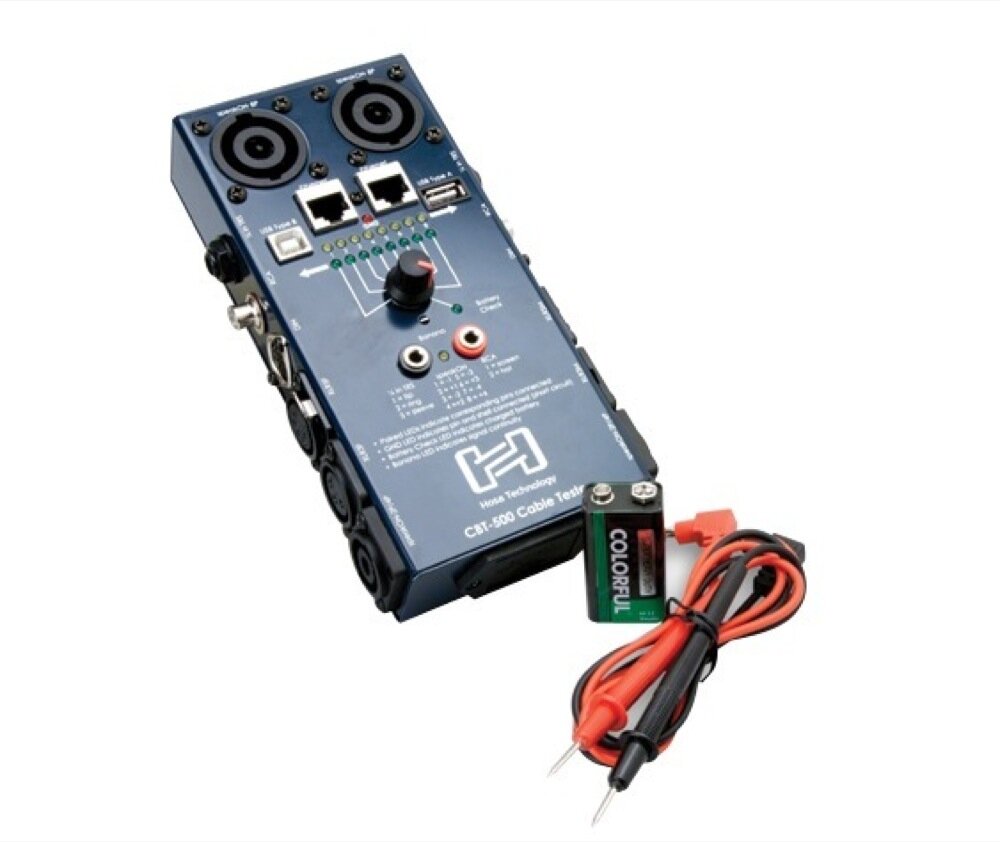

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).

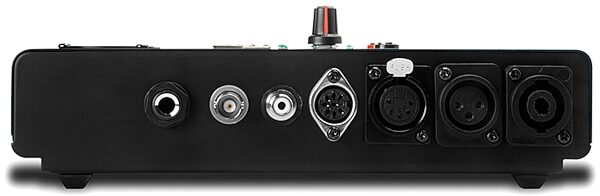

- Plug one connector into corresponding jack on left side of tester

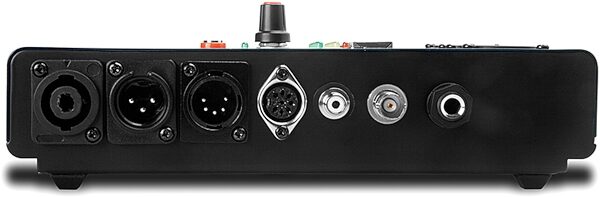

- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
- If continuity exists, the center LED will illuminate and tester will beep
- LED will illuminate if the battery is charged
- speakON 2-, 4-, and 8-pole
- Phono (RCA)
- 1/4" TRS and TS
- 3-, 5-, and 8-pin DIN
- RJ45 (Ethernet)
- 75-ohm BNC
- USB Type A to Type B
- Test probes for continuity testing of bare wire and any connectors not found on the CBT-500.
Cable Test:
- Turn knob to position 1- Plug one connector into corresponding jack on left side of tester
- Plug other connector into corresponding jack on right side of tester
- Turn knob to each position to check wiring of each contact
Continuity Test:
- Apply the tip of each lead to the corresponding contacts- If continuity exists, the center LED will illuminate and tester will beep
Battery Check:
- Turn knob to Battery Check- LED will illuminate if the battery is charged
Compatible with the following cable terminations:
- XLR 3-pin and 5-pin- speakON 2-, 4-, and 8-pole
- Phono (RCA)
- 1/4" TRS and TS
- 3-, 5-, and 8-pin DIN
- RJ45 (Ethernet)
- 75-ohm BNC
- USB Type A to Type B
- Test probes for continuity testing of bare wire and any connectors not found on the CBT-500.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 2.37 lbs
- Shipping Dimensions: 12 x 6 x 3 in
- Manufacturer Part Number (MPN): CBT-500
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 714-522-8878 or 800-255-7527
Web: https://hosatech.com/support/
Phone: 714-522-8878 or 800-255-7527
Web: https://hosatech.com/support/
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(8 ratings)
Submitted March 31, 2014 by IRA VESTAL in CONOVER, NC
"A MUST HAVE"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
THIS THING IS AWESOME. I MAKE ALOT OF OUR BANDS CABLES AND I TEST THEM WITH THIS FIRST.. AWESOME TOOL. A TIME SAVER WHEN TROUBLE SHOOTING A PA OR GUITAR RIG WITH A BAD CABLE.. TAKES OUT ANY GUESS WORK... ALSO HAS TEST LEADS.
Musical Background:
BEEN PLAYING FOR 20 YEARS
Musical Style:
METAL,ROCK PUNK
17 of 17 people (100%) people found this review helpful. Did you?
