Switchcraft Right Angle 1/4" TS Connector

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

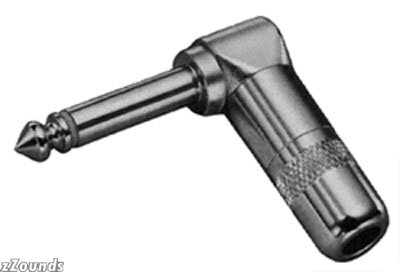

Switchcraft Right Angle 1/4" TS Connector, New, Main
Switchcraft Right Angle 1/4" TS Connector, New, Main
zZounds Gear Experts Say...
Building your own guitar cables? This Switchcraft right-angle L-shaped plug has large terminals for easy wiring, and its three pieces are simple to assemble.

Switchcraft's 2-conductor right-angle audio phone plug is designed for OEMs and users of commercial phone plugs. The plugs offer large terminals for easy wiring, and only three pieces to assemble -- handle, insulator and finger/housing assembly and rugged reliability for stable, long-term, trouble-free operation.

Features
Easy termination: Large terminals accept up to 16 AWG wiring (cables up to .25 inch diameter)

3-piece assembly: Screw on the handle for quick and easy assembly; minimizes labor costs.

Rugged: All-metal exterior construction.

Low profile: Only 1/2 in. wide. Ideal for crowded, multi-channel panels. Right-angle handle minimizes space required behind equipment.

Knurled handles: Positive grip during connect/disconnect.

Rugged cable clamp: Isolates pulling and twisting strains.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Tip, rod and handle: Nickel-plated copper alloy.

Housing/sleeve: Nickel-plated.

Tip terminal: Tin-plated copper alloy.

Sleeve (clamp) terminal: Tin-plated steel.

Insulation: Thermoplastic.

Dielectric withstanding voltage: 500 Vac.

Insulation resistance: 50,000 Megaohms minimum (initial).

Operating temperature: - 20 degrees C to + 65 degrees C.
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.06 lbs
Shipping Dimensions: 3 x 1 x 1 in
Manufacturer Part Number (MPN): BC-SWI 226

For support or warranty questions, please contact the manufacturer:
Phone: 773-792-2700

Reviewers gave this product an overall rating of 5 out of 5 stars. (6 ratings)
Submitted July 25, 2024 by Kevin

"Great replacement connectors"

Overall: 5 out of 5 stars
(see rating details)
zZounds Employee Written by a current zZounds employee or former employee during the time of their employment.
I needed to change some cables from a straight plug to a right angle plug for my pedalboard. These have been great. They were easy to install (as long as you know how to solder) and have been very reliable and good quality. Would definitely recommend.
