Shure A15AS Switchable In-Line Audio Attenuator

zZounds Gear Experts Say...
Prevent a high-output mic or hot line-level signal from overloading your mixer -- the Shure A15AS in-line attenuator reduces your signal by 15, 20, or 25 dB.

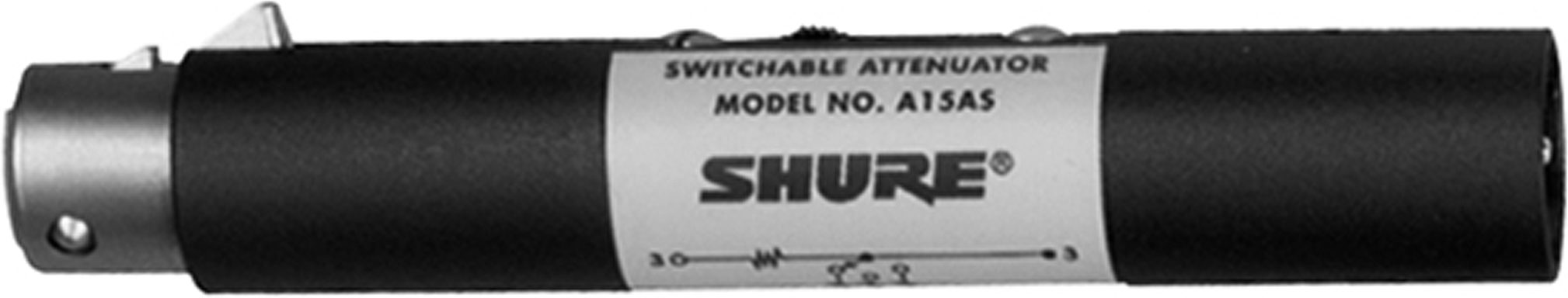

The Shure A15AS Switchable In-Line Attenuator reduces the level of any balanced microphone or line-level signal by 15, 20, or 25 dB. It is specially suited to reducing the level of a high-output microphone to prevent it from overloading the microphone input of a mixer or recorder in applications with high sound pressure levels. In addition, the A15AS may be used to reduce the level of a line-level mixer output to prevent overloading the aux-level input of a recorder. The A15AS is equipped with a female 3-pin XLR connector on the input side, and a male 3-pin XLR connector on the output side. Attenuation is controlled by a three-position slide switch. The A15AS allows phantom power to pass through from the mixer to the microphone, so it can be used with condenser microphones.

- Type: In-line switchable attenuator
- Primary Impedance: 1,000 Ω
- Secondary Impedance: 150 Ω
- Frequency Response: 20 to 20,000 Hz ±0.5 dB
- Attenuation Range: 15, 20, or 25 dB (switch selectable)
- Input/Output Connectors: XLR Female input, XLR Male output
- DC Resistance (Primary): 215 Ω (equivalent single series simplex-powering resistance)

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 0.24 lbs
  • Shipping Dimensions: 8 x 6 x 1 in
  • Manufacturer Part Number (MPN): A15AS
