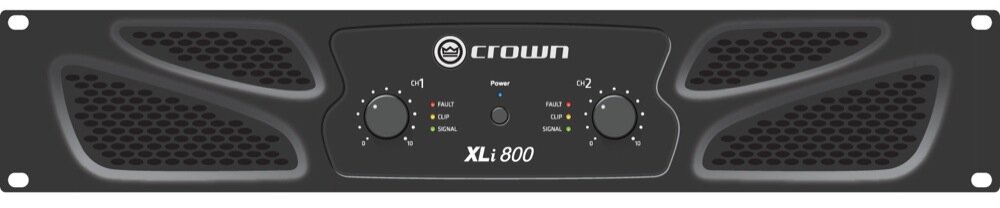

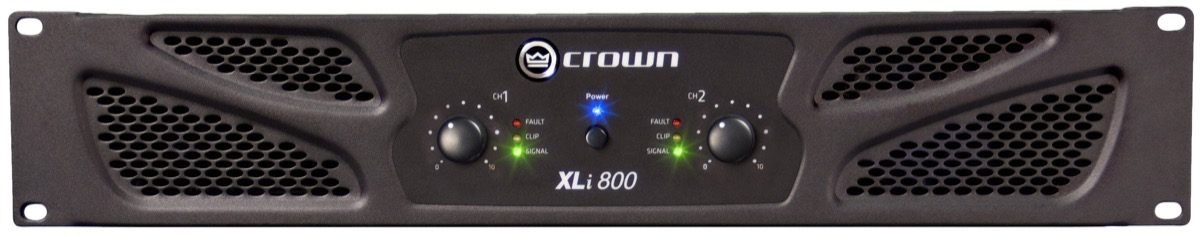

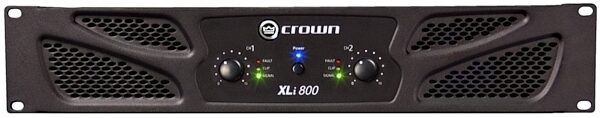

Crown XLI800 Power Amplifier (300 Watts)

zZounds Gear Experts Say...

Rock your small venue or club with the Crown XLI800. This power amplifier is built to last with 300 watts of reliable power and a rugged metal chassis.

Overview

The Crown XLi800 Power Amplifier offers affordable live sound amplification that is powerful, rugged and reliable. Built for musicians, DJs, and entertainers as well as houses of worship, discos, and pubs; the XLi800 features 300-watts of power, RCA and XLR inputs, selectable input sensitivity of 0.755V or 1.4V, Speakon and binding post outputs, stereo/parallel/bridge-mono mode, power/fault/signal presence/clip indicators, forced-air cooling; and protection against shorts, no-load, on/off thumps and radio-frequency interference.

With over six decades of experience designing and building rock-solid products, Crown is the standard in amplifier technology. So check out the affordable Crown XLI Series. They are a powerful argument for quality and value.

Features:

- 300 watts per Channel at 4 Ohms
- Stereo/parallel/bridge-mono mode
- User selectable input sensitivity - 0.775V and 1.4V
- Electronically balanced RCA and XLR inputs; binding post and Speakon outputs
- Efficient forced-air cooling prevents excessive thermal buildup
- Electronically balanced RCA and XLR inputs; binding post and Speakon outputs
- Two level controls, power switch, power LED, and six LEDs which indicate signal presence, clip and fault for each channel
- Protection against shorts, no-load, on/off thumps and radio-frequency interference
- Rack-mountable: 2U rack spaces

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Channels: 2
- Guaranteed Minimum Power:
- - 4 ohm stereo (per channel): 300 watts
- - 8 ohm stereo (per channel): 200 watts
- - 8 ohm bridge mono: 600 watts
- Sensitivity (full rated power at 8 ohms): 0.775V or 1.4V
- Signal to Noise Ratio (below rated power 20Hz to 20kHz, A-Weighted): > 100 dB
- Total Harmonic Distortion (THD) (20Hz - 20kHz): < 0.5%
- Inter Modulation Distortion (60Hz and 7kHz at 4:1 from full rated output to -40 dB): = / < 0.35%
- Frequency Response (at 1W, 20Hz - 20kHz): 0 dB, -1 dB
- Crosstalk (below rated power):
- - at 1kHz: -75 dB
- - at 20kHz: - 59 dB
- Damping Factor (from 10Hz to 400Hz, 8 ohms): > 200
- AC Line Voltage and Frequency Configurations (+/- 10%):
- - 120VAC 60Hz
- - 220VAC 50/60Hz
- - 230-240VAC 50/60Hz
- Dimensions (H x W x D): 3.5 x 19 x 12.4 inches (89 x 482 x 315mm) (2U rack-mountable)
- Weight: 25.1 lb (11.4 kg)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 28.5 lbs; Shipping Dimensions: 23 x 21 x 6 in; Manufacturer Part Number (MPN): NXLI800-0-US

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-342-6939

Reviews

(8 ratings)

Submitted August 24, 2017 by Danno V in Oshksoh, WI

"Crown"

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

I purchased this Crown Amp for my bands monitor system. I was a bit worried about this new line made in China. The amp came and is well built, It sounds very clean , and a definite upgrade to our monitor system. We have only used on a few gigs, but so far, so good. Cant beat the price of 199.00 for zZounds my favorite music online store. The no interest pay as you play has allowed me to purchase a lot of badly needed gear over the last 4 years. Keep up the good work zzounds !
