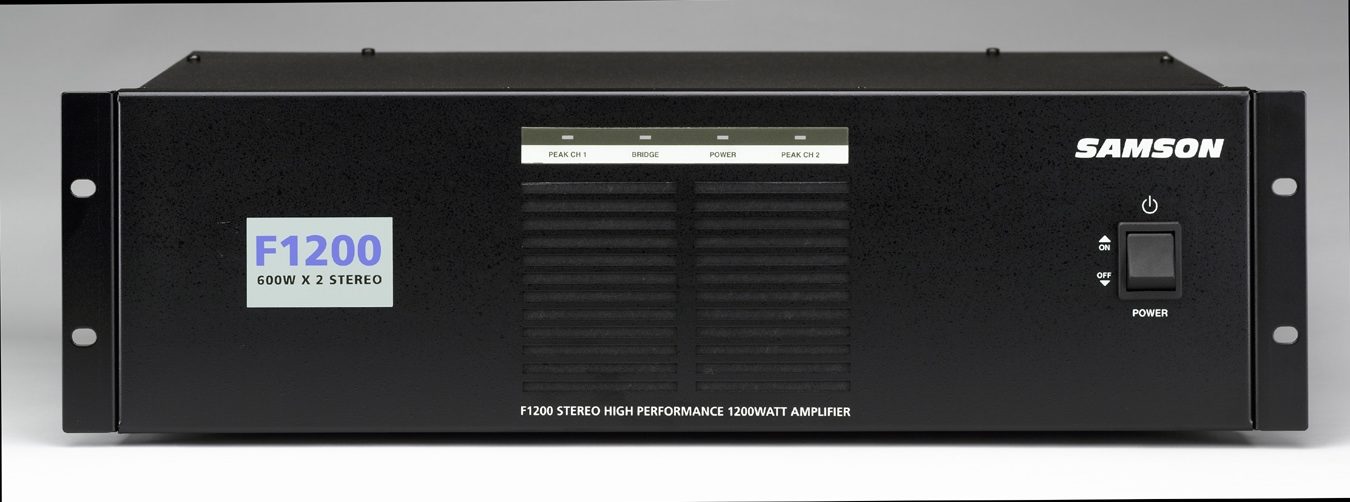

Samson F1200 Power Amp (600 watts/channel Stereo, 1200 watt Mono)

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Samson F1200 Power Amp (600 watts/channel Stereo, 1200 watt Mono), Main
Samson F1200 Power Amp (600 watts/channel Stereo, 1200 watt Mono), Main
Samson F1200 Power Amp (600 watts/channel Stereo, 1200 watt Mono), Main Samson F1200 Power Amp (600 watts/channel Stereo, 1200 watt Mono), Main
zZounds Gear Experts Say...
3 rack space chassis.

Designed to provide plenty of power and maximum efficiency, Samson's rugged new F1200 stereo power amplifier is ideal for live sound reinforcement, DJ use, commercial installations, and PA systems. The amp section produces 600 watts per side into 4 ohms and 1200 watts into 8 ohms in the bridged mono mode.

Housed in a 3 rack space chassis, the F1200 features a bipolar design to ensure stable operation and accurate audio reproduction. The front panel includes a power On/Off switch along with Power, Bridge, and 2 Peak LEDs. Other practical features include: Õ in. balanced and RCA input connectors and Binding Post output connectors.

Features
Stereo power amplifier in 3 rack spaces

Produces 600 watts per channel into 4 ohms and 1200 watts into 8 ohms (bridged mono mode)

Fan cooled for maximum efficiency

Stable bipolar design for long life and enhanced audio performance

Dual protection LEDs, power and bridging LEDs

Binding post output connectors

Balanced Õ in. and RCA input connectors

Resettable fuse

Input Sensitivity: +0dbm ±1dbm

Rated Power Output Level (1kHz THD 5% / Both CH Drive)
8 Ohm per channel: 400W
4 Ohm per channel: 600W
8 Ohm Bridged Mono: 1200W

Frequency Response (0db +0.5, -1db):
8 Ohm 1W: 20Hz - 20kHz

Total Harmonic Distortion (1/2 Power, THD 0.1% at 20 - 20kHz, Both Ch Drive)
8 Ohm load: 0.1%
4 Ohm load: 0.1%
8 Ohm Bridged: 0.1%

Channel Separation (input 600 Ohm short)
8 Ohm, 125W, 20Hz - 20kHz
Ch1 -> Ch2: -65dB
Ch2 -> Ch1: -65dB

Residual Noise
Input 600 Ohm Shunt, DIN Audio Avg on: -60db

Signal-to-noise Ratio (Input 600 Ohm Short, DiIN Audio): 95dB

Voltage Gain: 4 Ohm, 1kHz

Indicators:
Clipping LED: 1kHz, THD 5%

DC Offset Voltage: 0±100mV

Idle Current: 10±2mV

Damping Factor: 100

Dimensions (W x D x H): 18.75 x 11.5 x 5 in. (476.25 x 292.1 x 127 mm)
(Width includes rack ears. Height does not include feet)

Weight: 40.5 lbs. (18.4 kg)

For support or warranty questions, please contact the manufacturer:
Phone: 516-870-7200
Web: http://www.samsontech.com/contact/
Owner's Manual
