zZounds Gear Experts Say...
This combo digital wireless system from Sennheiser gives you the choice of an ME 2 lavalier, or SKM-S handheld microphone, with easy setup via mobile app.

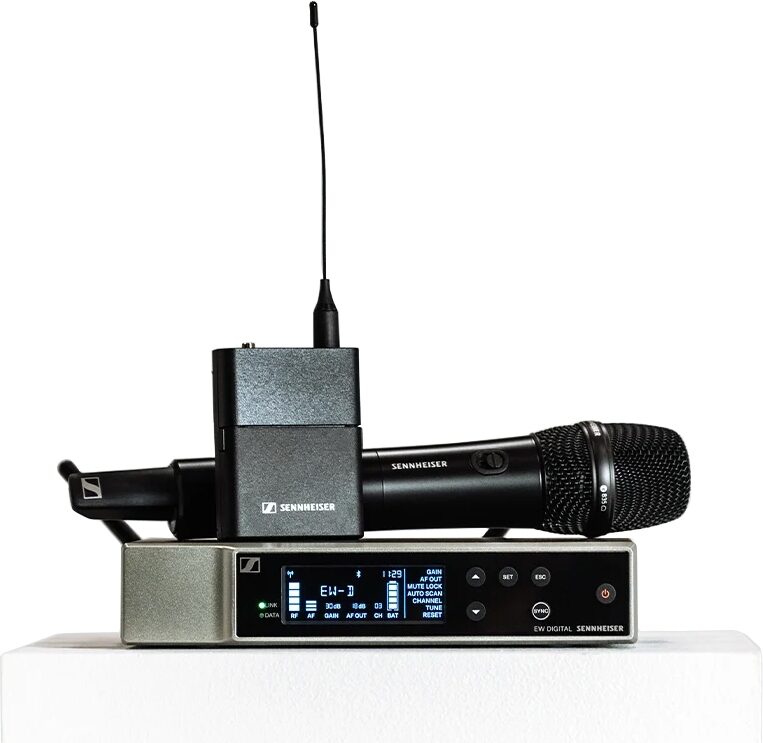

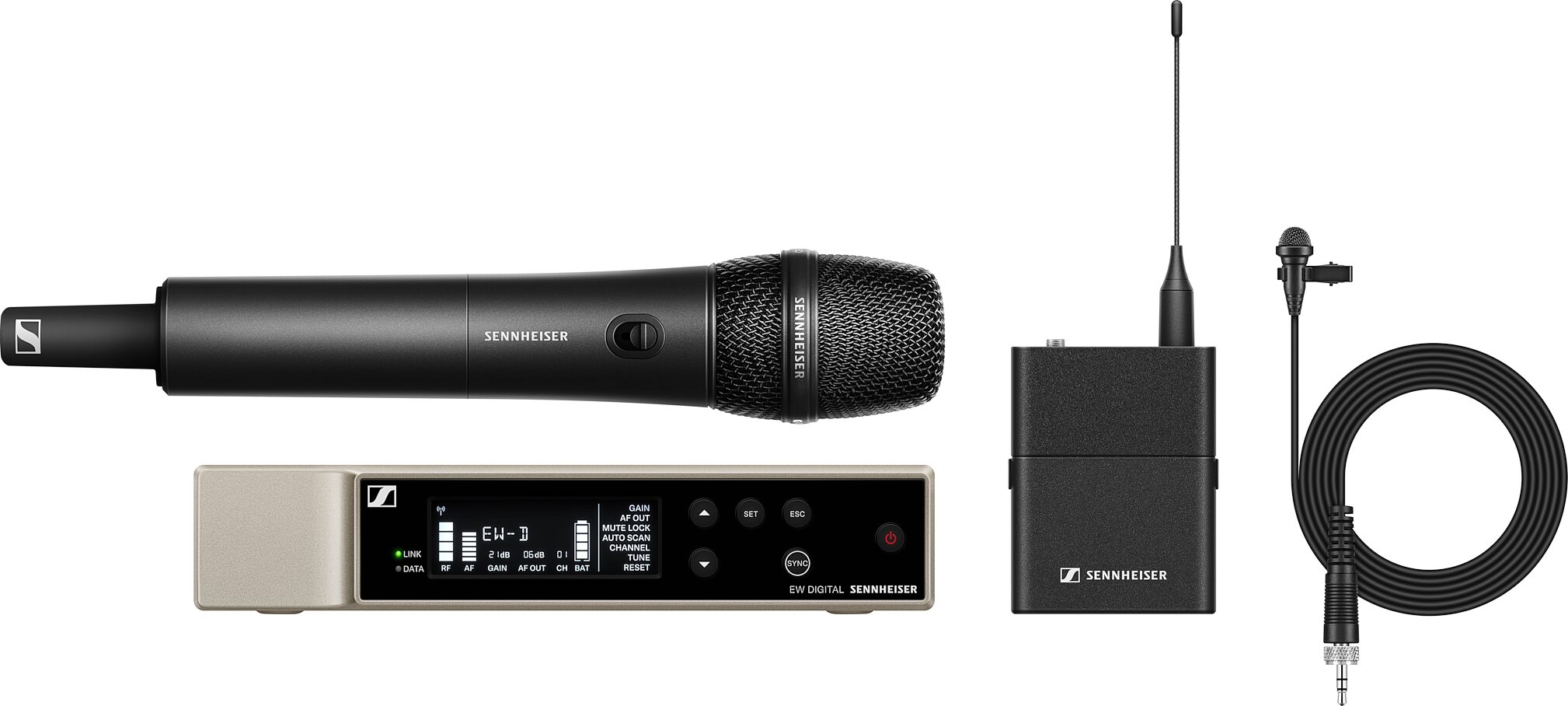

All-in-one combo set for digital wireless applications featuring stationary receiver, handheld transmitter and clip-on microphone.

Versatile and feature-rich digital wireless system for those who sing, speak or present that allows for seamless product pairing and management via the EW-D Smart Assist App. With a metal housing, the robust bodypack transmitter suits perfectly for daily use on stage.

Features:

- Digital wireless eliminates noise, interference and static bursts
- UHF transmission greatly enhances range, reliability and scalability
- Mobile App streamlines setup and operation and eliminates complicated menu
- Automated setup creates reliable connections with minimal time and effort
- Up to 2,240 selectable frequencies support up to 24 wireless systems per frequency range
- Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
- 56 MHz Bandwidth will allow for up to 90 channels
- Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range

What's in the box?

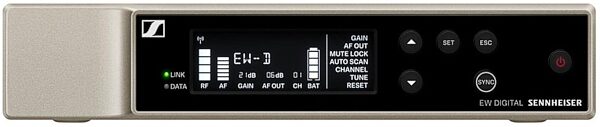

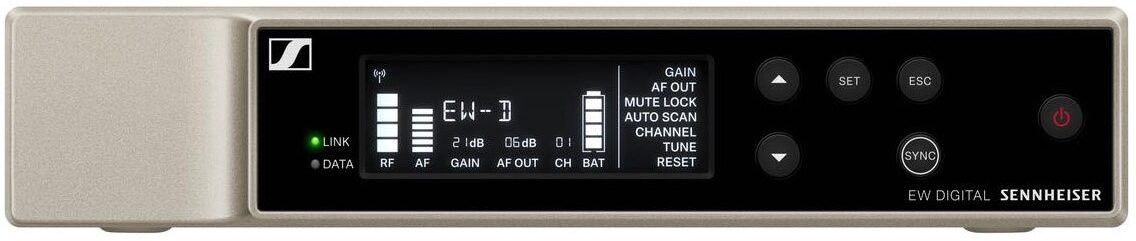

- EW-D EM rack receiver

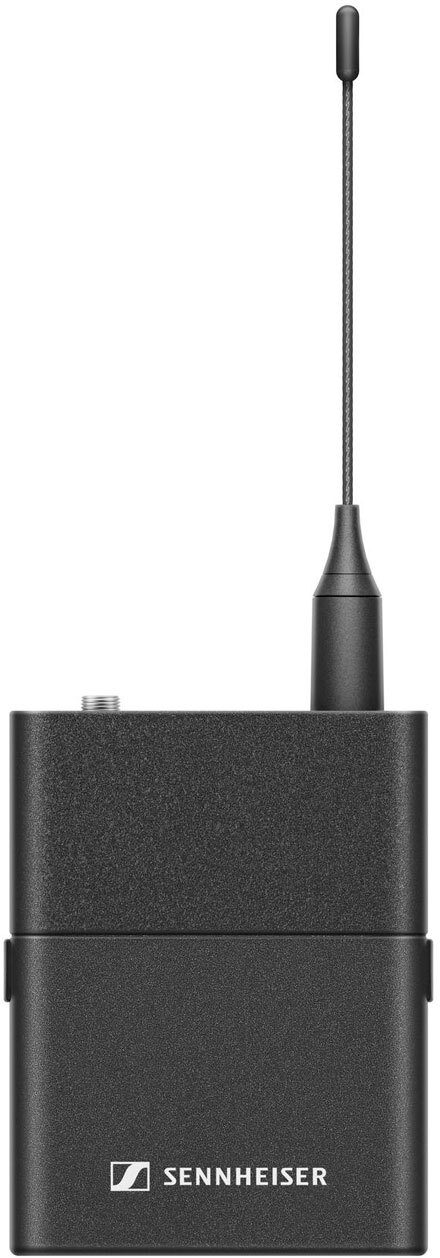

- EW-D SK bodypack transmitter

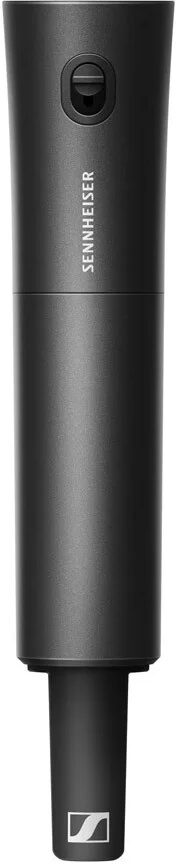

- EW-D SKM-S handheld transmitter

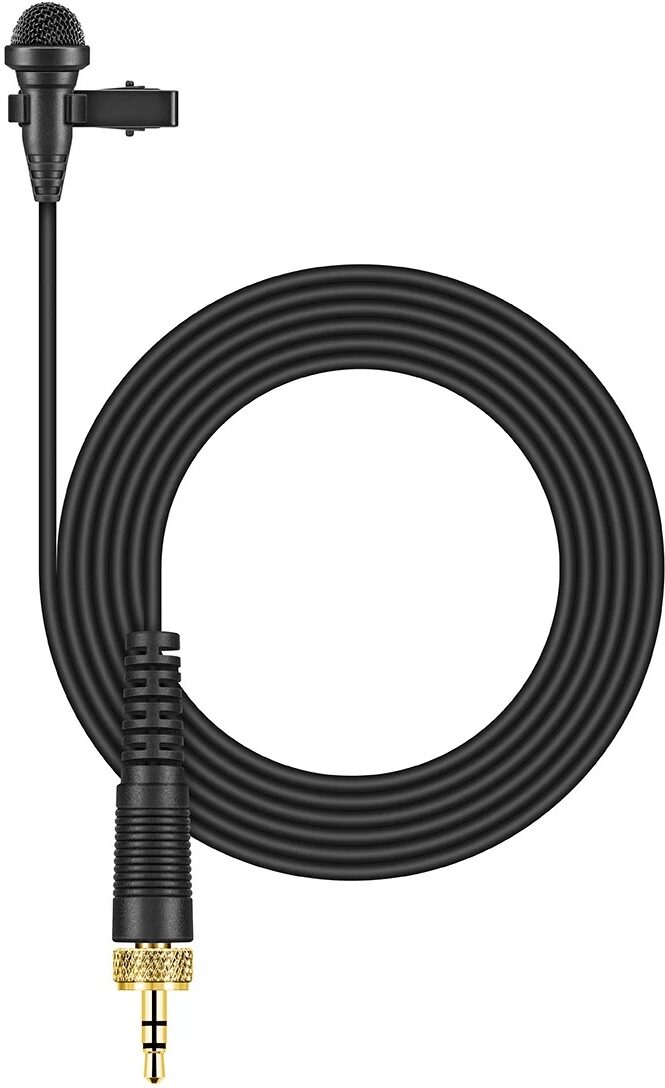

- ME 2 lavalier microphone

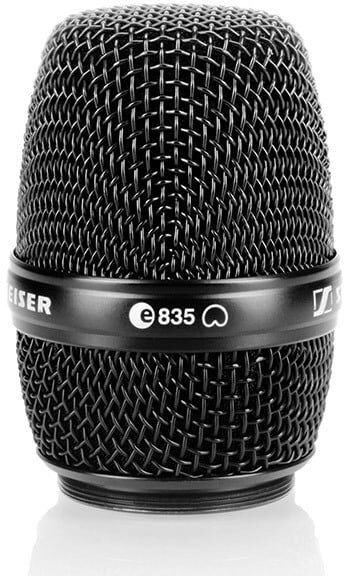

- MMD 835 microphone module

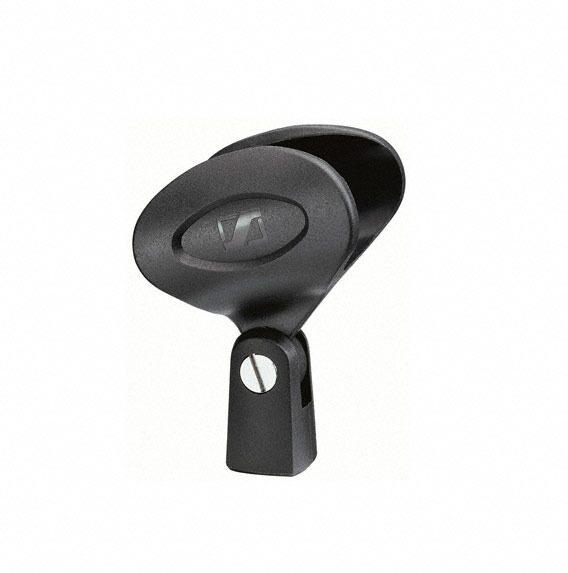

- MZQ 1 microphone clamp
- 2 rod antennas
- Power supply with country adapters
- Rackmount set
- 4 rubber feet
- Quick guide
- Safety guide
- Manufacturer declaration sheet

Note: These Sennheiser EW-D wireless transmitters can run on either 2 x AA batteries, or… read more the Sennheiser BA 70 rechargeable battery pack. Please note that a battery charger is NOT included.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- System Type: Digital UHF wireless microphone system
- Frequency Band: Varies by model (Q1-6: 470.2-526 MHz, R1-6: 520-576 MHz, Y1-3: 1785.2-1799.8 MHz)
- Number of Channels: Single channel receiver (up to 90 channels system-wide)
- Operating Range: Up to 330 feet (100 meters)
- Transmitter Type: EW-D SK bodypack and EW-D SKM-S handheld
- Transmitter Power Output: 10 mW ERP (Y1-3 range: 12 mW ERP)
- Receiver Type: EW-D EM half-rack receiver with Intelligent Switching Diversity
- Diversity Type: Intelligent Switching Diversity
- Microphone Type: ME 2 omnidirectional lavalier and MMD 835 dynamic handheld capsule
- Polar Pattern: Omnidirectional (ME 2), Cardioid (MMD 835)
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB)
- Signal-to-Noise Ratio: 134 dB
- Total Harmonic Distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- Battery Type for Transmitter: 2x AA batteries (alkaline manganese) or BA 70 rechargeable lithium-ion
- Battery Life: Up to 8 hours (AA batteries), up to 12 hours (BA 70 lithium-ion)
- Output Connectors: XLR balanced, 1/4" unbalanced
- Power Requirements: 11-13V DC, ≤300mA
- Antenna Type: 2x detachable 1/4-wave dipole antennas
- Modulation Type: Digital
- Occupied Bandwidth: 200 kHz

Dimensions and Weight in Packaging

Band Q1-6 (470.2 - 526 MHz)

  • Shipping Weight: 6.75 lbs
  • Shipping Dimensions: 16 x 14 x 3 in
  • Manufacturer Part Number (MPN): 508770

Band R1-6 (520 - 576 MHz)

  • Shipping Weight: 7 lbs
  • Shipping Dimensions: 16 x 14 x 3 in
  • Manufacturer Part Number (MPN): 508771

Band R4-9 (552 - 607.8 MHz)

  • Shipping Weight: 6.75 lbs
  • Shipping Dimensions: 16 x 14 x 3 in
  • Manufacturer Part Number (MPN): 508772

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 877-736-6434
Email: support@sennheiser.com
Web: https://en-us.sennheiser.com/service-support
Evolution Wireless Digital Instruction Manual
