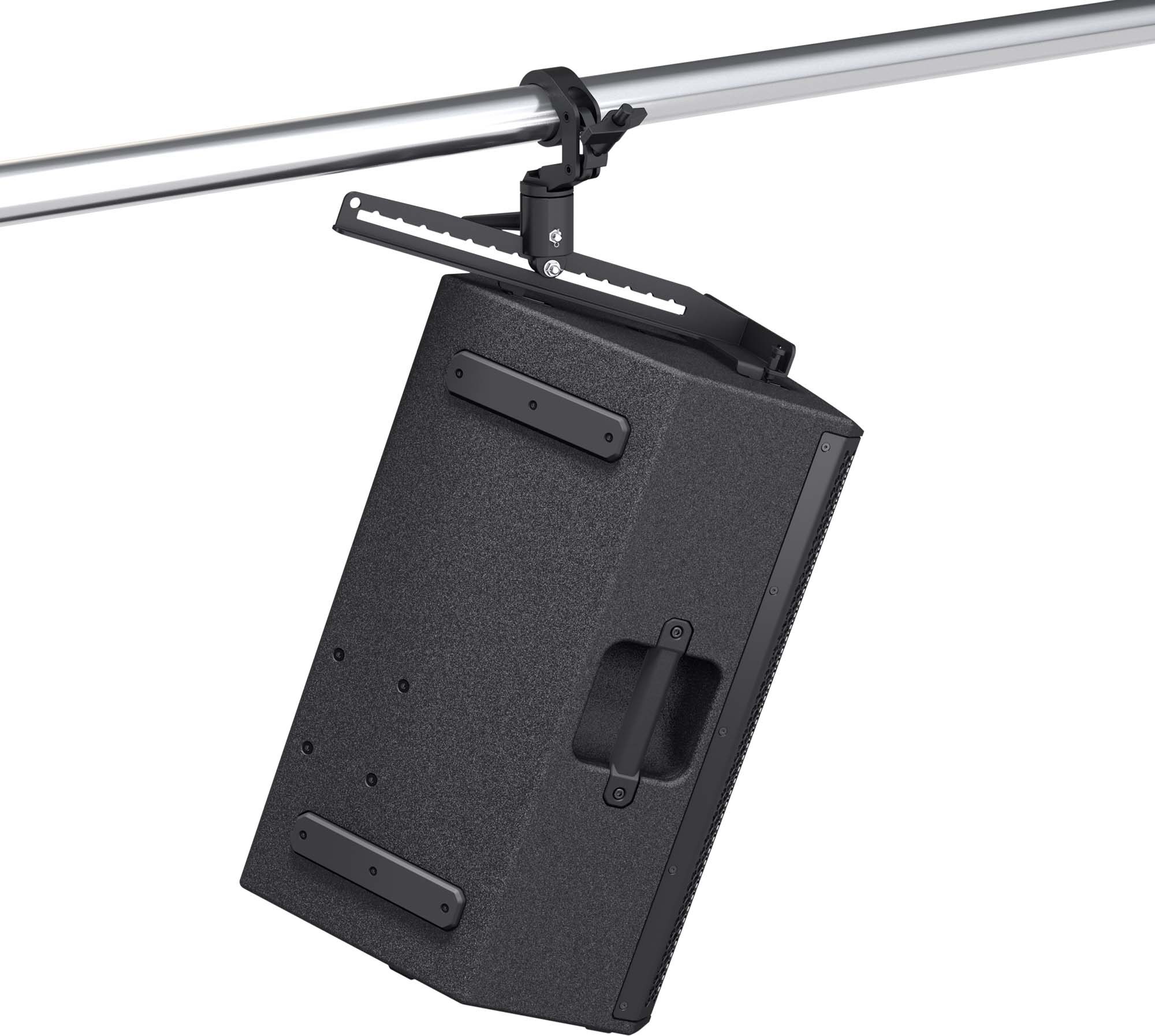

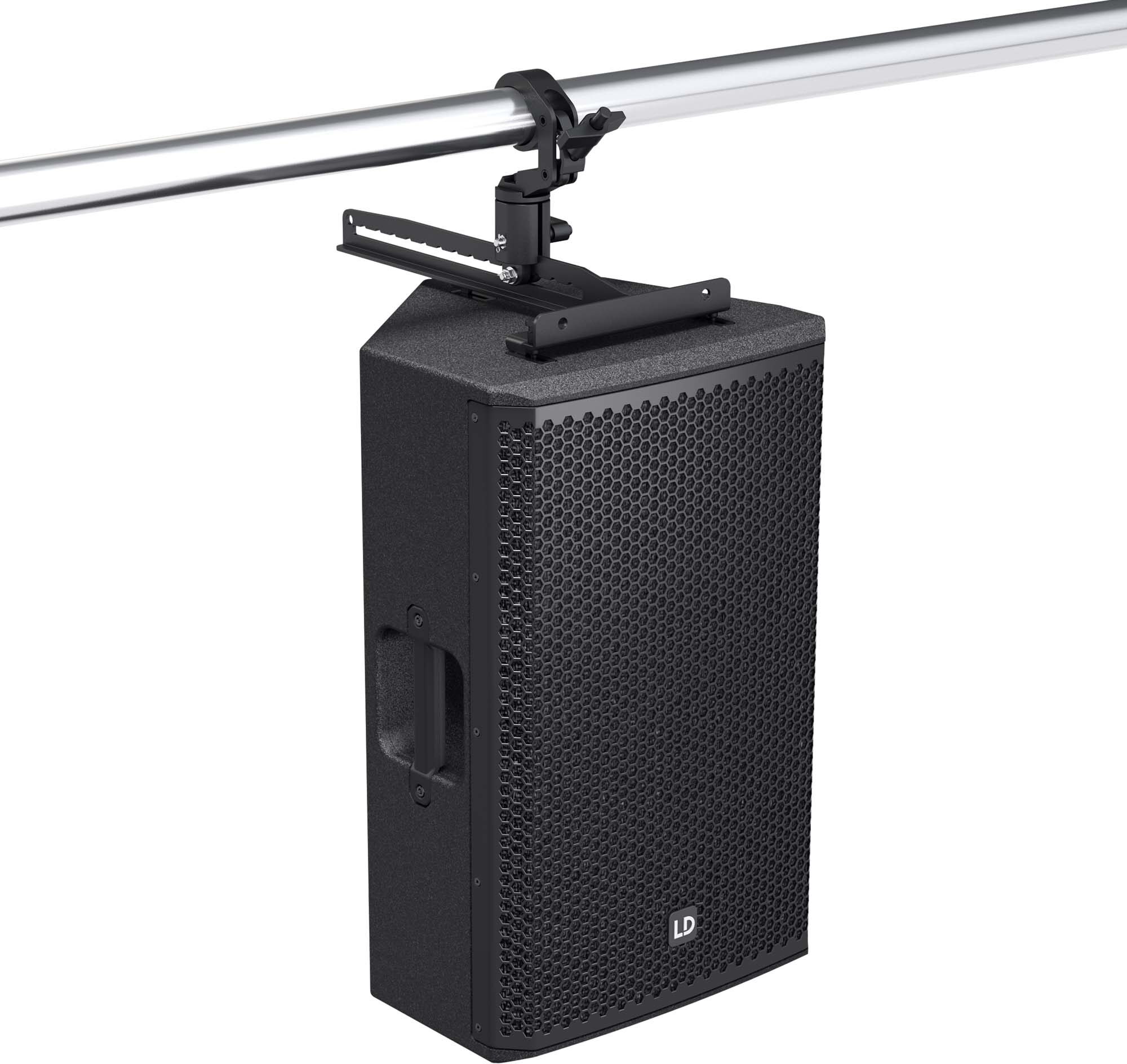

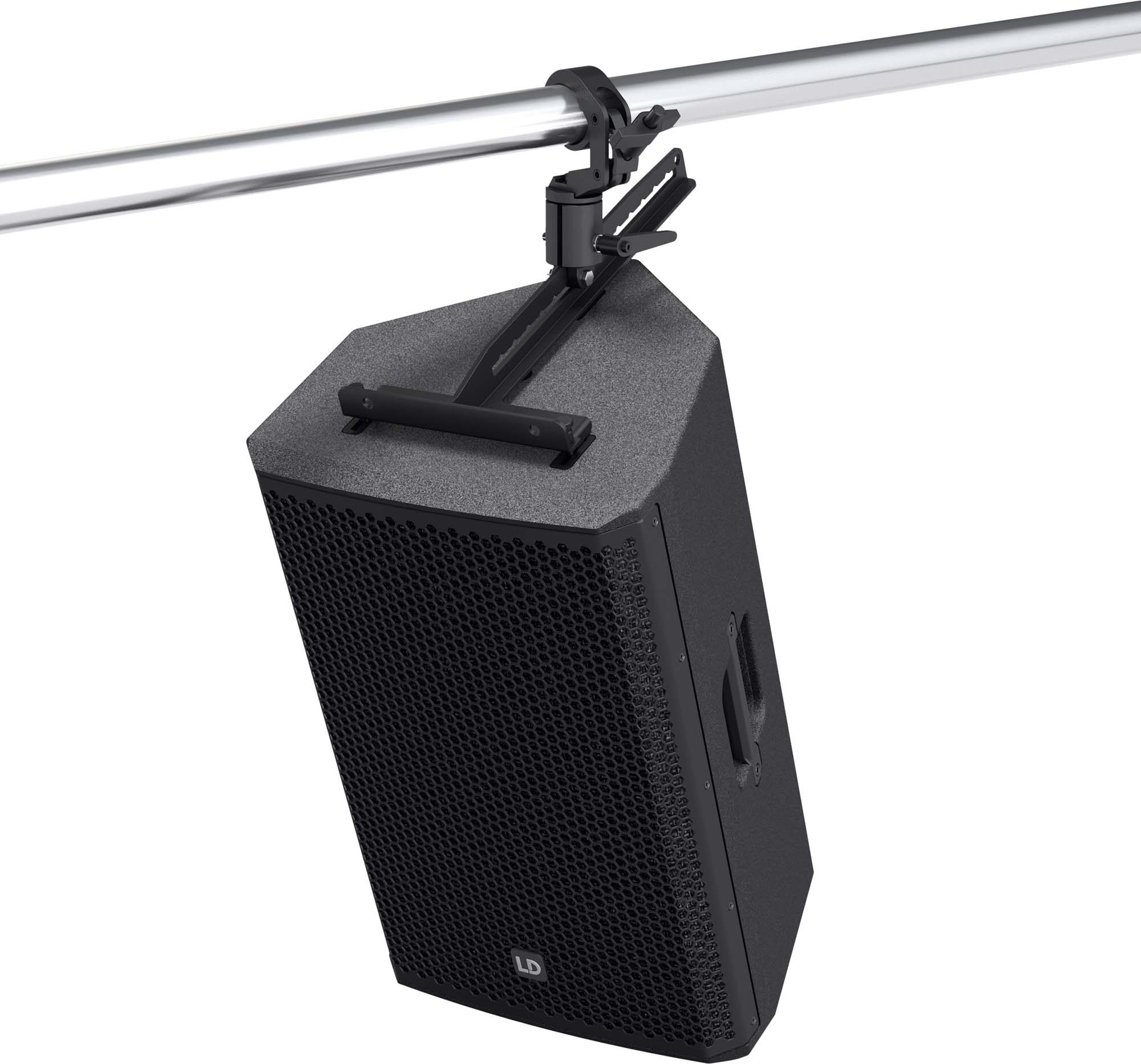

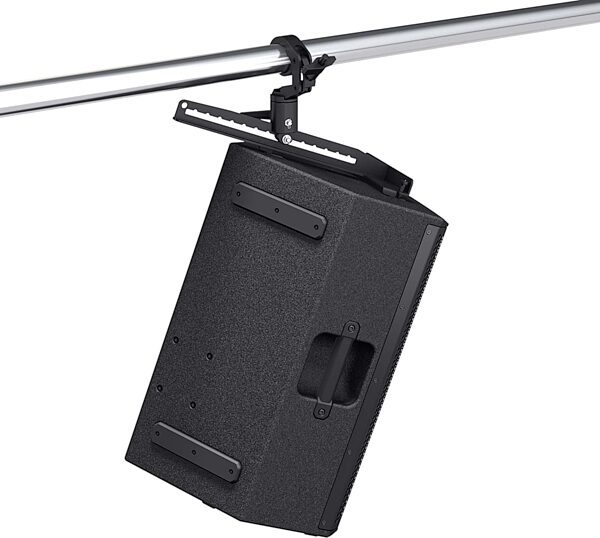

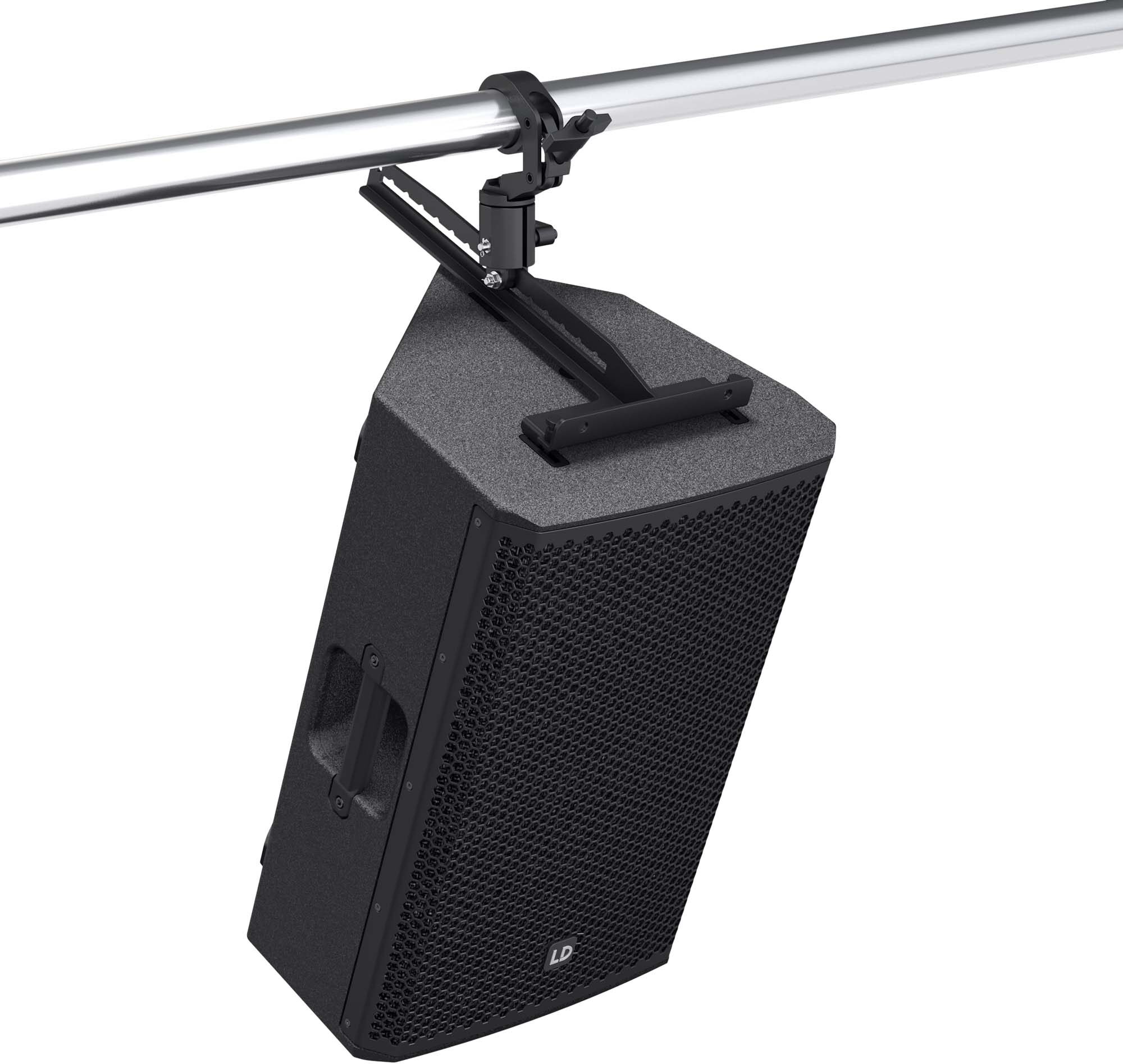

LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back
LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back
LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back
LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back
LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back
LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back LD Systems EBG3TMB EasyMount Truss Suspension Bracket, Action Position Back

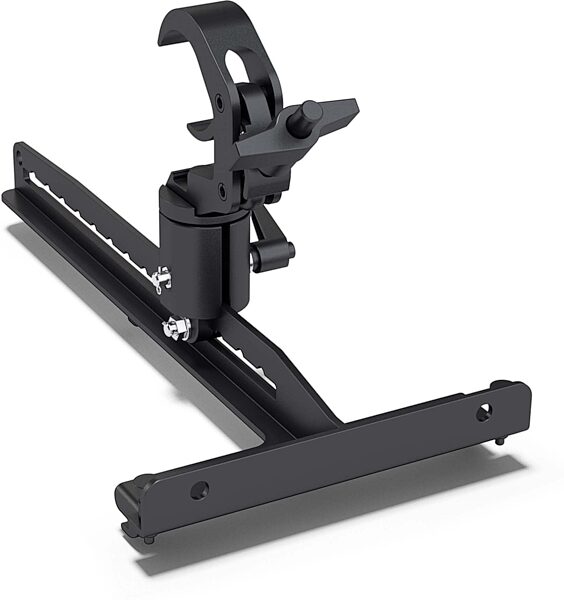

LD Systems' EasyMount Truss Suspension Bracket is made for EasyMount-compatible loudspeakers such as LD Systems' Stinger G3 12" and 15" models, and ICOA PRO 12 and 15 models.

The EasyMount 3-point mounting system allows the loudspeaker to be quickly and easily mounted to traverses. The sturdy steel construction with durable powder coating allows the loudspeaker to be securely mounted and aligned without the need for tools. Two auto-locking latches with two-hand release provide maximum security. The self-locking hook clamp automatically locks when suspended, allowing the loudspeaker to be quickly and easily attached to the truss.

Features:

- Self-locking hook clamp automatically locks when suspended, for quick and secure attachment to the truss
- Vertically aim and down-tilt the suspended loudspeaker
- Tool-free 3-point installation on the speaker: Securely mount & align without the need for tools
- Two automatic locking bolts with two-handed safety release
- Sturdy steel construction
- Durable powder coat finish
- Weighs just 2.3 kg
- Max. load 28 kg
- Patented technology (Patent No. DE202017100219U1 & US 10,681,440)

General specifications:
Mounting: Clamp
Maximum load: 28 kg
Material: Steel
Coating: Powder coated
Colour: Black

Dimensions & weight:
Clamp range: 35 mm
Width: 225 mm
Height: 356.5 mm
Depth: 425 mm
Weight: 2.3 kg
