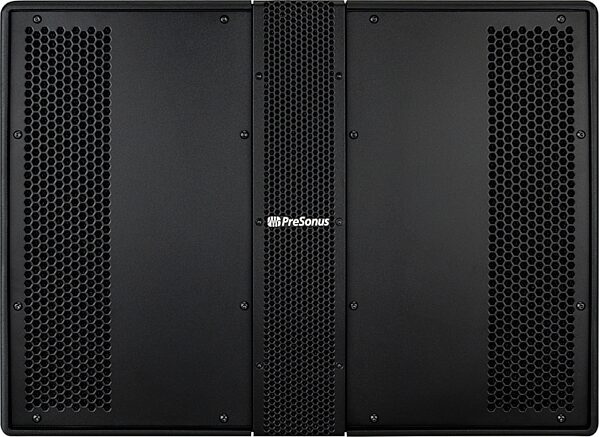

PreSonus CDL10P Constant Directivity Speaker

Get the phase-aligned, point-source sound of the CDL12P in a more compact and portable package with the crystal-clear CDL10P constant directivity speaker.

CDL-series loudspeakers impressed ears around the world when PreSonus introduced them, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant-directivity performance is available in the CDL10P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in a portable design.


- Continuous-directivity constant curve array with six 2-inch cone drivers disperses sound 120 horizontally
- 15 vertical directivity can be extended from 30 to 90 with additional arrayable CDL10Ps
- 10-inch long-throw LF transducer with 2.5-inch voice coil
- Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
- 1000 watts Class D power for high SPLs and lightning-fast transient response
- Onboard DSP: 90 Hz High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CLD18s, ULT18, or AIR18s)
- 35 mm pole socket with 7.5 downward tilt use with up to two CDL10P on a tripod or atop PreSonus CDL Sub18 subwoofer
- Integrated flyware to create an array of up to six CDL10Ps
- Signal, -3 dB, Limiter Protection, and Clip Monitoring LEDs
- Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille great for touring bands and mobile DJs

Like the CDL12P, CDL10P is the result of years of research and development, combining the best attributes of point read more source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.

The CDL10P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL10P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL10P's integrated 1000W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
read less

-Type: Active 2-way
-LF Driver: 10" (2.5" Voice Coil)
-HF Driver: 6 x 2" (1" Voice Coil)
-Amplifier Type: Class D
-Total System Power: 2000W Peak, 1000W (Program (500W RMS)
-LF Driver Power: 1000W Peak, 500W (Program 250W RMS)
-HF Driver Power: 1000W Peak, 500W (Program 250W RMS)
-Frequency Range (+/- 3dB): 48 Hz to 18 kHz
-Crossover Frequency: 420 Hz
-Maximum Peak SPL: 130 dB
-Horizontal Coverage: 120
-Vertical Coverage: 15
-Input: Line (XLR)
-Output: Direct Line Out (XLR)
-Mains Connection: Locking 3 conductor AC, connector In and Out
-Dimensions (H x W x D): 14.37" x 19.6" x 16.1" (365 mm x 500 mm x 395 mm)
-Weight: 46.8 lbs (21.2 kg)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 52.8 lbs
Shipping Dimensions: 23 x 18 x 13 in
Manufacturer Part Number (MPN): 2779100501
