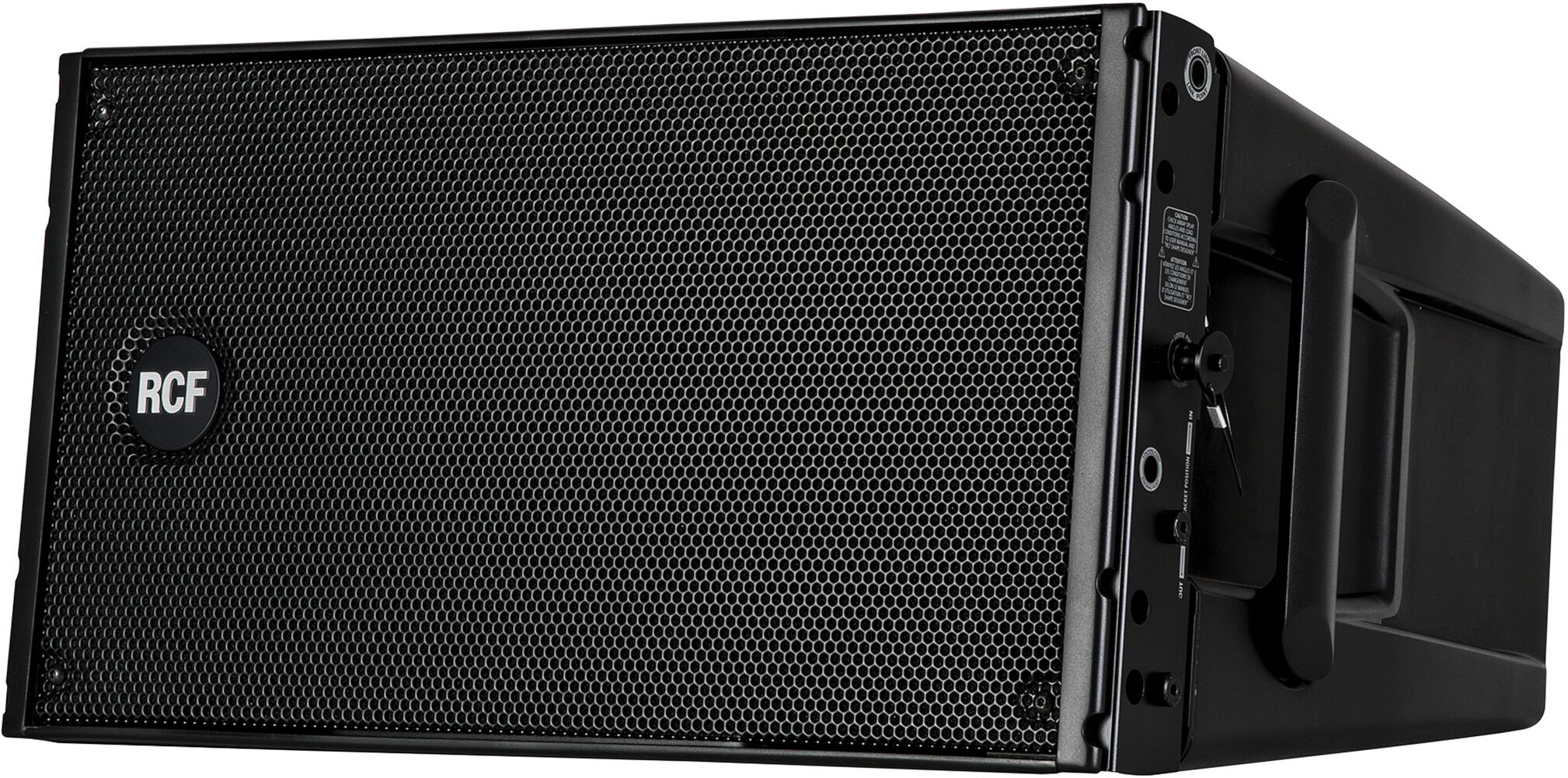

RCF HDL 10-A Active Compact Line Array Module Speaker

Small does not equal quiet. The RCF HDL 10-A may be compact, but its smart design, advanced DSP, and powerful amplifier create a bold, venue-filling sound.

The very compact size, no-compromise transducers, and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations, the RCF HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400-watt peak power 2-way digital amplifier, and sound is processed via powerful DSP.


Frequency Response: 65 Hz + 20000 Hz
Max SPL @ 1M: 133 dB
Horizontal Coverage Angle: 100 degrees
Vertical Coverage Angle: 15 degrees
Compression Driver: 1 x 2.0'', 2.5'' v.c
Woofer: 2 x 8'', 2.0'' v.c
Input Signal: bal/unbal
Input Connectors: XLR
Output Connectors: XLR
Input Sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Cluster, HF, High curving, Indoor
Total Power: 1400 W Peak, 700 W RMS
High Frequencies: 400 W Peak, 200 W RMS
Low Frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE Marking: Yes
Cabinet/Case Material: PP Composite
Hardware: Rigging flyware
Handles: 2 side
Grille: Steel
Color: Black
Height: 294 mm / 11.57 inches
Width: 569 mm / 22.4 inches
Depth: 434 mm / 17.09 inches
Weight: 20.4 kg / 44.97 lbs
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 51.25 lbs
Shipping Dimensions: 26 x 20 x 15 in
Manufacturer Part Number (MPN): HDL10-A
Pair, with Sub and Hardware
Shipping Weight: 241 lbs
