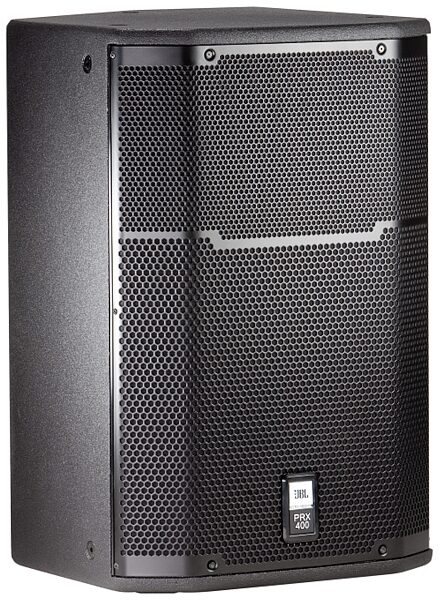

JBL PRX415M 2-Way Passive, Unpowered Loudspeaker (600 Watts, 1x15")

Ideal for performance venues, schools, churches, and more, these professional JBL loudspeakers deliver powerful, intelligible speech and music reinforcement. Unpowered. Requires separate power amplifier.

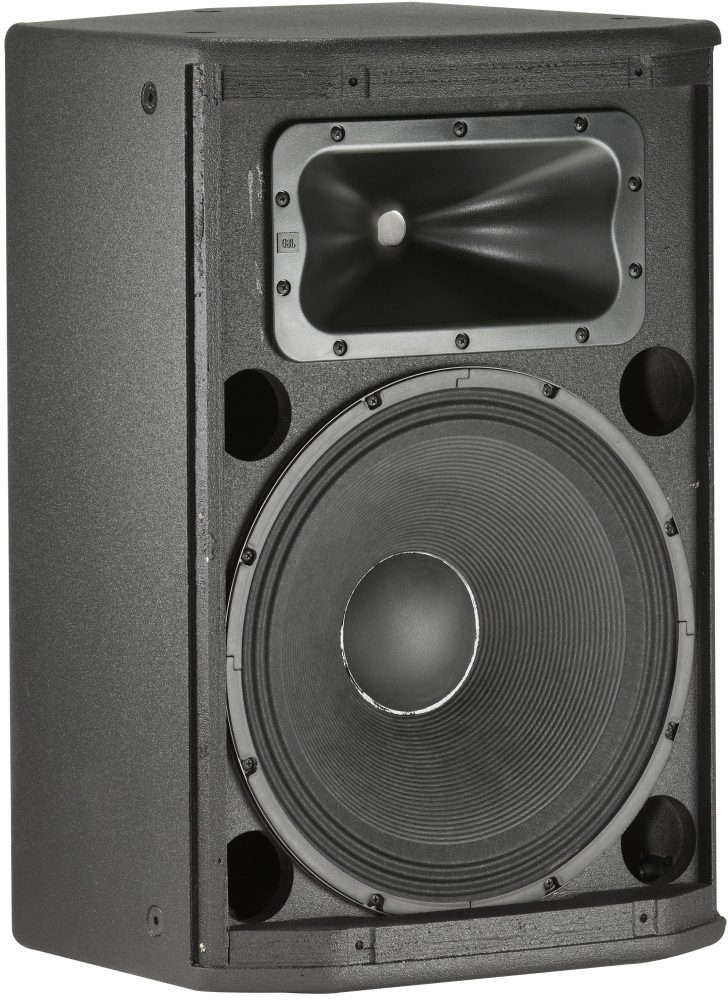

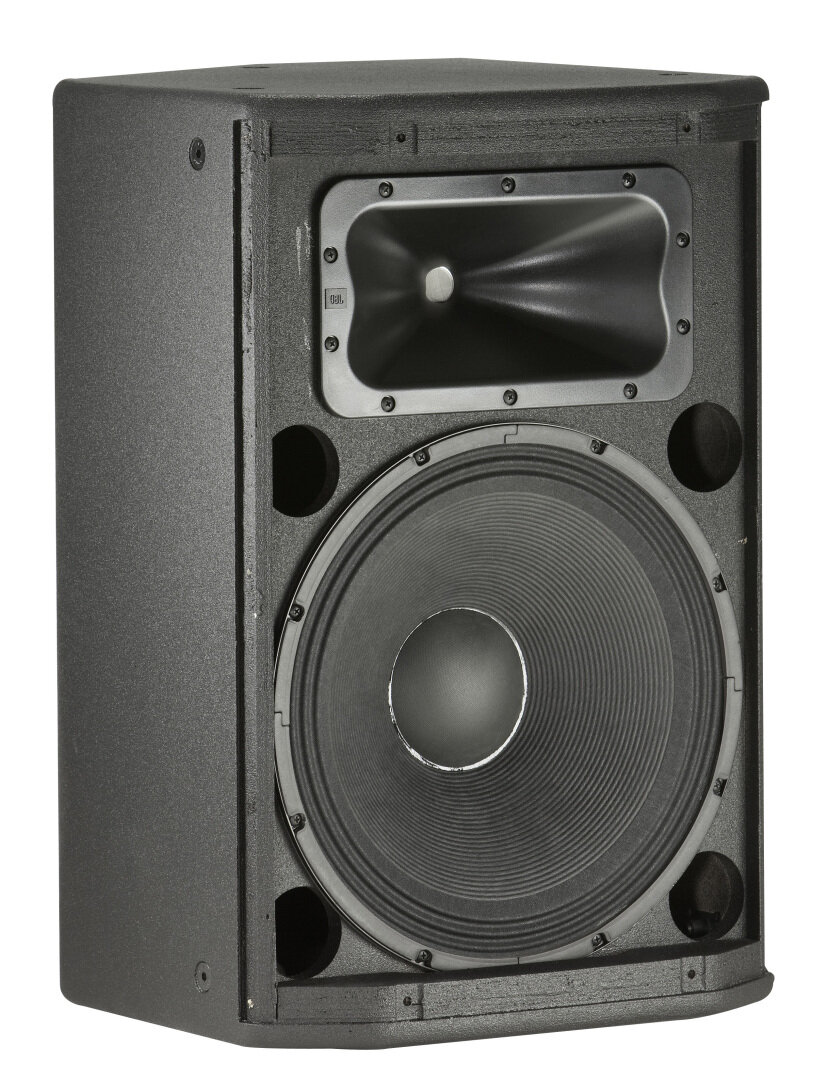

The JBL PRX415M is a true 2-way passive speaker, with a custom-designed 15-inch JBL M115-8A holding down the low end. Its highs sing from the JBL 2414H-C 1.5-inch polymer diaphragm compression driver. The PRX412M handles 300 watts of continuous power, delivering 122 dB maximum SPL. It has a frequency range of 55 Hz - 19 kHz, and a response of 66 Hz - 16 kHz. At this price point, the JBL PRX415Ms make excellent onstage monitors or utility speakers when you need excellent bass definition.

Simple and Versatile I/O

JBL PRX415M loudspeakers come equipped with parallel Neutrik Speakon combo inputs that handle both Speakon NL-2 and 1/4" sources.

Integrated SonicGuard Technology Keeps Speakers Healthy

The PRX400 speakers come with integrated SonicGuard technology that does an excellent job of protecting the HF driver from inadvertent overpowering. In such a situation, an internal attenuator matches the higher sensitivity of the high-frequency driver to the lower sensitivity of the low-frequency driver, thus balancing the HF and LF output. When the input signal increases, more current passes through, causing certain elements to increase in temperature. The growing resistance inversely effects a reduction of the signal going into the HF driver, protecting it from overload. When the elements cool, normal system operation is restored.

Finely Constructed and Rock-Solid Wooden Cabinets

The tops of all PRX400 enclosures are constructed from with 25 mm sheets of poplar read more plywood that are uniquely strong given their light weight. The sides are made from 18 mm birch sheets, ensuring a cabinet with a great natural throw. They have absolutely no boxy or buzzy cross-resonance, even when you're pushing the volume all the way. The deep-cup tongue and groove joints ensure a cabinet that will endure the rigors of transport. The cabinets are finished in JBL's own obsidian DuraFlex finish, while the speakers inside are protected with a dent-and-scratch-resistant 16 gauge steel. The M10 suspension points, rated to hold up to 1000 pounds, are constructed from 14 gauge steel.

Easy to Set Up in Full-Range or Monitor Situations

JBL's PRX400 series speakers include a single 35 mm pole socket with dual mounting angles that allow the speaker to be mounted vertically, or angled 10 degrees downward to better cover the audience. The cabinets are also constructed in a trapezoidal shape that makes them reliable and sturdy floor monitors. The ergonomic handles are made from lightweight glass-filled nylon, and feel great in the hands when you have to schlep them around.

Features:

- JBL M115-8A woofer cone
- JBL 2414H-C 1.5-inch polymer diaphragm compression driver- 2 x balanced combo Speakon / 1/4-inch inputs
- Trapezoidal case
- M10 suspension points
- 35 mm pole socket with dual mounting angles, for aiming straight or angled 10 degrees down

Note: Unpowered speaker, requires separate power amplifier.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

- Frequency Range: 55 Hz - 19 kHz
- Frequency Response: 75 Hz - 16 kHz
- Coverage Pattern: 90 degree x 50 degree nominal
- System Sensitivity: 98 dB SPL (1w@1m)
- Power Rating, Pink Noise: 300 W / 600 W / 1200 W (Continuous/Program/Peak)
- Rated Maximum SPL: 129 dB SPL peak
- Nominal Impedance: 8 ohms
- Pole Socket Size: 1-3/8" (35 mm)
- Dimensions (H x W x D): 25.6" x 16.9" x 18"
- Weight: 21 kg (46 lbs.)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 56.5 lbs
Shipping Dimensions: 28 x 23 x 22 in
Manufacturer Part Number (MPN): PRX415M
Warehouse Resealed, USED
Shipping Weight: 59.5 lbs
Shipping Dimensions: 28 x 23 x 22 in
Manufacturer Part Number (MPN): PRX415M
Note: Unpowered speaker, requires separate power amplifier.

For support or warranty questions, please contact the manufacturer:
Phone: 800-336-4525

JBL PRX415M 2-Way Loudspeaker System

The JBL PRX415M is a portable, fifteen-inch, two-way speaker system designed for either main sound reinforcement or monitoring applications. JBL PRX400 passive speakers were designed to provide the sensitivity, frequency response and power handling needed to address a multitude of demanding audio environments while still being reasonably priced.

For musicians, DJs, House of Worship, public address, or suspended in a commercial environment like a school or nightclub, these speakers can be used with a powered mixer or a full rack of amps and signal processing, delivering the sound power and bandwidth necessary to make loud music sound natural and even quiet speech intelligible. Comprised of tour-tested JBL components in rugged enclosures with professional connectors and suspension points, this two-way speaker tackles tough jobs affordability and professionally.

Features:

- 90 degree x 50 degree coverage
- Dual-angle pole socket for applications requiring tripod mounting
- Heavy Duty 16 gauge protective screen backed steel grille
- Tough DuraFlex(tm) enclosure finish
- SonicGuard(tm) protects the high-frequency driver from excess power without interrupting the performance

Note: Unpowered speaker, requires separate power amplifier.
