JBL CSMA 180 DriveCore Mixer Amplifier

Compatible with both 70V and 100V audio systems, the JBL CSMA 180 DriveCore mixer-amplifier provides highly reliable power for speaker installations.
The JBL CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown's DriveCore technology enables significantly reduced size and weight -- all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

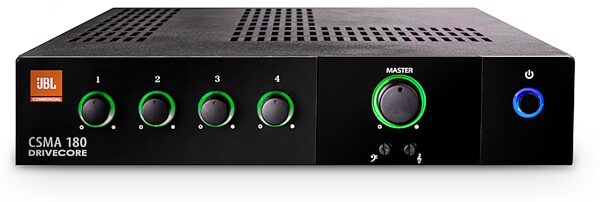

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

JBL Commercial mixer/amps are manufactured under HARMAN's GreenEdge environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly read more efficient DriveCore design reduces power consumption and yields much more efficient operation - up to 80 percent more efficient than previous designs. All models carry a 3-year no-fault transferable warranty.

Features:


- 4 inputs with 1 output of 80 or 120-watts of power
- Ideal for commercial and industrial use
- Fanless, space-saving 1U design
- Sleek industrial look with illuminated rings, making them easy to see and operate
- Euro-block type mic/line input connectors and output connectors
- Independent Bass and Treble controls for each output channel
- Supports 70V and 100V distributed audio systems without the need for a separate transformer
- Remote volume control capability using JBL CSR-V module and standard Ethernet cable
- Priority muting
- Configurable output routing
- Utilizes Crown's DriveCoreTM technology providing excellent audio performance with high efficiency
- Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
- Includes rack mounting kit
- Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment
- Energy Star Certified
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Output:120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%
Frequency Response:+/- 1dB (@1W into 4 or 8 Ohms)
Load Impedance:Stable from 2 - 16 Ohms
Sensitivity:1.4Vrms
Signal to Noise Ratio:Greater than 100 dB - 1kHz, A-weighted
Input Impedance:Balanced 20K Ohms/Unbalanced 10K Ohms
Max Input:+20dBu Typical
Included Accessories:Rack mounting kit
Dimensions:1.7" x 8.6" x 11.9" (43.3 mm x 218.5 mm x 303.4 mm)
Shipping Weight:180: 9.9 lbs (4.5 kg); 1120: 10.1 lbs (4.6 kg)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 10 lbs
Shipping Dimensions: 17 x 12 x 5 in
Manufacturer Part Number (MPN): NCSMA180-U-US
