iCON AirMon UHF Wireless Monitor System
zZounds Gear Experts Say...
Wireless IEMs made affordable! iCON's slick, rechargeable AirMon system does it right with uncompressed 24-bit digital audio and stable UHF transmission.
Overview
The AirMon UHF system is engineered for real-world performance -- delivering clear, low-latency wireless audio in high-pressure environments. Whether you're a musician on stage, a DJ, or a tour guide leading a group, AirMon UHF offers the freedom to move and the confidence to hear every detail.
- UHF proprietary encryption technology for ultra-low latency for wireless transmission and minimal interference
- Super compact, stylish design
- Rechargeable lithium battery for both transmitter and receiver (long operational use)
- Super fast pairing (usually 1-2 seconds)
- Connects automatically - (extremely easy to 'pair' the devices)
- Use unlimited receivers per one transmitter
- Extremely stable wireless reception
Built on a stable UHF transmission platform (627-667 MHz), the system delivers minimal interference, extended range, and fast automatic pairing. With the ability to use unlimited receivers per transmitter, it's ideal for large groups, multi-performer monitoring, silent events, or coordinated audio playback across many users.

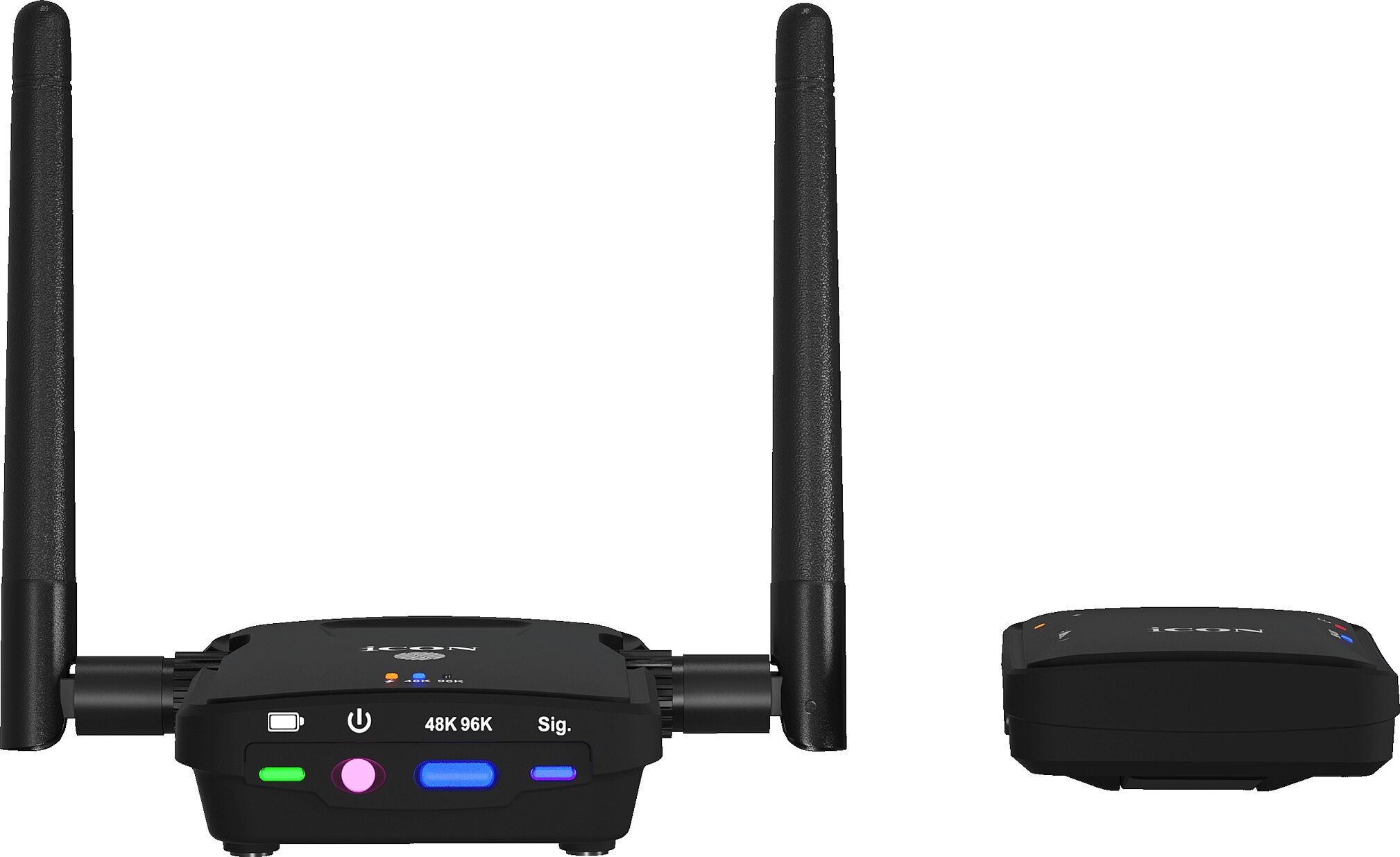

AirMon UHF features uncompressed digital transmission at selectable 48kHz or 96kHz stereo sampling rates, delivering pristine 24-bit audio quality and keeping latency around 9ms -- well within professional monitoring standards. An illuminated toggle switch allows users to switch sample rates instantly, making the system adaptable to varying performance needs.… read more

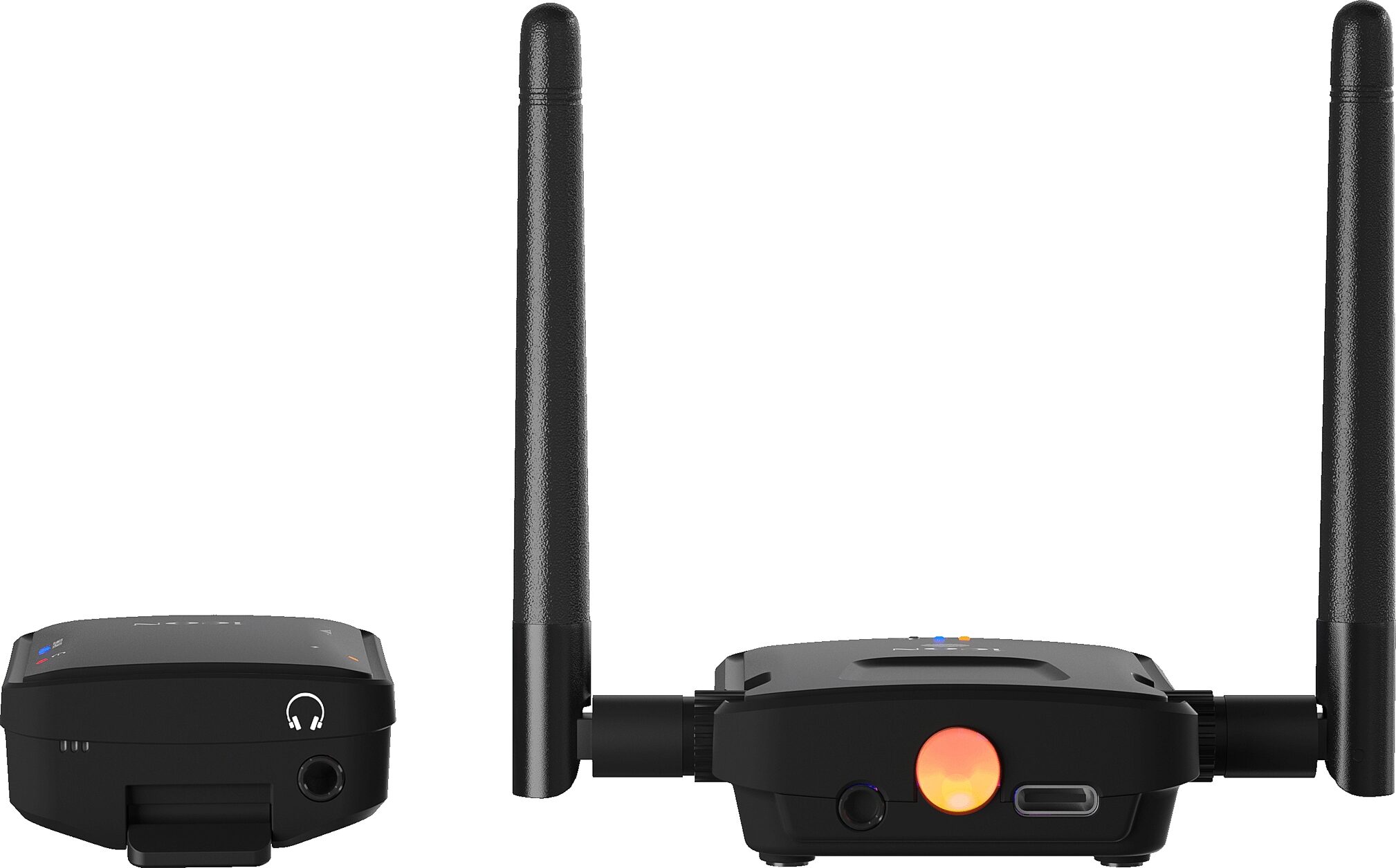

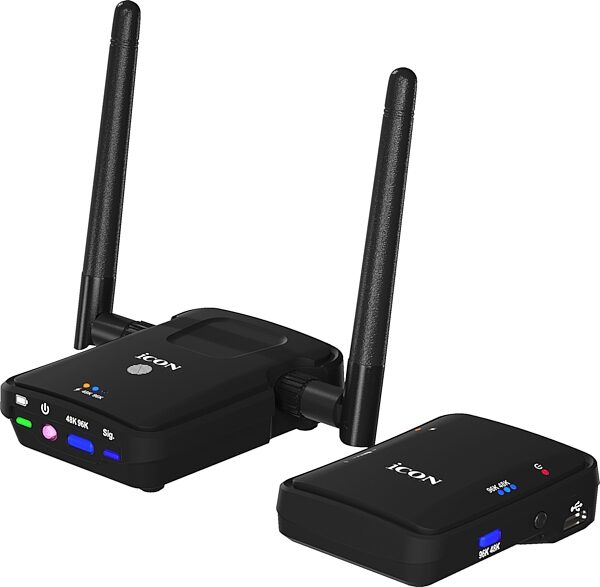

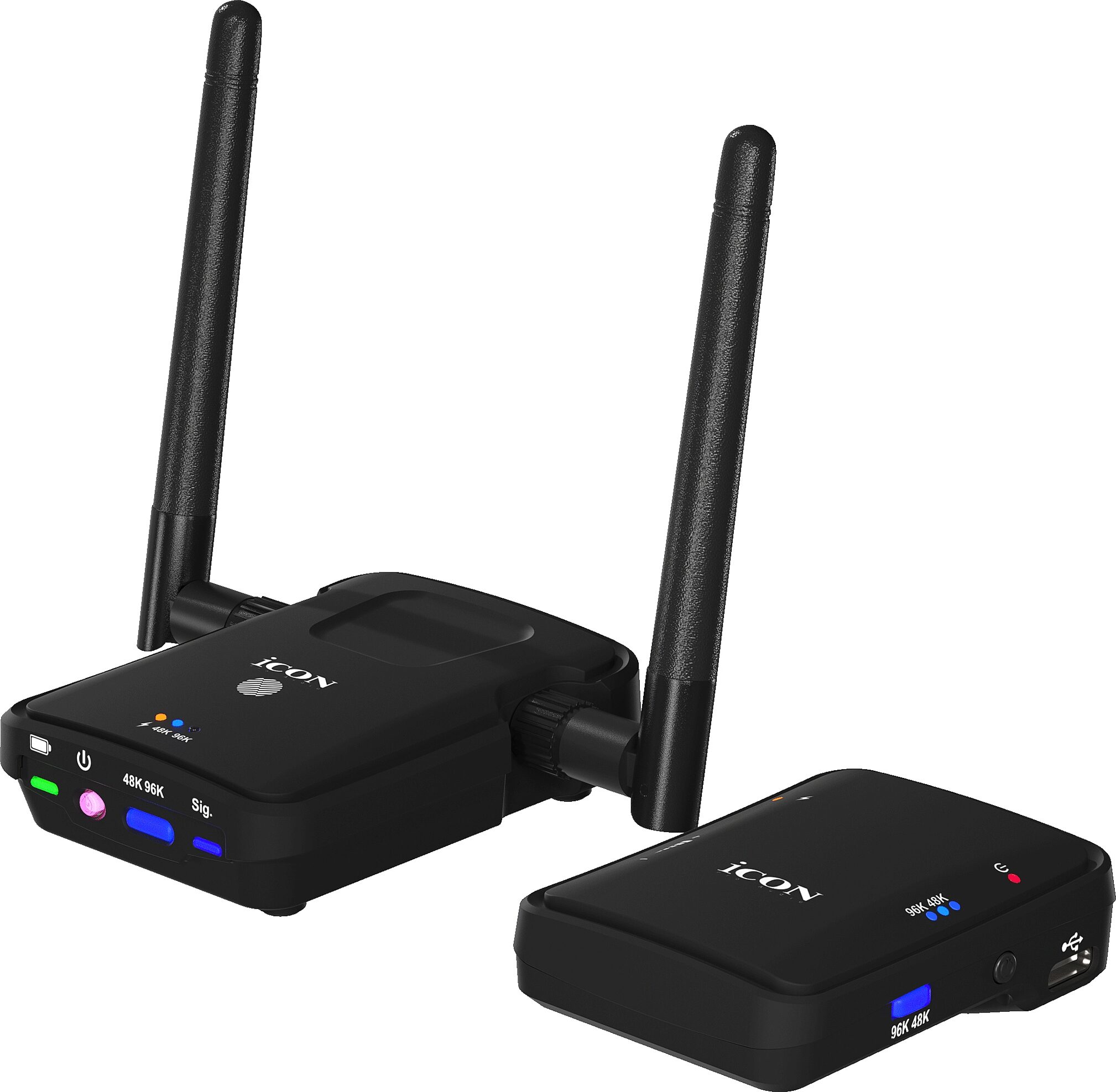

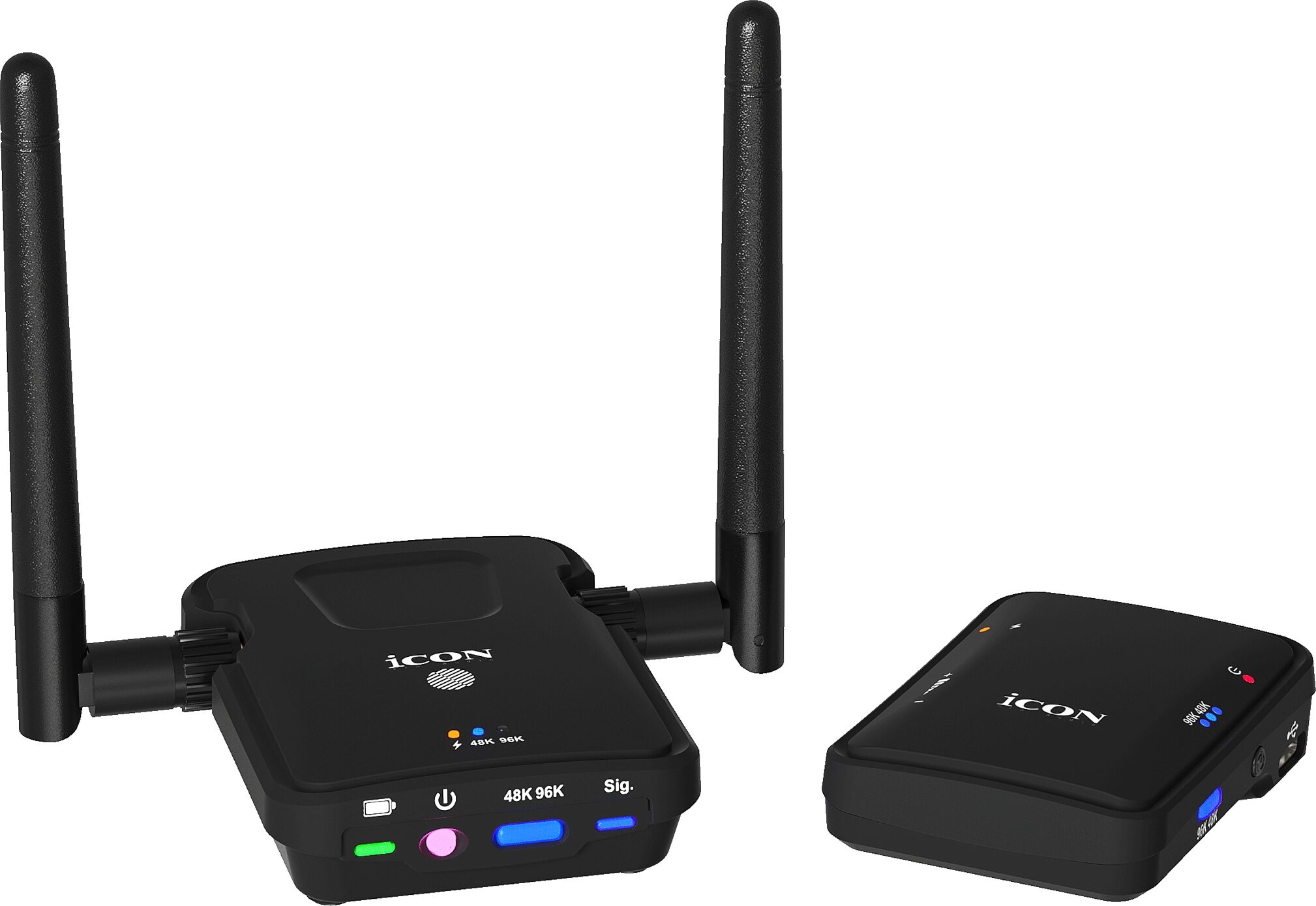

Each set includes a compact transmitter and bodypack receiver, both with Type-C USB charging, belt clips, and up to 6 hours of battery life. The receiver's 3.5mm headphone output is compatible with most IEMs or headphones, and the system comes complete with detachable antennas, earphones, and all necessary cables for immediate setup.
For ultra-high-resolution studio monitoring with sub-2ms latency and 96kHz/24-bit stereo, see the AirMon Pro, designed specifically for controlled environments.
read less
Features:
- Uncompressed digital transmission using 48KHz or 96KHz sampling rates- UHF proprietary encryption technology for ultra-low latency for wireless transmission and minimal interference
- Super compact, stylish design
- Rechargeable lithium battery for both transmitter and receiver (long operational use)
- Super fast pairing (usually 1-2 seconds)
- Connects automatically - (extremely easy to 'pair' the devices)
- Use unlimited receivers per one transmitter
- Extremely stable wireless reception
Built on a stable UHF transmission platform (627-667 MHz), the system delivers minimal interference, extended range, and fast automatic pairing. With the ability to use unlimited receivers per transmitter, it's ideal for large groups, multi-performer monitoring, silent events, or coordinated audio playback across many users.
AirMon UHF features uncompressed digital transmission at selectable 48kHz or 96kHz stereo sampling rates, delivering pristine 24-bit audio quality and keeping latency around 9ms -- well within professional monitoring standards. An illuminated toggle switch allows users to switch sample rates instantly, making the system adaptable to varying performance needs.… read more

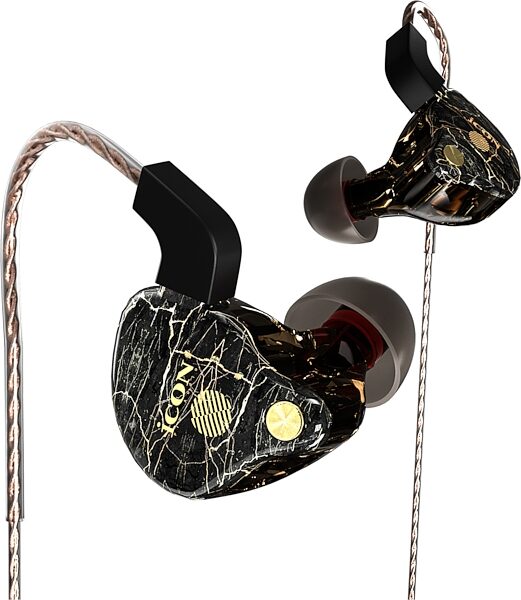

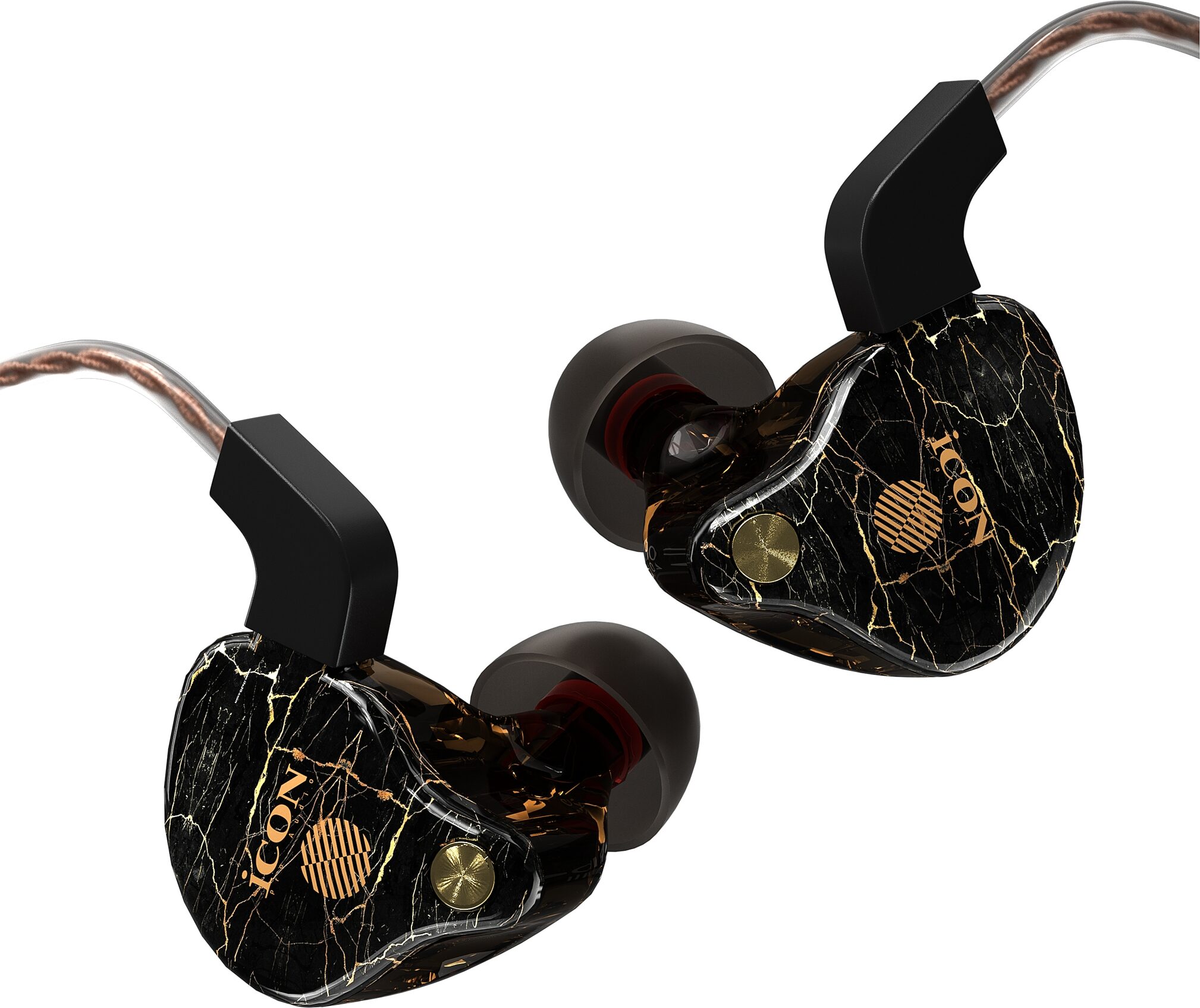

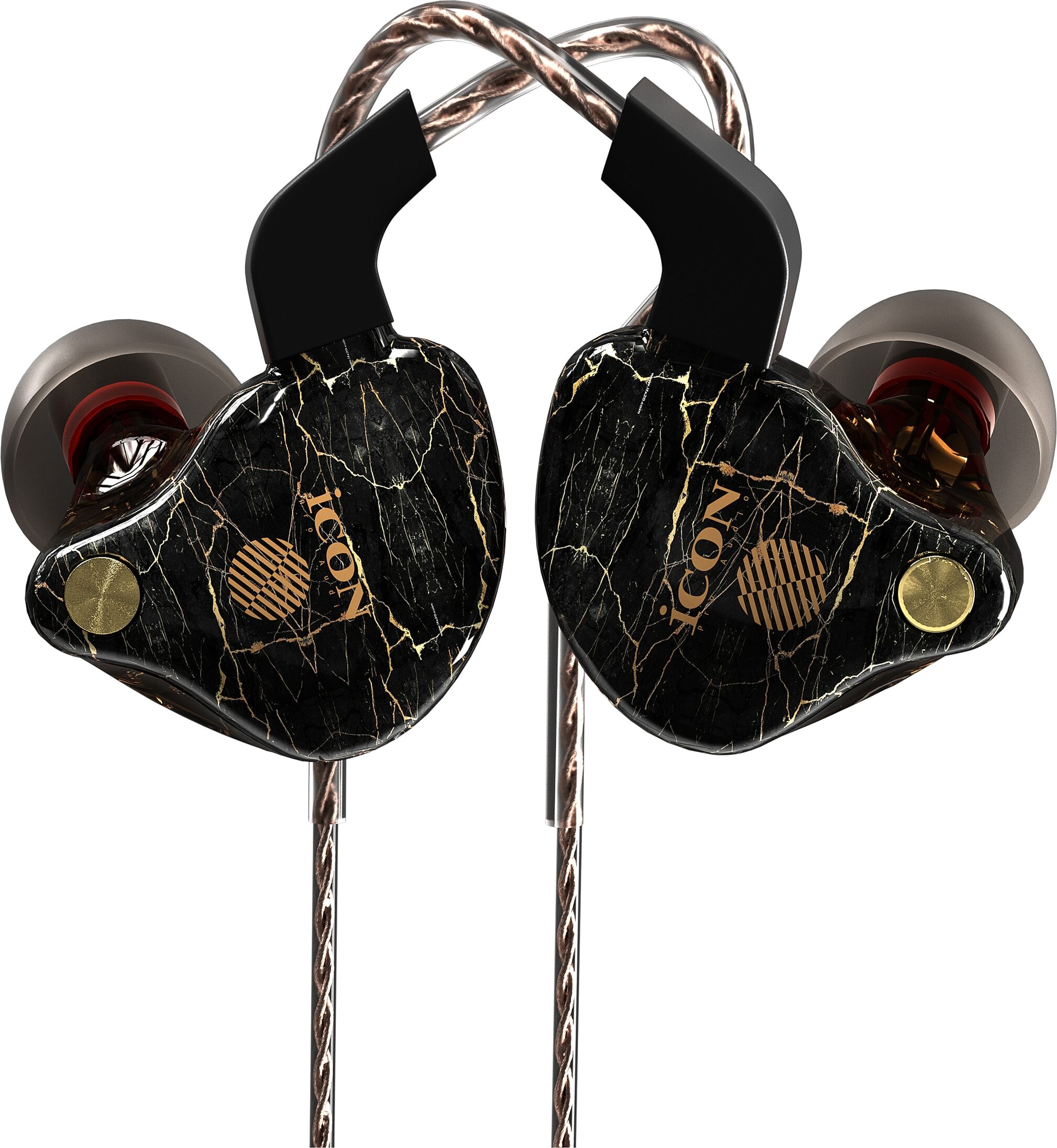

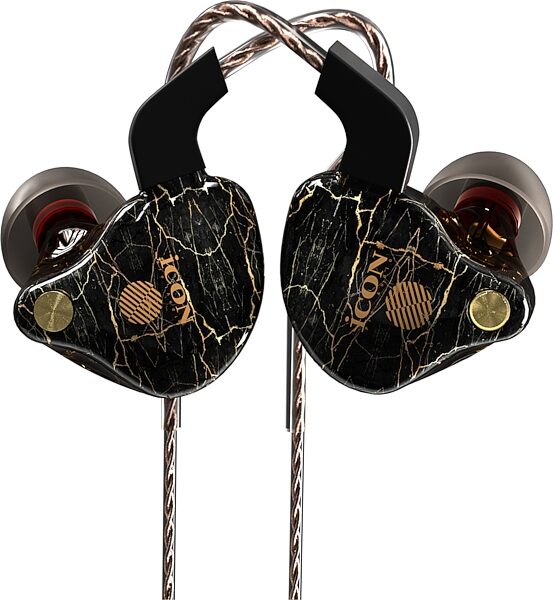

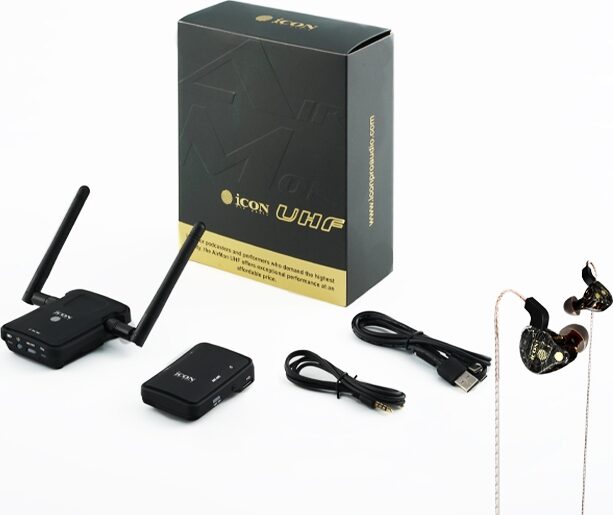

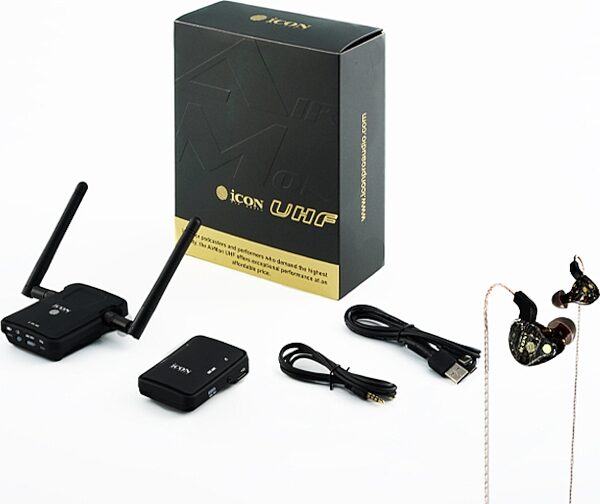

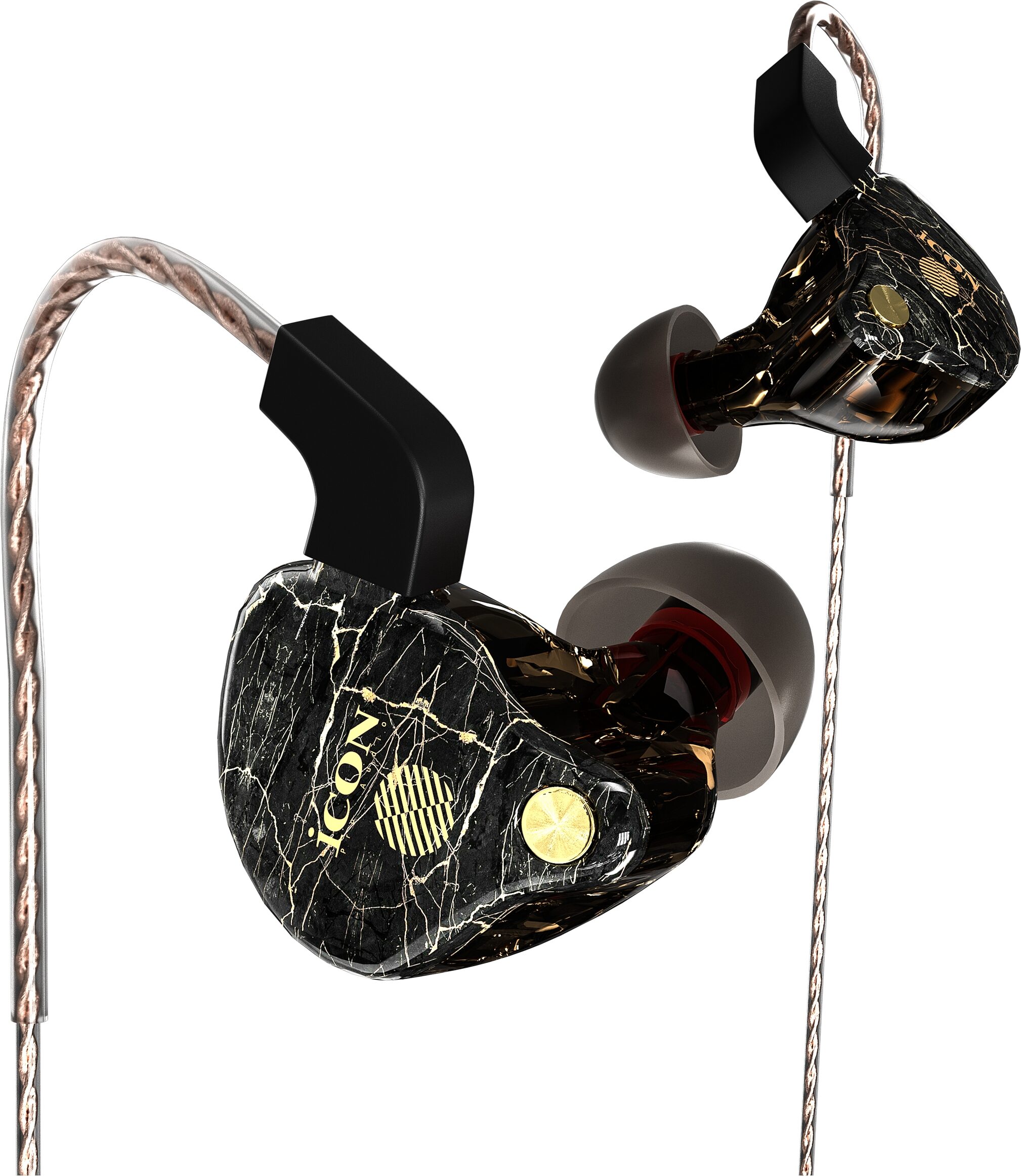

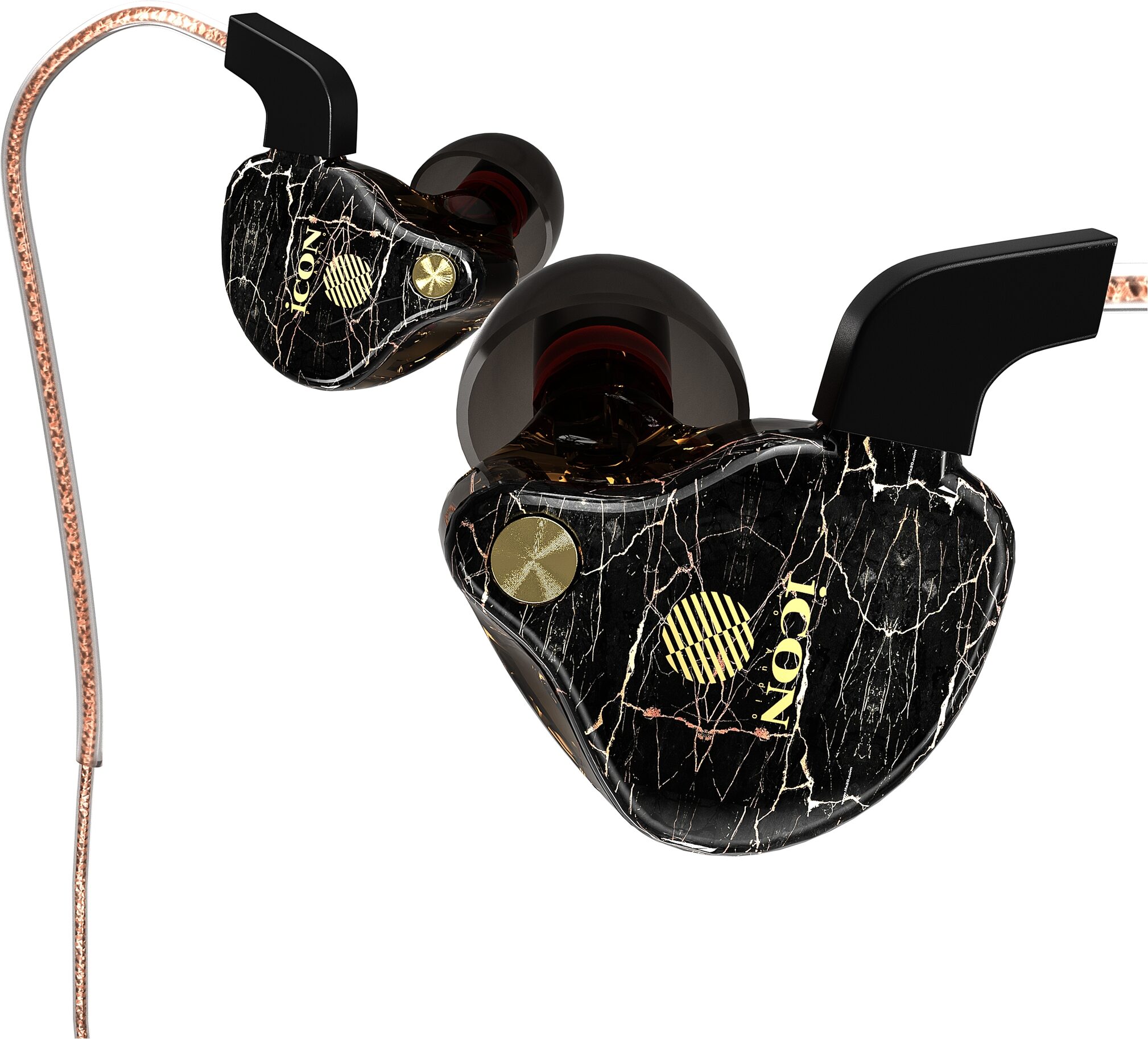

Each set includes a compact transmitter and bodypack receiver, both with Type-C USB charging, belt clips, and up to 6 hours of battery life. The receiver's 3.5mm headphone output is compatible with most IEMs or headphones, and the system comes complete with detachable antennas, earphones, and all necessary cables for immediate setup.
For ultra-high-resolution studio monitoring with sub-2ms latency and 96kHz/24-bit stereo, see the AirMon Pro, designed specifically for controlled environments.
Specs
Audio - Transmitter
Sampling bit rate: 24bit
Channel Mode: STEREO
Input Level: 0dBV
Input Impedance: 10K ohm
Audio - Receiver
Sampling bit rate: 24bit
Channel Mode: STEREO
Output Level: 792mW
Output Impedance: 32 ohm
Radio Frequency - Transmitter
Operating Frequency: 627MHz-667MHz
Digital Modulation: GFSK
Occupied Bandwidth: 1.5MHz
Transmission output: 15dBm
Selectable Channel: 40 channel
Radio Frequency - Receiver
Operating Frequency: 627MHz-667MHz
Digital Modulation: GFSK
Occupied Bandwidth: 1.5MHz
Receiving Sensitivity: -90dBm
Selectable Channel: -90dBm
Power - Transmitter
Current consumption: 140mA
Power Requirements: Built-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time: 6Hrs (approx)
Power - Receiver
Current consumption: 110mA
Power Requirements: Built-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time: 6Hrs (approx)
Dimensions and Weights - Transmitter
Dimensions (WxDxH): 53 x 71 x 21mm (2.1"x2.8"x0.8")
Weight: 78.6g
Dimensions and Weights - Receiver
Dimensions (WxDxH): 44 x 61 x 21mm (1.7"x2.4"x0.8")
Weight: 41g
Accessory: USB Recharging cable and storage pouch
Sampling bit rate: 24bit
Channel Mode: STEREO
Input Level: 0dBV
Input Impedance: 10K ohm
Audio - Receiver
Sampling bit rate: 24bit
Channel Mode: STEREO
Output Level: 792mW
Output Impedance: 32 ohm
Radio Frequency - Transmitter
Operating Frequency: 627MHz-667MHz
Digital Modulation: GFSK
Occupied Bandwidth: 1.5MHz
Transmission output: 15dBm
Selectable Channel: 40 channel
Radio Frequency - Receiver
Operating Frequency: 627MHz-667MHz
Digital Modulation: GFSK
Occupied Bandwidth: 1.5MHz
Receiving Sensitivity: -90dBm
Selectable Channel: -90dBm
Power - Transmitter
Current consumption: 140mA
Power Requirements: Built-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time: 6Hrs (approx)
Power - Receiver
Current consumption: 110mA
Power Requirements: Built-in rechargeable LiPo battery charged via USB 5V, 0.5A
Battery Operating Time: 6Hrs (approx)
Dimensions and Weights - Transmitter
Dimensions (WxDxH): 53 x 71 x 21mm (2.1"x2.8"x0.8")
Weight: 78.6g
Dimensions and Weights - Receiver
Dimensions (WxDxH): 44 x 61 x 21mm (1.7"x2.4"x0.8")
Weight: 41g
Accessory: USB Recharging cable and storage pouch
Dimensions and Weight in Packaging
Base Item
- Shipping Weight: 0.63 lbs
- Shipping Dimensions: 7 x 6 x 2 in
- Manufacturer Part Number (MPN): IPA-AIRMONUHF
