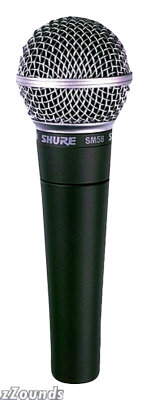

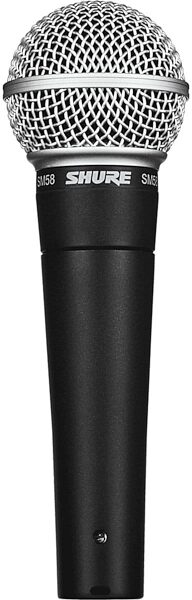

- Type: Dynamic (moving coil)
- Frequency Response: 50 to 15,000 Hz
- Polar Pattern: Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency Output Level (at 1,000 Hz)
- Open Circuit Voltage: -74.5 dB* (0.19 mV)
- Power Level: -56.0 dB**
- Impedance: Rated impedance is 150 (300 actual) for connection to microphone inputs rated low impedance
- Polarity: Positive pressure on diaphragm produces positive voltage on
pin 2 with respect to pin 3

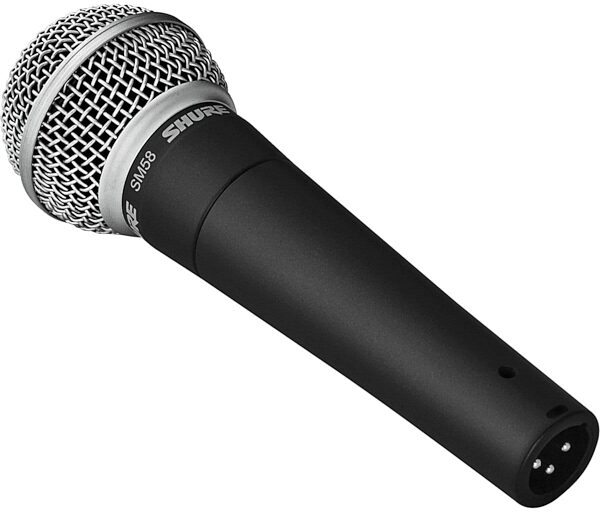

- Connector: 3-pin professional audio connector (male XLR type)

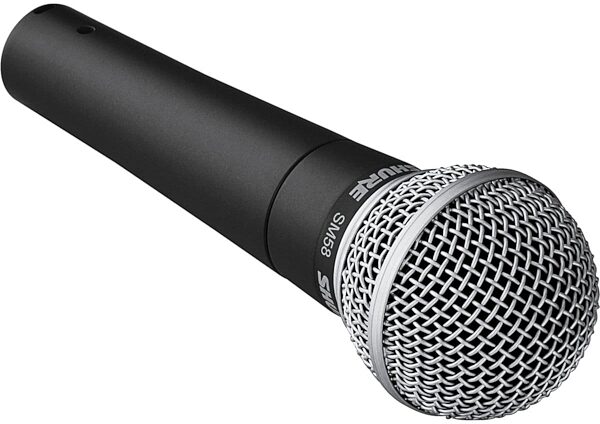

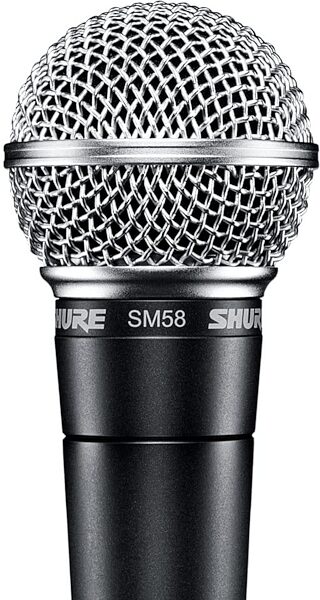

- Case: Dark gray, enamel-painted, die cast metal; matte-finished,
silver colored, spherical steel mesh grille
- Overall Dimensions: 51 x 162 x 23mm (2 x 6-3/8 x 29/32 in.)

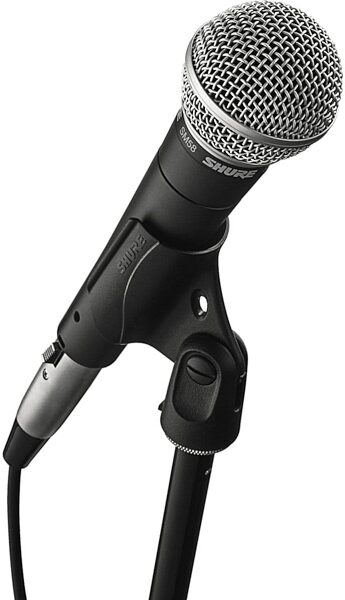

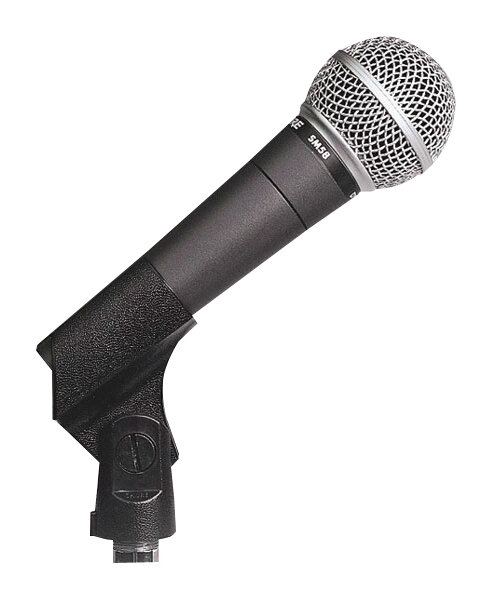

- Swivel Adapter: Positive-action, break-resistant, adjustable through 180 degrees, with standard 5/8 in.-27 thread
- Net Weight: 298 g (10.5 oz.)
*0 dB = 1 v/ bar
**0 dB = 1 mw/10 bar
- Dimensions and Weight in Packaging

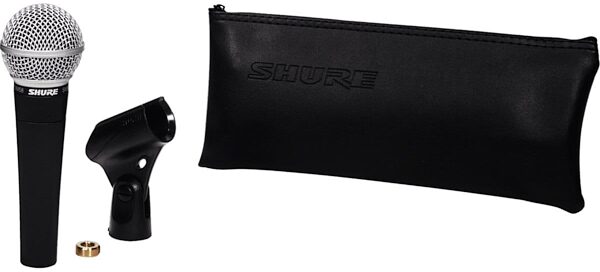

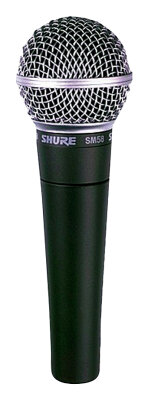

- SM58-LC
-
Shipping Weight: 1.5 lbs
-
Shipping Dimensions: 10 x 5 x 4 in
-
Manufacturer Part Number (MPN): SM58

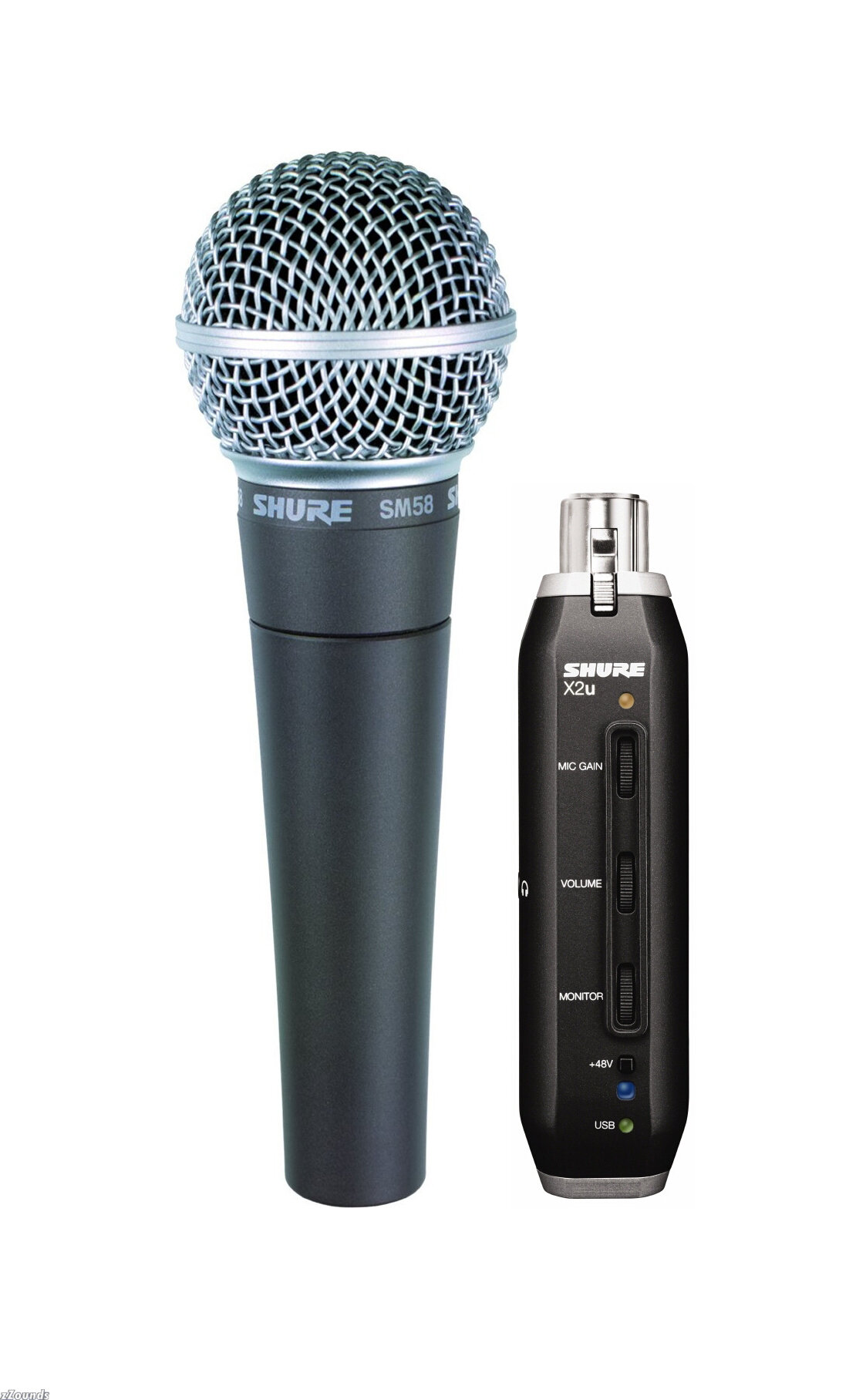

- SM58-X2U, with X2U USB Adapter
-
Shipping Weight: 2.25 lbs
-
Shipping Dimensions: 11 x 6 x 4 in
-
Manufacturer Part Number (MPN): SM58-X2U
- SM58-CNBTS, Stage Performance Kit with Stand and Cable
-
Shipping Weight: 9.5 lbs
-
Shipping Dimensions: 38 x 10 x 4 in
-
Manufacturer Part Number (MPN): SM58-CN BTS
- SM58S, with On/Off Switch, Cable and Tripod Boom Stand
-
Shipping Weight: 7.25 lbs
- SM58-CN, with Shure C25J 25' XLR Cable
-
Shipping Weight: 2.25 lbs
-
Shipping Dimensions: 10 x 5 x 4 in
-
Manufacturer Part Number (MPN): SM58-CN
- SM58S, with On/Off Switch
-
Shipping Weight: 1.25 lbs
-
Shipping Dimensions: 10 x 5 x 4 in
-
Manufacturer Part Number (MPN): SM58SLC
