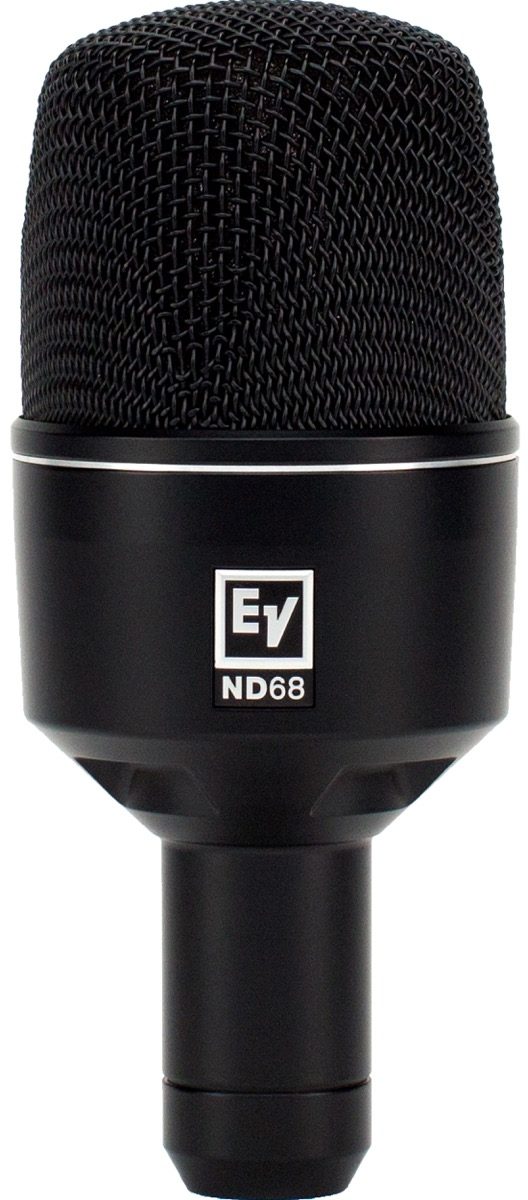

Electro-Voice ND68 Dynamic Supercardioid Bass Drum Microphone

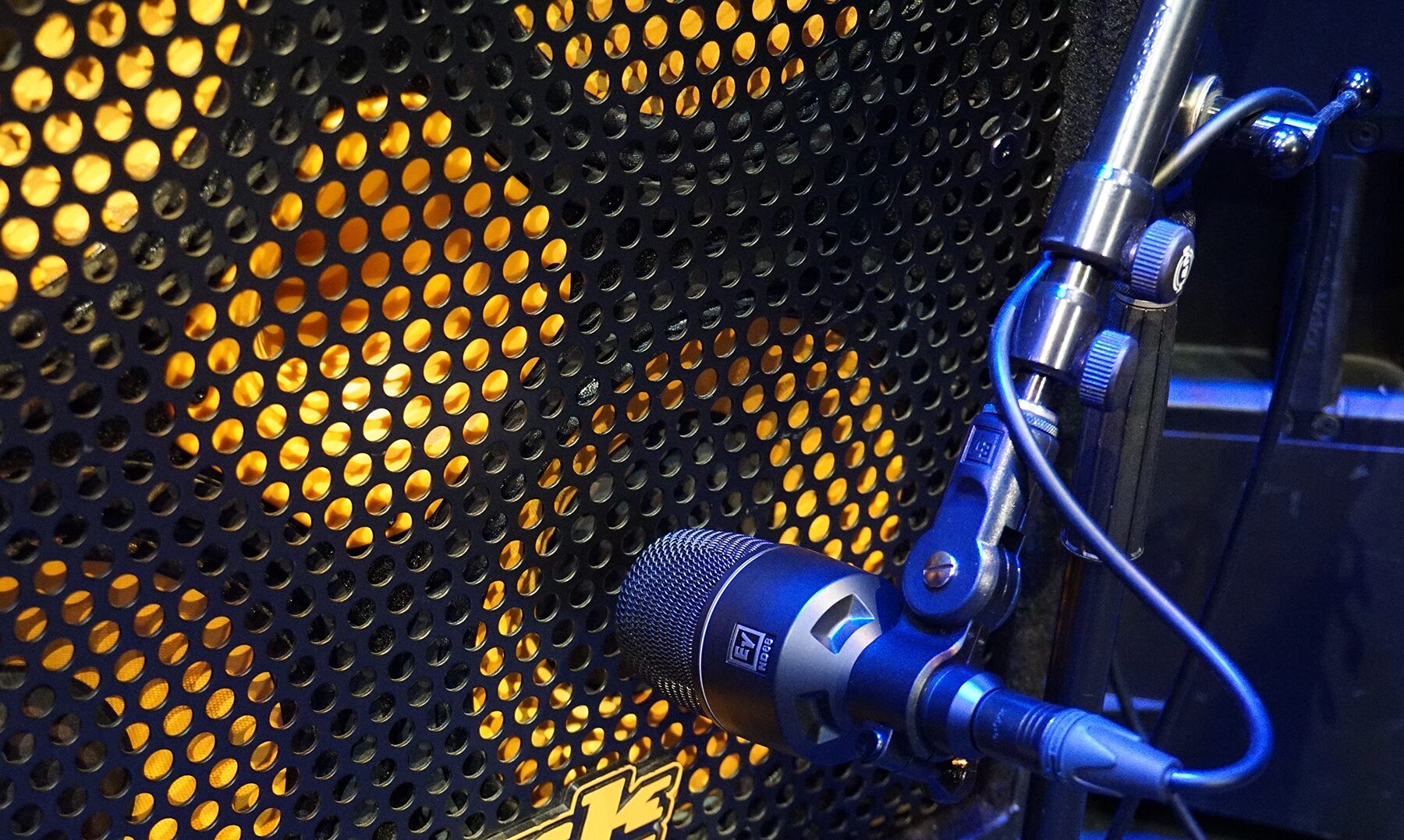

Accurately capture the thump of your kick drum with the ND68. Capable of handling up to 144 db, this mic is also great for close miking a bass guitar cab.
The Electro-Voice ND68 is a robust, high-performance dynamic supercardioid kick drum and low frequency instrument microphone. The ND68 supercardioid polar pattern provides excellent acoustic isolation from nearby instruments, and its voicing characteristics deliver a deep low end, relaxed midrange, as well as high-frequency content for aggressive top-end punctuation.

The ND68 dynamic capsule contains a large Mylar diaphragm, which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high-velocity material for exceptionally fast transient response. Capable of handling 144 dB SPL, the ND68 will comfortably manage close micing of high SPL sound sources.

The ND68 capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. ND dynamic mics can be used with confidence near speaker cabinets and EMF generating equipment racks.

The ND68 Memraflex grille is made of a durable tight mesh grille wire that withstands extraordinarily-rough treatment. Your microphone remains protected and looking good gig-after-gig, year-after-year. For additional protection, the ND68 capsule contains a hydrophobic cloth membrane which prevents moisture and debris from reaching the diaphragm.

Features:

- Excellent acoustic isolation with deep lows and topend punctuation
- Large diaphragm dynamic capsule creates a rich and detailed frequency response
- Extremely high SPL handling
- Humbucking coil guards against read more line hum
- Memraflex grille resists denting
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
- Element Type: Dynamic neodymium magnet structure
- Frequency Response, Free Field: 20 Hz to 11 kHz
- Polar Pattern: Supercardioid
- Sensitivity, Open Circuit: 0.8 mV / Pascal
- Maximum SPL: 140 dB SPL
- Polarity: Pin 2 positive, reference to pin 3 with positive pressure on diaphragm
- Impedance: 150 ohms balanced (low-z)
- Microphone Connector: 3-pin, XLR-type
- Finish: Black polyurethane paint
- Material: Zinc die cast case, Memraflex grille screen
- Accessories: (1) Gig bag, (1) stand clip, and (1) Euro thread adapter
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.5 lbs
Shipping Dimensions: 10 x 5 x 3 in
Manufacturer Part Number (MPN): ELE ND68
For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096
