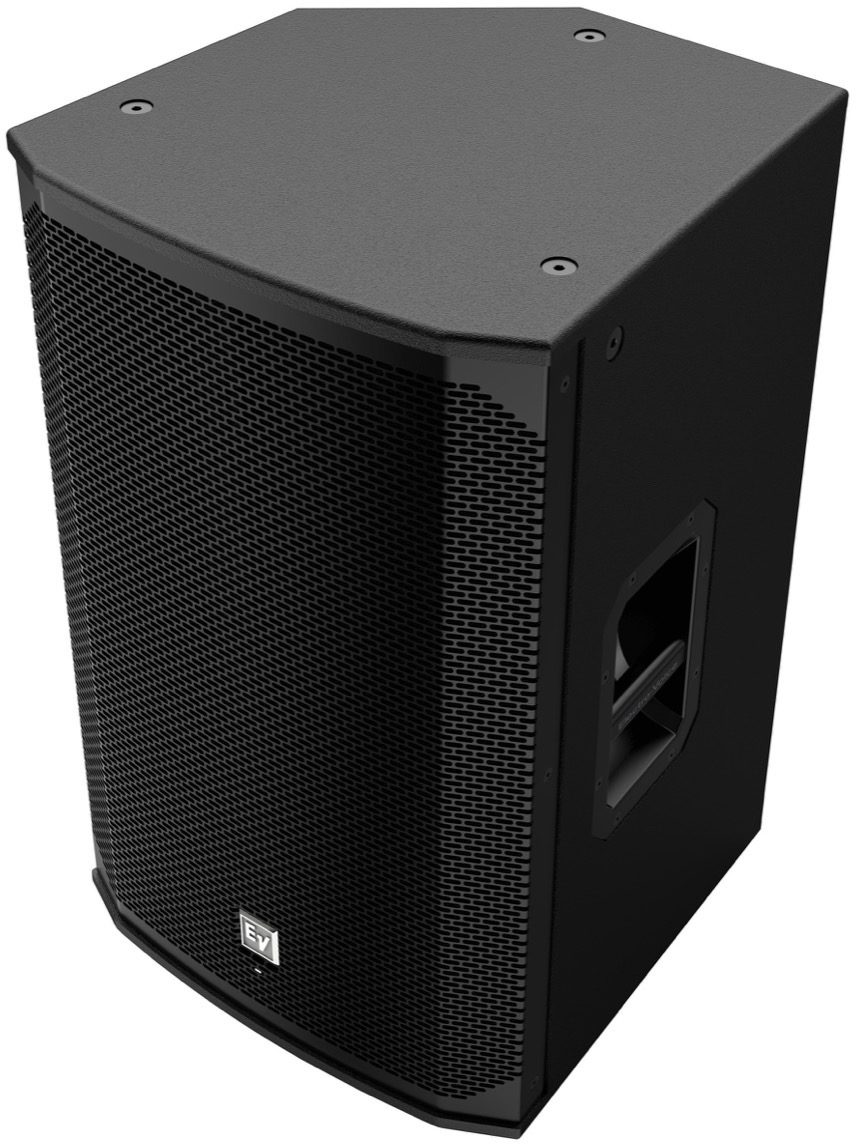

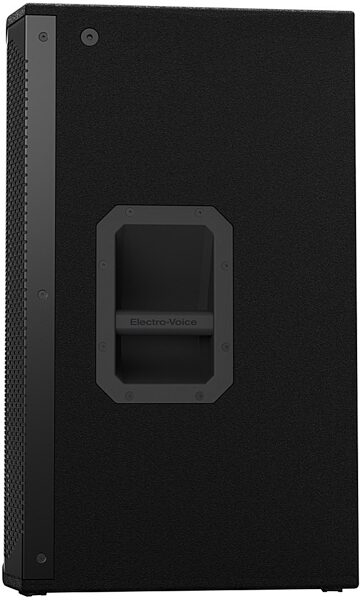

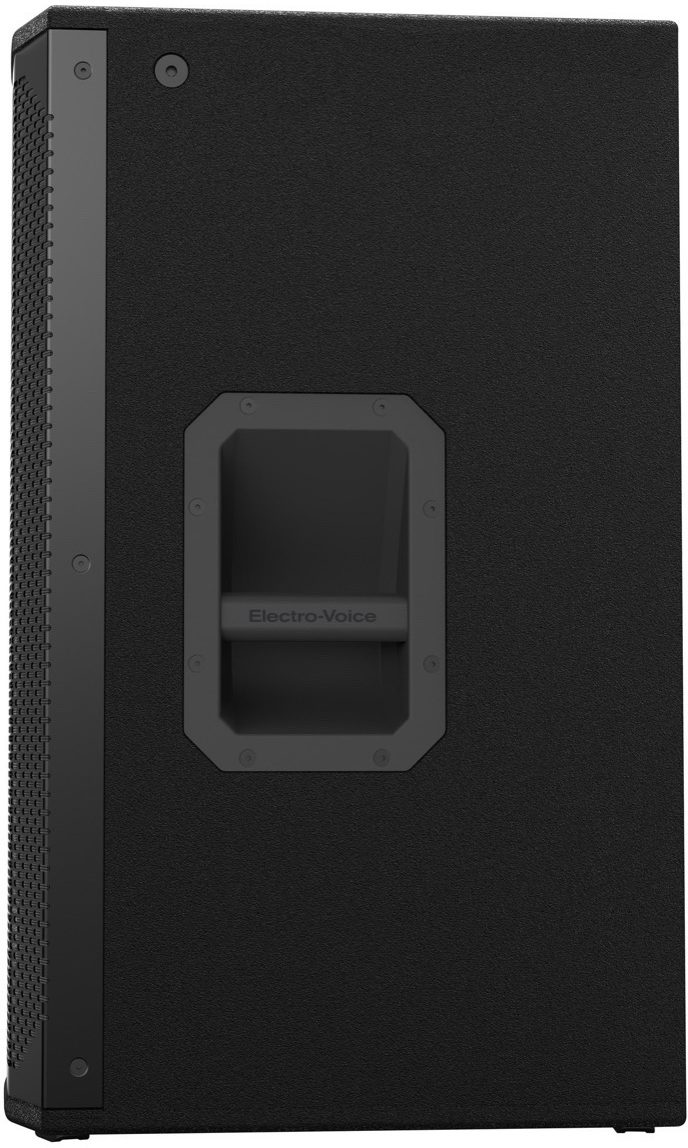

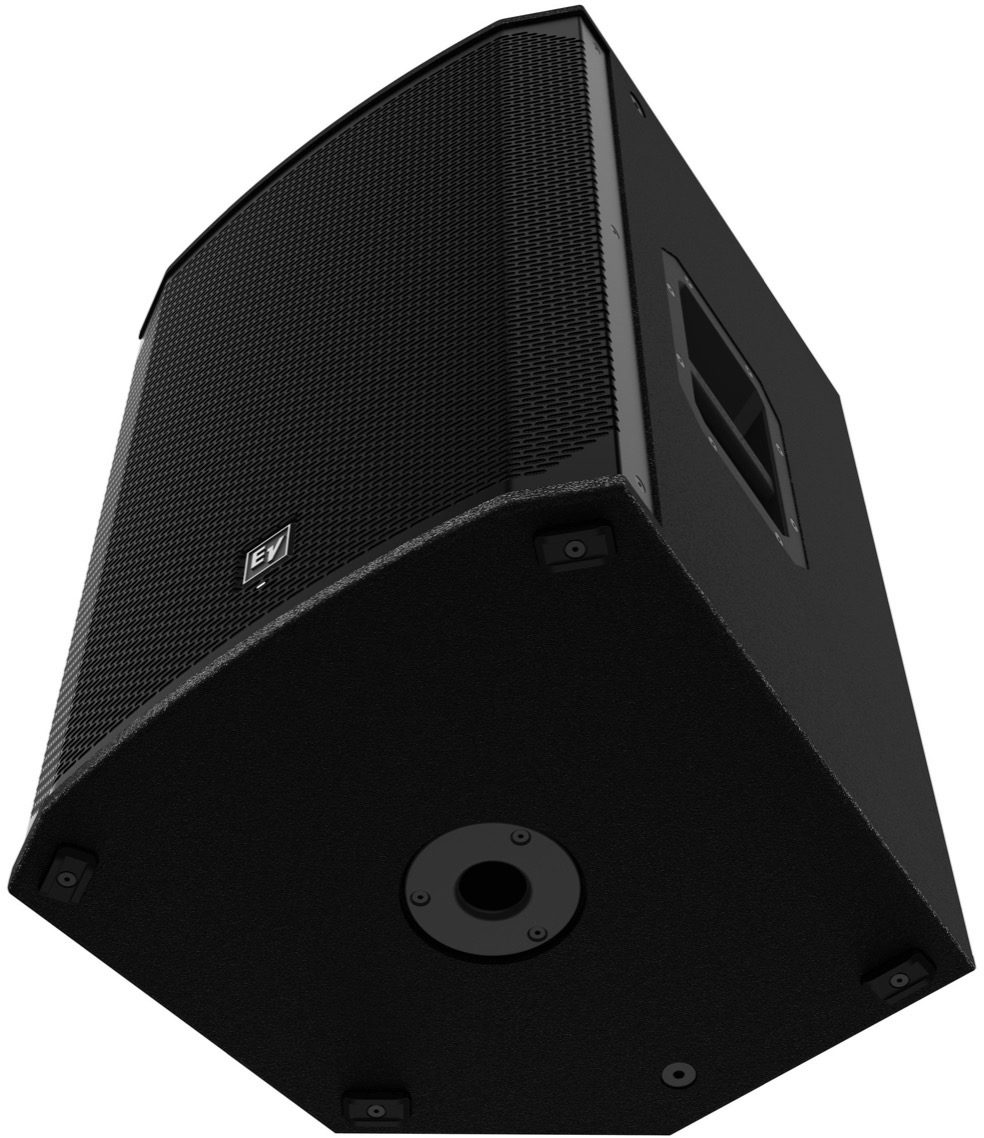

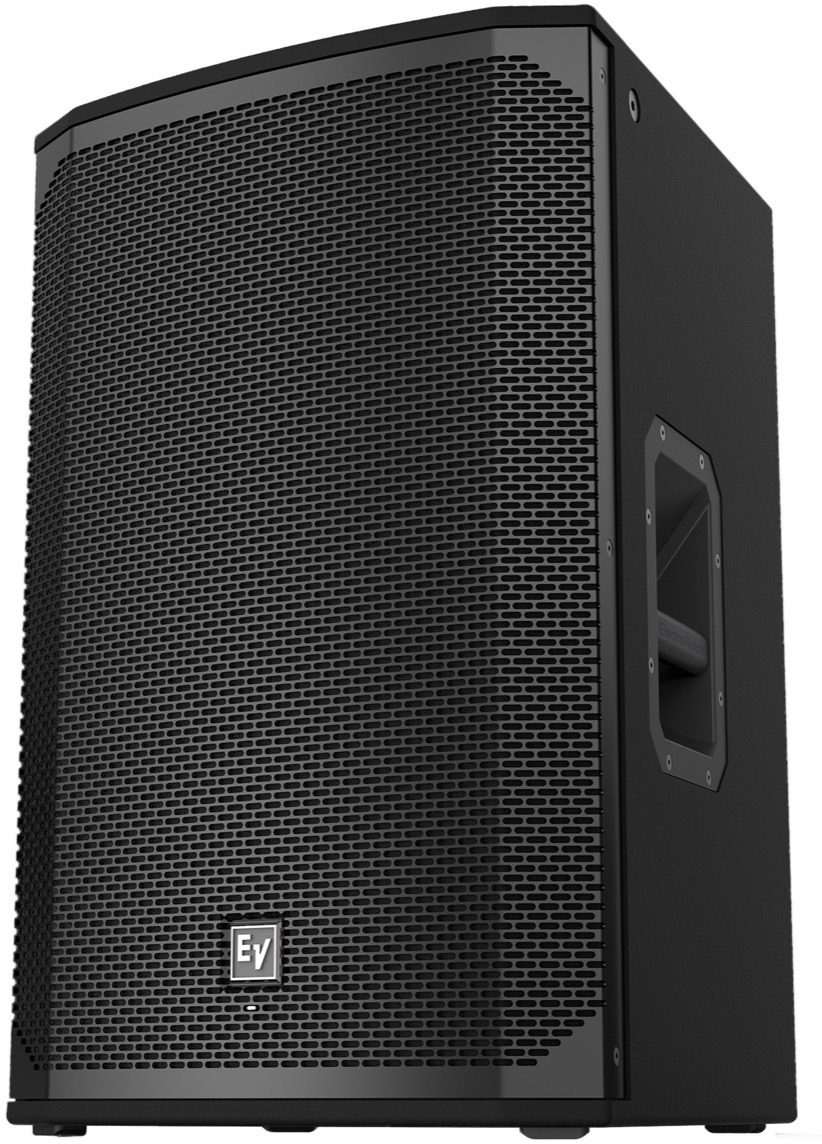

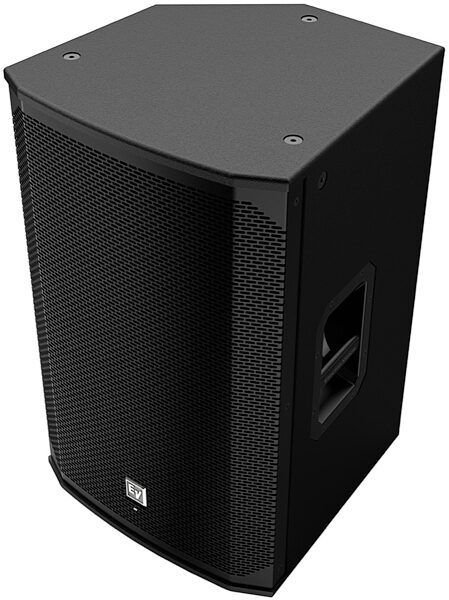

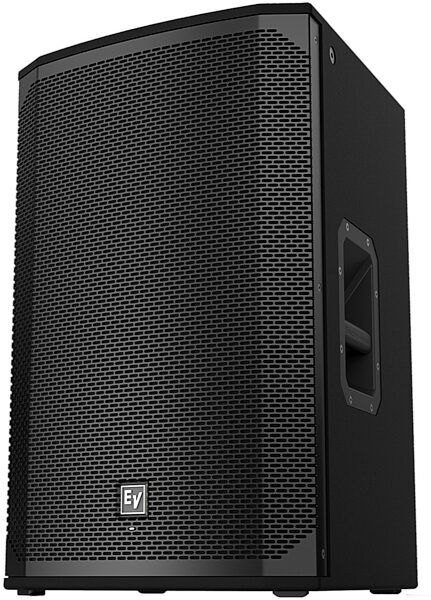

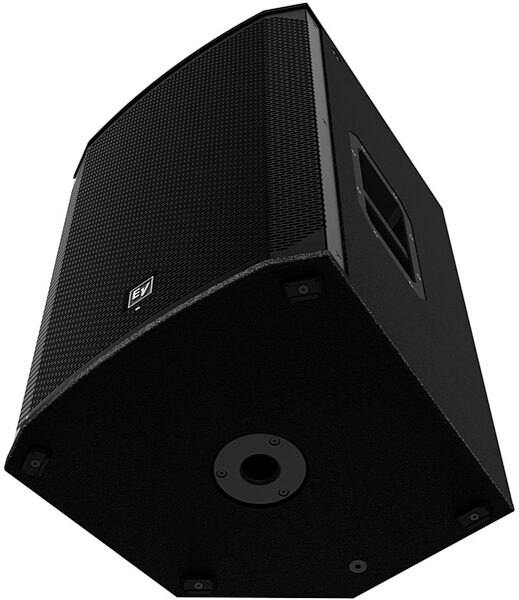

Electro-Voice EKX-15 2-Way Passive, Unpowered Speaker (1x15")

Build your passive PA rig with these powerful 15" loudspeakers from Electro-Voice. The EV EKX-15 handles 400 watts continuous and 1600 watts peak power. Unpowered. Requires separate power amplifier.

The Electro-Voice EKX-15 is the 15" passive 2-way speaker from EV's EKX series. The EKX series combines legendary EV sound quality and reliability - all in a compact package suitable for a wide range of sound reinforcement scenarios, including musicians/DJs and live/club/installed sound applications.

Inside the EKX-15, EV-engineered components and Signal Synchronized Transducers(TM) waveguide design work together to provide precise coverage and superior sound quality at high SPLs. EV's award-winning industrial design -- with robust wood enclosures and durable EVCoat finish -- ensures that EKX speakers look as great as they sound.


- 15-inch EVS-15M woofer and 1-inch DH-1M HF titanium compression driver)
- EV-patented Signal Synchronized Transducers(TM) waveguide design provides precise and consistent coverage
- Ideal for portable and installed applications
- Lightweight, compact 15mm wood enclosure with internal bracing, and durable EVCoat finish
- Eight M10 threaded mounting points, aluminum pole-mounts, and all-metal handles

Note: Unpowered speaker, requires separate power amplifier.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB Full Space Measurement
- Connector Type: Dual NL4
- Coverage (Nominal -6 dB) H: 90 *
- Coverage (Nominal -6 dB) V: 60 *
- Crossover Frequency: 1.6 k Hz
- Enclosure Material: 15 mm, plywood with EVCoat
- Frequency Response (-10 dB): 50 Hz - 20 k Hz Full Space Measurement
- Frequency Response (-3 dB): 75 Hz - 18 k Hz Full Space Measurement
- Grill: 18 AWG steel with powdercoat
- HF Transducer: DH-1M 1-inch titanium compression driver
- LF Transducer: EVS-15M 381 mm (15 in)
- Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
- Minimum Impedance: 7.2 Ohm
- Nominal Impedance: 8 Ohm
- Power Handling (Continuous / Peak): 400 W/1600 W
- Recommended High-Pass Frequency: 50 Hz
- Shipping Weight: 28.2 kg (62.17 lbs)
- Mounting/Suspension: (8) M10 threaded mounting points
- Height: 16RU 685 mm (26.97")
- Width: 432 mm (17.01")
- Depth: 429 mm (16.89")
- Weight Net: 23.2 kg (51.15 lbs)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 58.5 lbs
Shipping Dimensions: 29 x 19 x 19 in
Manufacturer Part Number (MPN): F.01U.303.365
Shipping Weight: 117 lbs

Note: Unpowered speaker, requires separate power amplifier.

For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096
Email: technical.support@us.bosch.com
Web: https://electrovoice.com/contact-us/
