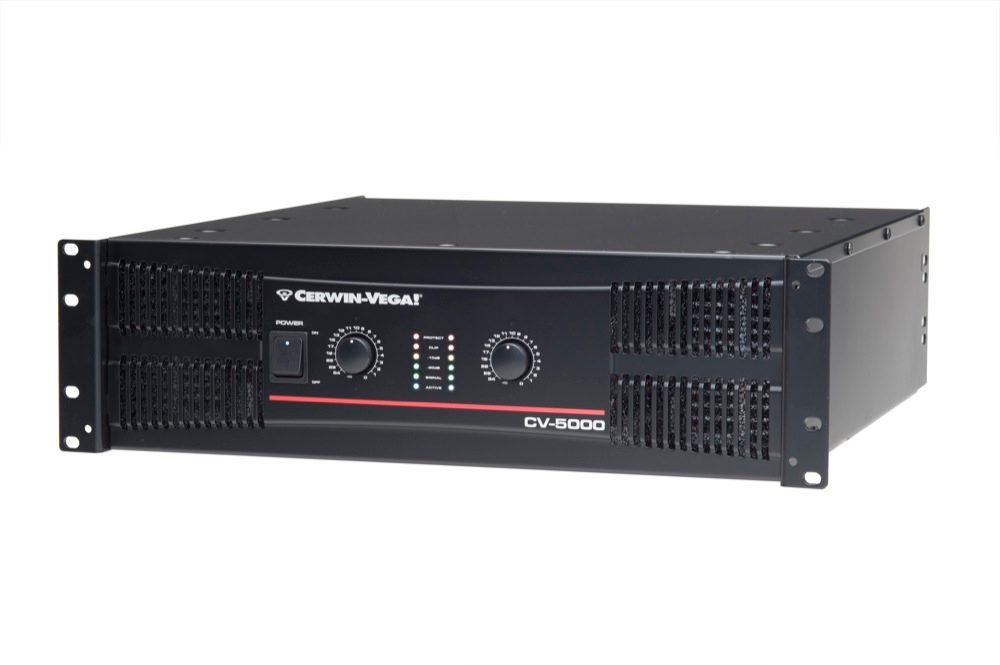

Cerwin-Vega CV5000 Power Amplifier (5,000 Watts)

No longer available at zZounds

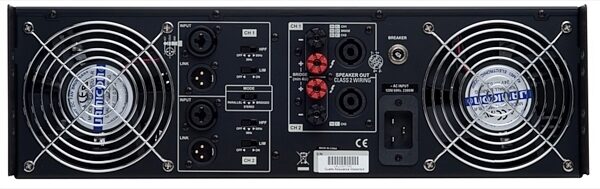

Cerwin-Vega CV5000 Power Amplifier (5,000 Watts), Rear

Overview

The field proven amp design of the Cerwin-Vega CV5000 power amplifier is the most muscular yet in the CV Series and is a perfect match for Cerwin-Vega's largest and loudest Passive Speakers and Folded Horns. A true powerhouse, the CV5000 is capable of driving the most demanding speaker applications including Cerwin-Vega's TS-42 Folded Horn Sub. The 3 RU enclosure is compact and feature-laden, with a design that includes a high-efficiency, variable-speed fan tunnel cooling system, complete LED monitoring of the amplifier's status and comprehensive protection circuitry that guards vital components.

Specs

- Front: Volume control that features a 21 detent potentiometer for each channel
- Rear: Mode selector switch (Parallel/Stereo/Bridged Mono)
- HPF: On/Off switch for each channel
- Limiter: On/Off switch for each channel
- Connectors:
- Input: Combo jack electronically balanced 1/4 in. & XLR male for input link
- Output: 5-way binding post & Speakon connector for each channel
- Indicator: Signal, -20dB, -10dB, 0dB, Clip, Protect & Active
- Protection: Short Circuit, Thermal, Current Limit, DC Offset, Current Inrush, RF Protection, Turn On / Turn Off Mute
- Cooling: Variable speed fan forced cooling
- Rated Power:
- Stereo @ 8 ohms 1100 watts
- Stereo @ 4 ohms 1800 watts
- Stereo @ 2 ohms 2500 watts
- Bridge @ 8 ohms 3600 watts
- Bridge @ 4 ohms 5000 watts
- Input Sensitivity: (8 ohms 1.42V (+5.3dB)
- Input Impedance: 20 kohms Balanced / 10t kohms Unbalanced
- Frequency Response: (+/-3.0 dB) 5Hz - 50kHz
- T.H.D (1 kHz, Rated Power) : < 0.03 % 4 ohms and 8 ohms
- Signal to Noise Ratio (20Hz - 20kHz) : <-100 dB
- Damping Factor (8 ohms,400 Hz) : > 300
- Power Source: 100~240 Vac, 50/60 Hz
- Weight : 83.3 lbs / 37.2 Kgs / Gross 96 lbs / 43.5 Kgs
- Dimensions (H x W x D) : 5.1 in. x 18.9 in. x 18.9 in. / 132 cm x 482 cm x 482 cm
