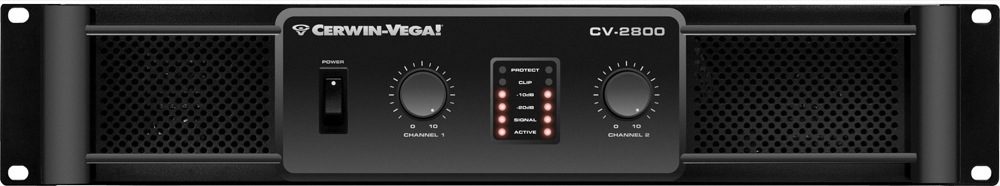

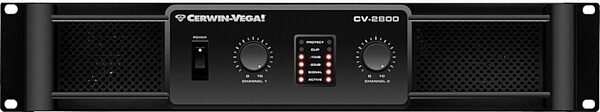

Cerwin-Vega CV2800 Power Amplifier (2,800 Watts)

No longer available at zZounds

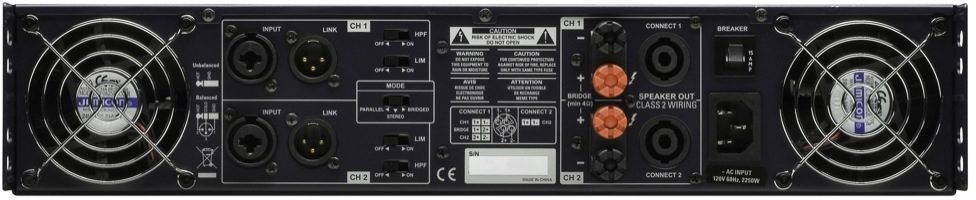

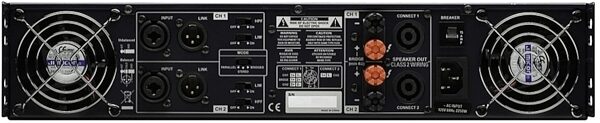

Cerwin-Vega CV2800 Power Amplifier (2,800 Watts), Rear

Overview

The Cerwin-Vega CV2800 power amplifier is a rugged, 2U rackmountable workhorse with the muscle to accommodate the most demanding audio challenge. With power ratings up to 2800-watts, support for bridged mono operation, exceptional THD (Total Harmonic Distortion) and Signal-to-Noise ratings, the CV Series power amps are the right choice for a wide range of musical tasks.

Featuring state-of-the-art designs that include a highly efficient tunnel cooling system to ensure reliable, cool running operation, 21-position detent level control knobs for easily repeatable settings, signal and clip indicators for convenient monitoring of the amplifier's status, and the right connectors for integration into most any environment. The CV-Series Amps are right for the job.

Features:

- Front panel LED displays indicate power, clip protect and signal status
- Balanced XLR and TRS Input connectors
- Speakon NL-4 locking output connectors and binding posts
- Detented 21-position input level control knobs
- Defeatable limiter and high pass filter per channel
- Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off muting protection
- 5-way binding post and Speakon output connectors- Flow-through cooling design prevents overheating with continuously variable speed, front to rear

Specs

- Rated Output Power Stereo:
- 8 ohms: 600-watts
- 4 ohms: 900-watts
- 2 ohms: 1400-watts
- Rated Output Power Bridged Mono:
- 8 ohms: 1800-watts
- 4 ohms: 2800-watts
- Signal to Noise Ratio (20 Hz - 20 kHz): 104 dB
- Distortion (SMPTE-IM): 0.04
- Input Sensitivity @ 8 ohms: 4 dBu
- Voltage Gain: 35 dB
- Output Circuitry: H
- Current Consumption: 120 VAC / 240 VAC
- Frequency Response: 0/-0.5 db; 20 Hz - 20 kHz; 5 Hz - 60 kHz
- Damping Factor (400 Hz): 350
- Input Impedance: 15 Kohm Unbalanced, 30 Kohm Balanced
- Input Clipping: 22 dBu
- Cooling: Continuously variable speed, front to rear
- Connectors (Each) :
- Input: Active balanced combo (XLR and 1/4-inch TRS common use)
- Output: 5-way active post and speakon
- Control:
- Front: AC power switch, Channel 1 and 2 Volume
- Rear: HPF switch, Limiter switch, Mode selector switch
- Indicators: Active(Blue Light), Protection(Red), Clip(Red), Signal(Dark blue)
- Protection: Short circuit, Thermal, Current limit, DC offset, Current inrush, RF protection, Turn on / Turn off muting
- Dimensions: 19 x 3.5 x 16.5 in. (482 x 88 x 420 mm)
- Net Weight: 46 lbs. (20.7 kg)
