Crown Macro-Tech 9000i Power Amplifier

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

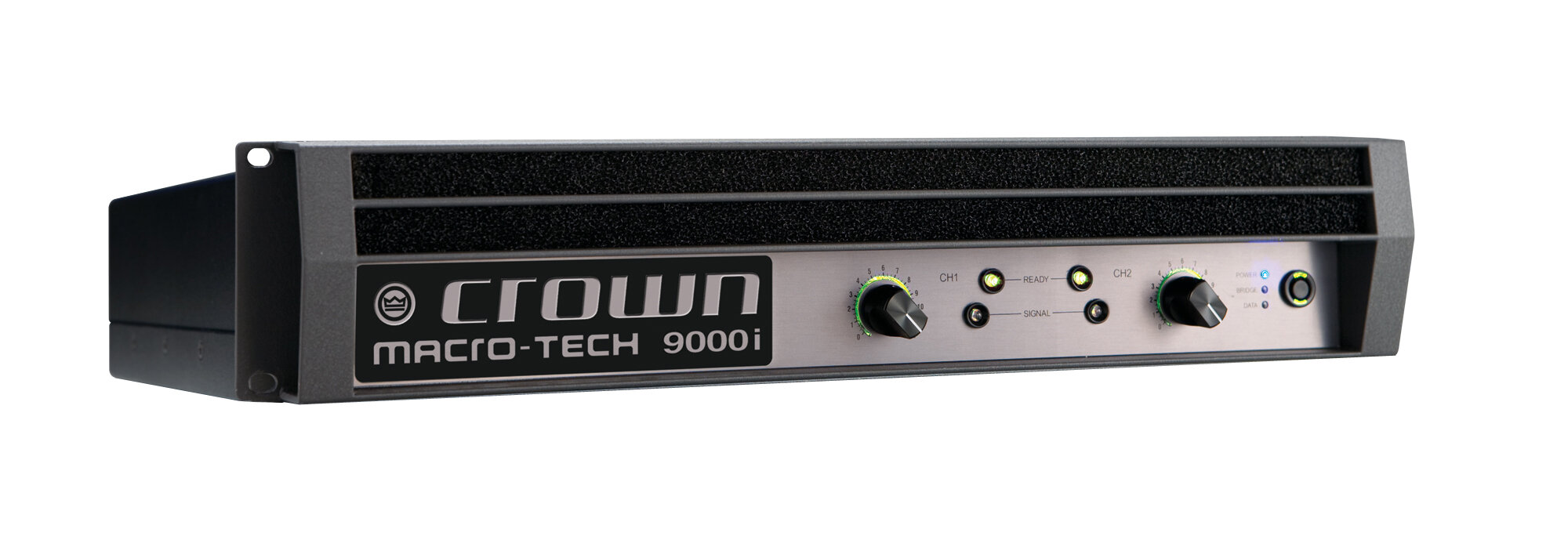

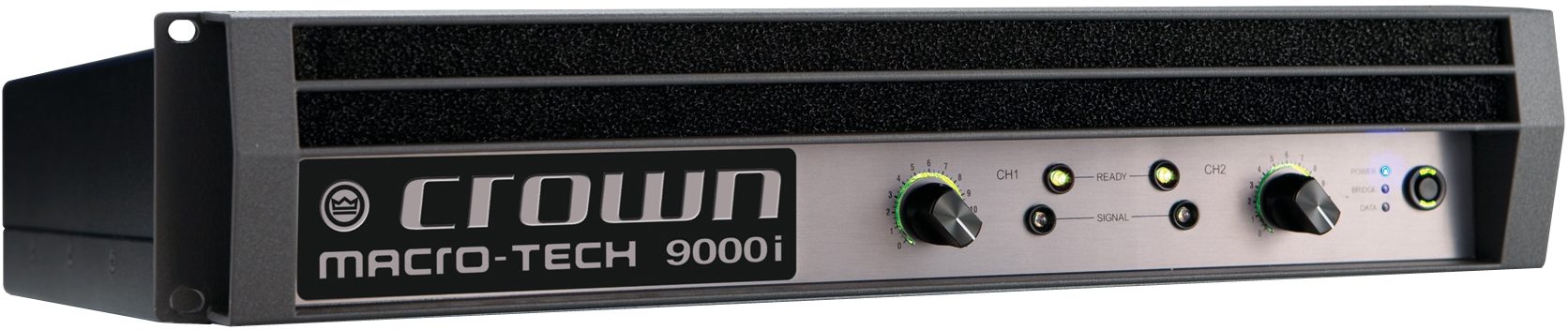

Crown Macro-Tech 9000i Power Amplifier, Main
Crown Macro-Tech 9000i Power Amplifier, Back
Crown Macro-Tech 9000i Power Amplifier, Main Crown Macro-Tech 9000i Power Amplifier, Back
zZounds Gear Experts Say...
The Macro-Tech 9000i power amp from Crown features a global power supply and exceptional sound quality.

The Crown Macro-Tech 9000i power amplifier is a solid-state two-channel model with a switch-mode universal power supply. The outputs are usable as dual or bridged-mono modes of operation. The bridged-mono mode bridges the outputs to provide increased output voltage. The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.

Features

- The Macro-Tech i Series continues the Crown Macro-Tec legacy of unparalleled sonic accuracy and detail, putting sound quality above all else
- Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste
- Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road
- Global Power Supply ? designed to deliver maximum power no matter what country you work in
- Built-in load, line voltage, input and output monitoring
-20 amp IEC power cord included
- Standard Ethernet networking via System Architect lets system

- Power Output (Guaranteed minimum power in watts at 20 Hz-20 kHz with 0.35% THD) :
- 2-ohm Dual (per ch.) 20 mS Burst: 4,700 watts
- 2-ohm Dual (per ch.) 20 Hz - 20 kHz: 2,800 watts
- 2-ohm Dual (per ch.) 1 kHz: 2,800 watts
- 4-ohm Dual (per ch): 3,500 watts
- 8-ohm Dual (per ch): 1,500 watts
- 4-ohm Bridge: 5,600 watts
- 8-ohm Bridge: 7,000 watts
- Frequency Response (at 1 watt, 20 Hz - 20 kHz into 8 ohms) : +/-0.25 dB
- Signal to Noise Ratio below rated full-bandwidth power, A-weighted : > 110 dB
- Total Harmonic Distortion (THD) at 2 watts into 8 ohms : < 0.1%
- Total Harmonic Distortion (THD) Plus Noise at full rated power : < 0.35%
- Intermodulation Distortion (IMD)60 Hz and 7 kHz at 4:1, from full rated output to ?30 dB : < 0.35%
- Damping Factor (20 Hz to 100 Hz at 8 ohms) : > 5000
- Crosstalk (below rated power, 20 Hz to 1 kHz) : > 80 dB
- Common Mode Rejection (CMR) (20 Hz to 1 kHz) : 55 dB, typically > 70 dB
- DC Output Offset (shorted input) : < +/- 3 mV
- Input Impedance (nominal) :
- 10 kilohms balanced
- 5 kilohms unbalanced
- Maximum Input Level: +20 dBu typical
- Load Impedance (Note: Safe with all types of loads) :
- Stereo: 1/2/4/8/16 ohms.
- Bridge Mono: 2/4/8 ohms.
- Input Sensitivity (referenced to 8 ohm rated output) : 1.4V, 32 dB gain, and 26 dB gain
- Voltage Gain (referenced to 8 ohm rated output) :
- MA-5000i: 37.1 dB to 22.2 dB
- MA-9000i: 37.9 dB to 23.0 dB
- MA-12000i: 39.3 dB to 24.5 dB

For support or warranty questions, please contact the manufacturer:
Phone: 800-342-6939
Manual
