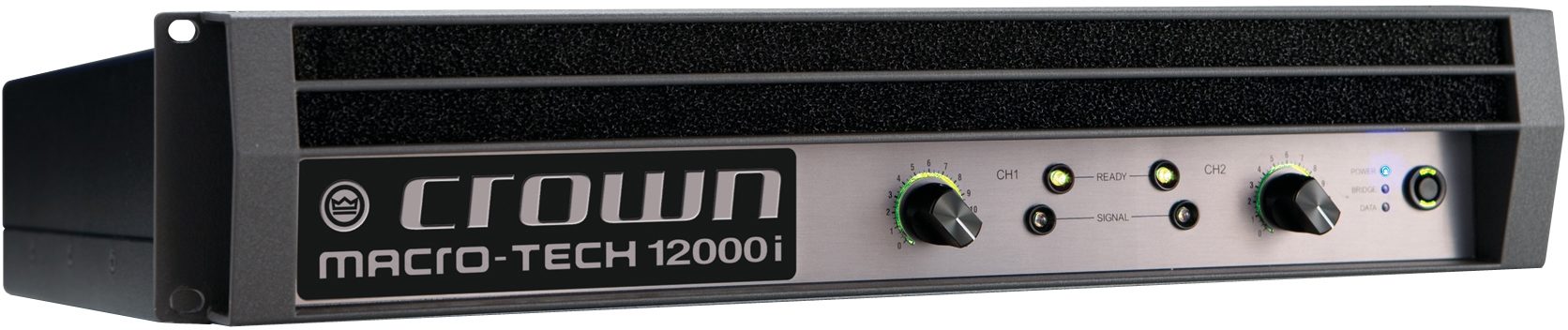

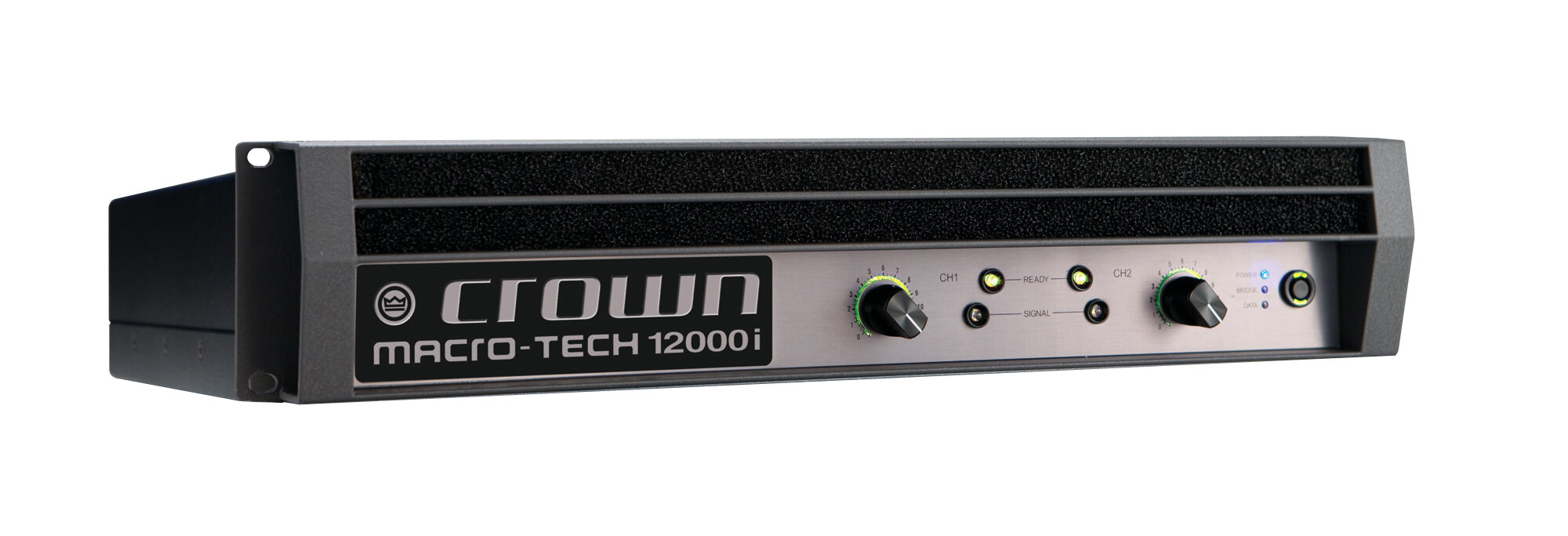

Crown Macro-Tech 12000i Power Amplifier

No longer available at zZounds

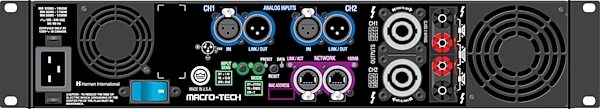

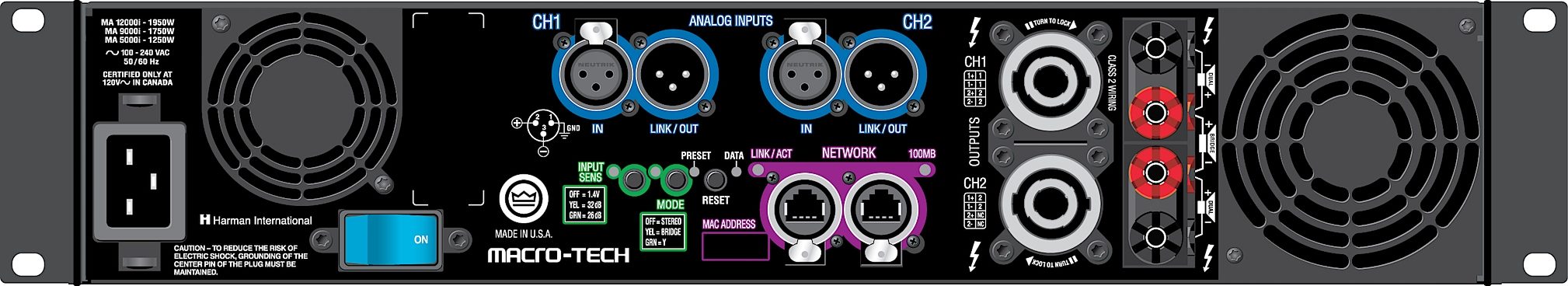

Crown Macro-Tech 12000i Power Amplifier, Back

zZounds Gear Experts Say...

This two-channel amplifier from Crown features onboard signal processing and a built-in network connection.

Overview

The Crown Macro-Tech 12000i power amplifier is a solid-state two-channel model with a switch-mode universal power supply. The outputs are usable as dual or bridged-mono modes of operation. The bridged-mono mode bridges the outputs to provide increased output voltage. The Crown Macro-Tech i Series offers amazing power, light weight and ease of use for touring sound applications. The series includes onboard analog signal processing and a built-in network connection.

Features

- The Macro-Tech i Series continues the Crown Macro-Tec legacy of unparalleled sonic accuracy and detail, putting sound quality above all else

- Patented, cutting-edge Class-I circuitry gets more power out of an amplifier with less waste

- Rugged construction ensures that all Macro-Techs are built to withstand years of abuse on the road

- Global Power Supply ? designed to deliver maximum power no matter what country you work in

- Built-in load, line voltage, input and output monitoring

-20 amp IEC power cord included

- Standard Ethernet networking via System Architect lets system

Specs

- Power Output(Guaranteed minimum power in watts at 20 Hz-20 kHz with 0.35% THD)
- 2-ohm Dual (per ch.) 20 mS Burst: 6,000 watts
- 2-ohm Dual (per ch.) 20 Hz - 20 kHz: 3,750 watts
- 2-ohm Dual (per ch.) 1 kHz: 3,750 watts
- 4-ohm Dual (per ch): 4,500 watts
- 8-ohm Dual (per ch): 2,100 watts
- 4-ohm Bridge: 7,500 watts
- 8-ohm Bridge: 9,000 watts
- Frequency Response (at 1 watt, 20 Hz - 20 kHz into 8 ohms) : +/-0.25 dB
- Signal to Noise Ratio below rated full-bandwidth power, A-weighted : > 110 dB
- Total Harmonic Distortion (THD) at 2 watts into 8 ohms : < 0.1%
- Total Harmonic Distortion (THD) Plus Noise at full rated power : < 0.35%
- Intermodulation Distortion (IMD)60 Hz and 7 kHz at 4:1, from full rated output to 30 dB : < 0.35%
- Damping Factor (20 Hz to 100 Hz at 8 ohms) : > 5000
- Crosstalk (below rated power, 20 Hz to 1 kHz) : > 80 dB
- Common Mode Rejection (CMR) (20 Hz to 1 kHz) : 55 dB, typically > 70 dB
- DC Output Offset (shorted input) : < +/- 3 mV

Input Impedance (nominal):
- 10 kilohms balanced
- 5 kilohms unbalanced
- Maximum Input Level: +20 dBu typical

Load Impedance (Note: Safe with all types of loads):
- Stereo: 1/2/4/8/16 ohms.
- Bridge Mono: 2/4/8 ohms.

Input Sensitivity (referenced to 8 ohm rated output):
-1.4V, 32 dB gain, and 26 dB gain

Voltage Gain (referenced to 8 ohm rated output):
- MA-5000i: 37.1 dB to 22.2 dB
- MA-9000i: 37.9 dB to 23.0 dB
- MA-12000i: 39.3 dB to 24.5 dB
