Analog Inputs- 6 x Mic / Line Inputs
- 2 x Mic / Line / Hi-Z Inputs
Analog Outputs- 1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max
- 2 x ReAmp Out on TRS 1/4 Jacks
- 1 x Line Out (8 channels) on DB25, +20 dBu max
- 2 x Stereo Headphone Outputs
Mic Preamp- EIN: -128 dBu (A-weighted)
- Dynamic Range: -121 dB (A-weighted)
- THD: -106 dB
- Max input: +18 dBu
- Max Gain: 65 dB
D/A Monitor Converter- Dynamic Range: 130 dB
- THD + N: -115 dB
A/D Converter- Dynamic Range: 121 dB
- THD + N: -112 dB
D/A Converters(Line Out)- Dynamic Range: 121 dB
- THD + N: - 100dB
- DC Coupled
Digital Inputs- 2 x ADAT (up to 16CH)
- 1 x S/PDIF
Digital Outputs- 2 x ADAT (up to 16CH)
- 1 x S/PDIF
USB 2.0 I/O- USB 2.0 Type B connector
Thunderbolt- Thunderbolt 2 connector
Word Clock Input- 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Word Clock Outputs- 3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
Clocking System- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
Sample Rates (kHz)- 32, 44.1, 48, 88.2, 96, 176.4, 192
Operating Temperature- 0-50°C, 32-122°F
Weight (Approx)- 3.0 kg/ 6.61 lbs
Dimensions (Approx)- Width: 483 mm / 19”
- Height: 44 mm / 1.7”
- Depth: 220 mm /8.6”
Power Consumption- 20 Watts
In the box- Discrete 8 Synergy Core Interface
- Quick Start Guide
- Wart External Power Supply Unit
- USB Cable
- Warranty Card
- Dimensions and Weight in Packaging

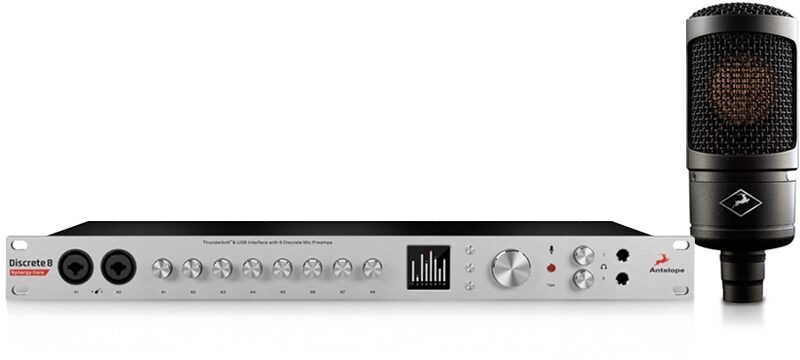

- Bundle with Edge Solo Mic, Bitwig Software + Analog Curator FX Plug-ins
-
Shipping Weight: 13.75 lbs
- Base Item
-
Shipping Weight: 9 lbs
-
Shipping Dimensions: 26 x 14 x 4 in
-
Manufacturer Part Number (MPN): Discrete 8 Synergy
- Blemished
-
Shipping Weight: 9 lbs
-
Shipping Dimensions: 26 x 14 x 4 in
-
Manufacturer Part Number (MPN): Discrete 8 Synergy
- Warehouse Resealed
-
Shipping Weight: 9 lbs
-
Shipping Dimensions: 26 x 14 x 4 in
-
Manufacturer Part Number (MPN): Discrete 8 Synergy
