Antelope Audio Edge Duo Dual-Diaphragm Multi-Pattern Modeling Microphone

With this dual-membrane condenser and Antelope's mind-bending modeling engine, you can emulate famous classic mics -- and even tweak pickup patterns in post!

The Antelope Audio Edge Duo is a multi-pattern large dual-diaphragm condenser microphone, capable of 3-dimensional high-resolution sound recordings. This innovative device can transform its behavior, color, frequency and transient response into 18 different iconic microphones that are still used in some of the most sophisticated recording studios. Thanks to its dual-diaphragm design and unique Modeling Engine, the Edge Duo allows for real-time polar pattern alterations during recording and

How It Works

Edge Duo is a dual-membrane condenser microphone -- it has one capsule with dual membranes and connects to your interface or preamp with a special included breakout cable with two XLR connectors -- one for each membrane. The Left (white/blue) connector is for the front membrane, the Right (red) is for the rear membrane. By picking up both sides, the Edge Duo can capture truly unique multi-dimensional sound. You can also use Edge Duo as a single-membrane condenser mic by disconnecting one of the XLR connectors, but you won't have access to mic emulations or polar pattern adjustments.


- Large-diaphragm, dual-diaphragm condenser microphone delivering high-resolution audio
- 18 classic mic emulations with stunning tone-shaping abilities
- Dual diaphragm (Multiple polar patterns)
- User-friendly software allowing for speed & efficiency

A Mic That Stands On Its Own

The Edge Duo has been developed as a microphone that performs outstandingly even without any read more emulations. It features two low self-noise, high SPL, 6-micron gold-sputtered diaphragms. Combined with the low-resonance body and low-reflection head basket, the capsule powers a high-performance microphone capable of delivering ultra-fast transients, flat frequency response, and exceptional dynamic range for clean and natural-sounding recordings. In contrast to cardioid-only mics, the Edge Duo allows you to select from omni-directional, through cardioid, into figure-eight and in between.

A Plethora of Tone-Shaping Emulations

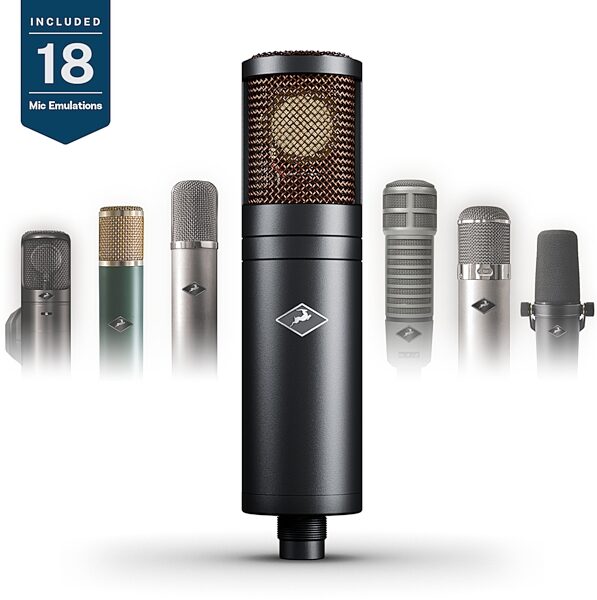

In addition to its own pristine sound, the Edge Duo's mic locker includes 18 emulations of the most popular mics for recording. Like the Edge Solo, it features dynamic and condenser classics, but differs with the addition of some Ribbon legends. To develop the emulations, Antelope Audio has worked with several revered European facilities, making rigorous measurements and testing multiple exquisitely preserved vintage microphones, as well as modern high-end classics. The updated library provides the necessary sonic versatility to suit any voice or instrument both at home and in the studio.

A New Vision for the Recording Experience

The purpose of the Edge Duo and all other modeling microphones in Antelope Audio's portfolio is to not only equip you with a variety of sonically versatile emulations in one body but to also expand your scope of recording abilities with features not available with conventional microphones. The modeling engine enhances your workflow by allowing you to switch between microphone emulations with a single click during recording or post-production. The dual-diaphragm design complements this further by also enabling polarity alterations at any stage of your production. When paired with an Antelope Audio interface you can benefit from imperceptible latency while picking the best mic emulation for the job during tracking. If you prefer, record without any modeling, and alter the sound later on with the native emulation plug-ins -- compatible with any DAW or interface. iLok 2 or 3 required to use emulations as native plug-ins within your DAW.

Check out this overview of the Edge Duo from Antelope Audio:

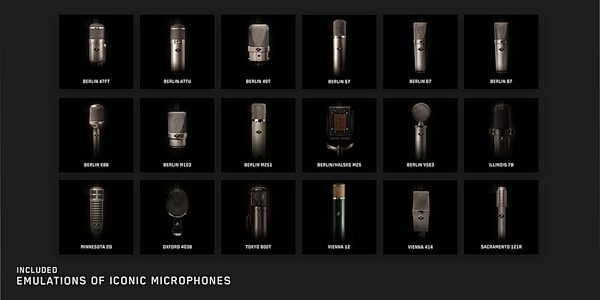

Microphone Emulations Included:

Berlin 47 FT - by far the ultimate kick drum microphone, with large, full-bodied sound and unmatchable low-end that's also suitable for bass cabinets.

Berlin 47 TU - modeled after "the holy grail" of tube microphones, it's suitable for any source and any application, but its glory is mostly due to its ability to capture vocals' presence like no other microphone.

Berlin 49T - a classic male-vocal microphone for effortless tube-warmth, whilst preserving musical presence.

Berlin 57 - similar midrange warmth and velvety highs as its brothers the Berlin 47 and 67, but with a slightly less colored response.

Berlin 67 - the perfect choice for the drum-overheads and other sharp instruments that might need softening.

Berlin 87 - a classic on vocals and acoustic instruments that need extra brightness

Berlin K86 - emulation of a classic German small-diaphragm condenser microphone with broad usage - heard on snare drums, piano and vocals in many hit records.

Berlin M103 - a great natural-sounding all-purpose studio microphone that offers less coloration than its brother the 87, but a bigger dynamic range.

Berlin M251 - an all-time classic female-vocal microphone, heard on countless records by Tina Turner, Shania Twain, Bjork, and many other legends.

Berlin V563 cardioid capsule - this emulation shares a similar sound character to the legendary 47TU with its natural warmth and smoothness, yet it adds another layer of presence and sheen on top.

Berlin/Halske M25 – modeled after one of the first ribbon mics to be developed in the 1930s.

Illinois 7B - its applications vary from kick drums, bass cabs, and vocals (both live and in the studio), but it's most well known as the "radio mic", because of its ability to capture incredibly deep low-end on voice-overs and speech.

Minnesota 20 - a familiar large and full low-end making it suitable for kick drums, bass cabs, and male vocals.

Oxford 4038 - the favorite of many pros because of its extended versatility and endless smoothness, it's the perfect solution for drum overheads, piano, and rooms.

Sacramento 121R - a top choice for guitar cabinets, this emulation has a very warm and characteristic sound with a gentle musical roll-off at the high-end.

Tokyo 800T - a classic hip-hop and pop large-diaphragm condenser mic that has become the favorite for Drake, Justin Bieber, and many other artists today.

Vienna 12 – the original sits at the top of the dream-list for many pros, who consider it the holy grail of vocal and brass microphones.

Vienna 414 - the ideal choice for drum overheads, acoustic instruments, and other airy sources.

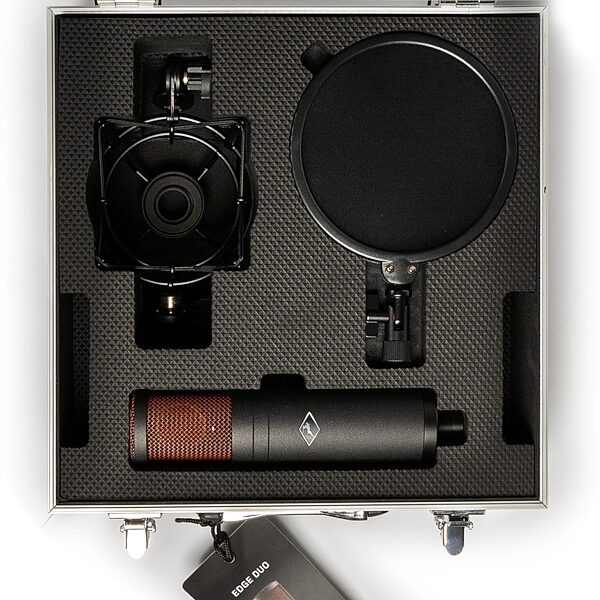

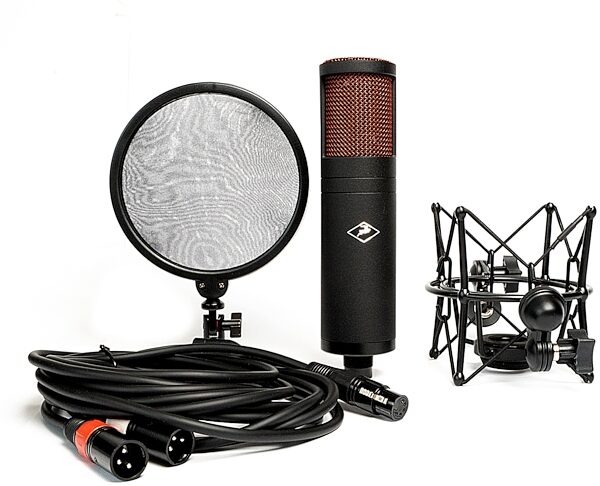

What's in the box?

- Antelope Edge Duo
- Breakout cable - 16.4' (5 meters) 5-pin female XLR to dual 3-pin male XLR (high grade OFC Y-cable)
- Shock absorber mount cradle

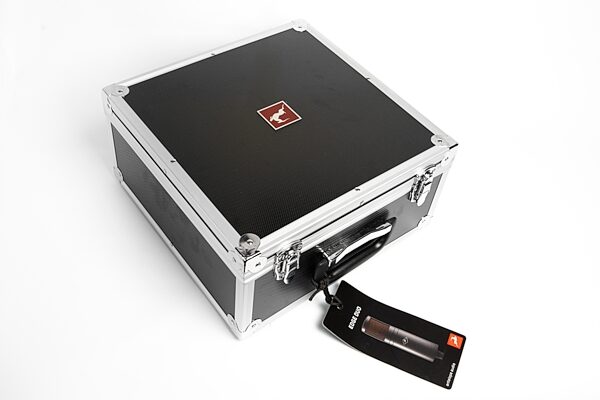

- Standard mid-size road case with handle and custom-fit foam inserts
- Mic emulation license codes and quick start guide leaflet
- Warranty card

Antelope Audio Company Heritage

Antelope Audio is a digital audio equipment manufacturer delivering high-resolution sound to acclaimed recording studios worldwide. The company's rise to fame can be traced back to their innovative master clocks and award-winning audio interfaces. In recent years they have leveraged their sonic expertise to create а line of modeling microphones.
read less

Microphone type: Stereo condenser microphone
Diaphragm: Large condenser – double-sided 6u gold-sputtered diaphragms
Diaphragm diameter: 34mm
Polar pattern: Multi-pattern (cardioid, figure-8, omnidirectional)
Frequency response: 20HZ ~ 20kHZ
Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
THD+N: -116dB
Self-noise: 19dB(A)
SNR: 75dB(A)
Output impedance: 50 Ohms @ 1kHz
Power requirements: 48V DC phantom power

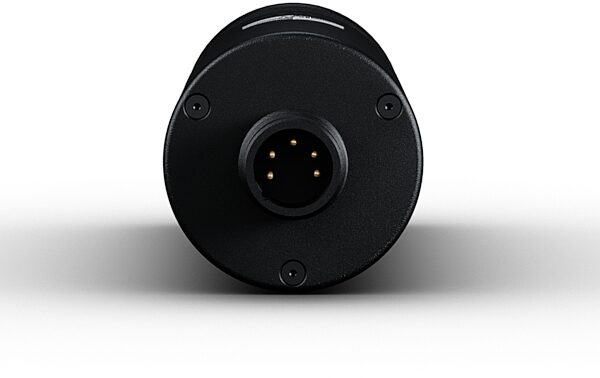

Output connector: 5-pin male XLR
Color: Black matte
Weight (mic body): 1.23 lbs (560 grams)
Dimensions (mic body): 8.6" x 2.1" (219mm x 53mm)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 7.25 lbs
Shipping Dimensions: 13 x 13 x 7 in
Manufacturer Part Number (MPN): EdgeDuo
Shipping Weight: 7.25 lbs
Shipping Dimensions: 13 x 13 x 7 in
Manufacturer Part Number (MPN): EdgeDuo
