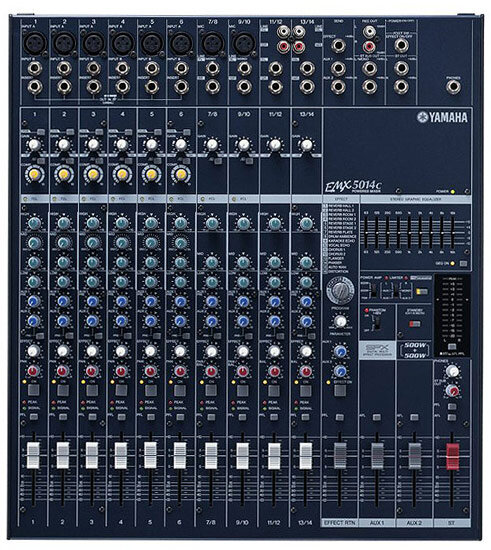

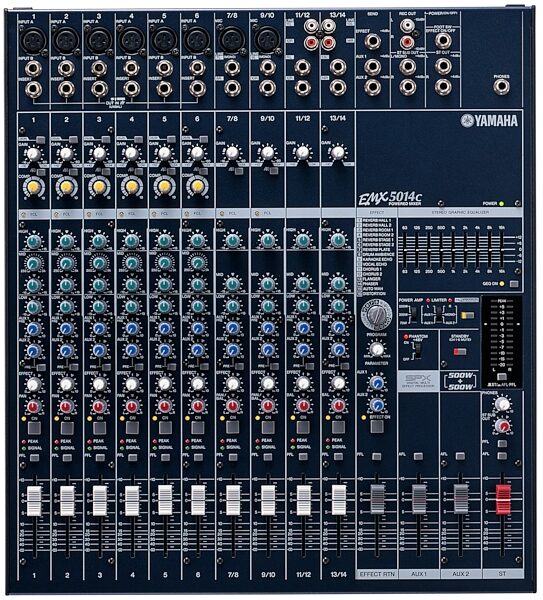

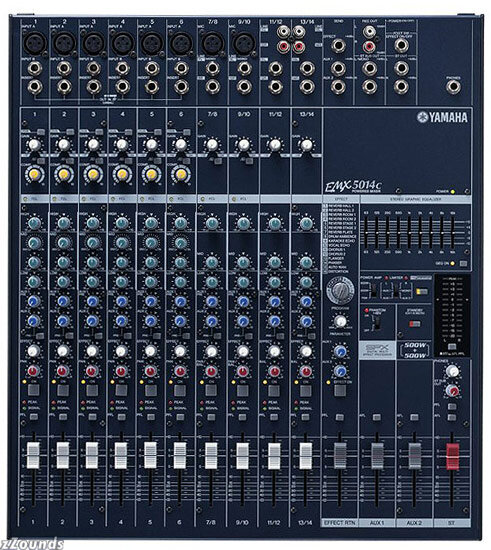

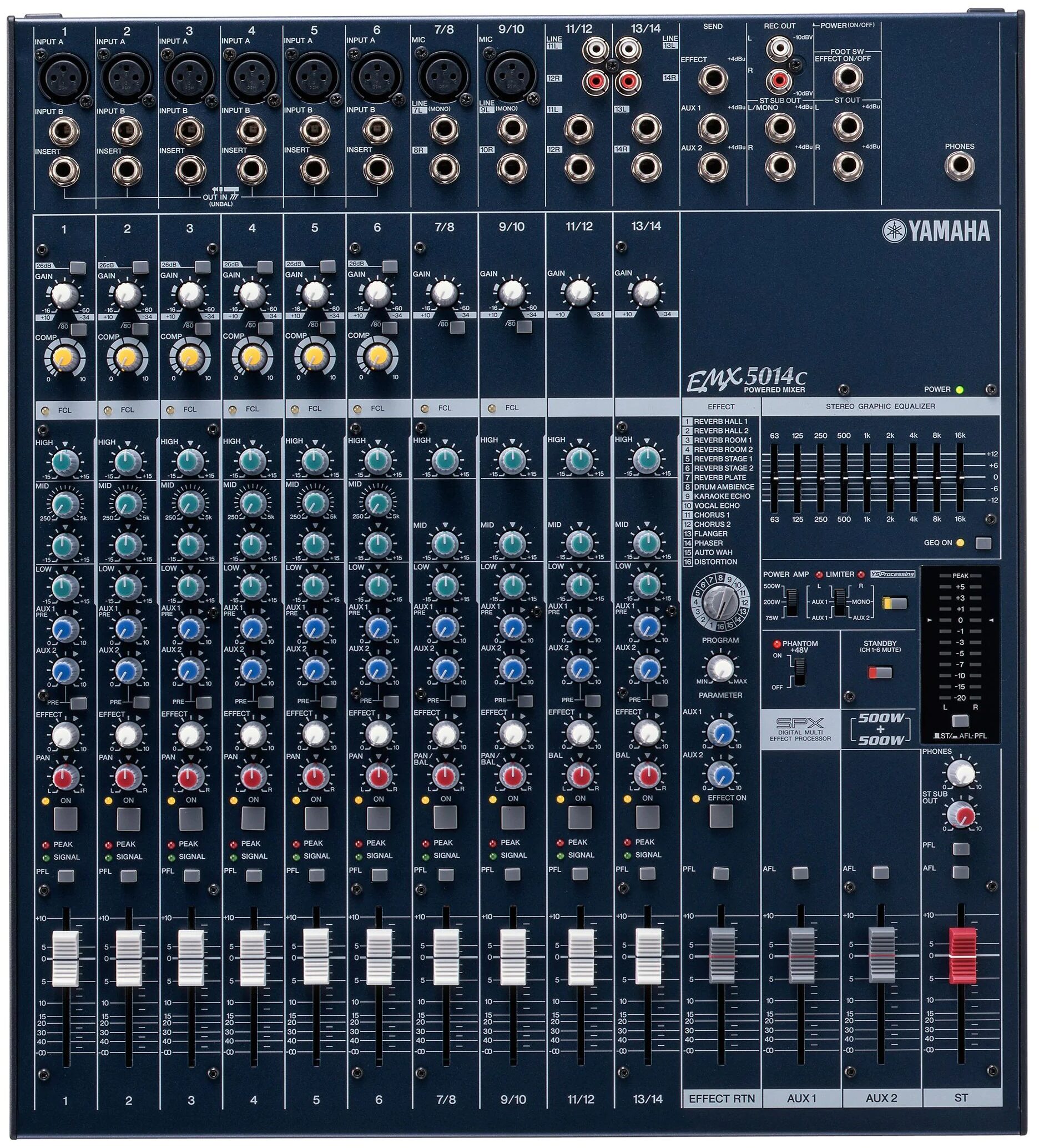

Yamaha EMX5014C Powered Mixer (2x500 Watts)

A winning combination of superior sound quality, convenient mixing control, and reliability has made the Yamaha EMX Series the top choice for bands, personal studios, houses of worship, corporate and educational facilities. Compact packages, versatile input capabilities, plentiful power and top-quality, built-in signal processing are standard equipment. Yamaha brings a new member to its EMX family with the Winter NAMM introduction of the EMX5014C.

Like others in the EMX family, the EMX5014C is a fully integrated mixer offering a range of features to mix, process, and deliver your sound with maximum quality and creative control. Equipped with ultra lightweight amplifier circuits, power is the priority of the 500-watt per channel multi-mode stereo power section.

A total of 14 input channels accommodate mics, instruments and playback gear with a selection of mono mic/line and stereo line inputs. Connections include XLR, TRS 1/4-in. phone, and RCA. A power mode switch allows the two amplifier channels to be used with the stereo outputs, drive main speakers and separate monitor mixes, while power amp mode selector switches allow the user to configure the amp channels to suit a range of applications.

Mix, Process and Deliver with the EMX5014C
For sound shaping and feedback control, the EMX5014C includes 3-band EQ on each input channel, a stereo 9-band graphic EQ on the main stereo output, and a separate graphic for the monitor output. Each channel also contains a Feedback Channel Locator (FCL) indicator that pinpoints the input channel creating the problem. Additionally, channels 1 thru 6 provide single knob compressors. This Yamaha exclusive feature is great for controlling unruly vocals or tightening up a bass guitar.

Onboard signal processing includes a selection of 16 professional-grade programs (reverb, echo, chorus, flanger, phaser, drum ambiance and distortion) from Yamaha's renowned SPX series processor products. In addition, onboard proprietary YSProcessing tailors the signal for optimum use with Yamaha's Club Series loudspeakers.

The EMX5014C is housed in a lightweight (under 24 lb.) standard mixer format that can be used as a stand-alone unit or rack mounted with the optional RK5014 kit for space-saving convenience.

Technical Info

Maximum Output Power (1kHz, THD+N (both channels driven)8 ohm load - 350W
(both channels driven)4 ohm load - 500W

Input Connectors:
CH1-6: XLR and TRS Phone
CH7/8,9/10: XLR and 2 x TRS Phone
CH11/12,13/14: 2 x Phone and 2 X RCA

EQ Mono Inputs:
Low: 100Hz Shelving
Mid: 250Hz-5kHz peaking (sweepable)
High: 10kHz Shelving

EQ Stereo Inputs:
Low: 100Hz Shelving
Mid: 250Hz-5kHz peaking
High: 10kHz Shelving

AUX Sends: 3 (1 Pre, 1 assignable Pre/Post, 1 Effect)

Phantom Power: 48V

Graphic EQ: (ST out) 9-band (63, 125, 250, 500, 1k, 2k, 4k, 8k, 16kHz)

Digital Effects: SPX digital multi-effector 24-bit AD/DA, 32-bit processor (24-bit AD/DA, 32-bit Internal Processing)

16 Effects:
Reverb HallKaraoke Echo
Reverb Hall 2Vocal Echo
Reverb Room 1Chorus 1
Reverb Room 2Chorus 2
Reverb Stage 1Flanger
Reverb Stage 2Phaser
Reverb PlateAuto Wah
Drum AmbianceDistortion

Power Amp Mode:
ST L + ST R
Aux 1 + Mono
Aux 1 = Aux 2

Power Select Switch: 500W / 250W / 75W

Metering: 2 x 12 segment LED

YSProcessing: Yes (switchable)

Stand-By Switch: Yes (ch 1-6)

Foot Switch Option: Effect on/off

Dimensions (W x H x D): 444mm x 155mm x 493mm (17 1/2" x 6 1/8" x 19 1/2")

Weight: 10.5 kg (23 lbs)

With 14 channels: 8 XLR mic inputs with phantom power, inserts, and 3-band swept-mid EQ; 8 line inputs. Stereo 9-band graphic EQ. Single 24-bit effects processor.
