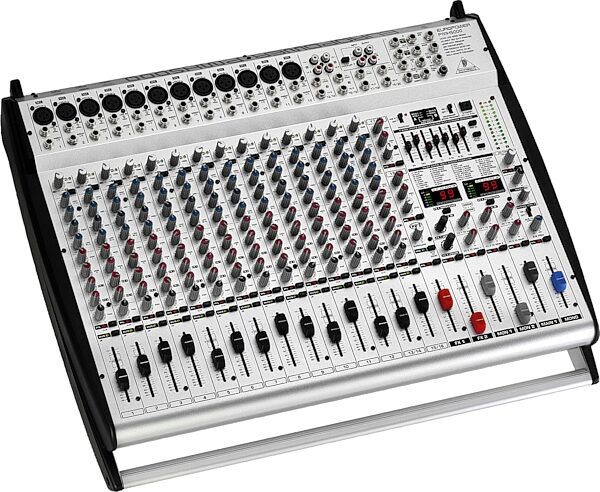

Behringer PMH5000 20-Channel Powered Mixer with FX (800 Watts)

Manufacturer's Description for Behringer PMH5000 20-Channel Powered Mixer with FX (800 Watts)

Behringer PMH5000 20-Channel Powered Mixer with FX (800 Watts)
The PMX5000 is our top-of-the-line console-style powered mixer. This powerhouse features 20 channels (12 mono + 4 stereo), plus stereo tape returns, two 24-bit/46 kHz effects processors with 99 great-sounding Virtualizer presets each, two monitor paths and extremely flexible I/O options. It's jam-packed with everything you need for the most demanding sound reinforcement gigs like a 2 x 400-Watt (800 Watts bridged mode) CoolAudio amplifier to drive your FOH and/or monitor speakers.

With our revolutionary CoolAudio amplifier technology you get enormous power, incredible sonic performance and super-light weight delivered in an ultra-compact mixer that is nearly half the depth and weight of conventional powered mixers.

Adding to the list of 'big-mixer' features are: our awesome XPQ 3D surround effect, stereo 7-band graphic EQ with FBQ Feedback Detection, dual 12-segment LED output level meters as well as faders for precise level control of mono, main 1, monitor 1 & 2 and FX1 & 2 send outputs. The dedicated mono output with adjustable low-pass filter can be used to feed an external subwoofer. Plus, there are Behringer's Speaker Processing function, stereo power amp inserts and a Phones/Ctrl R output with dedicated level control for headphones or powered monitors.

The PMH5000 features 12 balanced low-impedance mic inputs with state-of-the-art IMP 'Invisible' Mic Preamps plus balanced high-impedance line inputs for direct connection of line sources or high-output instruments. Its full-featured channel strips include input level trim controls, signal and clip LED indicators, ultra-musical 3-band EQs with semi-parametric mid control, dual monitor sends, dual FX sends, mute and PFL functions plus high-quality 60-mm logarithmic faders for exact signal level control. Mono channels also include low-cut filters, inserts for connecting external processors and A/B switching for selecting the 1/4 in. TRS or RCA input connectors (channels 13 - 16). The separate CD/Tape input lets you connect a line-level stereo source and the standby switch instantly mutes channels 1 - 12, so you can play music during your breaks without having to change the fader positions and lose your mix. The super-rugged carrying handle makes it easy to transport while professional Speakon (r) connectors ensure outstanding performance and reliable connection. zZounds is an authorized dealer of Behringer products.

Max. Output Power:
2 x 400 W @ 4 ohms
1 x 800 W @ 8 ohms

Speaker Outputs: Neutrik Speakon comparable

Mono Mic/Line Channels: 12 (XLR + 1/4 in. TRS)

Stereo Line Channels: 4 (1/4 in. TRS + extra XLR mic inputs on ch. 13/14,15/16)

Channel Inserts: On mono channels

Channel EQ: 3-band with sweepable mid band on mono channels, 4-band on stereo ch. 13-16

Graphic EQ/FBQ Feedback Detection: 7-band EQ + FBQ

Phantom Power (+48 V): Yes

Aux Sends: 2 pre/2 post fader

24-Bit Digital FX Processor: 2

XPQ Surround Effect: Yes

Voice Canceler: Yes

Standby Switch: Yes

Speaker Processing: Yes

Power Amp Modes: Main L + Main R, Monitor + Main, Main bridge mode

Power Amp Inserts: 2

Main Mix Line Outputs: 2 x 1/4 in. TRS L/R

Mono Line Output: Yes (additional adjustable high-cut filter)

Monitor Line Outputs: 2 x 1/4 in. TRS

2-Track I/O (RCA conn.): Yes

Phones/Ctrl.Room Output: Yes

Dimensions H x W x D (approx.): 4 7/8 in. x 23 1/2 in. x 19 1/2 in. (122 x 596 x 496 mm)

Weight (approx.): 13.2 kg (29 lbs.)

Special Features:
Dual FX processors
PFL option for all input channels
AFL option for main mix, mono out, FX and monitor sends
