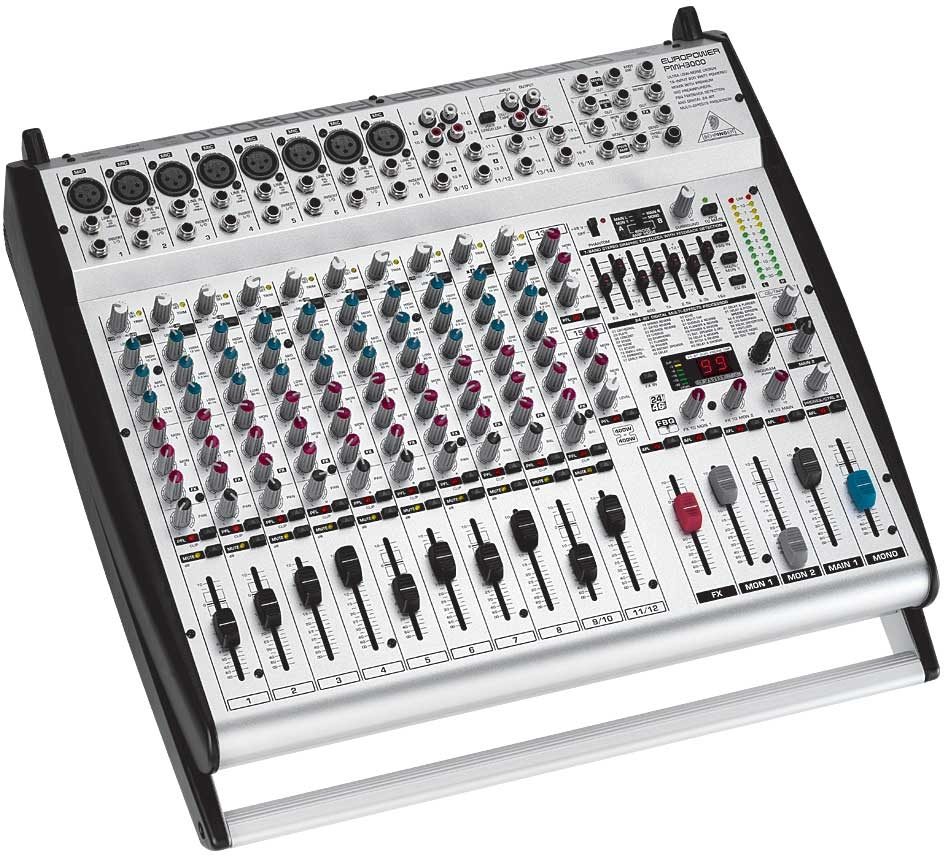

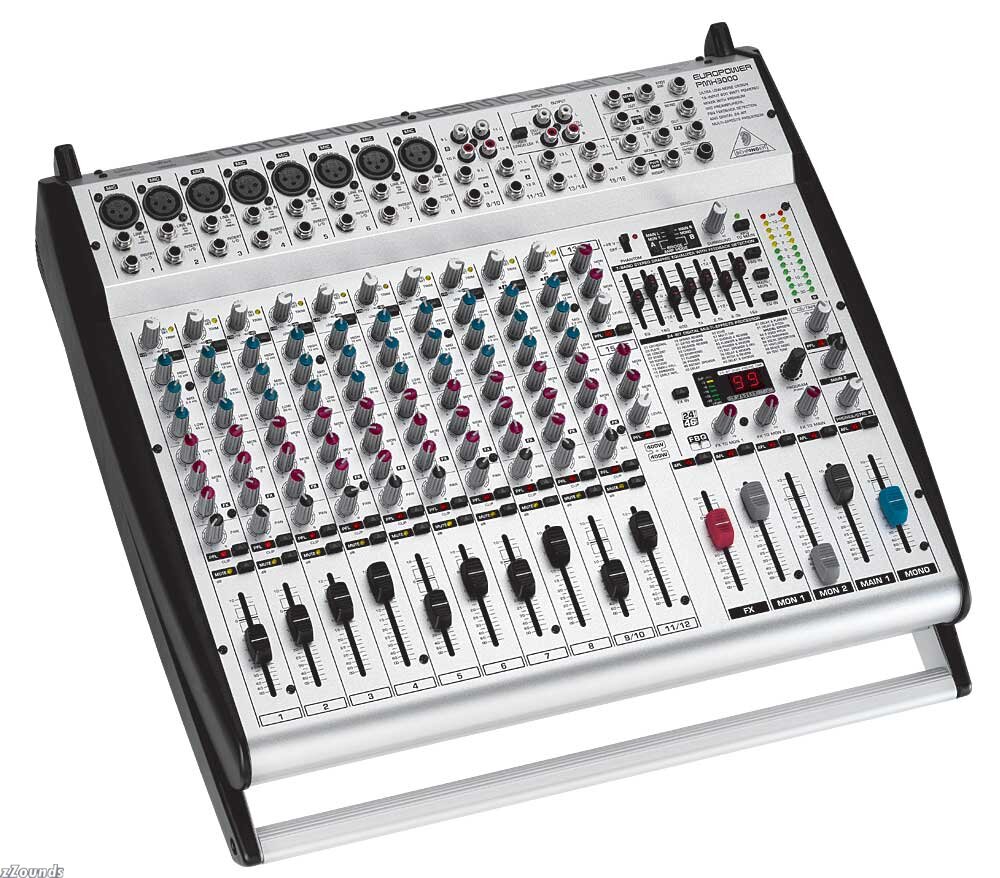

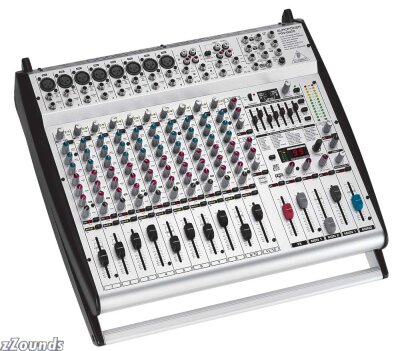

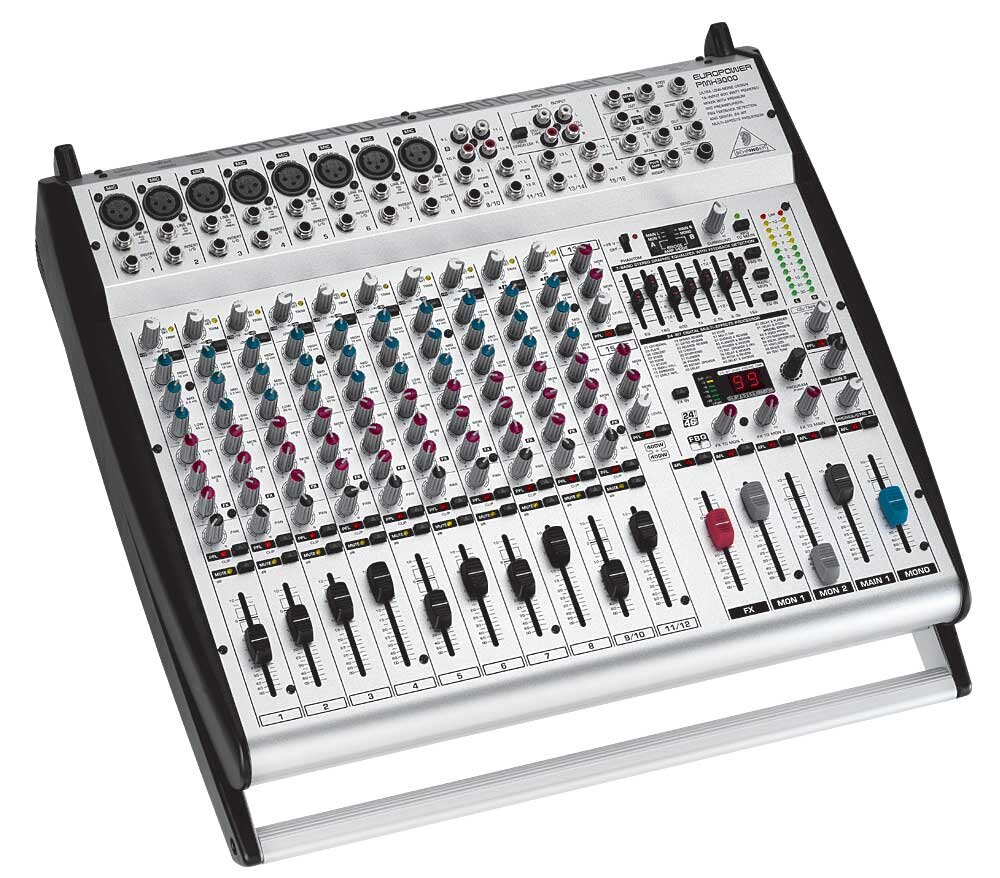

Behringer PMH3000 16-Channel Powered Mixer with FX (800 Watts)

Designed for a multitude of applications, the PMX3000 is Behringer's mid-sized console-style powered mixer that arms you for anything from standard ensembles to full-blown multimedia events. It features 16 channels (8 mono + 4 stereo), plus stereo tape returns, two monitor paths and extremely flexible I/O options. The 2 x 400-Watt (800 Watts bridged mode) CoolAudio amplifier will easily handle a large audience.

With our revolutionary CoolAudio amplifier technology you get enormous power, incredible sonic performance and super-light weight delivered in an ultra-compact mixer that is nearly half the weight of conventional powered mixers.

Adding to the list of 'big-mixer' features are: Behringer's awesome XPQ 3D surround sound effect, an integrated Voice Canceller which removes vocals for karaoke applications, a stereo 7-band graphic EQ with FBQ Feedback Detection, dual 12-segment LED output level meters and faders for precise level control of mono, main 1 and monitor 1 & 2 buses. The integrated mono output can be used to feed an external subwoofer. Stereo power amp inserts and Phones/Ctrl R output with dedicated level control for headphones or powered monitors are also on board.

The PMH3000 features 8 balanced low-impedance mic inputs with state-of-the-art IMP 'Invisible' Mic Preamps, low-cut filter and additional channel inserts plus balanced high-impedance line inputs for direct connection of line sources or high-output instruments. Its full-featured channel strips include input level trim controls, signal and clip LED indicators, dual monitor sends, FX sends, mute and PFL functions plus high-quality 60-mm logarithmic faders for exact level control. Mono channels also include low-cut filters, inserts for connecting external processors and A/B switching for selecting the 1/4 in. TRS or RCA input connectors on channels 9 - 12. The dedicated CD/Tape input allows you to connect a line-level stereo source so you can play music during your breaks without having to change the fader positions and lose your mix. The super-rugged carrying handle makes it easy to transport while professional Speakon (r) connectors ensure outstanding performance and reliable connection.

Technical Info

Max. Output Power:
2 x 400 W @ 4 ohms
1 x 800 W @ 8 ohms

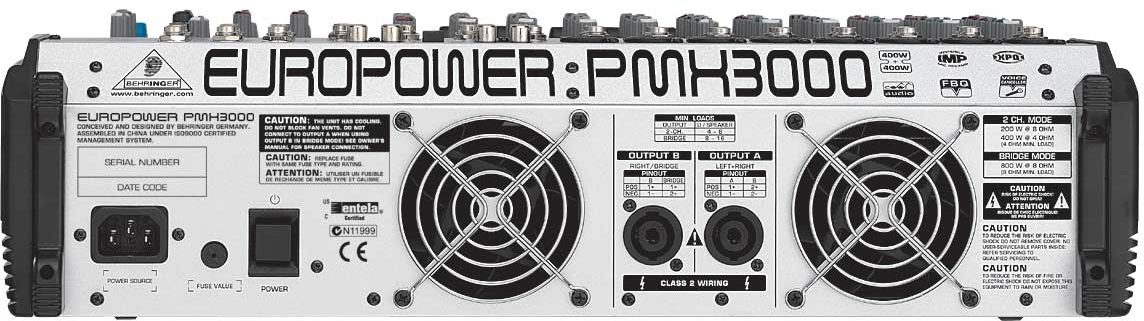

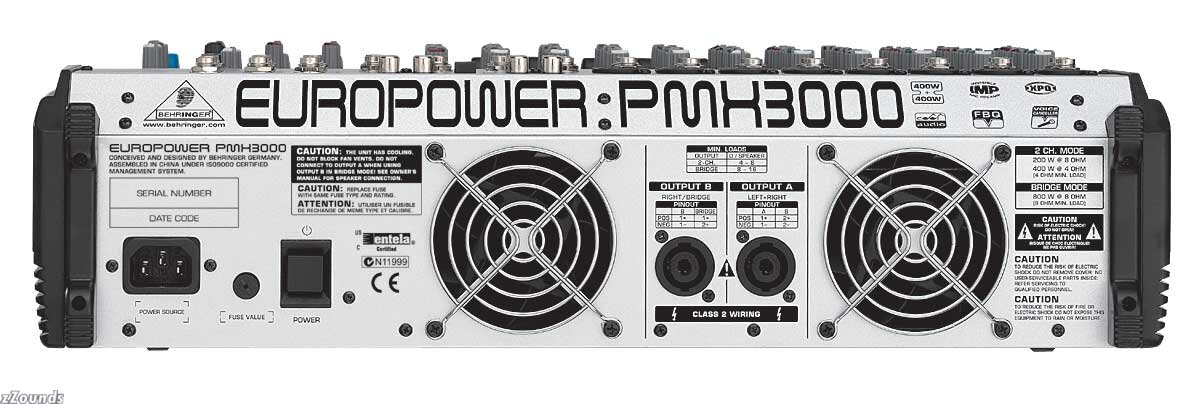

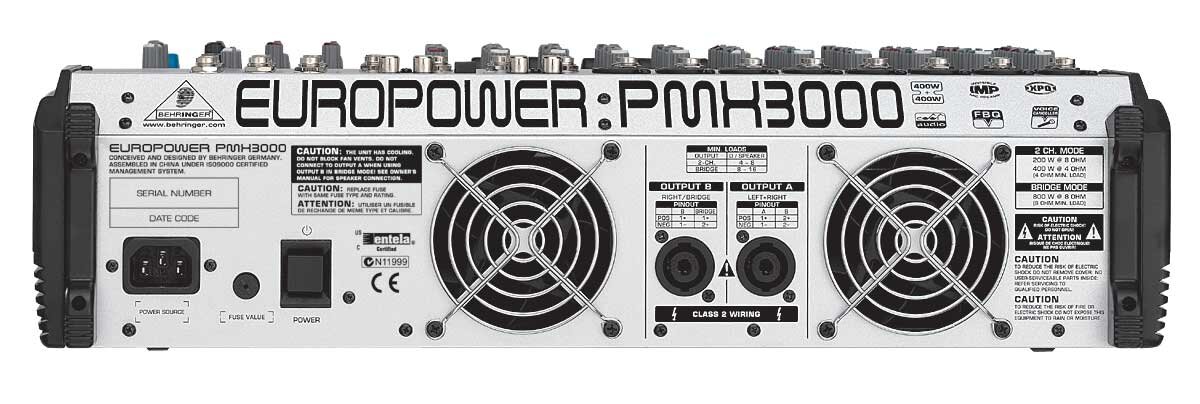

Speaker Outputs: Neutrik Speakon comparable

Mono Mic/Line Channels: 8 (XLR + 1/4 in. TRS)

Stereo Line Channels: 4 (1/4 in. TRS + extra XLR mic inputs on ch. 9/10,11/12)

Channel Inserts: On mono channels

Channel EQ: 3-band

Graphic EQ/FBQ Feedback Detection: 7-band EQ + FBQ

Phantom Power (+48 V): Yes

Aux Sends: 2 pre/1 post fader

24-Bit Digital FX Processor: 1

XPQ Surround Effect: Yes

Voice Canceler: Yes

Standby Switch: No

Speaker Processing: No

Power Amp Modes: Main L + Main R, Monitor + Main, Main bridge mode

Power Amp Inserts: 2

Main Mix Line Outputs: 2 x 1/4 in. TRS L/R

Mono Line Output: Yes

Monitor Line Outputs: 2 x 1/4 in. TRS

2-Track I/O (RCA conn.): Yes

Phones/Ctrl.Room Output: Yes

Dimensions H x W x D (approx.): 4 7/8 in. x 18 3/4 in. x 18 1/8 in. (122 x 476 x 460 mm)

Weight (approx.): 10.8 kg (23.8 lbs.)

Special Features:
PFL option for all input channels
AFL option for main mix, mono out, FX and monitor sends
