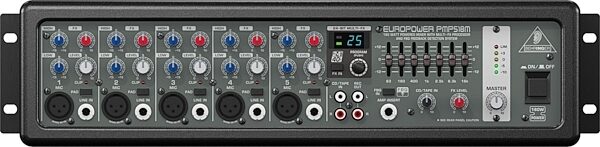

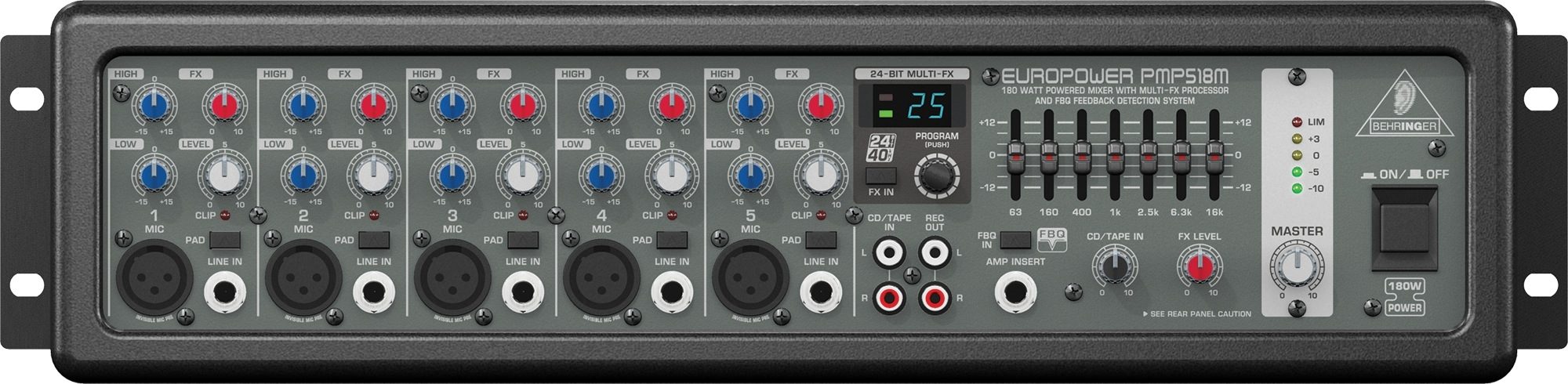

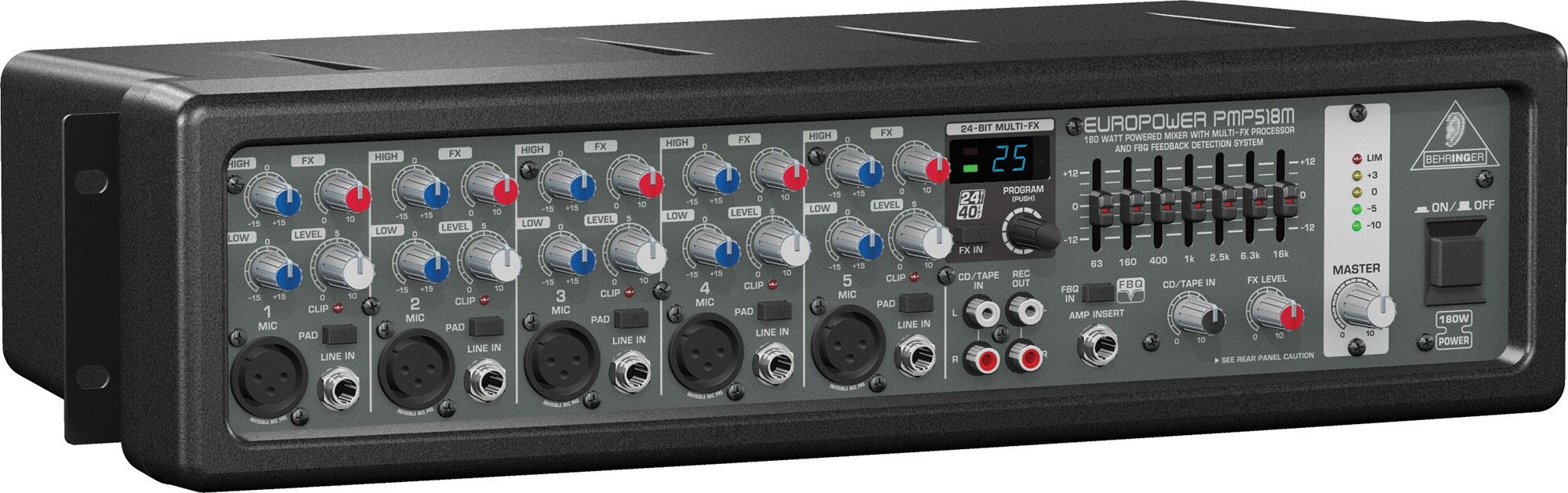

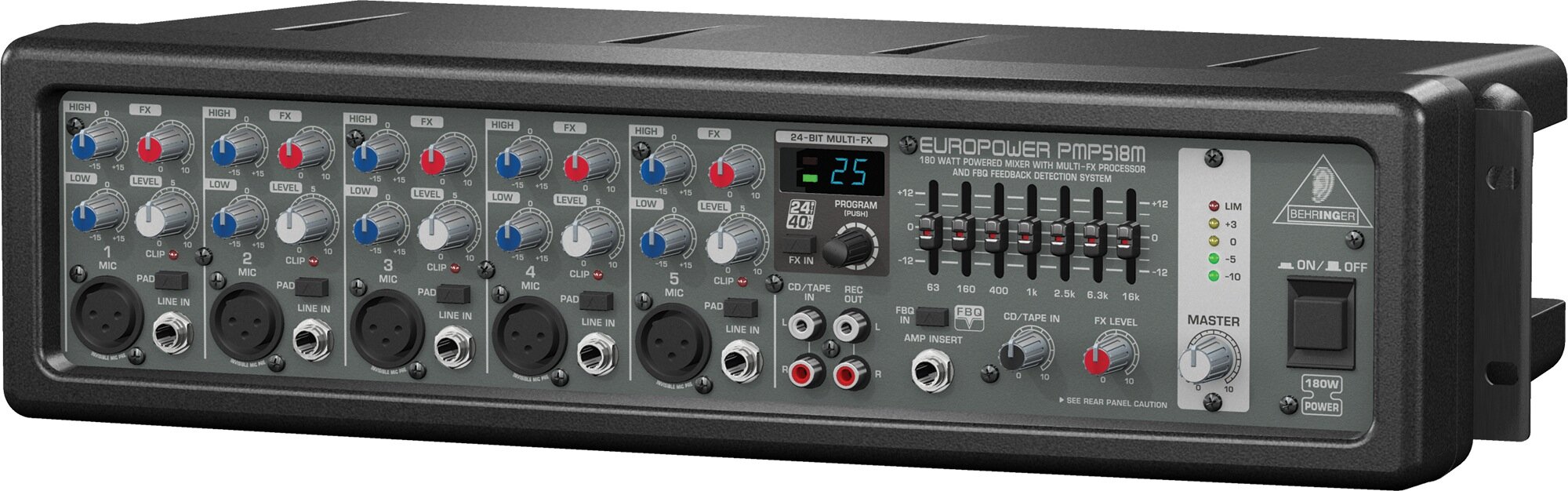

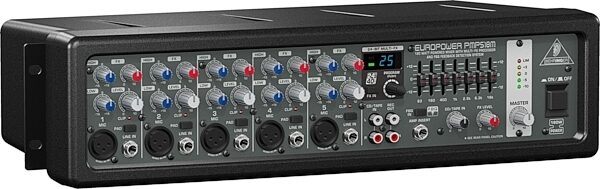

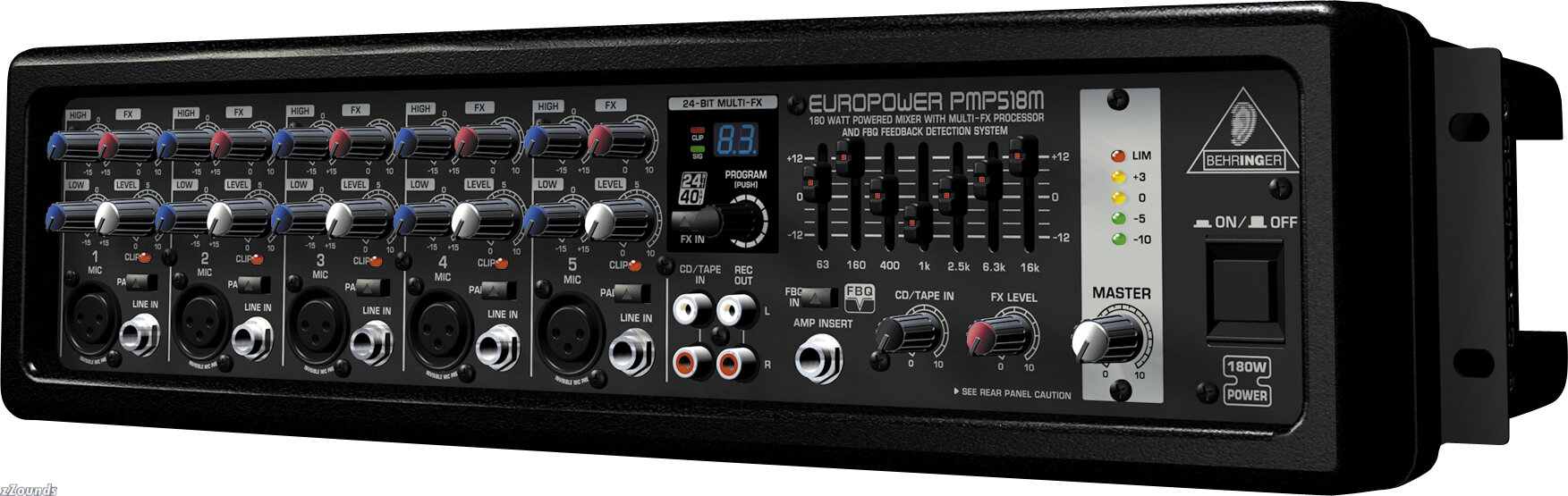

The PMP518M powered mixer delivers more power, better sound at less weight! The PMP518M mixer delivers 180 Watts of massive power and incredible performance through new-generation amplifier technology, crystal-clear sound plus an ultra-compact and lightweight design. The 24-bit stereo FX processor, IMP mic preamps and more round off this impressive package of power features. Get massive power and great sound in a lightweight package!
Features
Super-compact rackmountable 180-Watt powered mixer with 24-bit FX processor
Revolutionary amplifier technology: enormous power, incredible sonic performance and super-light weight
Ultra-compact design at nearly half the depth and weight of conventional powered mixers means no more lugging around dead weight
Ultra-low noise ULN design for highest possible headroom and ultra-transparent audio
5-channel mixer section features 5 mic/line channels plus separate 2-track in/output
Integrated 24-bit digital FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies for easy feedback removal
5 high-quality mic preamps with switchable Pad and Clip LEDs
Effective, extremely musical 2-band EQ on all channels
7-band graphic EQ allows precise frequency correction

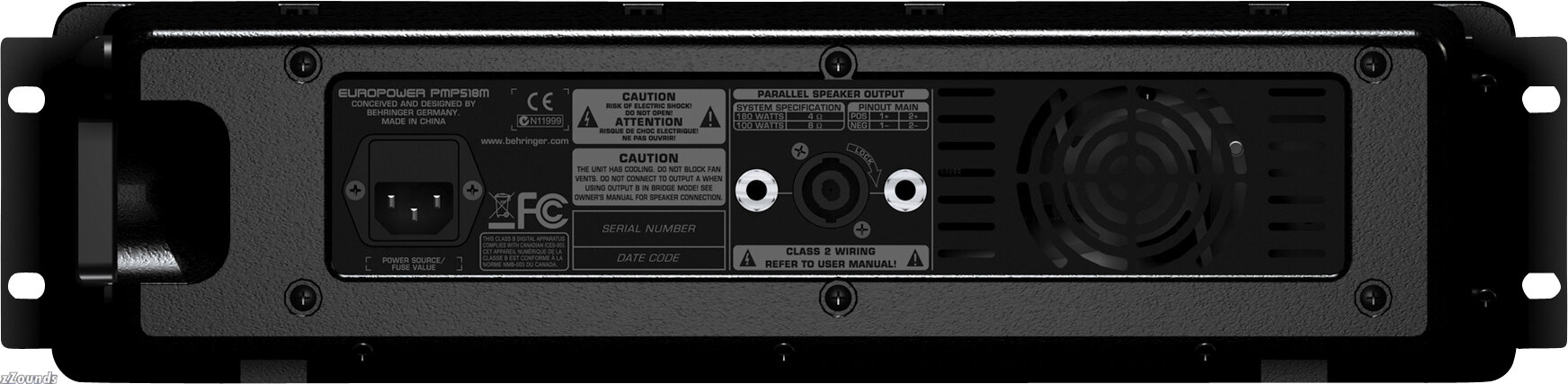

3 speaker outputs on 1/4 in. jack and professional speaker connectors (compatible with Neutrik Speakon connectors)
Rack mount brackets included
High-quality components and exceptionally rugged construction ensure long life
Technical Info
Microphone Inputs:
Type: XLR, electronically balanced
Mic E.I.N. (20 Hz - 20 kHz):
@ 0 W source resistance -122 dB / -125 dB A-weighted
@ 50 W source resistance -122 dB / -125 dB A-weighted
@ 150 W source resistance -121 dB / -124 dB A-weighted
Frequency response:
< 10 Hz - 100 kHz (-1 dB),
< 10 Hz - 200 kHz (-3 dB)
Gain +33 dB, +8 dB with pad
Max. input level +12 dBu @ 10 dB gain
Impedance: approx. 2.2 kW balanced, 1.1 kW unbalanced
Signal-to-noise ratio: 110 dB / 114 dB A-weighted (-11 dBu in @ +33 dB gain)
Distortion (THD+N): 0.001% / 0.0008% A-weighted
Mono Line Inputs
Type: 1/4 in. TRS connector, balanced
Impedance: approx. 80 kW balanced, 40 kW unbalanced
Max. input level: +30 dBu
EQ
Low 80 Hz / ±15 dB
High 12 kHz / ±15 dB
Loudspeaker Outputs
Type: Neutrik Speakon-compatible, 1/4 in. TS connectors
Load impedance: 4 - 16 W
DSP
Converter: 24-bit Sigma-Delta, Sampling rate 40 kHz
Display
Type: 2-digit, 7-segment LED
Amplifier
Output power: 62 W (8 W), 105 W (4 W) (RMS @ 1 % THD (sine wave))
Output power 100 W (8 W), 180 W (8 W) (Peak Power)
Power Supply
Mains voltages U.S./Canada: 120 V~, 60 Hz
Power consumption: max. 290 W
Fuse: 100 - 120 V~: T 6.3 A H 250 V
220 - 240 V~: T 3.15 A H 250 V
Mains connection: Standard IEC receptacle
Physical/Weight
Dimensions (H x W x D) approx. 4 3/5 x 18 1/2 x 8 7/8 in. / (117 x 470 x 225 mm)
Weight (net): approx. 15.88 lbs (7.2 kg)
