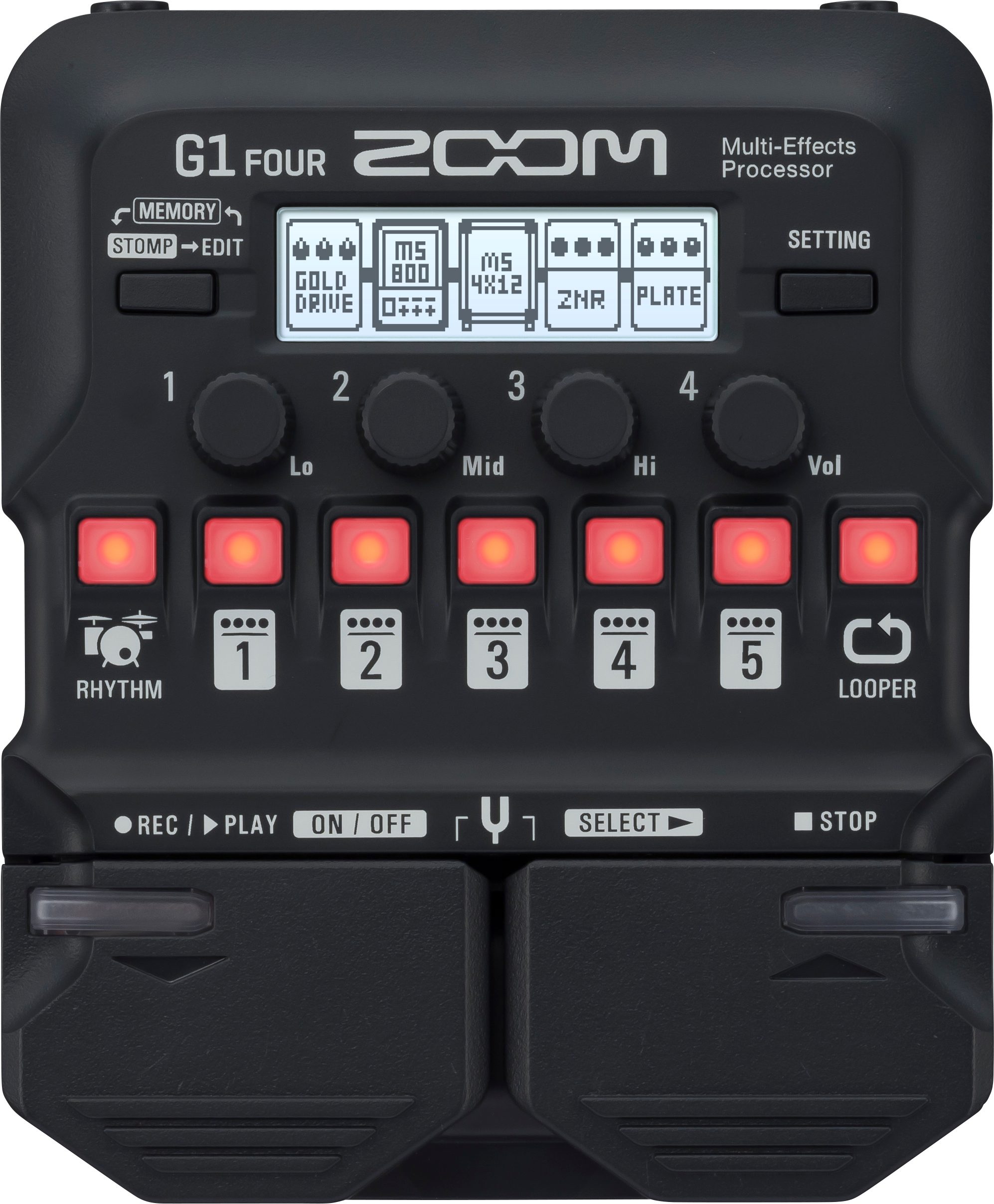

Zoom G1 FOUR Multi-Effects Guitar Pedal

open zoom image for Zoom G1 FOUR Multi-Effects Guitar Pedal, New, Angled Back

Zoom G1 FOUR Multi-Effects Guitar Pedal, New, Angled Front

Zoom G1 FOUR Multi-Effects Guitar Pedal, New, Angled Side

Zoom G1 FOUR Multi-Effects Guitar Pedal, New, Angled Back

zZounds Gear Experts Say...

With classic amps and effects, plus a looper, drum machine, and Zoom Guitar Lab software, the Zoom G1 FOUR lets you take your tone into uncharted territory.

Overview

The Zoom G1 FOUR features over 70 effects and amp models, a looper and a drum machine. Plus, access ZOOM Guitar Lab's additional library of downloadable effects. Plug in and be amazed!

Sounds That Inspire

Each pedal has more than 60 traditional and boutique effects, including ring modulator, pitch-shifting delay and even sitar simulation.

Your Favorite Amps and Cabinets

With 13 classic amps and cabinets like Fender, Marshall, Orange and more*, the G1 series brings big stage sound wherever you go. (NOTE: Manufacturer names and product names are trademarks of their respective owners. The names are used only to illustrate sonic characteristics and do not indicate any affiliation with ZOOM.)

You'll Love the Free Guitar Lab Software

With ZOOM Guitar Lab, explore an endless world of artist patches, effects and more. And with its ability to manage and backup all of your patches, you can experiment and create endless combinations.

Drums Included!

Play along with 68 great-sounding rhythm patterns in different time signatures, including 4/4, 3/4 and more.

Stay Looped In

The built-in looper can record up to 30 seconds of playing, allowing you to create dynamic, multi-part arrangements.

Auto Patch Backup

Your patches and level settings are instantly backed up when using the Auto Save function, ensuring you never lose your latest creation.

Perform Live

Seamlessly switch up your sounds during live shows using either of 2 performance modes. PRESELECT mode lets… read more you jump from patch to patch without affecting the patch you're currently playing. STOMP mode lets you turn individual effects on and off with the tap of your foot.

Off the Floor

The G1 FOUR control panel is also designed for hands-on, desktop use. Dial in tones and adjust level settings with absolute precision to craft your perfect sound.

Power Options

The G1 FOUR runs on just four AA batteries (not included). Alternatively, it can be powered using the optional Zoom AD-16 AC adapter or via USB bus power.

Features:

- G1 FOUR offers over 60 built-in effects
- 13 amp models for simulating classic rigs
- Up to 5 effects can be used simultaneously, chained together in any order
- Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
- ZOOM Guitar Lab software for creating, editing and managing effects and patches
- 68 built-in rhythm patterns which can be used in conjunction with the Looper
- 50 memory locations for storing user-created patches
- Auto Save function for automatic saving of all patch parameters
- Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings
- Input jack accepts standard mono guitar cable (both active and passive instruments supported)
- Auxiliary input jack for connection of personal music players
- Output jack for connection to amp or headphones
- Runs on 4 AA batteries, with alkaline battery life of 18 hours (not included)
- USB port for firmware updates, power and connection to ZOOM Guitar Lab

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

Maximum number of simultaneous effects: 5
User patches: 50
Sampling frequency: 44.1 kHz
A/D conversion: 24-bit, 128× oversampling
D/A conversion: 24-bit, 128× oversampling
Signal processing: 32−bit
Display: 128x32 dot matrix LCD

Input:
- Standard mono phone jack
- Rated input level: -20 dBu
- Input impedance (line): 470 kΩ

AUX IN:
- Stereo mini jack
- Rated input level: -10 dBu
- Input impedance (line): 1kΩ

Output:
- Standard stereo phone jack (combined line/headphone)
- Maximum output level: Line +2 dBu (10 kΩ or more output impedance)
- Headphones 17 mW + 17 mW (32Ω load)

Input S/N: 120 dB

Noise floor (residual noise): -97 dBu

Note: 0 dBu = 0.775 V

Power:
- Power adapter: 9V DC 500mA center negative (ZOOM AD-16)
- Batteries: 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)

USB:
- USB MIDI, USB Micro-B
- Power can also be supplied through the USB port.
- When using a cable designed only for power, other USB functions cannot be used.

External dimensions: 156 mm (D) × 130 mm (W) × 42 mm (H)

Weight: 340 g (excluding batteries)

What’s In the Box:
- G1 FOUR
- Quick Guide
- Patch List

Optional accessories:
- AC adapter (Zoom AD-16)

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 1.27 lbs
Shipping Dimensions: 9 x 7 x 3 in
Manufacturer Part Number (MPN): ZG1FOUR

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 631-542-5270
Email: info@zoom-na.com
Web: https://zoomcorp.com/en/us/contact/

Zoom G1 FOUR G1X FOUR Operation Manual

Reviews

(7 ratings)

Submitted September 13, 2019 by Marcus Kreischer in San Francisco, CA

"WOW"

Overall:

(see rating details)

So much sound for so little money. 5 amps really stand out. Fender Twin, Mesa Boogie Rectifier, JCM 800, Orange 120 and the Bogner. The biggest CON with this unit is that you are limited to 5 FX only per chain. That's it. If you can get past that, then there really is no reason not to purchase this even if you don't need it. Also it lacks an expression pedal that the G1X has, but that's not a big deal for me because most of the time you'll be using your hands to tinker with it. It's only on the floor when I need to use the looper function.I'm seeing a lot of comments from ignorant users who skipped the manual and are complaining that they have no idea how to use it. No surprise here. 10/10 one of the best pedals ever made, and it is so damn affordable.Well done Zoom.
