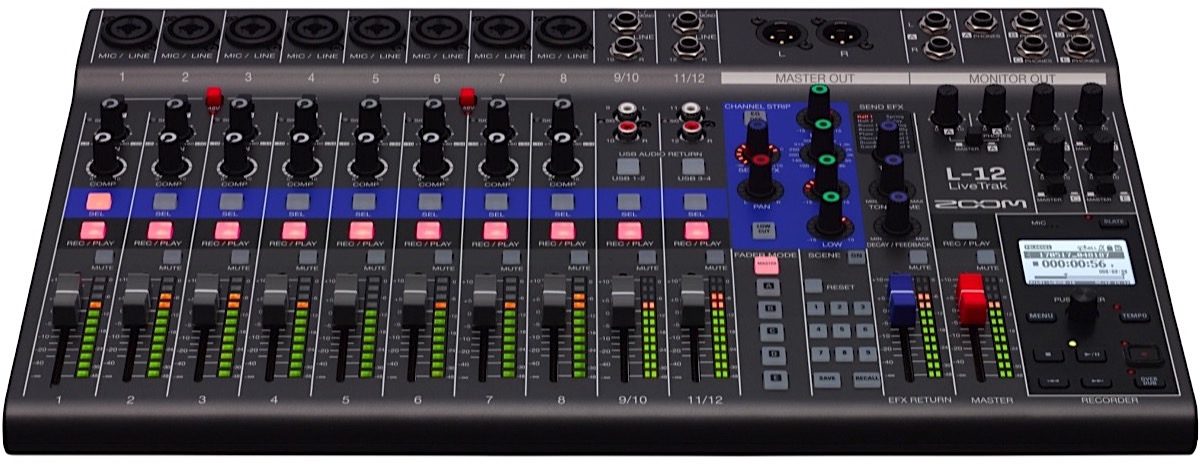

Zoom LiveTrak L-12 Digital Mixer, 12-Channel

It's a 12-channel digital mixer with effects. It's a 14-channel SD Card recorder. It's a 14-in/4-out USB audio interface. The Zoom LiveTrak L-12 does it all!

The Zoom LiveTrak L-12 Digital Mixer offers you Effortless Live Mixing. LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere

LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

Five Custom Monitoring Mixes

Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

Let's Take a Tour of The Channel Strip

All 12 inputs include a channel fader and mute button. The eight mono inputs also include single-knob compression and gain control. Record or playback individual channels with the "Rec/Play" button. Use the "Select" button to apply Channel Strip settings (EQ and panning controls, and "EFX Return" settings) to the selected channel.

Easy EQ Control

The L-12 provides a smooth 3-band mid-parametric EQ and a low cut function for each input channel.

Plenty of Inputs

The read more L-12's combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices, as well as RCA inputs.

Navigation and Display

LiveTrak's bright, backlit LCD screen and encoder knob let you access an intuitive menu system to create new projects, recall previous projects, and customize your recorder settings.

16 On-board Effects

The L-12 offers 16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.

Custom Scene Settings

Save up to nine different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more. The "Fader Mode" buttons allow you to design custom mixes for both the Master and monitor outs.

Slate Mic and Metronome

Use the built-in slate mic to record comments or talk-back, and program the metronome to your desired tempo.

USB Connectivity for Your DAW

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported. *Apple Lightning to USB Camera Adapter required.

What's Under the Hood?

Our Best Mic Preamps Yet. At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we've ever made. Just wait until you hear how incredible it sounds.

High-Definition Sample Rates

The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.

Convenient Auto Recording

Record automatically by adjusting the L-12's customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.

Versatile Operation Modes

The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.

With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.

Features

- 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
- 14-track simultaneous recording, 12-track playback
- 14-in/4-out USB audio interface connectivity
- 5 powered headphone outputs, each with a customizable and saveable mix
- Add backing/click tracks from your computer to your live mix and recording
- RCA and TRS line inputs
- 48V phantom power (channels 1-4 and 5-8)
- Hi-Z connectivity (channels 1 and 2)
- 26 dB pad (channels 3-8)
- Built-in compression control (Channels 1-8)
- Digital level meters -48 dB to -0 dB
- Master mute button
- Low-cut control
- Stereo panning
- Master and Monitor Outputs A-E
- Scene saving function, up to 9 scenes saved at a time
- 16 built-in delay and reverb effects with adjustable parameters
- Built-in slate mic
- Class-compliant mode (for iOS compatibility)
- SD card input
- Built-in metronome
- Automatic recording starting/stopping capability
- Project protection
- Import/export projects with USB 2.0 host port
- Latency adjustment for A-to-D conversion
- Compatible functions for ZOOM FS01 footswitch
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less

Here's what comes included with the L-12
- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide

Optional Accessory
- Rack mount adapter

Dimensions: 17.5 x 2.78 x 11.1 in
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 8 lbs
Shipping Dimensions: 21 x 13 x 5 in
Manufacturer Part Number (MPN): ZL12

For support or warranty questions, please contact the manufacturer:
Phone: (631) 542-5270
Email: info@zoom-na.com
Web: https://zoomcorp.com/en/us/contact/
