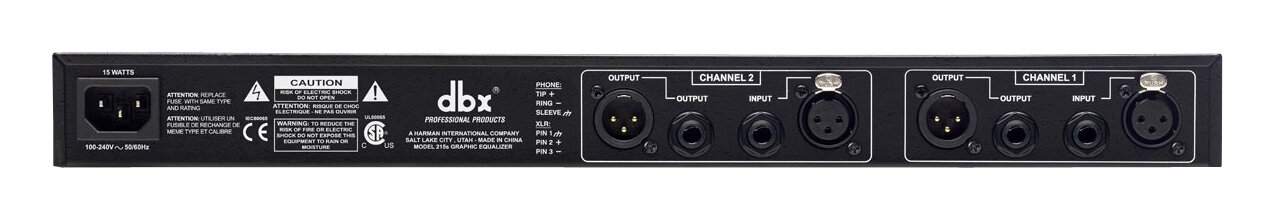

Inputs:- Connectors: 1/4 inch TRS, female XLR (pin 2 hot)
- Type: Electronically balanced/unbalanced, RF filtered
- Impedance: Balanced 40k ohm, unbalanced 20k ohm
- Max Input Level: >+21dBu balanced or unbalanced
- CMRR: >40dB, typically >55dB at 1kHz
Outputs:- Connectors: 1/4 inch TRS, male XLR (pin 2 hot)
- Type: Impedance-balanaced/unbalanced, RF filtered
- Impedance: Balanced 100 ohm, unbalanced 50 ohm
System Performance:- Bandwidth: 20Hz to 20kHz, +0.5/-1dB
- Frequency Response: <10Hz to >50kHz, +0.5/-3dB
- Dynamic Range: Typically >112dB
- Signal-to-Noise: Typically >95dB
- THD+Noise: <0.003%
- Interchannel Crosstalk: <-90dB, 20Hz to 20kHz

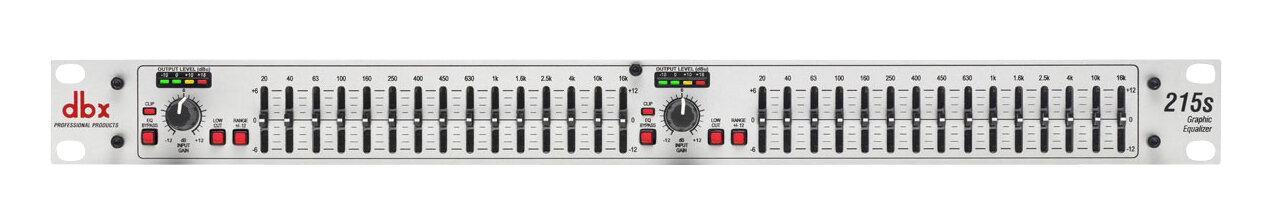

Function Switches:- EQ Bypass: Bypasses the graphic equalizer section in the signal path
- Low Cut: Activates the 50Hz 12dB/octave high-pass filter
- Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range
Power Supply:- Operating Voltage: 100VAC-240VAC 50/60Hz
- Power consumption: 15W
- Mains Connection: IEC receptacle
Physical:- Weight: 4.8 lbs.(2.2 kg)
- Dimensions(HxDxW): 1.75" x 6" x 19" (4.4 cm x 15.24 cm x 48.26 cm)
- Dimensions and Weight in Packaging
- Base Item
-
Shipping Weight: 6 lbs
-
Shipping Dimensions: 22 x 12 x 3 in
-
Manufacturer Part Number (MPN): DBX215SV
