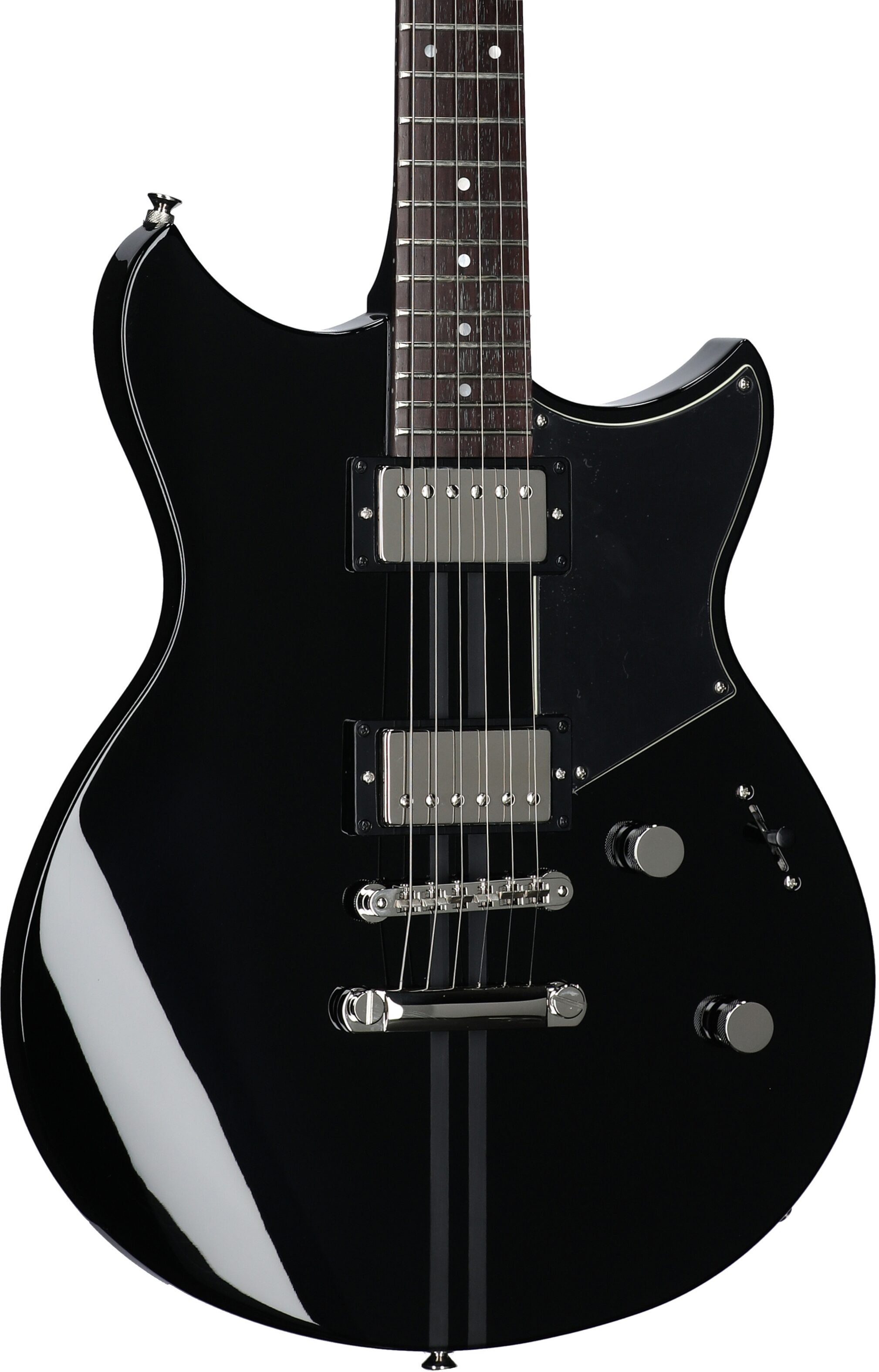

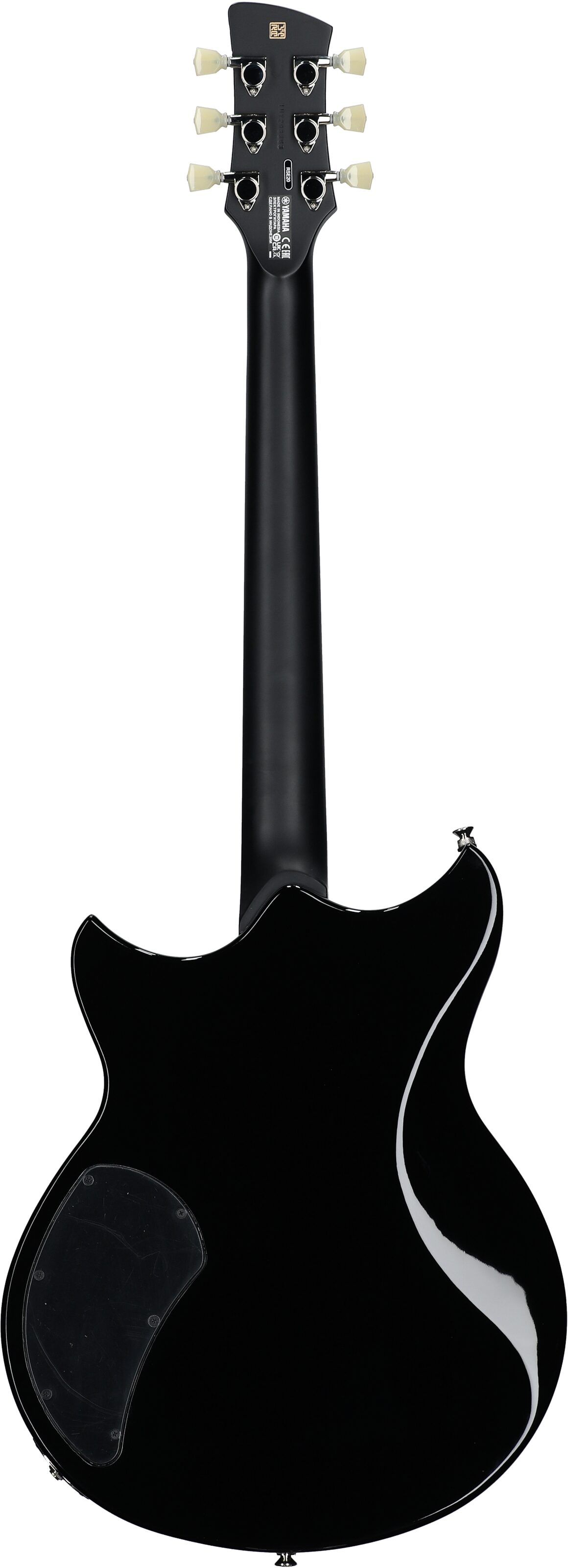

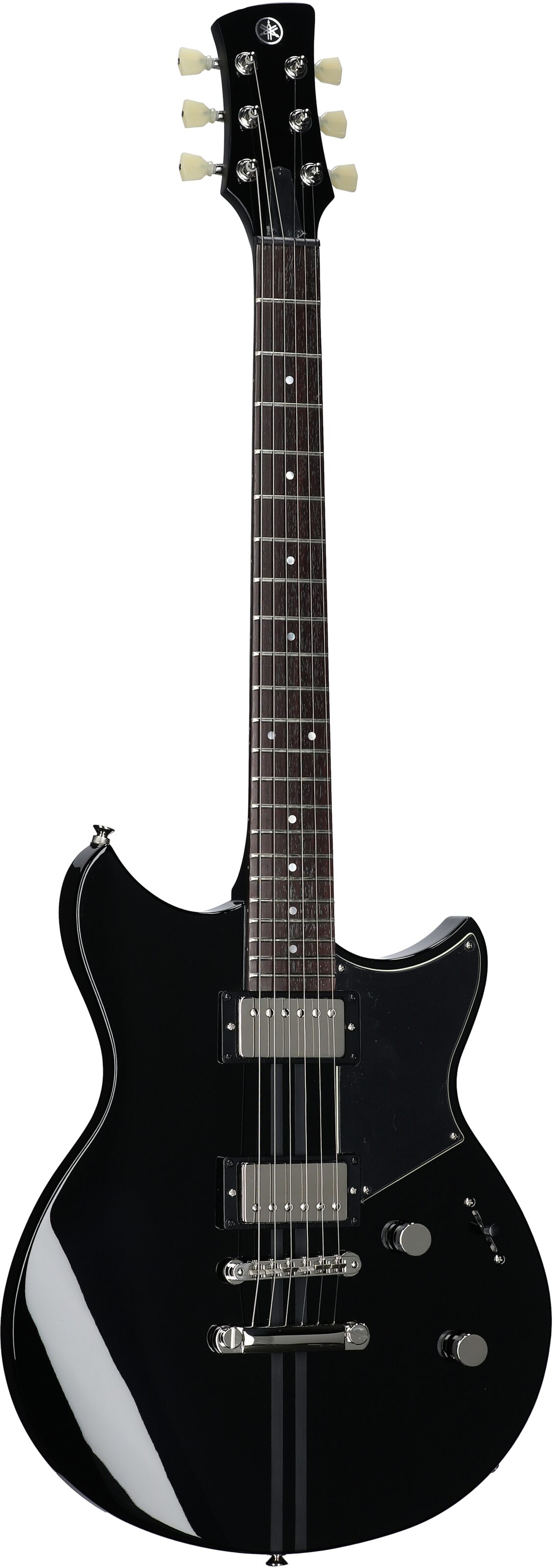

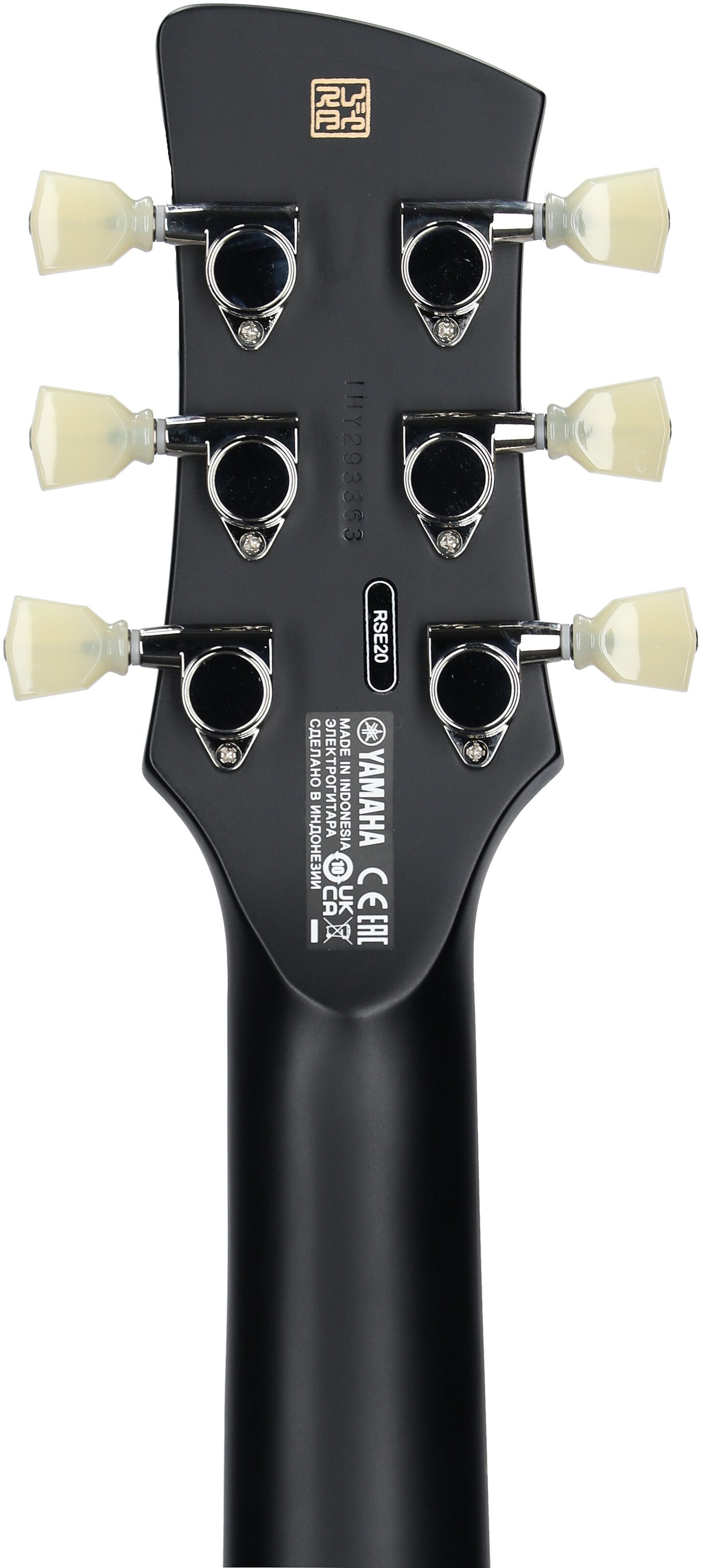

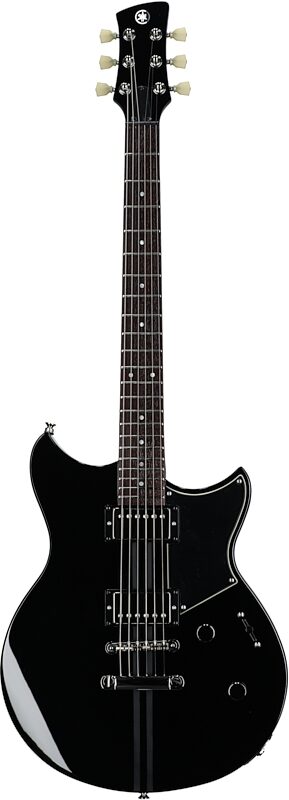

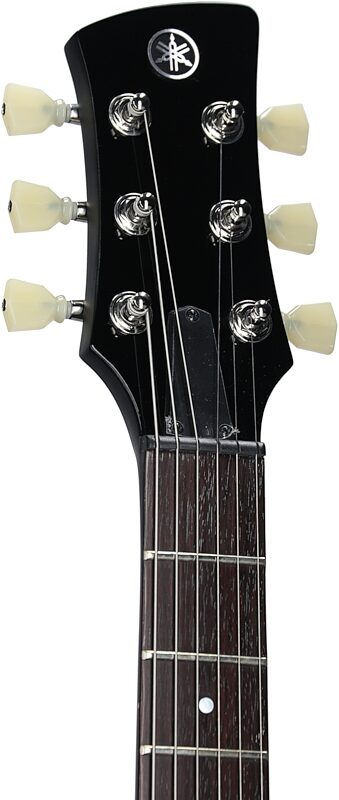

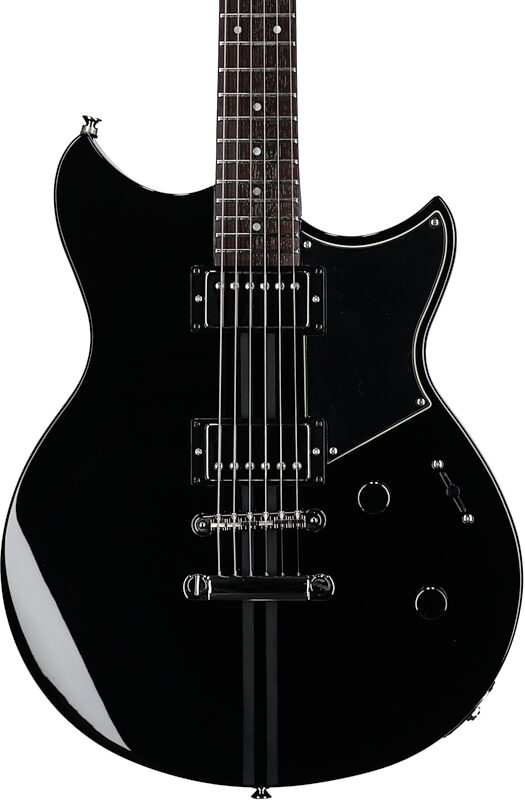

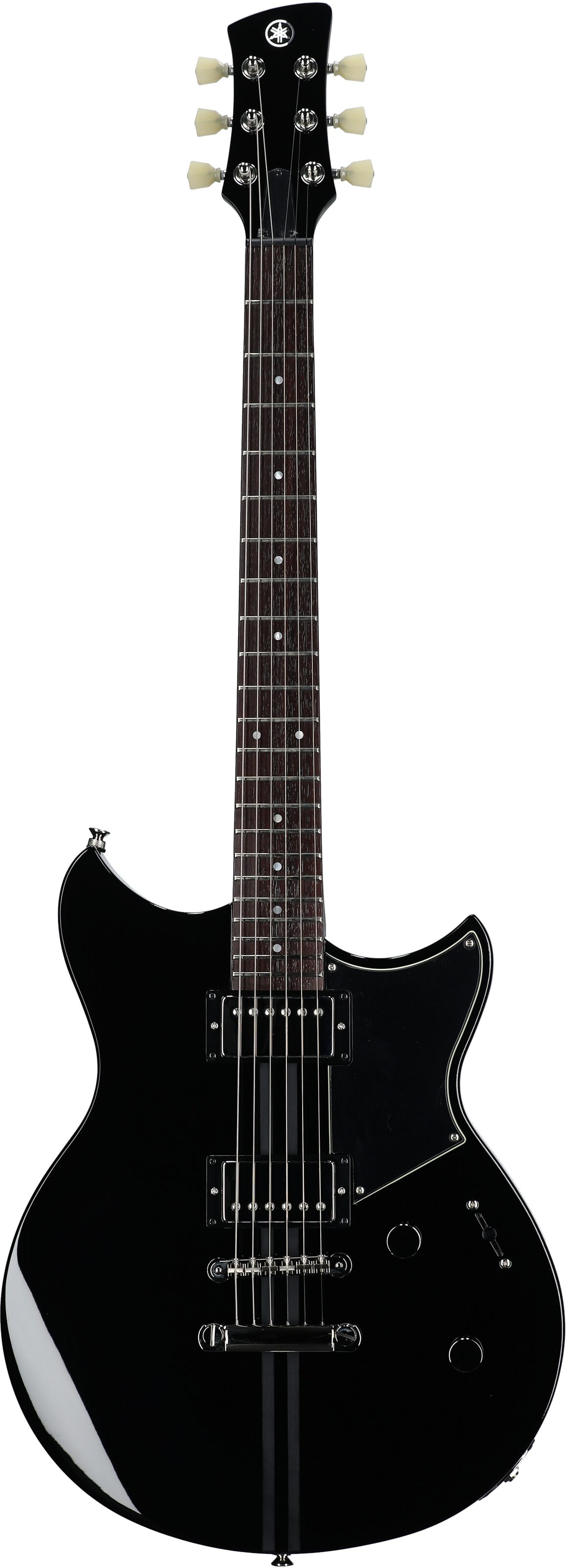

Yamaha Revstar Element RSE20 Electric Guitar
zZounds Gear Experts Say...
Kick start your creativity with a Revstar! This RSE20 comes standard with a pair of VH3 alnico 5 humbucking pickups for sweet highs and a tasty midrange.
What's special about this item?
| Feature: | What it does: |
|---|---|
| Chambered mahogany body | Rich, warm, focused sound; semi-hollow tone |
| Rosewood fretboard | Open, warm tone and smooth playing feel |
| Set-neck construction | Solid joinery for great sustain and feel |
| Yamaha VH3 Humbuckers | Alnico V magnets for vintage warmth |
Overview
Revstar II refines the look, sound, and feel of Yamaha's original Revstar guitar series. The RSE20 is available in cafe racer-inspired finishes and features a chambered body developed using Yamaha's exclusive Acoustic Design process to enhance tone, reduce weight, and ensure optimal balance. Dual Alnico V humbucking pickups deliver a powerful sound with a warm midrange. A push/pull Dry Switch high-pass filter built into the Tone knob provides more prominent highs and tighter bass without the decreased volume and added hum of coil-splitting.
- Chambered mahogany body
- Mahogany neck
- 2 Alnico V humbucking pickups
- Push/pull Dry Switch high-pass filter
Features:
- 4 Cafe racer-inspired finishes- Chambered mahogany body
- Mahogany neck
- 2 Alnico V humbucking pickups
- Push/pull Dry Switch high-pass filter
Specs
-Construction: Set-in
-Scale Length: 24-3/4" (628.6mm)
-Body Materials: Chambered Mahogany
-Body Finish: Gloss Polyurethane
-Neck Materials: 3pc Mahogany
-Neck Finish: Satin Polyurethane
-Fingerboard Materials: Rosewood
-Fingerboard Radius: 12" (304.8mm)
-Fret wire: Jumbo
-Number of frets: 22
-Nut materials: PPS
-Neck Width @ 0 Fret / 12th Fret: 41.9 / 56.8 mm
-Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
-Neck Pickup: VH3n (Humbucker / Alnico V)
-Bridge Pickup: VH3b (Humbucker / Alnico V)
-Controls: Master Volume, Master Tone (Push-Pull, "Dry Switch")
-Pickup Switch: 3-Position Lever Switch
-Bridge: Tune-O-Matic
-String spacing: 10.5mm
-Tailpiece: Stopbar
-Tuning Machines: Die-Cast
-Pickguard: 3-ply (Cream or Black)
-String gauge: Elixir Nanoweb Light / 0.010-0.046
-Scale Length: 24-3/4" (628.6mm)
-Body Materials: Chambered Mahogany
-Body Finish: Gloss Polyurethane
-Neck Materials: 3pc Mahogany
-Neck Finish: Satin Polyurethane
-Fingerboard Materials: Rosewood
-Fingerboard Radius: 12" (304.8mm)
-Fret wire: Jumbo
-Number of frets: 22
-Nut materials: PPS
-Neck Width @ 0 Fret / 12th Fret: 41.9 / 56.8 mm
-Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm
-Neck Pickup: VH3n (Humbucker / Alnico V)
-Bridge Pickup: VH3b (Humbucker / Alnico V)
-Controls: Master Volume, Master Tone (Push-Pull, "Dry Switch")
-Pickup Switch: 3-Position Lever Switch
-Bridge: Tune-O-Matic
-String spacing: 10.5mm
-Tailpiece: Stopbar
-Tuning Machines: Die-Cast
-Pickguard: 3-ply (Cream or Black)
-String gauge: Elixir Nanoweb Light / 0.010-0.046
- Dimensions and Weight in Packaging
- Black
- Shipping Weight: 12 lbs
- Shipping Dimensions: 43 x 18 x 5 in
- Manufacturer Part Number (MPN): RSE20 BL
- Neon Yellow
- Shipping Weight: 11.25 lbs
- Shipping Dimensions: 43 x 18 x 5 in
- Manufacturer Part Number (MPN): RSE20 NYW
- Swift Blue
- Shipping Weight: 12.25 lbs
- Shipping Dimensions: 43 x 18 x 5 in
- Manufacturer Part Number (MPN): RSE20 SWB
- Open Box (Very Good), Swift Blue, Customer Return
- Shipping Weight: 12.25 lbs
- Shipping Dimensions: 43 x 18 x 5 in
- Manufacturer Part Number (MPN): RSE20 SWB
- Vintage White
- Shipping Weight: 11.75 lbs
- Shipping Dimensions: 43 x 19 x 5 in
- Manufacturer Part Number (MPN): RSE20 VW
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 714-522-9011
Web: https://usa.yamaha.com/support
Phone: 714-522-9011
Web: https://usa.yamaha.com/support
Reviews
Reviewers gave this product an overall rating of 5 out of 5 stars.
(1 ratings)
Submitted September 17, 2023 by a customer from gmail.com
"Worth Every Penny!!!"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
Purchased the RSE20 in a pinch to back up an sg with problems and sorry to say the Revstar took its place permanently…sorry Gibson. The nut slots were cut a tad bit high as well as the action was slightly high, but the out of the box setup was very good, fret edges and fretboard was rolled nicely. The pickups took a slight bit of getting used to, but coming from an sg with P90’s the Revstar has a bit more umph to it and the dry settin(high pass filter) was awesome…literally like taking a les Paul to telecaster territory….some may not notice a difference but it’s significant through a tube amp with mild to mid gain…high gain it’s useless.All in all…the Revstar took over the spot of a Gibson that I’ve gigged for 22 years…yep, we’ll see how it holds up to 7 dates in the next 3 weeks…but I’m sold in them…no I need the P90 version. Buy one before the price goes up…you won’t regret it.
Musical Background:
Professional
Musical Style:
Blues, Blues Rock, Country.
20 of 20 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
