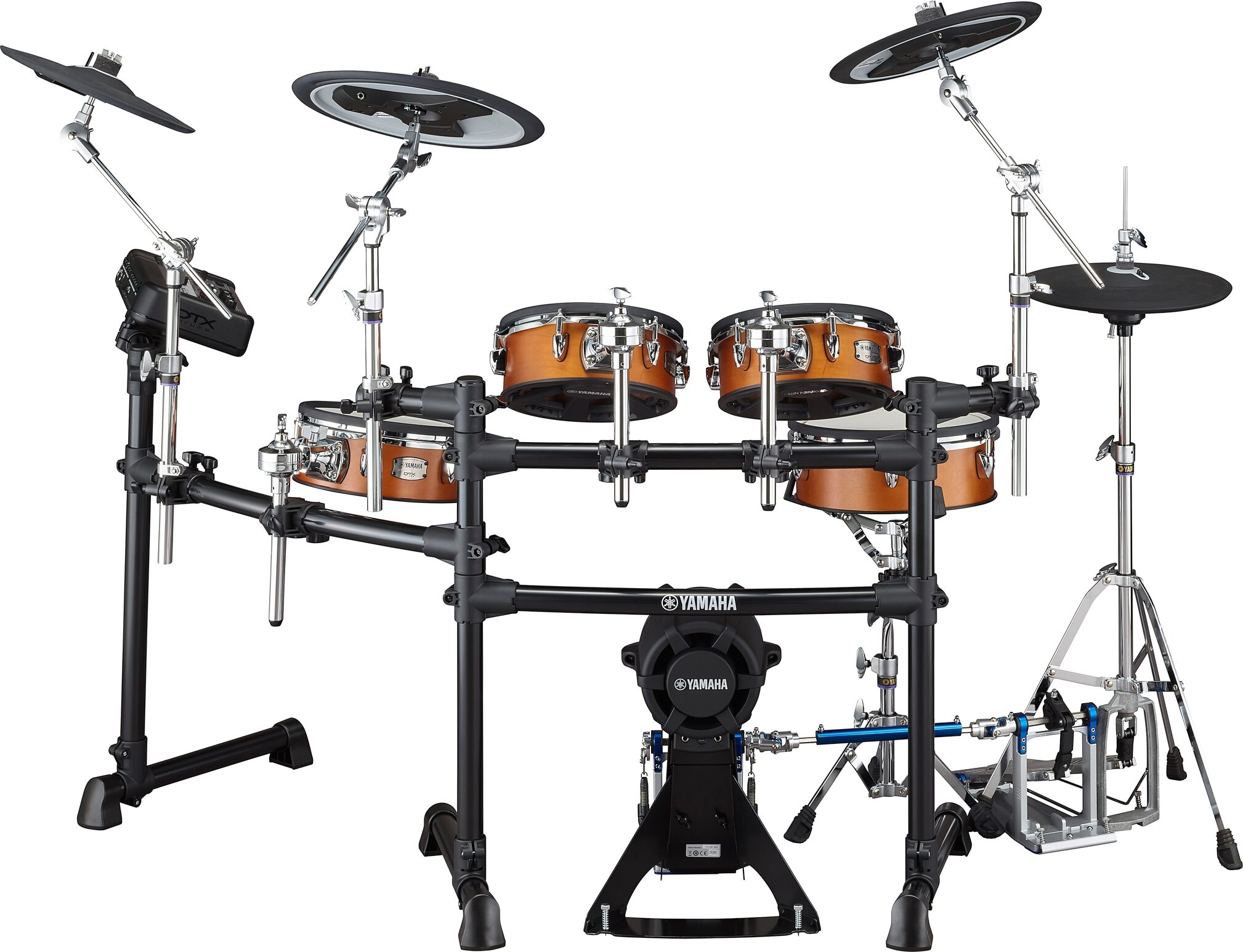

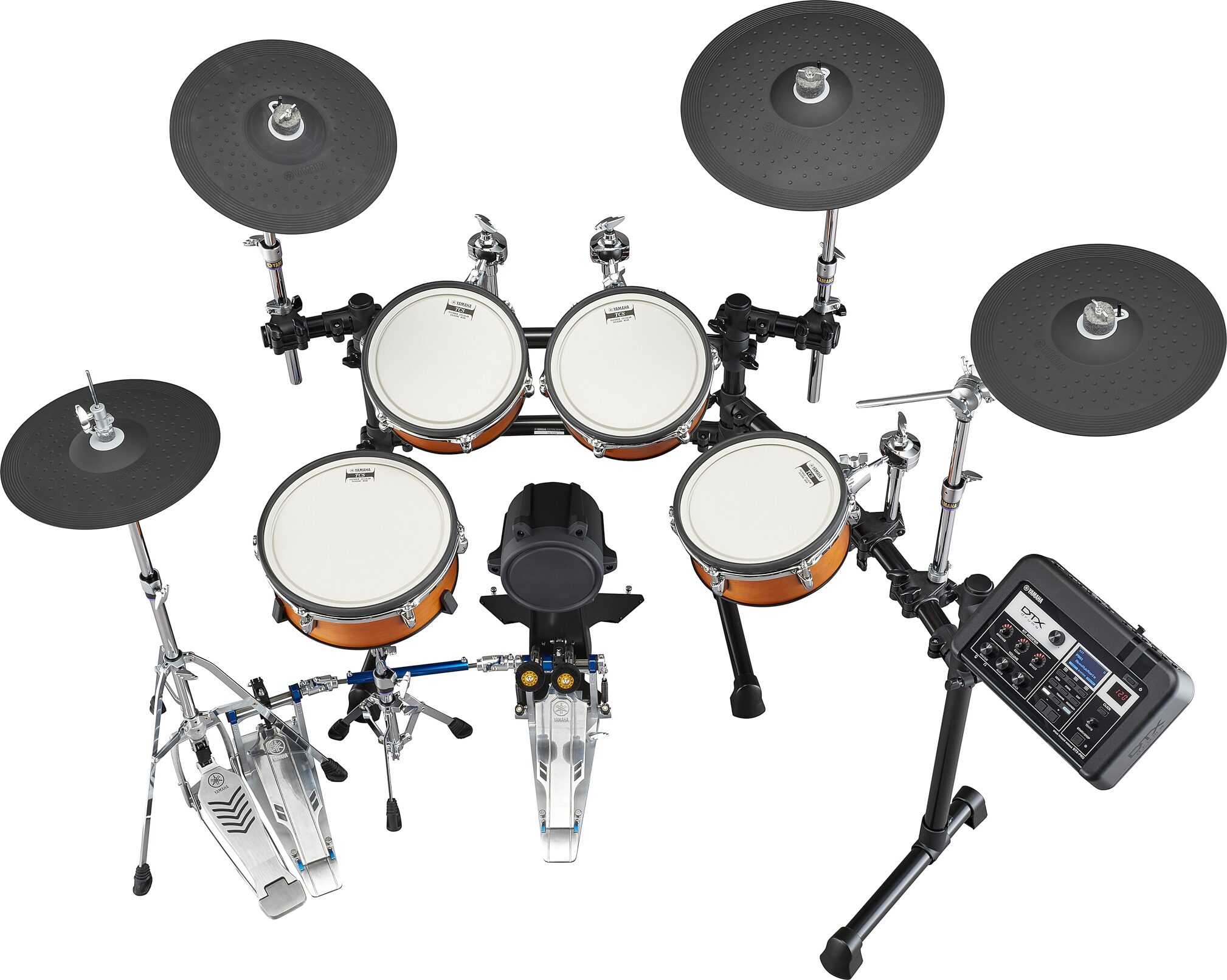

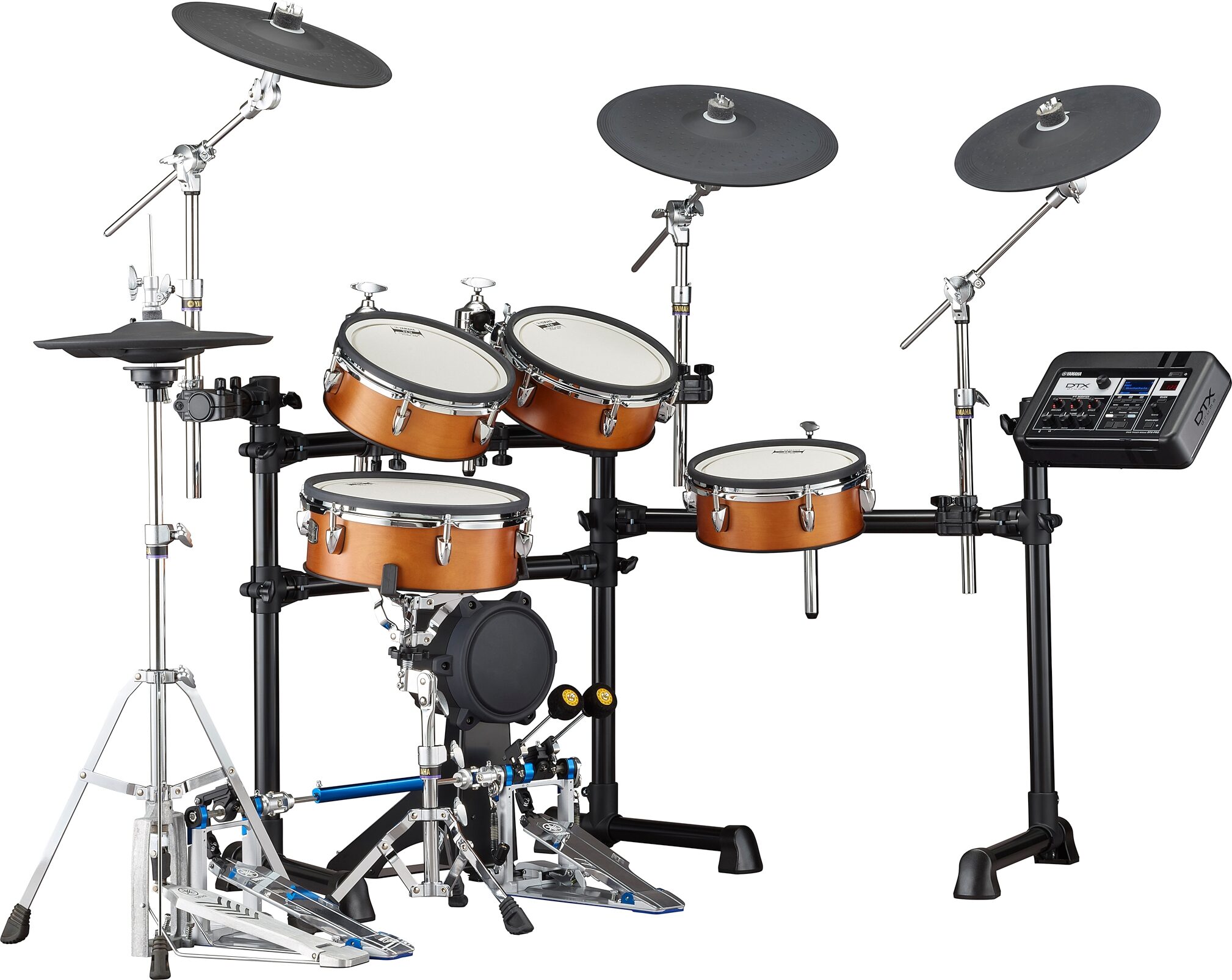

Yamaha DTX8K-M Mesh Electronic Drum Kit

Yamaha DTX8K-M Mesh Electronic Drum Kit, Black Forest, Diagram

Want your drums to sound fantastic and look just as great? Yamaha's DTX8K-M electronic kit offers studio-sampled sounds, real wood shells, and mesh heads.

Overview

The Yamaha DTX8 Series comes equipped with the DTX-PRO module that possesses the same tone generator as the DTX-PROX module. The birch shells are painted the same way as Yamaha acoustic drums resulting in pads that are as beautiful as the real thing.

The DTX-PRO features real sounds and real sampled room ambience recorded in world-renowned studios, and KIT MODIFIER knobs that inspire creativity and hardware that is sturdy and easy to use. This new standard DTX captures the very essence of the flagship model.

- Superbly playable:
Reproducing the way a drum behaves when struck is a key factor in the playability of electronic drums.

Yamaha has undertaken an exhaustive investigation of how drums respond when hit, leveraging this information to achieve a truly faithful representation of instrument behavior. Moreover, professional drummers from around the world have evaluated the performance of the DTX-PRO, further allowing Yamaha to improve its expressive capabilities. Yamaha's expertise as a manufacturer of music hardware has allowed them to offer combinations of expertly-crafted modules and pads that deliver superb playability.

- Same tone generator as the flagship series:
The DTX8 Series features the DTX-PRO sound module, which has the exact same sound engine found in the flagship DTX-PROX module. Each module is capable of stunning sound quality. Choosing the correct trigger setting* to suit the pads being used will allow you to fully enjoy the sounds. The configuration screen… read more is displayed upon initial startup.

- Reliable Yamaha hardware:
The DTX8 Series uses Yamaha drum hardware that is highly trusted by professional drummers all over the world.

Easy-to-adjust ball clamps have been adopted for the toms, while the unique boom-retractable tilter design of the cymbal holders allows them to be used straight or as booms. Snare and hi-hat stands are also included and support the player with typical Yamaha robustness, playability, and stability.

- Professional-grade headphone amp:
Yamaha understands it is incredibly important that drummers are able to hear themselves clearly, so the DTX-PROX module comes equipped with a high-precision, low-distortion, low noise and high-power headphone amplifier. This circuitry delivers high-fidelity sound directly to the player, and it envelops the player in a realistic drumming sound stage.

Specs

Pads:
- Snare: XP125SD-M (12-inch mesh pad with 2-zone)
- Tom Pad: XP105T-M (10-inch mesh pad with 2-zone)
- Floor Tom Pad: XP105T-M (10-inch mesh pad with 2-zone)
- Kick Pad: KP90 (7.5-inch rubber pad with multi-layer cushion)
- Hi-Hat Pad: RHH135 (13-inch pad with 2-zone)
- Crash Cymbal 1: PCY135 (13-inch pad with 3-zone)
- Crash Cymbal 2: PCY135 (13-inch pad with 3-zone)
- Ride Cymbal: PCY155 (15-inch pad with 3-zone)
- Hi-Hat Stand: HS650A
- Snare Stand: SS662 (Snare Stand for 12")

Footprint (Average): 1,100 mm x 1,500 mm
Weight: 41.55 kg

Tone Generator:
- Width: 303 mm (11-15/16 in)
- Height: 196 mm (7-11/16 in)
- Depth: 66 mm (2-5/8 in)
- Weight: 1.5 kg (3 lbs, 5 oz)
- Maximum Polyphony: 256 notes
- Effects: For each Inst: EQ / Comp / Transient / Insertion (*1), For each Kit: Ambience / Effect 1 / Effect 2 and Master Comp / Master Effect, For overall: Master EQ / Phones EQ (*1) Insertion effects can be used only for specific Inst.
- Drum Kits: Preset: 40 Kits, User: 200 Kits
- Voices: 712
- Click:
- Click Sets: 30
- Tempo: 30 to 300 BPM, Tap Tempo supported
- Time Signatures: 1/4 to 16/4, 1/8 to 16/8, and 1/16 to 16/16
- Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eight-note triplets
- Others: Individual click volume control, WAV import, timer
- Training:
- Types: 10
- Songs: Preset: 37 songs, User: 1 song
- Audio Files:
- Import Limit: 1,000 files
- Maximum Loadable Sample Time: 760 seconds (44.1 kHz, 16 bit, mono), 380 seconds (44.1 kHz, 16 bit, stereo)
- Sample Format: WAV
- Recorder:
- Recording Time
- Internal Memory: Maximum of 90 seconds
- USB Flash Drive: Maximum of 90 minutes per file
- Format: Record/playback: WAV (44.1 kHz, 16 bit, stereo)
- Connectors:
- DC IN: DC IN (+12V)
- Headphones: Headphones (standard stereo phone jack \0xD7 1)
- AUX IN: AUX IN (stereo mini jack \0xD7 1)
- Output: OUTPUT L/MONO, R (standard phone jack, one for each)
- USB: USB TO DEVICE, USB TO HOST
- MIDI: MIDI OUT

- Trigger Input: Trigger input jack \0xD710 (standard stereo phone jack, not including the HI-HAT CONTROL jack. 1, 14 for all types of pads; 2, 4, 6 for 2-zone; 8, 9, 10 for 3-zone; 11 dedicated for hi-hat pad/controller; 12 for kick , 2-zone). If other pad is connected to each of the above terminals, it will operate as a 1-zone pad. *Maximum of 14 pads can be connected (when Y-cable is used)

- Display: Full Dot LCD (128\0xD764 dot)

- Accessories: AC adapter (PA-150 or an equivalent recommended by Yamaha), Owner's Manual, module holder, module holder wing bolts (x 4), Cubase AI download information

Dimensions and Weight in Packaging
Black Forest: Shipping Weight: 139.75 lbs
Real Wood: Shipping Weight: 139.75 lbs
