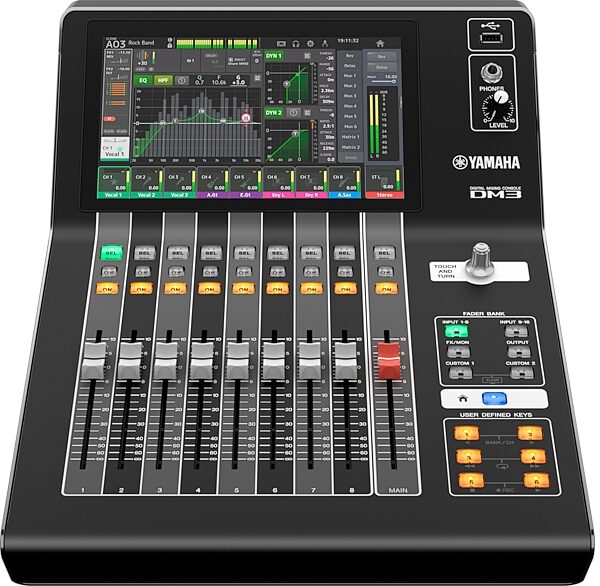

Yamaha DM3-D Digital Mixer - Dante Edition

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Main

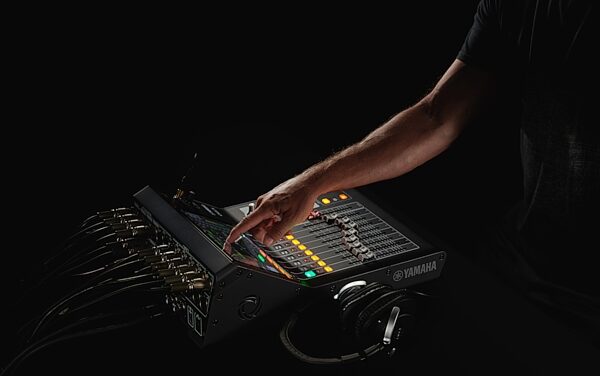

open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front

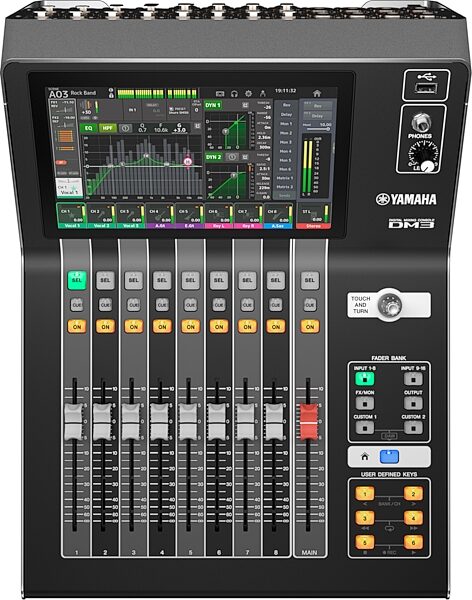

open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Detail Front
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Main Back
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Back
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Screenshot Front
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front
open zoom image for Yamaha DM3-D Digital Mixer - Dante Edition, New, Screenshot Front
Yamaha DM3-D Digital Mixer - Dante Edition, New, Main Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front Yamaha DM3-D Digital Mixer - Dante Edition, New, Detail Front Yamaha DM3-D Digital Mixer - Dante Edition, New, Main Back Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Back Yamaha DM3-D Digital Mixer - Dante Edition, New, Screenshot Front Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front Yamaha DM3-D Digital Mixer - Dante Edition, New, Action Position Front Yamaha DM3-D Digital Mixer - Dante Edition, New, Screenshot Front
zZounds Gear Experts Say...
Get control of your live mixes with the Yamaha DM3-D, a 22-channel digital mixer with intuitive operation, stunning sound quality, and Dante connectivity.

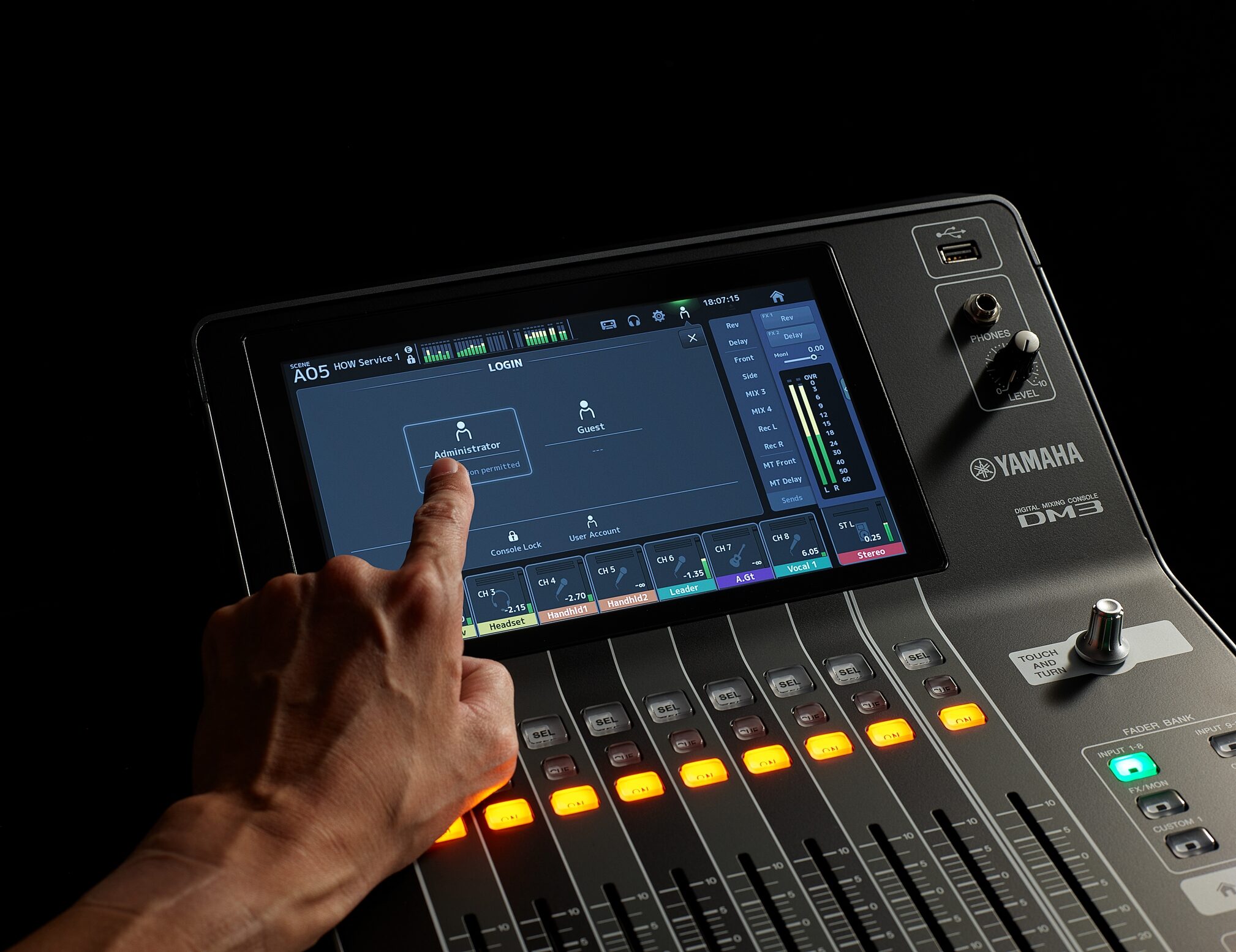

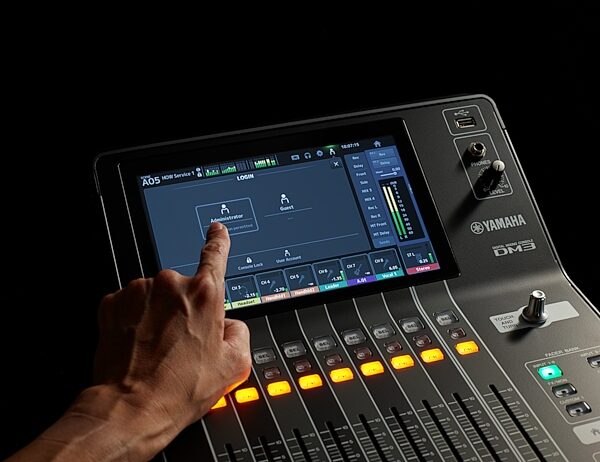

The DM3-D is an ultra-compact 22 Channel digital mixer sure to get you your next gig. Capable of 96kHz sample rates and Dante connectivity, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3-D can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best in class, 9" touchscreen and a single Touch & Turn knob for managing most of the operation.

Features:

- Renowned Yamaha sound quality with 96kHz sample rate
- 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
- 6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
- 16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
- 8 Analog Outpus (XLR)
- 16x16 Dante Interface
- 18x18 USB Audio Interface for playback and recording and 2x2 USB recorder

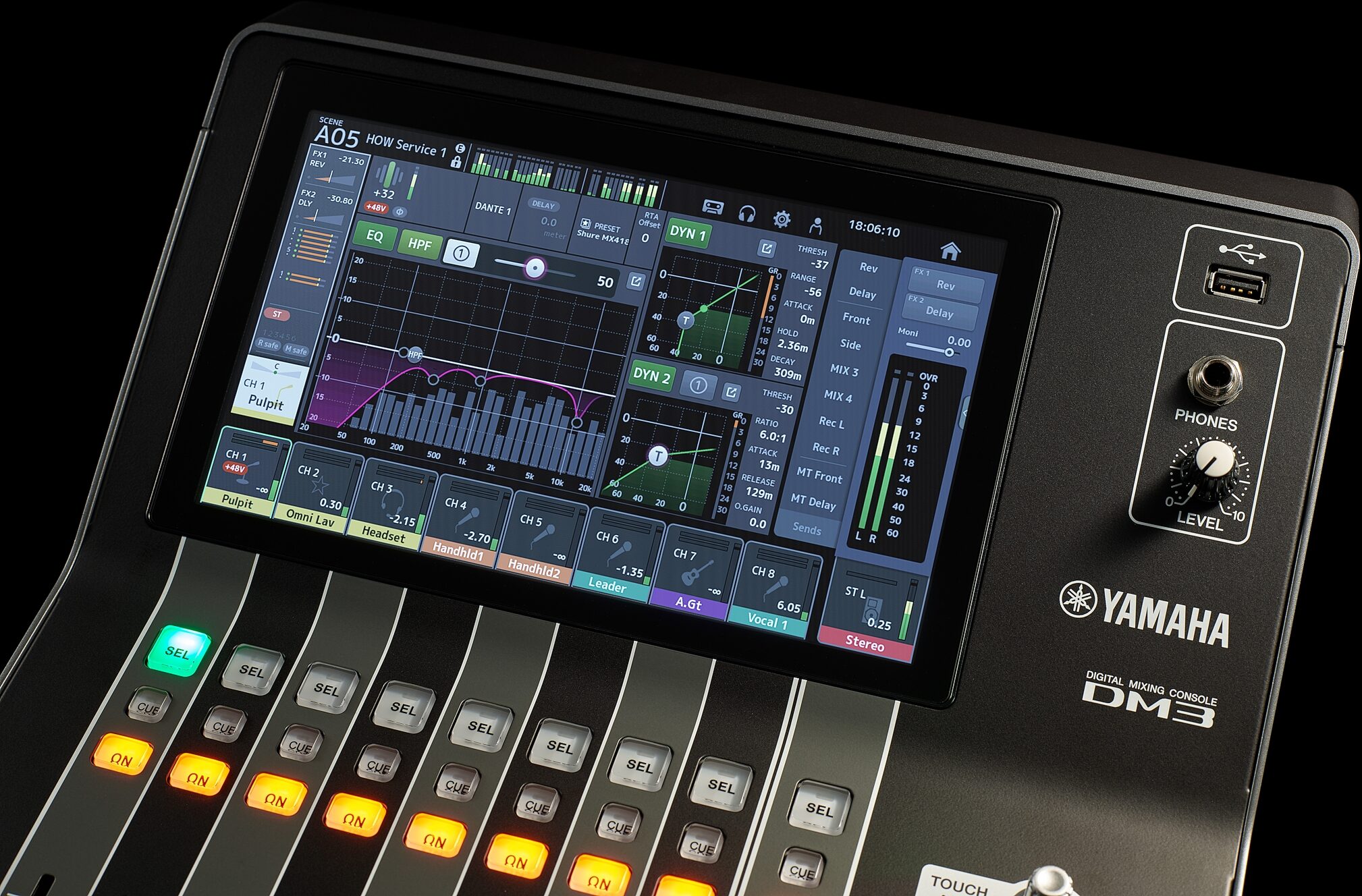

- Best in Class 9"" Touch Screen

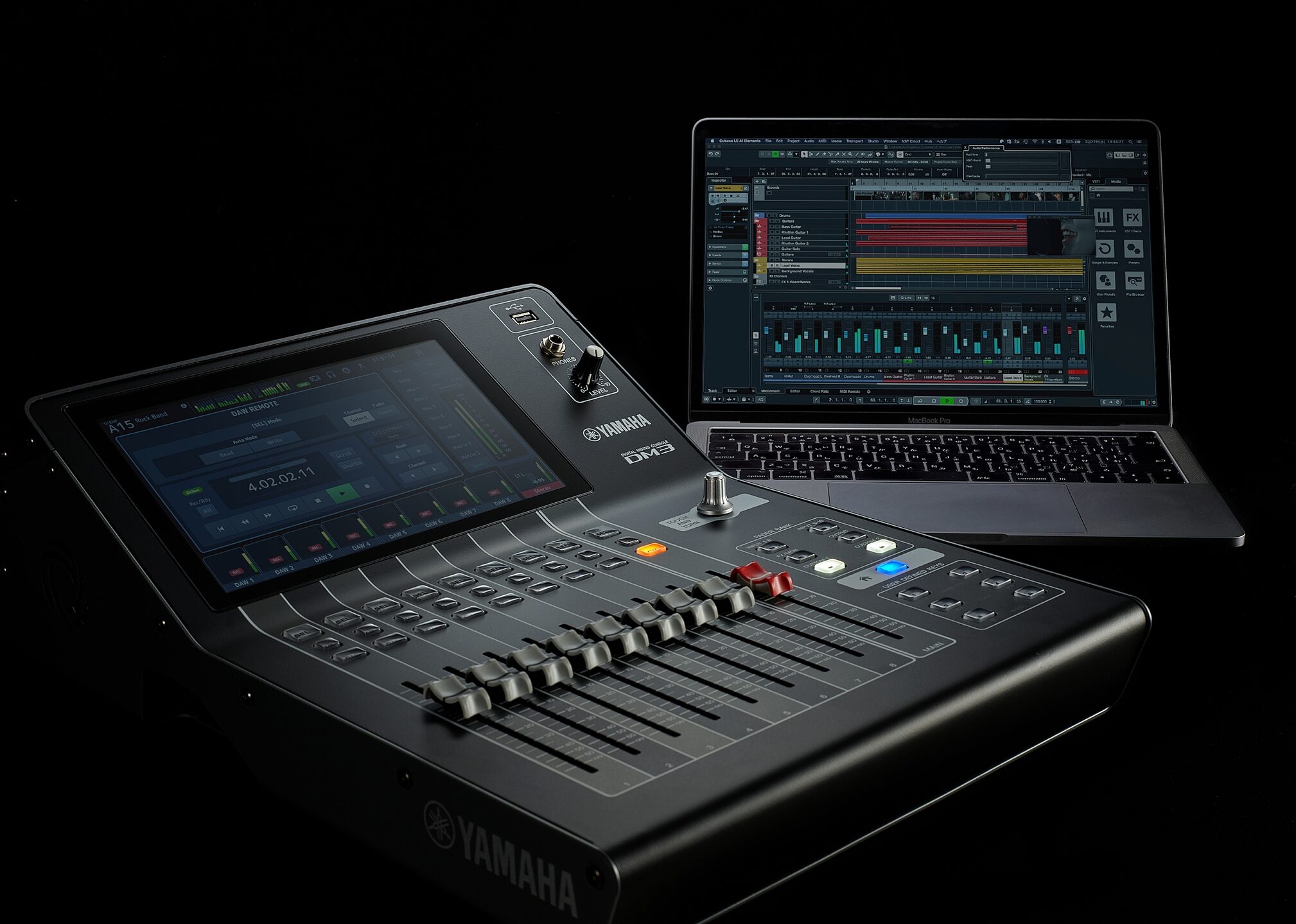

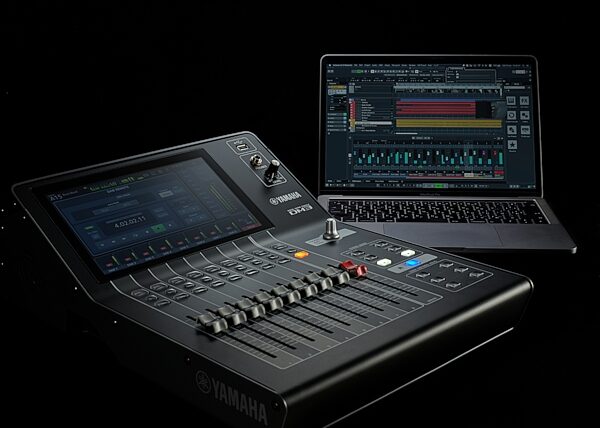

- DAW Remote Mode including transport control
- Custom control via OSC, USB-MIDI and Provisionaire
- Bundled with Cubase Al

- Number of Input Channels: 22 channels (16 mono, 1 stereo, 2 stereo FX returns)
- Number of Output Buses: 1 stereo bus, 6 mix buses, 2 FX, 2 matrix
- Aux Sends: 6 mix buses
- Sampling Rate: 96 kHz / 48 kHz
- Frequency Response: +0.5, -1.0 dB 20 Hz-20 kHz (INPUT to OMNI OUT)
- Total Harmonic Distortion (THD): Less than 0.01% 20 Hz - 20 kHz@+4 dBu into 10 kΩ
- Phantom Power: +48V DC phantom power
- Built-in Effects: 18 types of high-grade effects including REV HD and REV R3, 2 high-quality multi-effects processors
- DSP Processing: 96 kHz internal processing
- Faders: 9 x 100mm motorized faders (8 channels + 1 main), 1024-step resolution
- Metering: 9-inch multi-touch screen

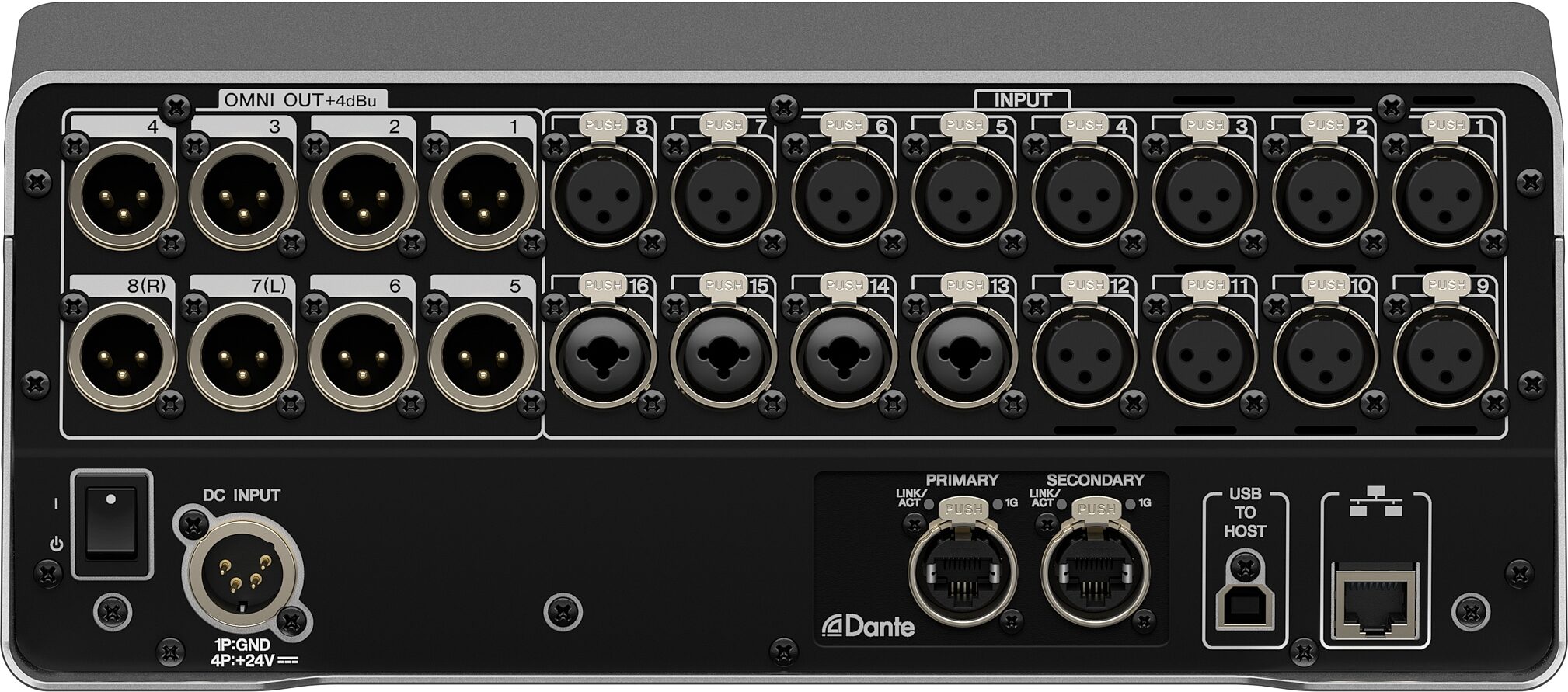

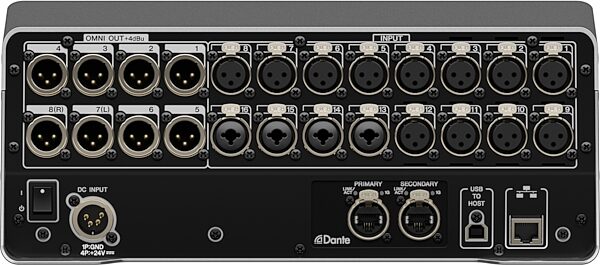

- I/O Connectors: 16 mic/line inputs (12x XLR + 4x XLR/TRS combo), 8 XLR outputs, 16x16 Dante I/O (2x etherCON), 1x USB Type-B (Host), 1x USB Type-A (Device), 1x Ethernet (RJ-45), 1x TRS headphones, 1x XLR 4-pin DC power
- Network Connectivity: 16x16 Dante interface, Ethernet (RJ-45), 18x18 USB audio interface
- Power Requirements: 24V DC, 2.5A (60W) via external power adapter PA-L500

Dimensions and Weight in Packaging

Base Item

  • Shipping Weight: 20.15 lbs
  • Shipping Dimensions: 22 x 18 x 10 in
  • Manufacturer Part Number (MPN): DM3-D
