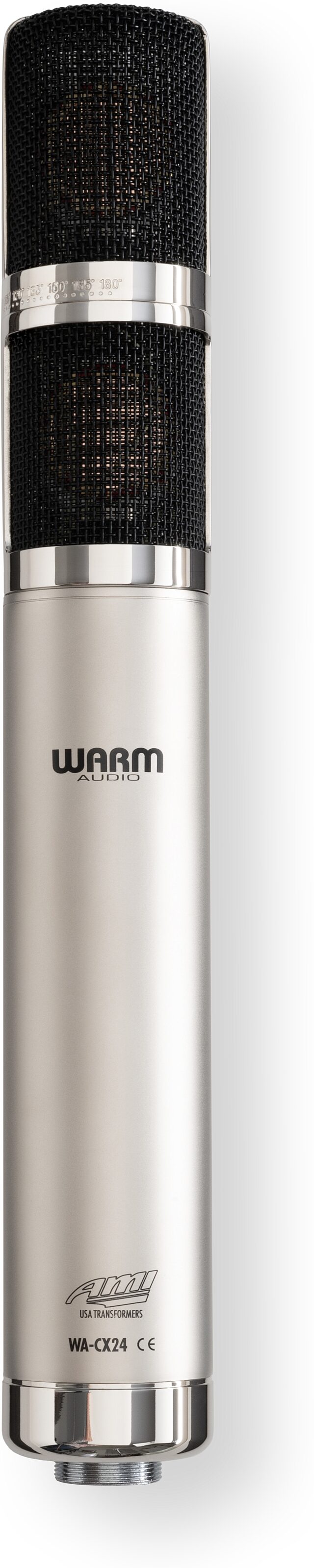

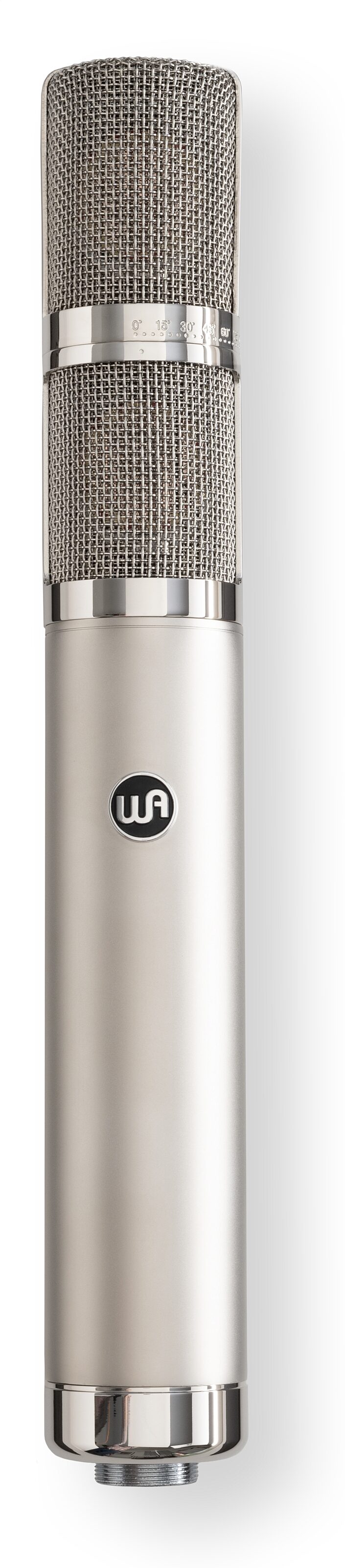

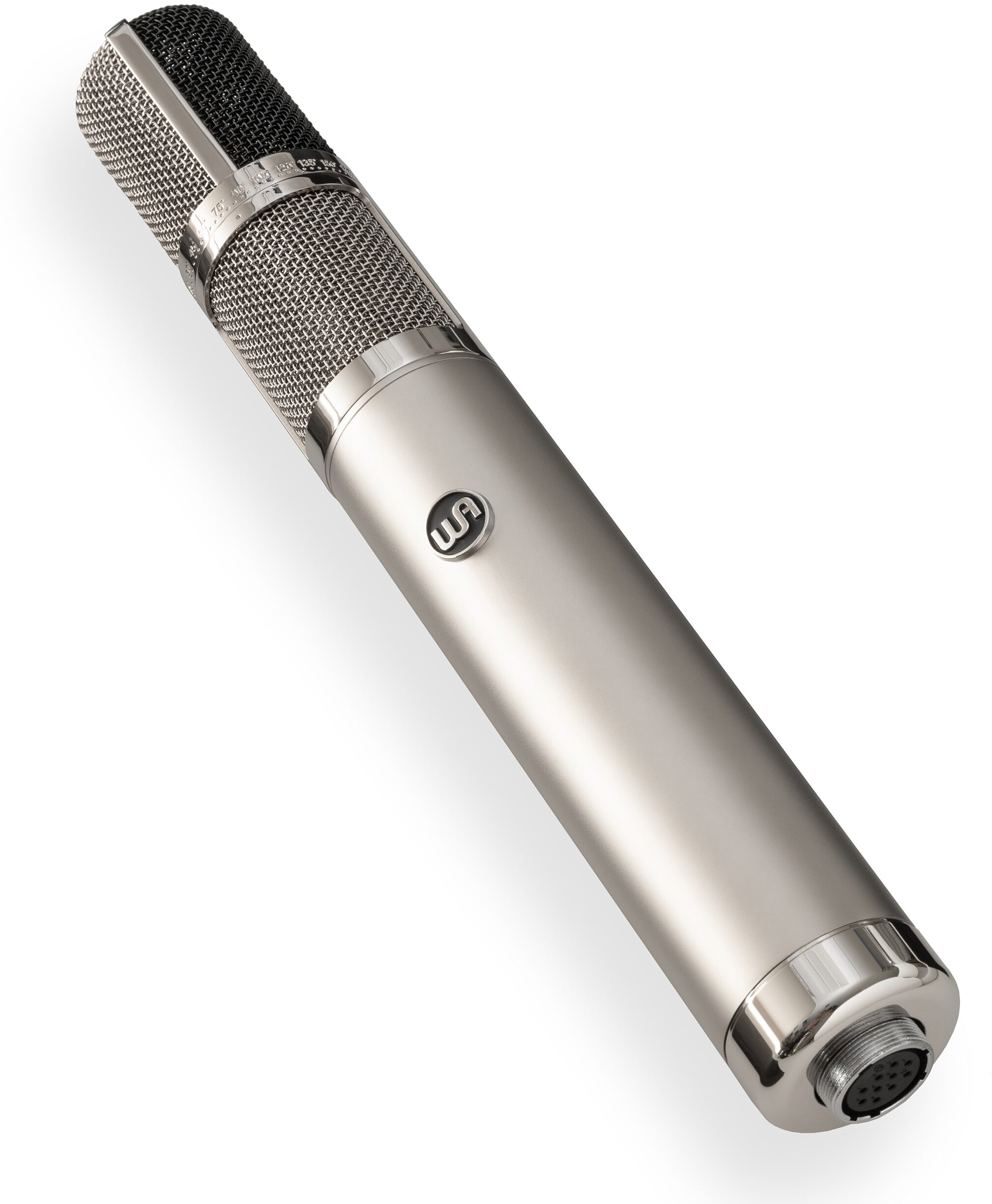

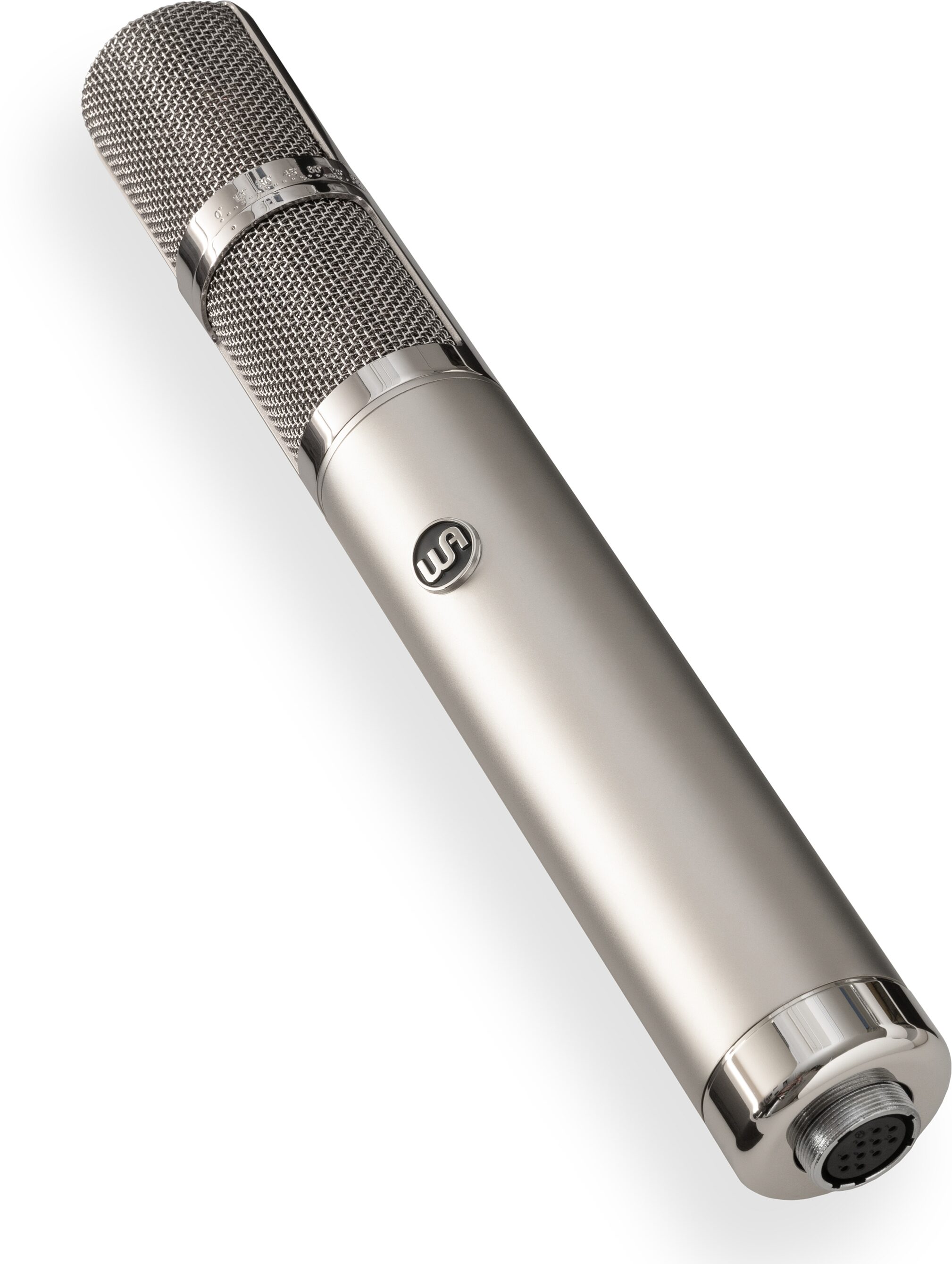

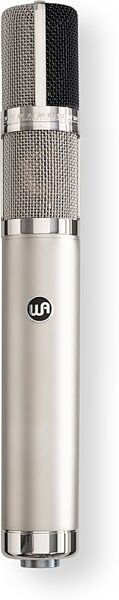

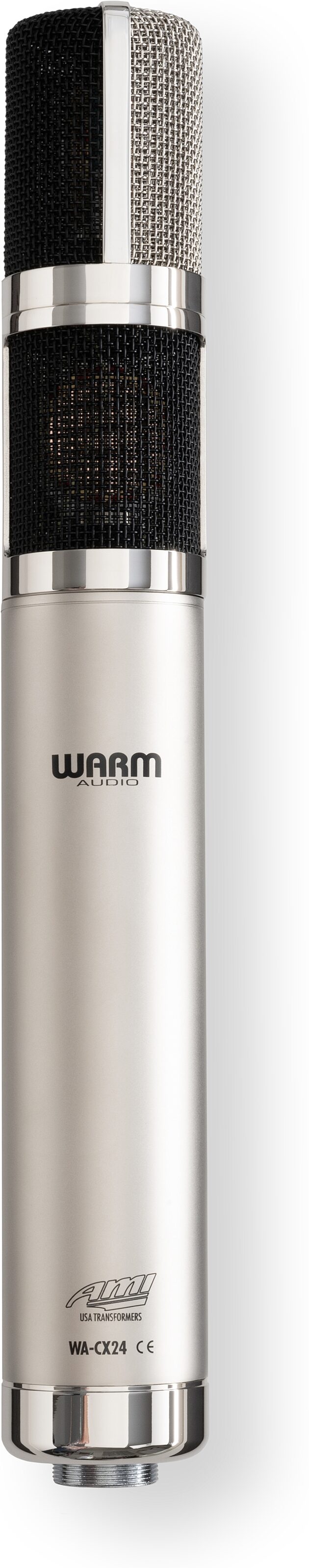

Warm Audio WA-CX24 Stereo Large-Diaphragm Condenser Microphone

The WA-CX24 faithfully recreates one of the most iconic vintage stereo large-diaphragm condenser microphones ever produced. WA-CX24 delivers critical vintage-correct features allowing for multiple pickup patterns and varying stereo widths to support stereo recording configurations even the most imaginative of engineers and artists will be excited by.

Features:

- Faithful recreation of the most natural & balanced stereo tube condenser mic
- Organic, natural sounding tone with pleasing high end & colorful midrange
- Great for drums, stereo acoustic guitars, pianos, & more
- Top & Bottom capsules are independently adjustable
- XY, Blumlein, mid-side, or a custom stereo imaging
- 2 All-brass vintage CK12-style capsules
- Custom Edge Terminated, dual-backplate capsule design
- 2 Custom T14 TAB-Funkenwerk Output Transformers
- Powered by premium 12AY7 vacuum tube
- 9 Polar patterns including cardioid, omni, figure-8, & more
- Polar patterns accessible on 2 switches (1 per capsule)
- 149 dB Max SPL with 30Hz-20 kHz frequency response
- 200 Ohms Output Impedance
- 9-Pin XLR cable connection
- Comes with wooden case, cables, power supply, & more

Smooth Highs and Vibrant Midrange
The WA-CX24 captures organic and natural sounding tone with pleasing high end and colorful midrange so you feel the performance come through. Open "live" drums, wide stereo acoustic guitars, and spacious pianos with natural mids and smooth high end.

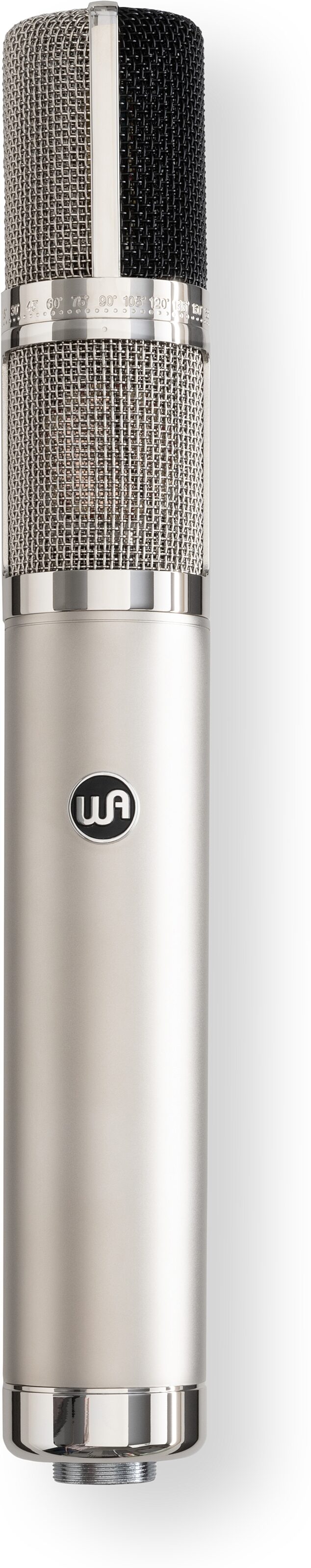

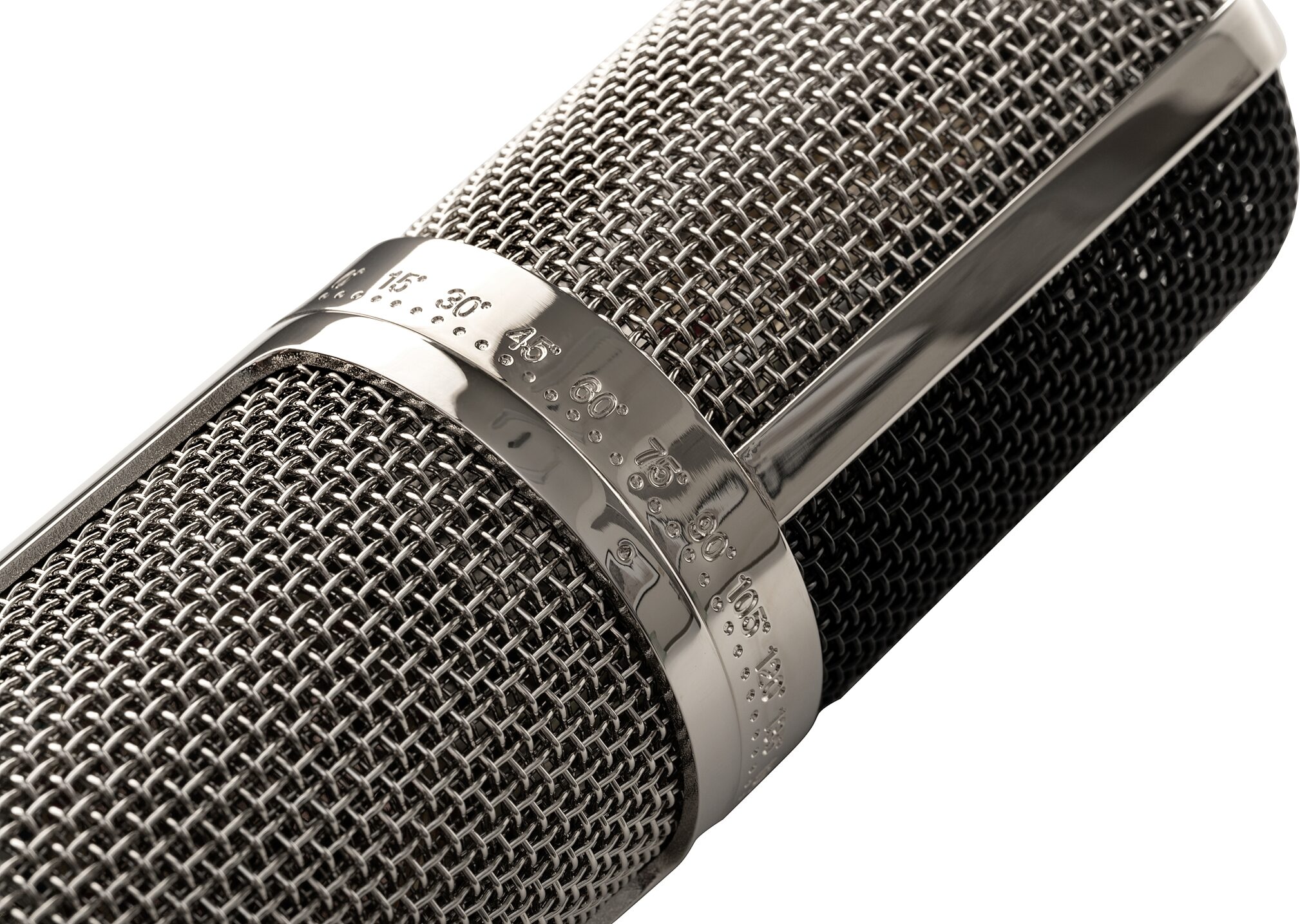

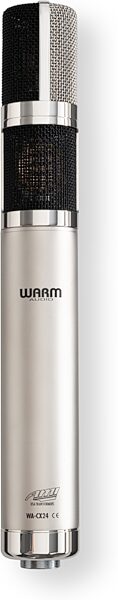

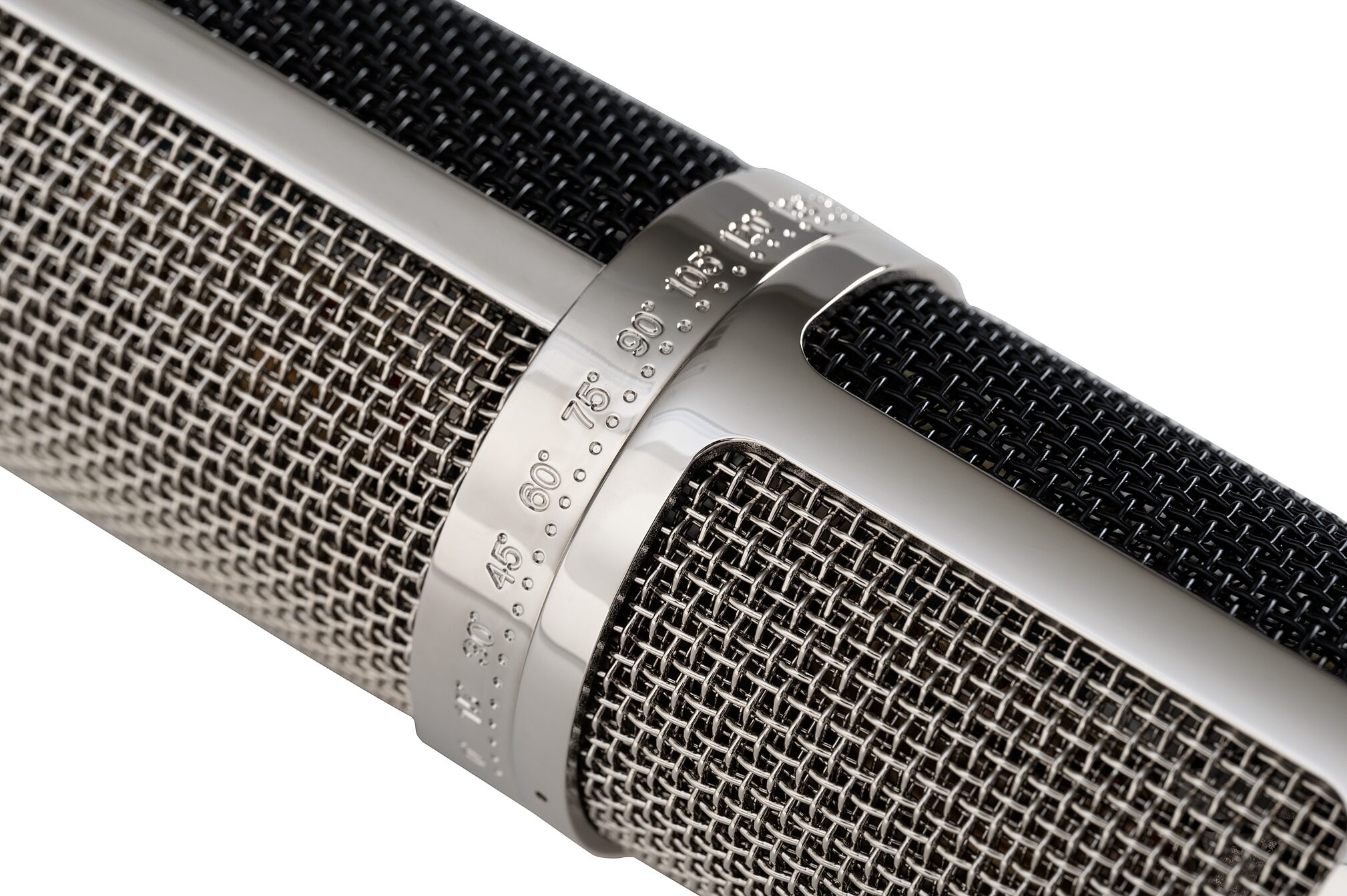

Full, 180-Degree Capsule Rotation
Rotating the read more capsules of the WA-CX24 provides exceptional flexibility for achieving precise stereo imaging in audio recordings. By independently adjusting the position of each capsule, you can tweak the stereo pickup pattern for various recording techniques, such as XY, Blumlein, mid-side, or a custom angle tailored to the sound source and recording environment.

Independently Assignable Polar-Pattern Switching
Mixing polar patterns on the two capsules on the WA-CX24 unlocks even more versatility and creative control in recording. By combining different patterns, such as cardioid on one capsule and figure-8 on the other, you can craft a unique stereo image and tailor the mic's response to the recording environment.

No-Compromise Components
WA-CX24 is loaded with two of the same CK12-style capsules used on the celebrated WA-CX12 microphone, machined out of solid brass and designed to reproduce sound with vintage-correct results. The middle of the mic houses a premium 12AY7 tube carefully selected to bring vintage warmth to the circuit without sacrificing smooth clarity in the top end. Rounding out the circuit, the WA-CX24 sports two premium, USA-made T14 transformers from TAB-Funkenwork (AMI) to deliver ultimate signal integrity to the 9-pin cable and out to the box.

An Impressive Array of Accessories
The WA-CX24 comes with a 9-pin GAC-9 cable from Gotham AG Switzerland, the manufacturer trusted to deliver premium cable stock of the most sought-after tube microphones in the past and present. Additional accessories include a dual-polar pattern equipped power supply, IEC cable, shockmount, custom wood display box, and custom tweed flight case.

Hand-Tested In Austin, TX
Like all Warm Audio gear, the WA-CX24 is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

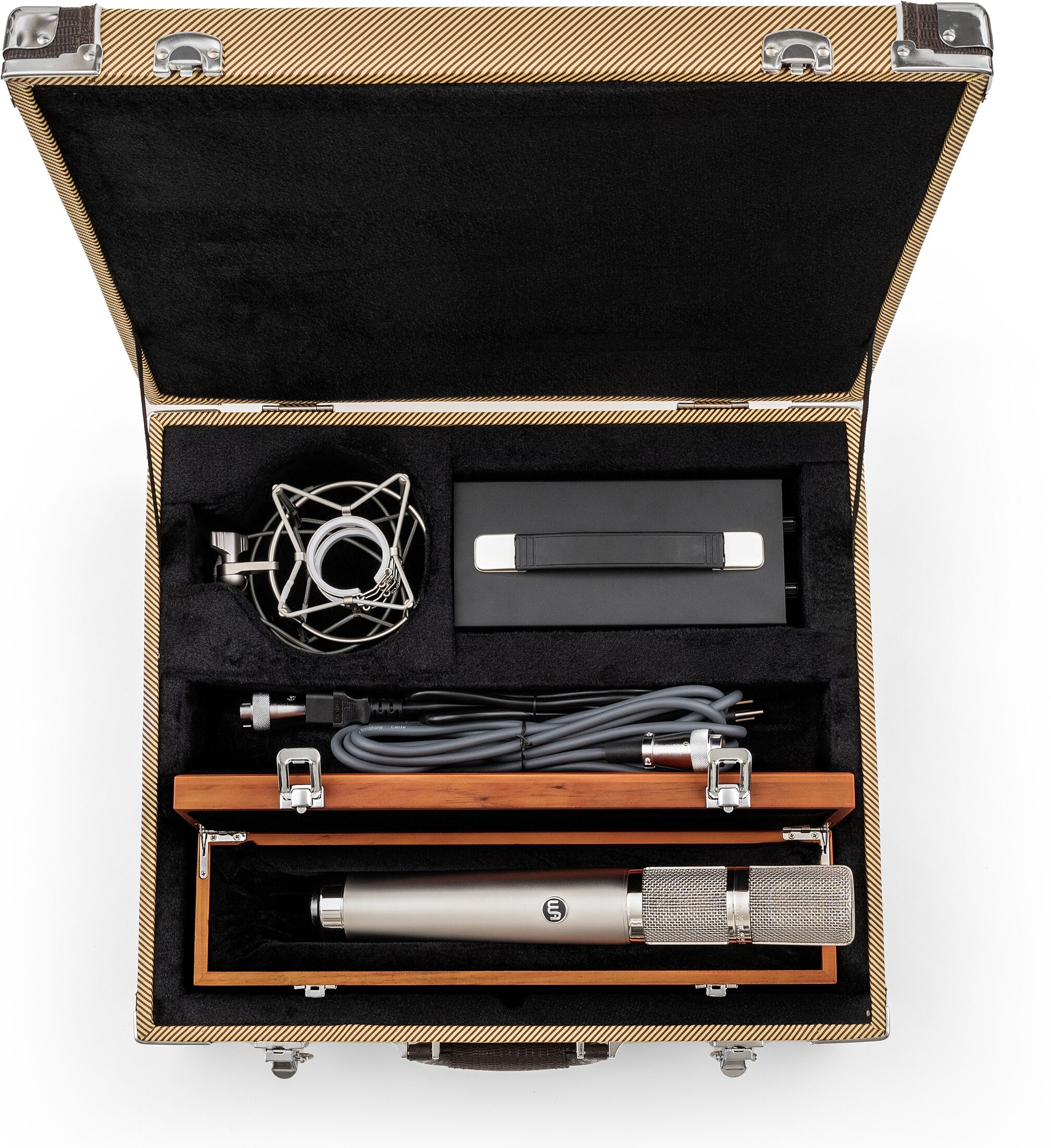

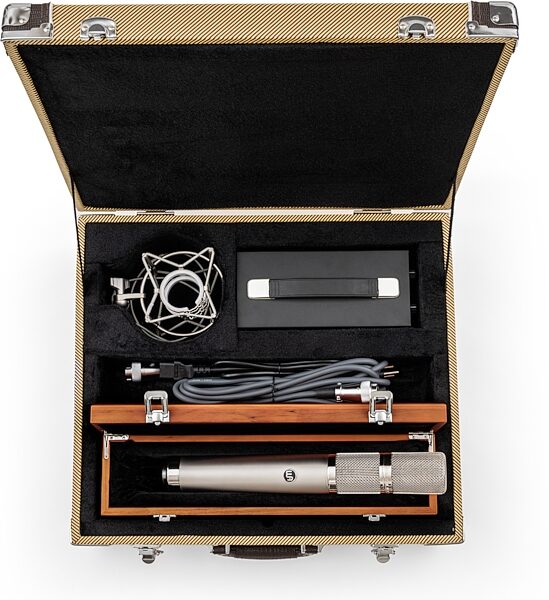

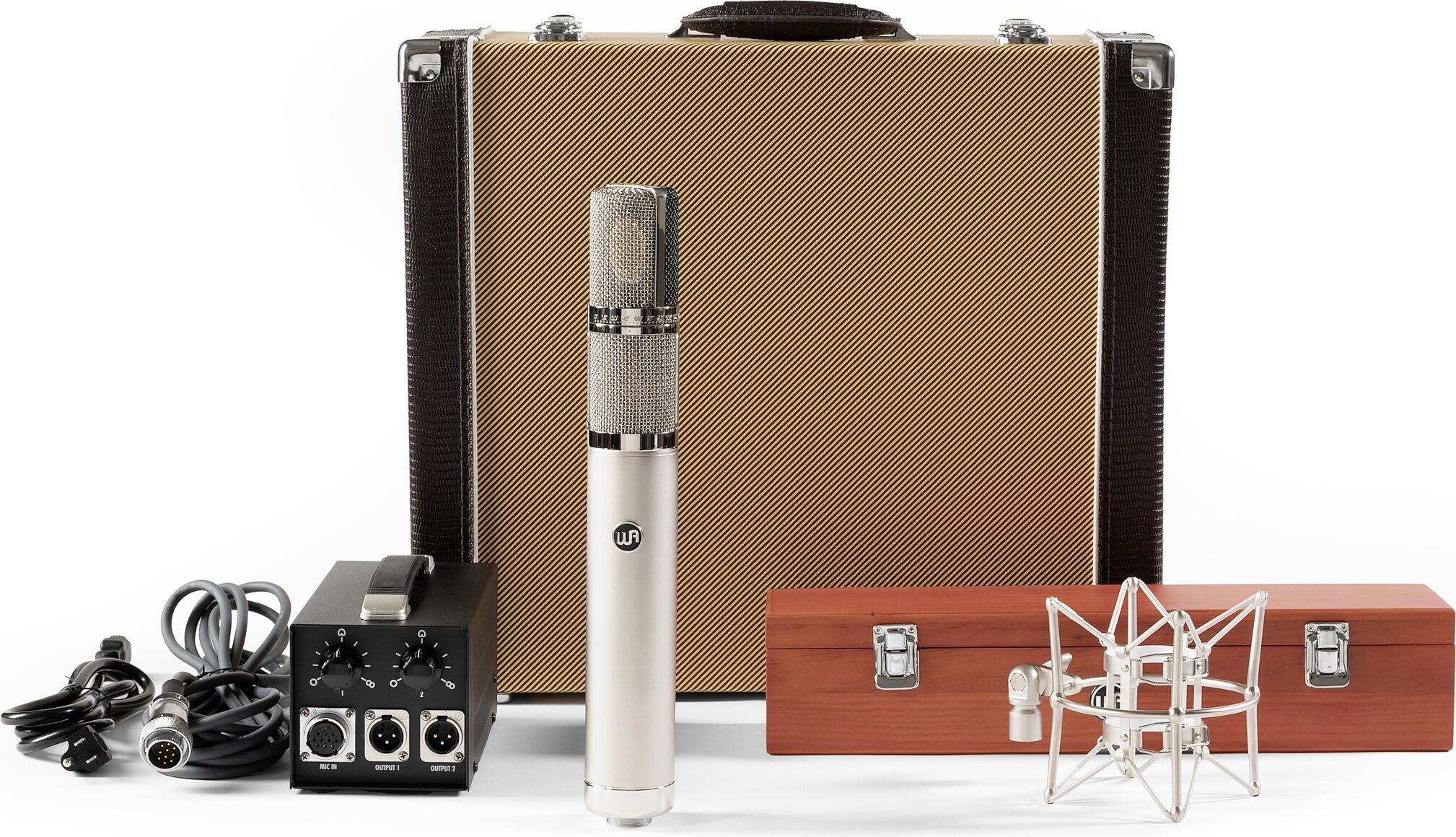

Package Includes:
- Stereo Microphone
- Wood Box
- Power Supply

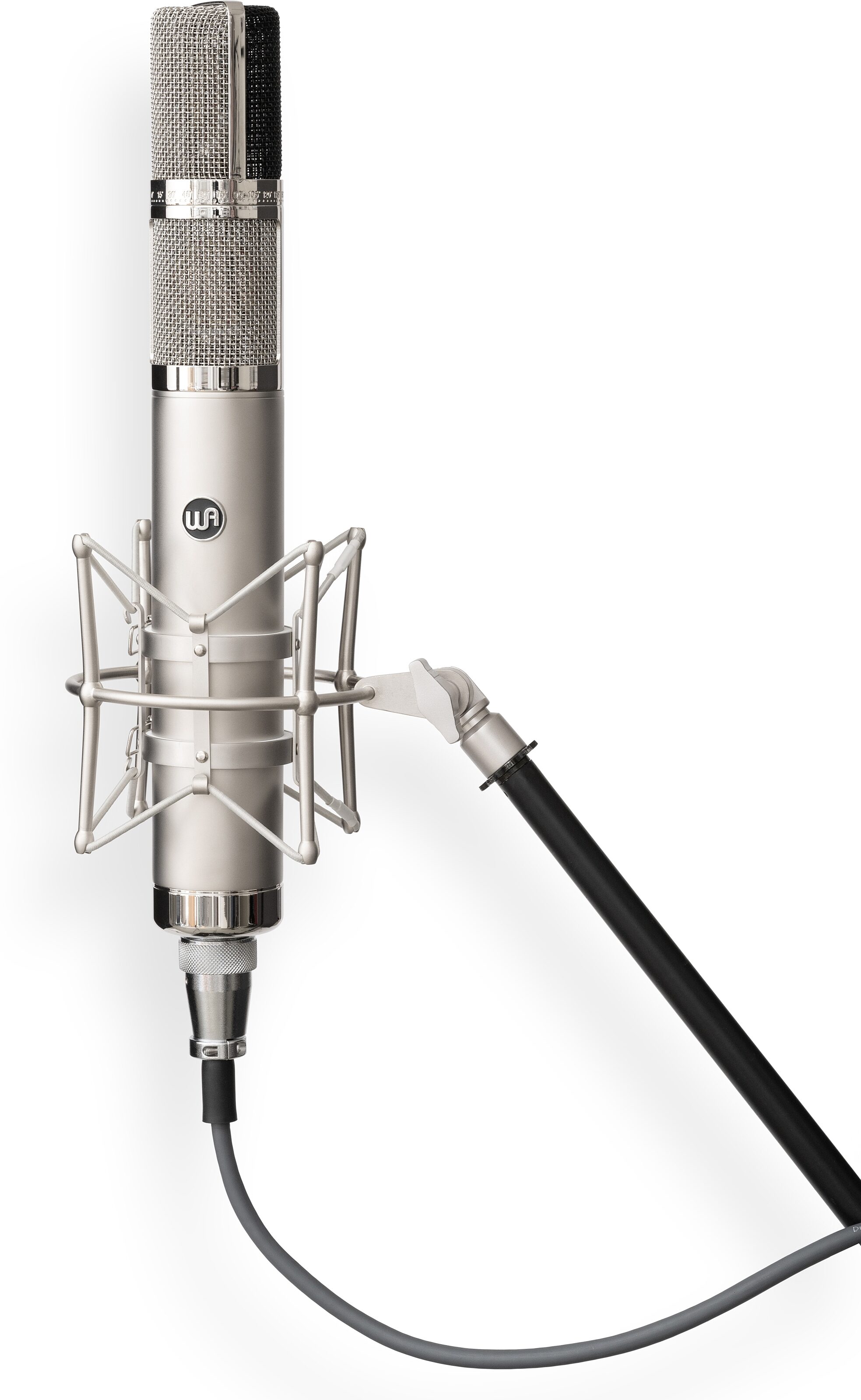

- Shockmount
- 9-Pin Gotham Swiss Cable
- IEC Cord
- Tweed Flight Case
read less

Capsule: 2 All-Brass Vintage CK12-Style Capsules
Capsule Construction: Custom Edge Terminated, Dual-Backplate
Output Transformers: 2 Custom T14 TAB-Funkenwerk (AMI)
Tube: 12AY7 Vacuum Tube
Capacitors: Polystyrene and Wima Film Capacitors
Polar Patterns: 9 Patterns - Cardioid, Omnidirectional, Figure-8, & Mixed Patterns
Max SPL: 149 dB
Frequency Response: 30Hz-20 kHz
Output Impedance: 200 Ohms
Signal-to-Noise Ratio: 73 dB
EIN / Self-Noise: 22 dBA
Power Source: External IEC grounded PSU
Cable: Gotham 5-Meter GAC-9, Premium 9-Pin Tube Microphone Cable
Weight:
- Mic Only: 3 lbs (1.4 kg)
- Total Weight: 20.5 lbs (9.3 kg)
Dimensions: 14" x 2" (35.6 cm x 5 cm)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 20.59 lbs
Shipping Dimensions: 20 x 19 x 7 in
Manufacturer Part Number (MPN): WA-CX24
