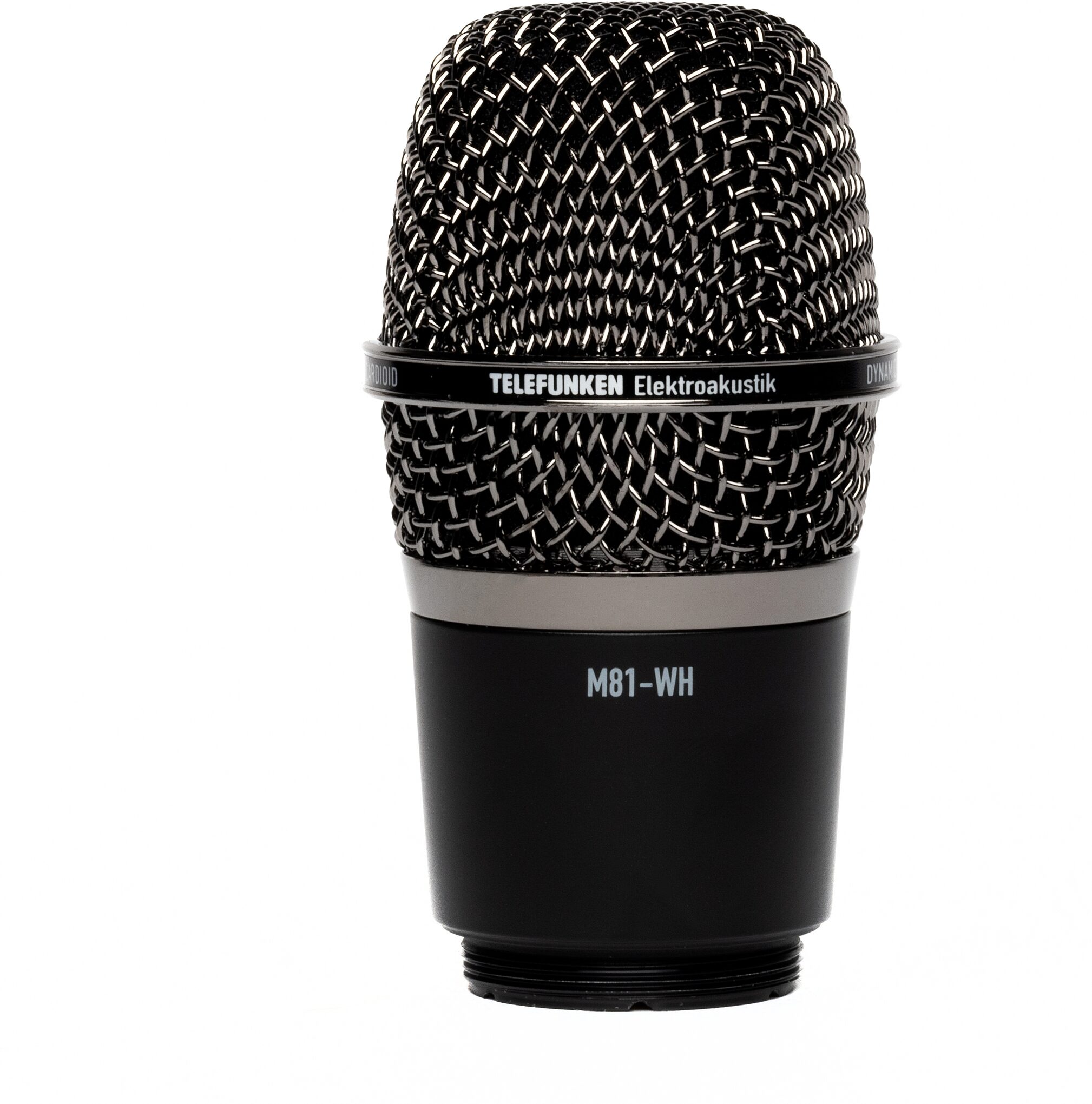

Telefunken M81 Capsule for Shure Wireless
Overview
Wireless capsule designed for use with the Shure brand wireless microphone transmitters featuring the same physical and sonic characteristics as the M81 Universal Dynamic. This is an entire M81 Universal Dynamic (capsule, headgrille, output transformer), neatly packed in a much shorter body with the screw on terminal connections.
The M80-WH, M80-WHB and M81-WH are designed to mate with Shure Axient, UHF-R, QLXD, ULXD, ULX, PG, PGX, SLX, ULX2, SLX2, UR2 and PG2 wireless transmitters. In addition, the M80-WH, M80-WHB and M81-WH are also interchangeable with the Lectrosonic HH and HHA and Sony brand UTX-M03 wireless transmitters. The M80-WH, M80-WHB and M81-WH do NOT mate with the Shure PGX2, BLX, GLXD, and PGXD.
The TEC Award winning M81 Universal Dynamic has become the industry's go-to handheld dynamic microphone. The M81 possesses the same condenser like response, minimal proximity effect, and superior feedback rejection one expects from TELEFUNKEN microphones. A flat frequency response, mid-range clarify and wealth of body make the M81 an idea tool for taming brighter vocals, guitar tones, and fattening up toms, horns or other thinner sounding sources in both stage and studio environments.
- Pristine audio quality with a clear, detailed frequency response and high SPL handling
- Supercardioid polar pattern provides excellent feedback rejection
- Low mass diaphragm reduces proximity effect
- Mates with… read more many industry-standard wireless transmitters
- Design and hand assembled in the USA
read less
The M80-WH, M80-WHB and M81-WH are designed to mate with Shure Axient, UHF-R, QLXD, ULXD, ULX, PG, PGX, SLX, ULX2, SLX2, UR2 and PG2 wireless transmitters. In addition, the M80-WH, M80-WHB and M81-WH are also interchangeable with the Lectrosonic HH and HHA and Sony brand UTX-M03 wireless transmitters. The M80-WH, M80-WHB and M81-WH do NOT mate with the Shure PGX2, BLX, GLXD, and PGXD.
The TEC Award winning M81 Universal Dynamic has become the industry's go-to handheld dynamic microphone. The M81 possesses the same condenser like response, minimal proximity effect, and superior feedback rejection one expects from TELEFUNKEN microphones. A flat frequency response, mid-range clarify and wealth of body make the M81 an idea tool for taming brighter vocals, guitar tones, and fattening up toms, horns or other thinner sounding sources in both stage and studio environments.
Features:
- Same clear, condenser-like performance as the wired M81- Pristine audio quality with a clear, detailed frequency response and high SPL handling
- Supercardioid polar pattern provides excellent feedback rejection
- Low mass diaphragm reduces proximity effect
- Mates with… read more many industry-standard wireless transmitters
- Design and hand assembled in the USA
Specs
- Type: Dynamic
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz - 18 kHz, 3 dB
- Capsule: 25mm Dynamic Moving Coil
- Transformer: TELEFUNKEN Elektroakustik T80
- Sensitivity: 1.54 mV/Pa, 1 dB
- Output Impedance: 325 ohms
- Maximum SPL (for 1% THD): 135 dB
- Dimensions/Size: 90 mm L x 48 mm Dia
- Weight: 165 g
- Included Accessories: none
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
- Polar Pattern: Supercardioid
- Frequency Range: 50 Hz - 18 kHz, 3 dB
- Capsule: 25mm Dynamic Moving Coil
- Transformer: TELEFUNKEN Elektroakustik T80
- Sensitivity: 1.54 mV/Pa, 1 dB
- Output Impedance: 325 ohms
- Maximum SPL (for 1% THD): 135 dB
- Dimensions/Size: 90 mm L x 48 mm Dia
- Weight: 165 g
- Included Accessories: none
Dimensions and Weight in Packaging
Black
- Shipping Weight: 0.7 lbs
- Shipping Dimensions: 6 x 5 x 4 in
- Manufacturer Part Number (MPN): SYTM-055
Consumer Alert
Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophonesNOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Web: https://www.telefunken-elektroakustik.com/contact
Web: https://www.telefunken-elektroakustik.com/contact
