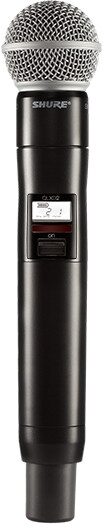

Shure QLXD2/SM58 Wireless Handheld Transmitter with SM58 Microphone Capsule

zZounds Gear Experts Say...

With quick setup, long battery life, and rock-solid performance, the Shure QLXD2/SM58 handheld wireless transmitter delivers the reliability you need.

Overview

Featuring transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the Shure QLXD2 handheld transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship. Easy to use, the QLXD2 quickly syncs with a wireless receiver over IR at the push of a button and maintains clear, uninterrupted signal over its entire 100 m (330 ft.) range. All-metal construction ensures durability, and a wide selection of compatible microphone choices offer legendary Shure sound signatures.

Features:

- 20 Hz to 20 kHz frequency range with flat response (actual response is microphone dependent)
- Interchangeable Shure microphone capsules, including the legendary SM58
- AES 256-bit encryption for secure transmission
- Over 120 dB of dynamic range - no transmitter gain adjustment needed
- 1, 10 mW selectable RF output power
- Up to 9 hours continuous use with 2 x AA alkaline batteries
- Optional Shure SB900 lithium ion rechargeable battery provides up to 10 hours of continuous use and reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 100 meter (330 ft.) line-of-sight operating range
- Rugged metal construction
- Frequency and power lockout

Specs

- Frequency Band: Varies by model (G50: 470-534 MHz, H50: 534-598 MHz, J50A: 572-608/614-616 MHz, V50: 174-216 MHz, X52: 902-928 MHz)
- RF Output Power: 1, 10 mW selectable
- Audio Frequency Response: 20 Hz to 20 kHz (actual response is microphone dependent)
- Dynamic Range: Over 120 dB of dynamic range – no transmitter gain adjustment needed
- Input Connector: Interchangeable microphone capsule
- Battery Type: 2 x AA alkaline or Shure SB900 rechargeable Li-ion
- Battery Life: Up to 9 hours (AA alkaline), Up to 10 hours (SB900 Li-ion)
- Operating Range: 100 m (330 ft) line-of-sight
- Modulation: Digital
- Sync Method: IR (infrared) sync
- Latency: 2.9 ms

Dimensions and Weight in Packaging

Band G50 (470 - 534 MHz)

Shipping Weight: 1.6 lbs
Shipping Dimensions: 13 x 5 x 4 in
Manufacturer Part Number (MPN): QLXD2/SM58=-G50

Band H50 (534 - 598 MHz)

Shipping Weight: 1.6 lbs
Shipping Dimensions: 13 x 5 x 4 in
Manufacturer Part Number (MPN): QLXD2/SM58=-H50

Band J50A (572 - 608 MHz)

Shipping Weight: 1.51 lbs
Shipping Dimensions: 13 x 5 x 4 in
Manufacturer Part Number (MPN): QLXD2/SM58=-J50A

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
