Shure 545SD Classic Unidyne Dynamic Cardioid Microphone

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Shure 545SD Classic Unidyne Dynamic Cardioid Microphone, Main

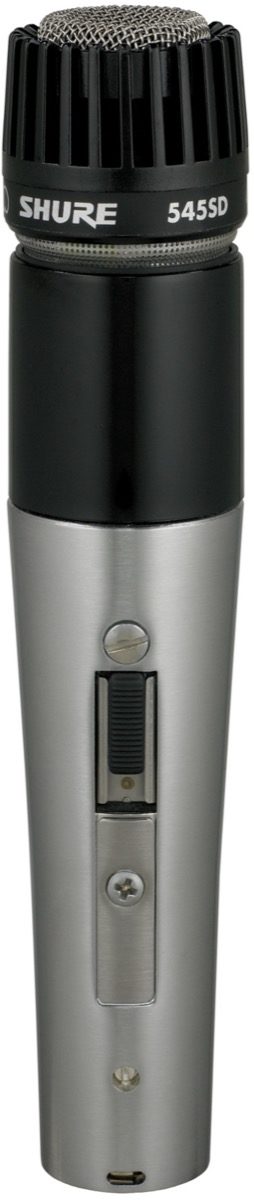

Shure 545SD Classic Unidyne Dynamic Cardioid Microphone, Main
zZounds Gear Experts Say...
Shure's reissue of the vintage 545, the predecessor to the SM57, is a natural on guitar cabinets, with great off-axis rejection. Cool old-school looks, too!

The predecessor to the SM57, the 545SD Classic Unidyne Instrument Microphone is a dual-impedance, unidirectional, dynamic microphone.

Shipped connected for low-impedance operation, the 545SD features a silent magnetic reed on/off switch with lock-on option. A favorite for instrument pickup and recording, the 545SD can also be used on lecterns in public address systems.

Features:

- Exceptionally uniform cardioid pattern minimizes feedback
- Selectable dual-impedance operation
- Silent magnetic reed on/off switch with lock option

- Transducer Type: Dynamic
- Polar Pattern: Cardioid
- Frequency Response: 50Hz - 15kHz
- Output Impedance: 150 ohms (250 ohms actual) / High impedance selectable
- Sensitivity: Low: -58.0 dB (1.3 mV/Pa), High: -35.0 dB (17.6 mV/Pa)
- Connector Type: 3-pin XLR
- Housing Material: Chrome-plated die casting
- Grille Material: ARMO-DUR grille with stainless steel screen

For support or warranty questions, please contact the manufacturer:
Phone: 800-516-2525
Email: service@shure.com
Shure 545SD User Guide
