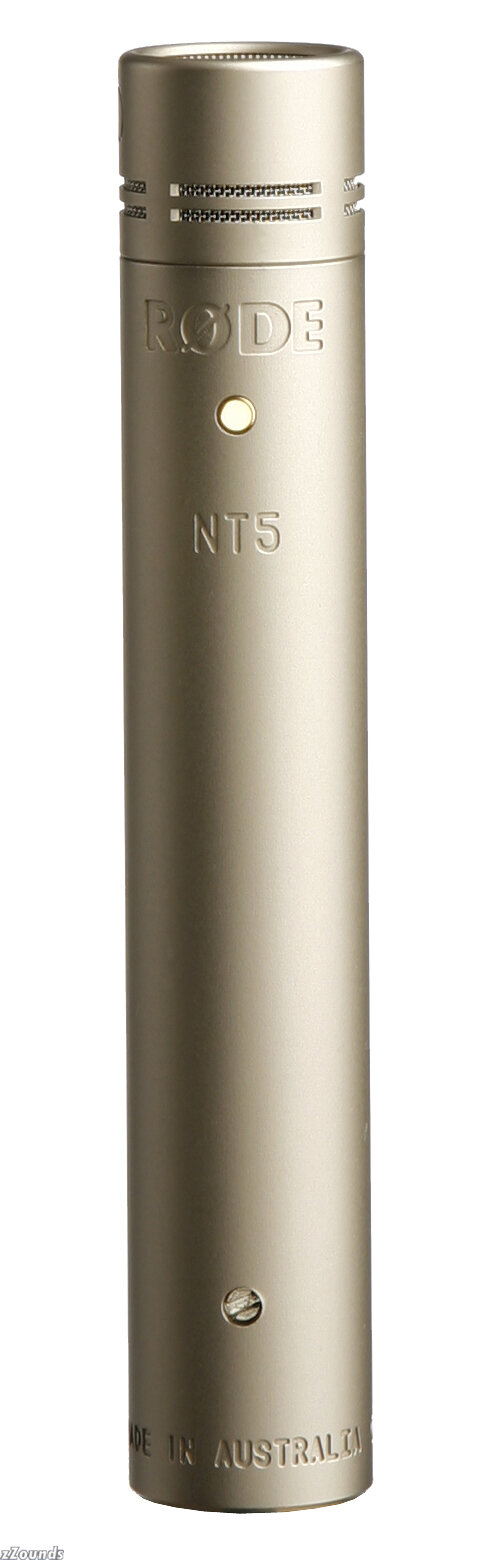

Rode NT5 Condenser Microphone

Rode's highly sensitive 1/2"-diaphragm cardioid condenser shines on acoustic guitar and more. Pick up a matched pair for capturing performances in stereo.

Record guitar, drums, and a variety of other acoustic instruments with the versatile RODE NT5. The NT5's compact profile makes it great for situations where space is at a premium, yet its small size belies its serious workhorse microphone technology under the hood. You'll be amazed at the level of detail this little mic captures.

Focused Pickup Pattern, Full Frequency Spectrum

The NT5's 1/2" small-diaphragm capsule employs a tight cardioid pickup pattern that's great for capturing drum cymbals, violins, acoustic guitars, and saxophones. It responds to the full audible spectrum, with a nice open response in the mids and a gentle slope to bring out sparkling highs.

This video by RODE shows how the NT5 works well for recording drums:


High-End Components For Low Noise

Inside of its heavy-duty satin nickel plated body, the NT5 features an externally biased condenser, a gold sputtered capsule, and surface mount circuitry. These components combine to provide astounding clarity and virtually no noise.

Great in Tandem

One of the most common applications for the NT5 is to use a pair as overhead drum mics in order to fully capture the sizzle and decay of cymbals. The results are also quite pleasing when using two NT5s to capture acoustic guitar.

A Do-It-All Small-Diaphragm Condenser

Whether you're recording a guitar track, filling out the drum mic set-up, or capturing audio during filmmaking, the RODE NT5 produces exceptional sound quality at a great price point.

Features

- Externally biased read more condenser
- Gold sputtered 1/2" capsule
- Heavy-duty satin-nickel plated body
- Surface mount circuitry
- Low noise
- Full frequency response
read less

- Acoustic Principle: Externally polarized single diaphragm condenser transducer
- Capsule Size: 0.5 in. (13 mm)
- Active Electronics: JFET Impedance converter with bipolar output buffer

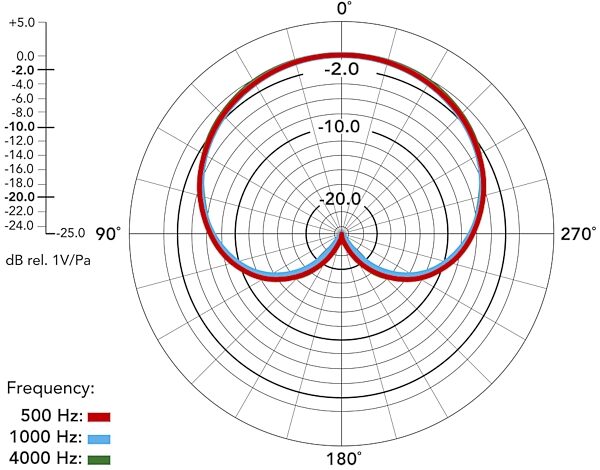

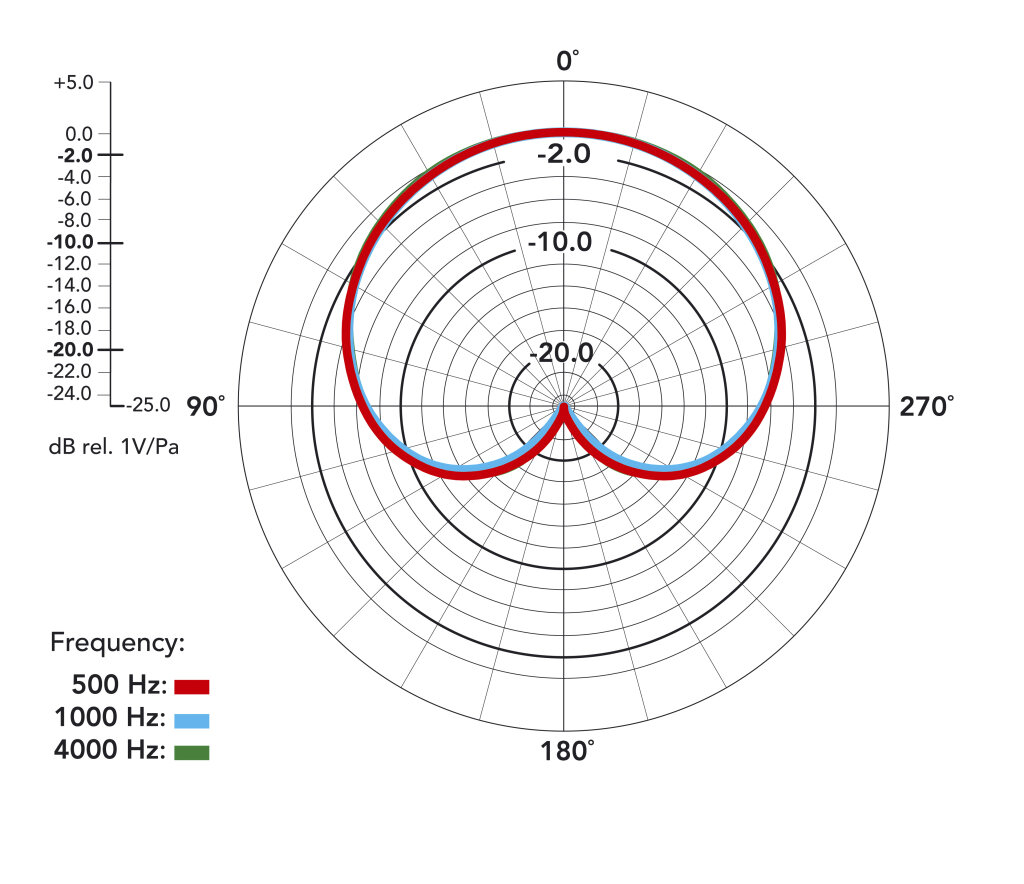

- Directional Response: Cardioid

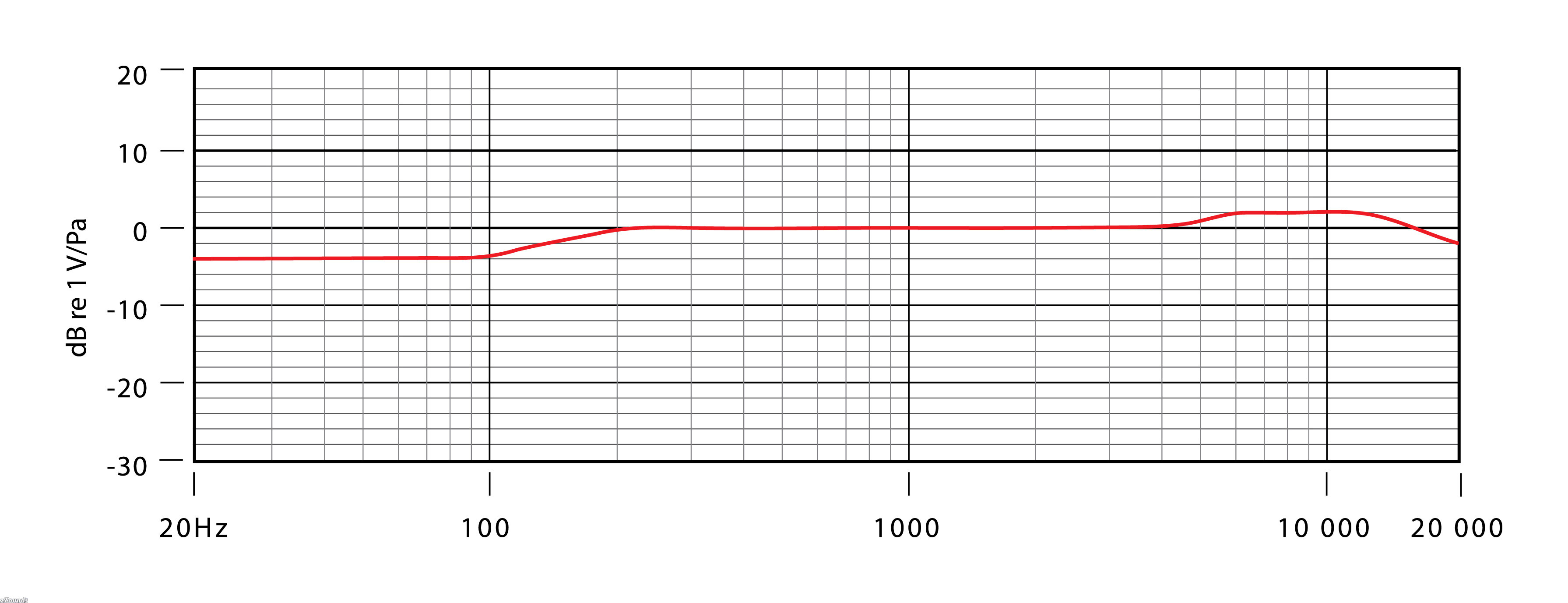

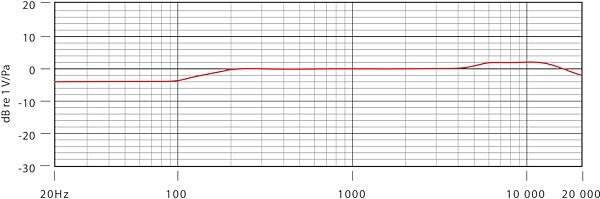

- Frequency Response: 20Hz to 20kHz
- Sensitivity: -38 dB re 1v/Pa +/- 2 dB equivalent to 12mV/Pa where 1 Pa = 94dBSPL
- Equivalent Noise: <16 dBSPL, (A-weighted per IEC268-15)
- Maximum Output: +13.9 dBu @ 1% THD into 1k ohm
- Dynamic Range: >128 dB
- Maximum SPL: 143 dB @ 1% THD into 1k ohm
- Signal to Noise: 78dB
- Power Requirements: 4 mA, P48 Supply (38V-52V) 2 mA, P24 Supply (20V-26V) The microphone operates in accordance with the above specifications to a minimum of 18V. It will operate with some performance degradation below 18V.)
- Packed Weight: 1.8 kg (Mic only 100g)
Dimensions and Weight in Packaging
Single Microphone
Shipping Weight: 0.75 lbs
Shipping Dimensions: 11 x 5 x 2 in
Manufacturer Part Number (MPN): ROD NT5S
Matched Pair (with Case)
Shipping Weight: 3.25 lbs
Shipping Dimensions: 16 x 12 x 5 in
Manufacturer Part Number (MPN): ROD NT5 MP

For support or warranty questions, please contact the manufacturer:
Phone: 562-364-7400

Rode NT5 Condenser Microphone

The Rode NT5 is a condenser microphone specifically designed for instruments including guitar, saxophone, drums, violin, and many others. Its design allows for tight positioning where small mics are most useful.

Finished in durable satin nickel, the NT5 is intended for either single or stereo X/Y mic set-ups. The NT5 matched pairs come supplied in a custom carry case with windshields and mounts.

Applications

Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.

Reviewers gave this product an overall rating of 9 out of 10 stars. (62 ratings)
Submitted November 27, 2003 by a customer from yahoo.com
"Great mic for the price"
Overall: 9 out of 10 stars
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Sound
I recently purchased the NT5 pair before Rode's price jump in November. I also had the chance to do a "shoot out" with the NT5 and 6 other mics (TLM 103, Pro 37r, AT 4033, SM 81, AKG 414, AKG 451). The results were quite surprising. The output on the 103, the 4033, and the NT5 were very similar. The NT5 was a little less hot, but had a higher output than all the other mics. As for noise, I found that the NT5 had a little more noise than the 4033, and the 103. As far as frequency response, the NT5 was very similar to the 451. There was a nice high end presence that added clarity and brightness to the sound.
Features
Would be nice to have a bass rolloff, but that's what filters are for. Would be nice to have a pad, the output is fairly hot.
Value
After doing the shoot out, I realized that for $300.00 a pair, the quality was outstanding. It held up to the 414, the 103, and the 4033, qutie nice for a fraction of the cost.
Musical Style:
Classical, Metal, Jazz
21 of 22 people (95%) people found this review helpful. Did you?
