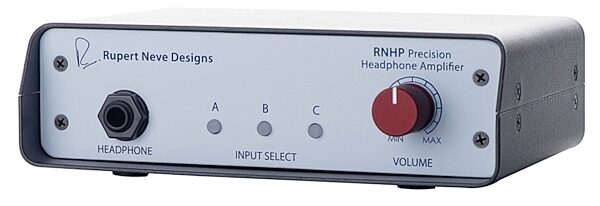

Rupert Neve Designs RNHP Headphone Amp
With effortless, wide-open sonic performance and the ability to drive any pair of headphones without compromise, the RNHP allows you to perform, mix and enjoy your music with a high level of clarity. Whether you're tracking, mixing, or just listening to music, your headphone amplifier is as important to the final sound quality as your headphones so Rupert and his team at Rupert Neve Designs have developed the RNHP.
Get a closer look at the RNHP headphone amp in this video from Rupert Neve Designs:
Based on the headphone output circuit in the 5060 Centerpiece Desktop Mixer, the RNHP (Rupert Neve Headphone Amp) is a dedicated 24V reference-quality headphone amplifier with specifically-calibrated +4dBu balanced line, unbalanced RCA and 3.5mm (1/8") inputs, housed in a rugged VESA-mountable steel chassis.
Dedicated vs Integrated Amplifiers
For much equipment, the headphone output is an afterthought. Most products with integrated headphone amps have large feature sets, small footprints, and relatively low price points. This leads to comprised power and audio quality of the headphone amplifier itself, which can lead to a number of issues in real world usage such as low headroom, unreliable performance, and a lack of focus.
The RNHP was made to accomplish one simple purpose: making any headphones sound their best. As a dedicated design, the RNHP is tailored to deliver extremely high quality, powerful amplification, with precise calibration for any source input. This exceptional level of quality can be the difference that inspires an artist to give their best performance, lets an engineer make better choices in mic and placement, gives a mix engineer reliable translation of EQ and dynamics adjustments, or lets a music listener appreciate the full depth and detail of a recording.
Specially-Calibrated Inputs For All of Your Devices
In addition to being able to drive a wide variety of headphones without sacrificing performance, the RNHP is also capable of receiving a wide array of signals with its 3 inputs, calibrated for optimum level and impedance. Check the Application notes for how the RNHP can be utilized for different purposes.
Here are some common device examples:
Input A: +4dBu Line (XLR or TRS) Devices
Studio Audio Interfaces (Line or Monitor Out)
Headphone Mixers (Line Output or HP Out)
Mixing Consoles (Line, Aux or Monitor Out)
Professional Turntable Mixers (Line or Monitor)
Professional Stereo Digital to Analogue Converter
Studio Monitor Controllers
Input B: RCA Devices
CD / DVD Players
Prosumer Recording Devices / Cameras
Input C: 3.5mm (1/8") Stereo Devices
Portable Music Players
Handheld Recording Devices
Any 3.5mm headphone output
The RNHP is designed for mounting with any VESA 100 compatible mount. These may include pole mounts, wall mounts, table mounts, or articulating arm mounts. These mounts can help to ensure the RNHP is always in the perfect position.
In some situations where you only have one set of outputs but need to simultaneously feed the RNHP and another device such as speakers, a second headphone amplifier, or a 2-track recorder, we recommend using splitter cables from the Left and Right line outputs to feed both devices from the same stereo pair.
Wide-open, extremely detailed sound quality allows you to get the most out of your headphones
High-power, high-headroom design can effortlessly drive high-impedance (up to 600 Ohm) headphones even during the loudest, most dynamic tracking sessions
The near-zero output impedance (.01 Ohm at 1kHz), direct-coupled amplifier design provides for excellent translation with any pair of headphones
Precision Stereo Potentiometer:
The highly damped stereo potentiometer is designed to give you precise level control and maintain perfect left-right balance

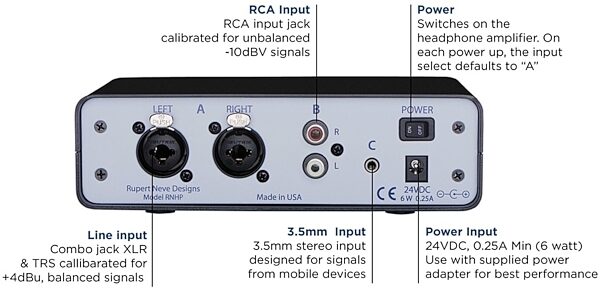

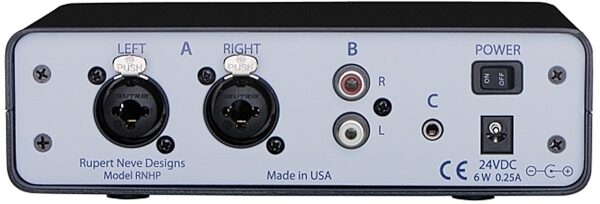

Professional Line Input:
The calibrated +4dBu line input is selected with the "A" switch. The combo jack accepts either XLR or TRS inputs for balanced professional devices.
The unbalanced RCA input is calibrated for -10dBV signals and is selected with the "B" switch. The RCA jack is commonly used with home stereo devices or Prosumer equipment
Stereo 3.5mm input specifically calibrated to work with mobile devices like phones, computers and digital cameras
The VESA 100 compatible mount enables you to mount the RNHP wherever it needs to be. Common mounts are pole-mount arm for mic stands, pivoting multi-arm desk mount, and wall / surface mount for securing upside-down under a table, music stand or other studio furniture
Steel Clamshell Chassis:
The RNHP's rugged, solid-steel chassis is built to a high industrial standard with an overhang to protect the connectors and main level control from glancing blows, as well as shock-absorbing rubberized feet
24V DC Input:
The RNHP can be powered using either the included 6 watt power supply or a 24V, 0.25A min battery (not sold by RND).
zZounds is an authorized dealer of Rupert Neve Designs products.
Maximum Input Levels
"A" XLR I/P: +22.8 dBu @1kHz
"B" RCA I/P: +14.7dBu @1kHz,
"C" 3.5mm I/P: +3.3dBu @1kHz
As measured with typical headphones, Z=44 Ohm: 3.617 VAC RMS @1kHz = 300mW RMS
16 Ohm typical Load: 1.933 VAC RMS @1kHz = 230mW RMS
150 Ohm typical Load: 5.108 VAC RMS @1kHz = 175mW RMS
.08 Ohm @ 1KHz, 16-150 Ohm load, 0dBu input
+/- .2dB from 10Hz to 120KHz
Measured with typical headphones, Z=44 Ohm, BW 22Hz - 22kHz
"A" XLR Input: -101.9dBV,
"B" RCA Input: -100.9dBV
"C" 3.5mm Input: -88.8dBV
6.5" wide x 4.6" deep and 1.9" tall
Power Supply Requirements
24VDC @ 0.25Amp (6 watt) minimum. Use with supplied power adapter, as this has been carefully selected for best output power and noise performance. May be used with a properly configured 24V battery as well.
