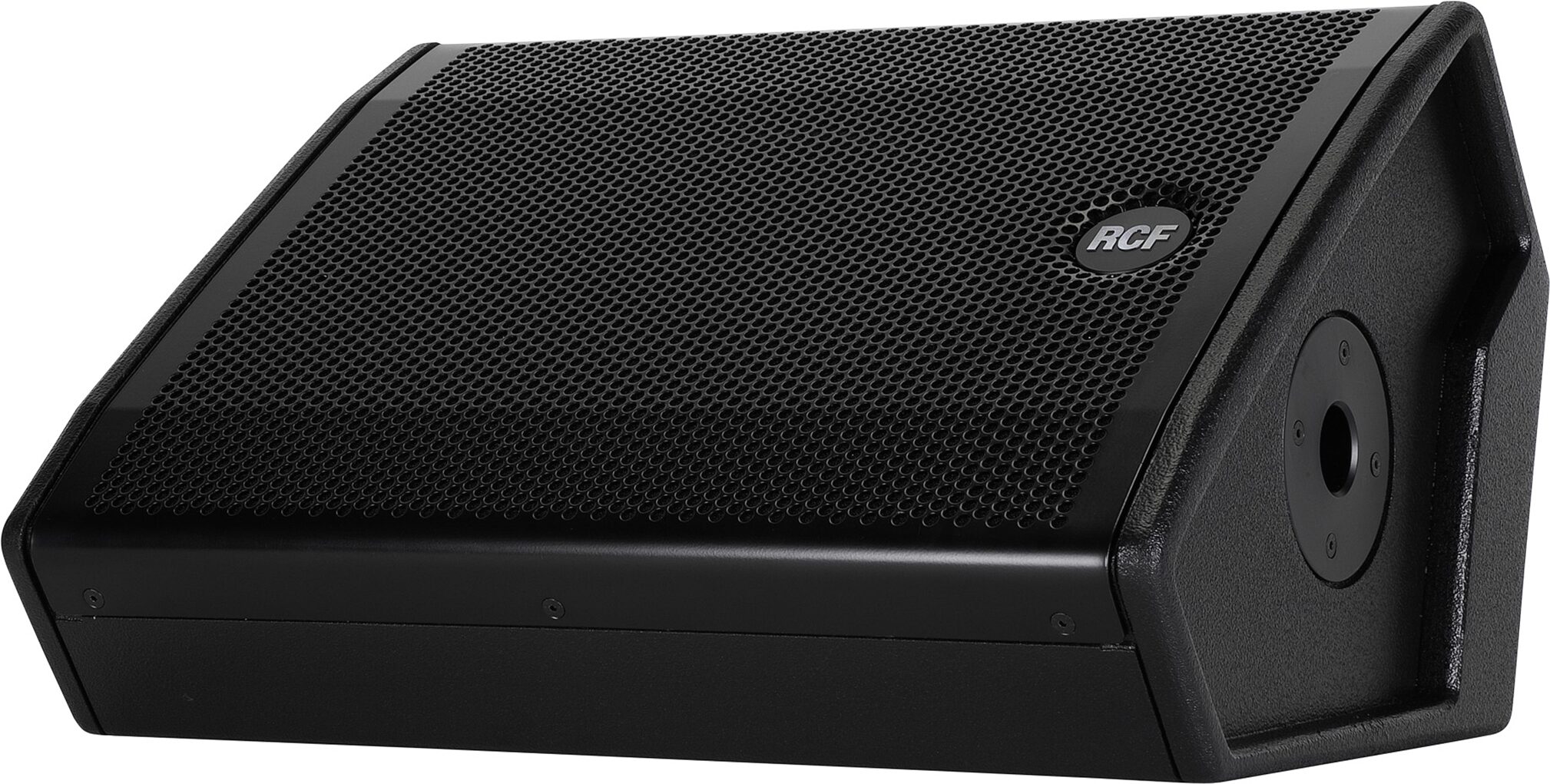

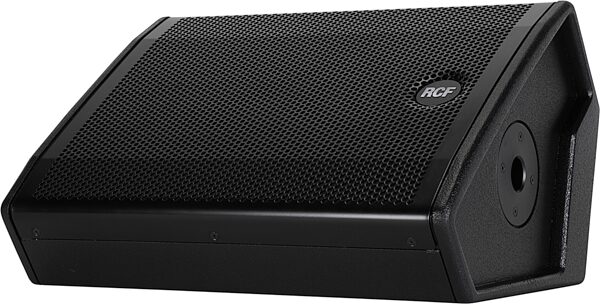

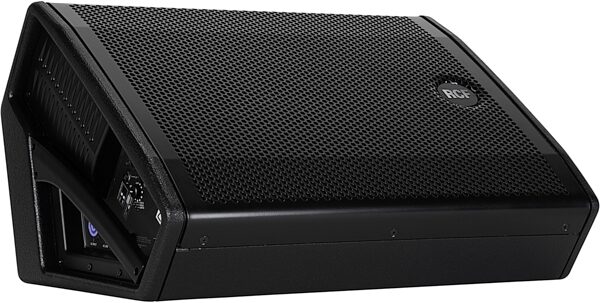

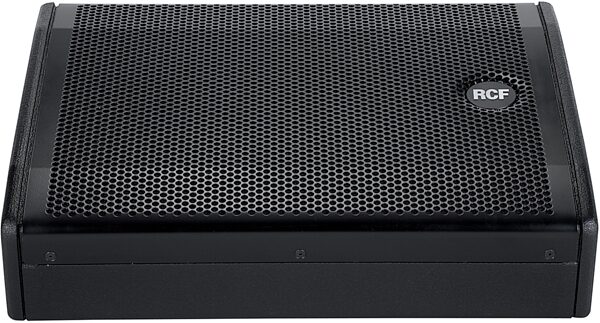

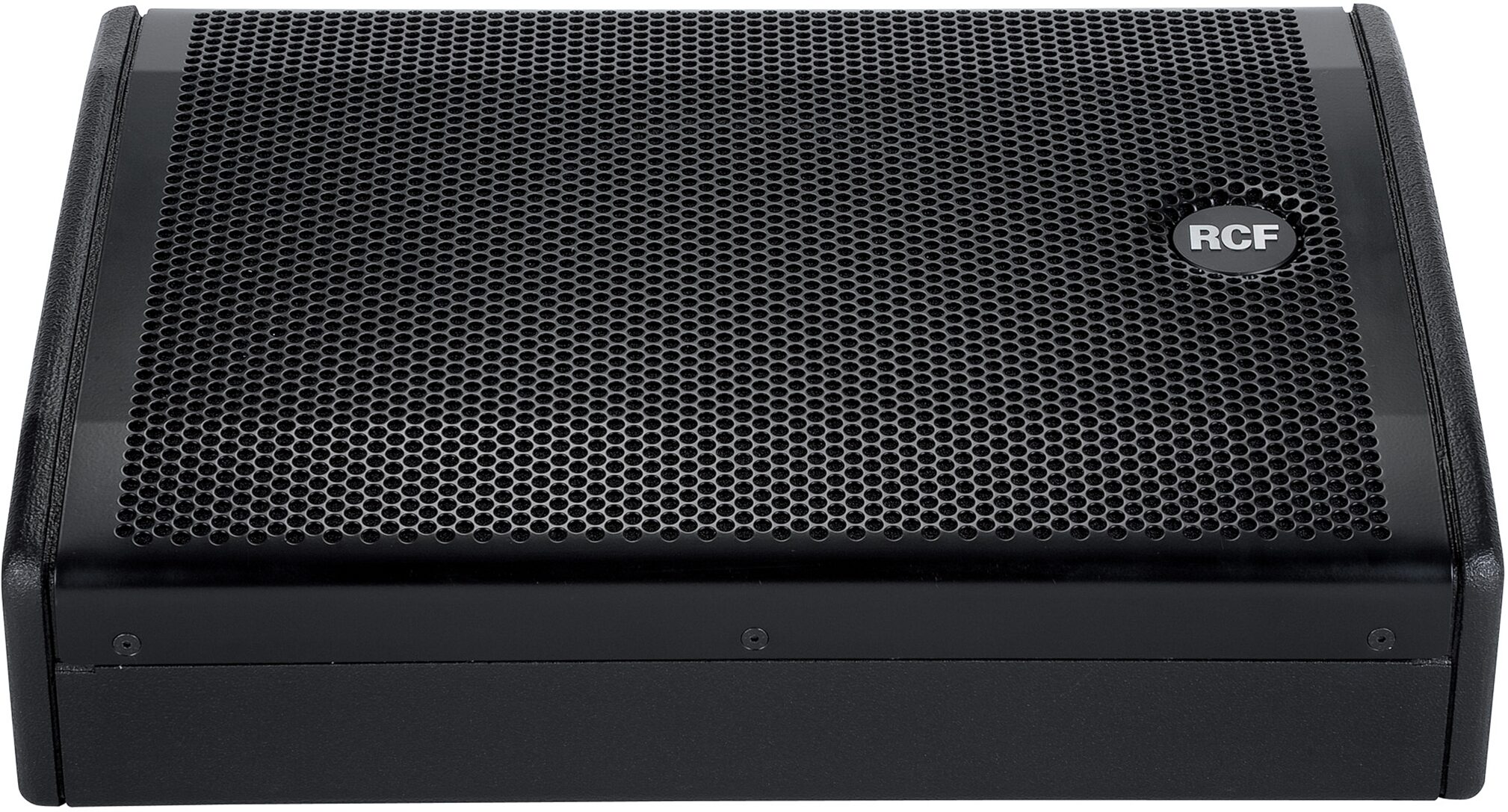

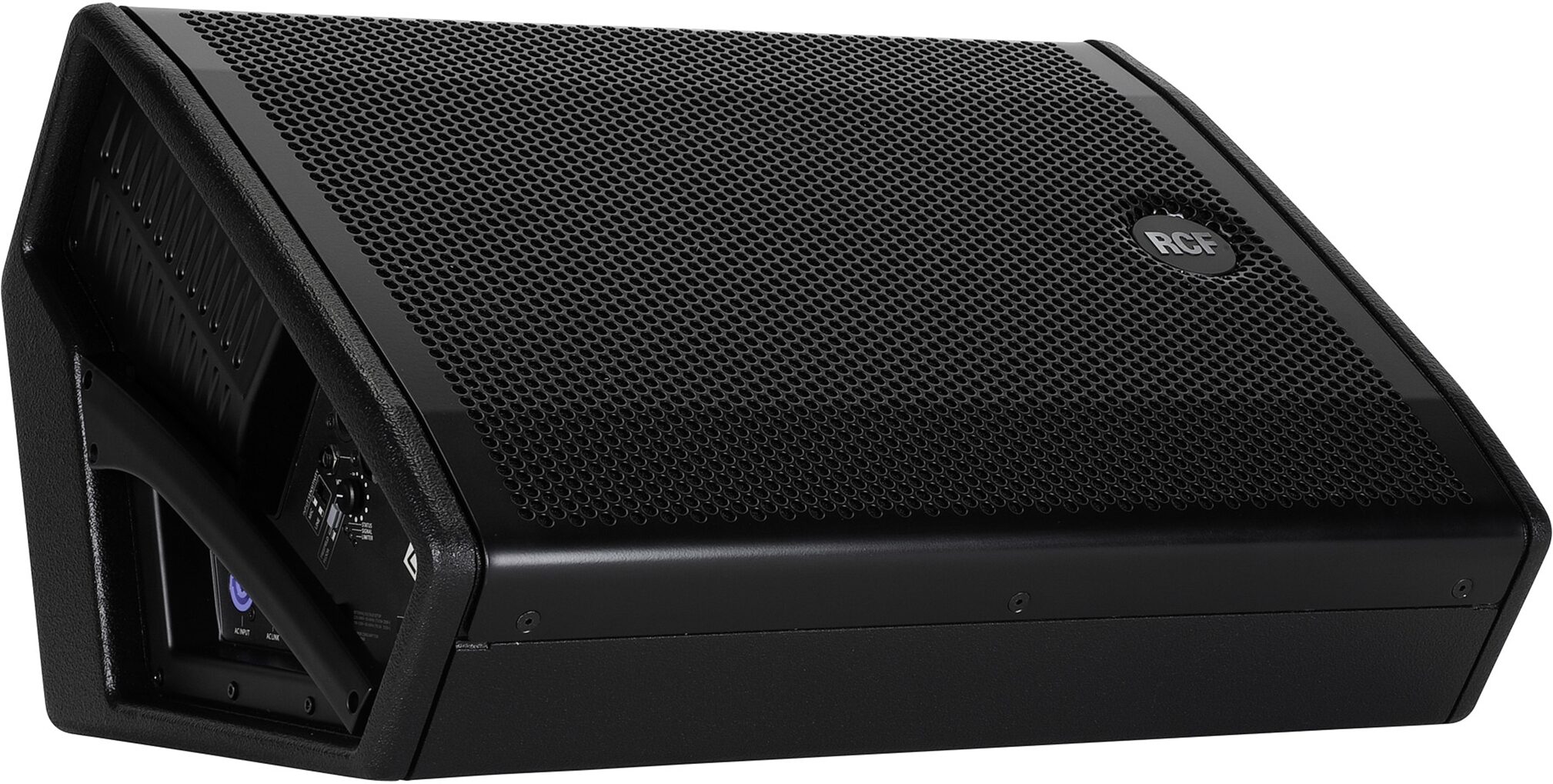

RCF NX 12-SMA Active Coaxial Stage Monitor








zZounds Gear Experts Say...
Designed with a coaxial layout for point-source audio directivity, the RCF NX 12-SMA stage monitor delivers crystal-clear sound precisely where you need it.
Overview

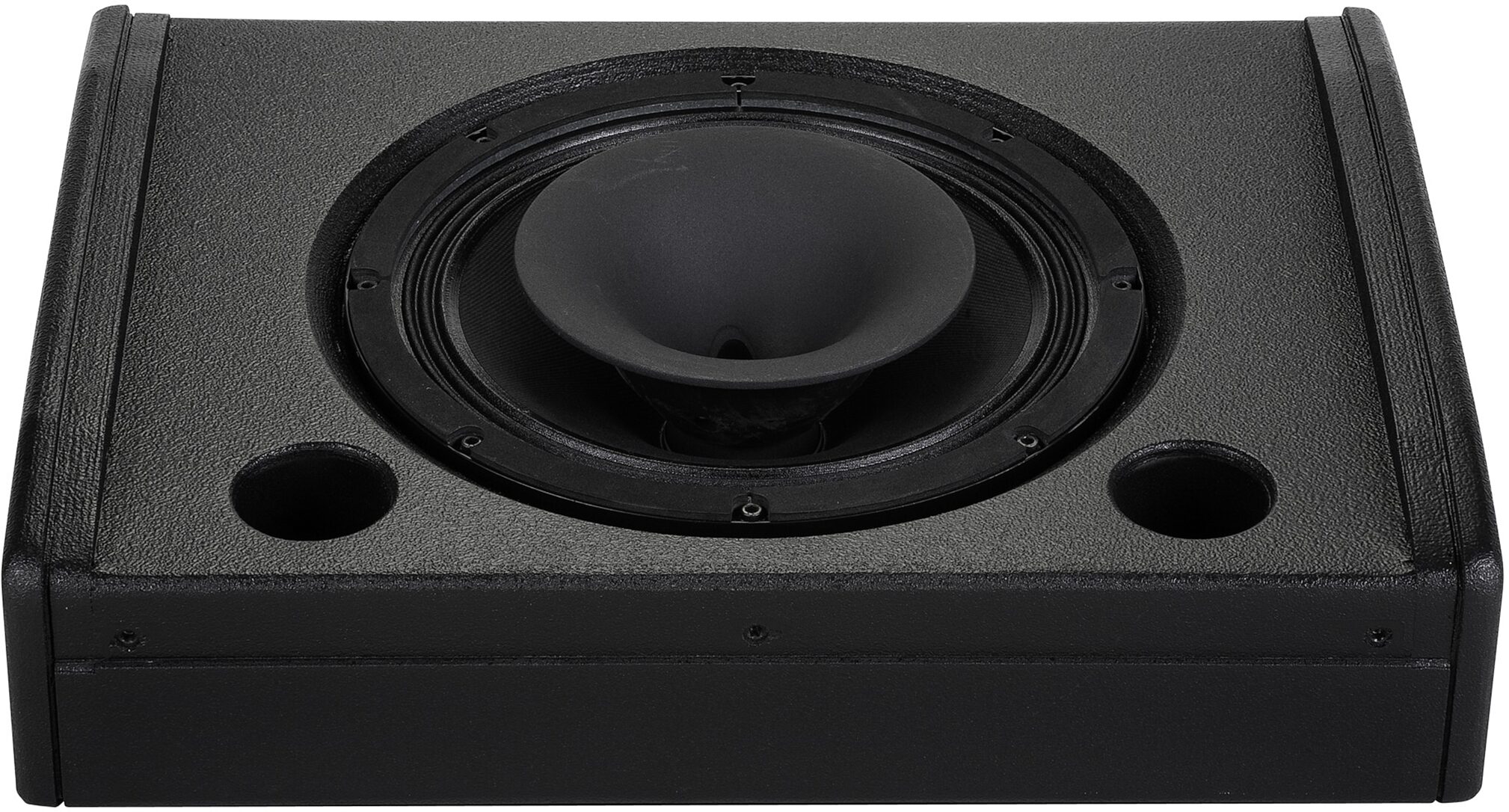

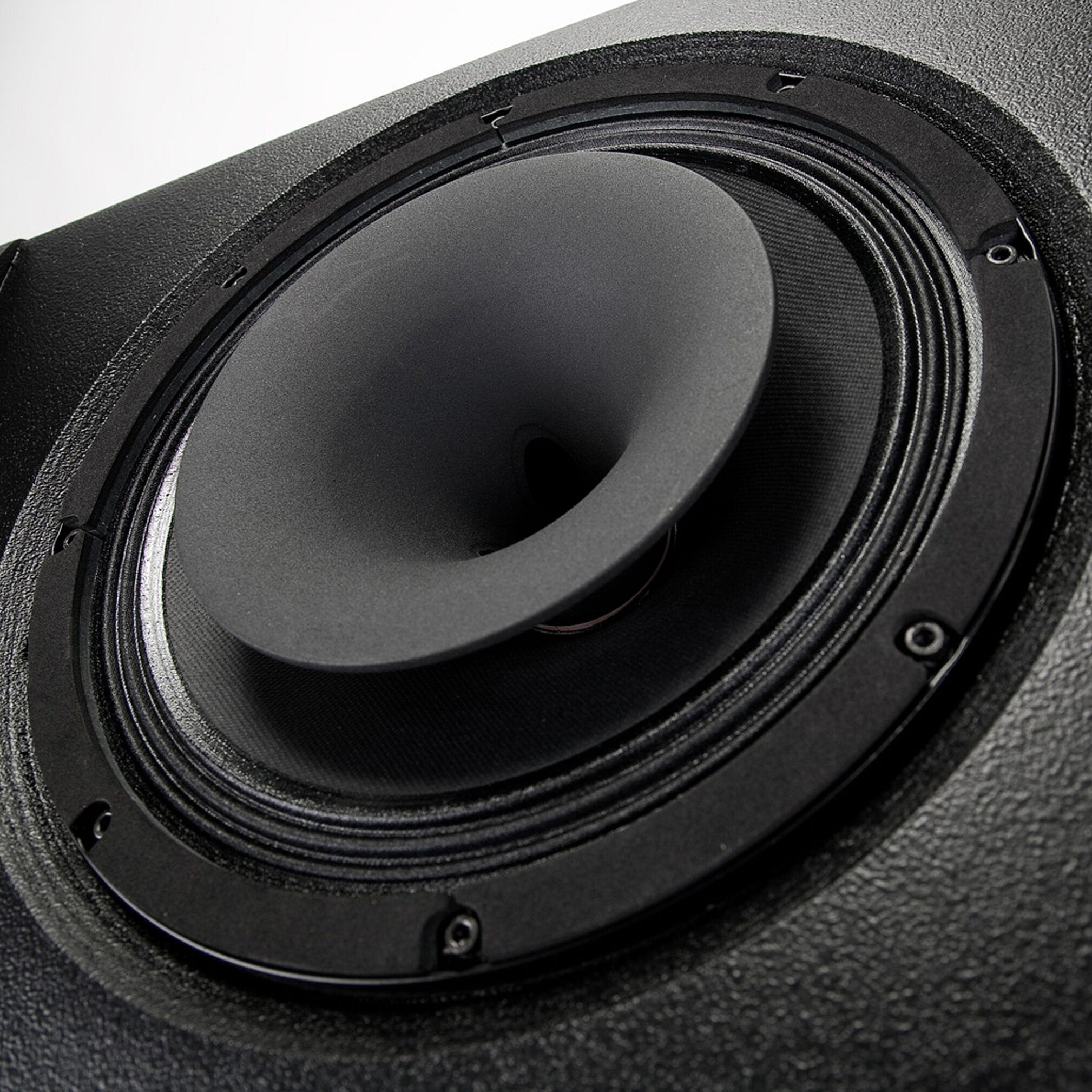

The NX 12-SMA is equipped with a high power 700 W digital amplifier and a 12" coaxial neodymium transducer that guarantees outstanding audio quality and definition in an extremely lightweight package.

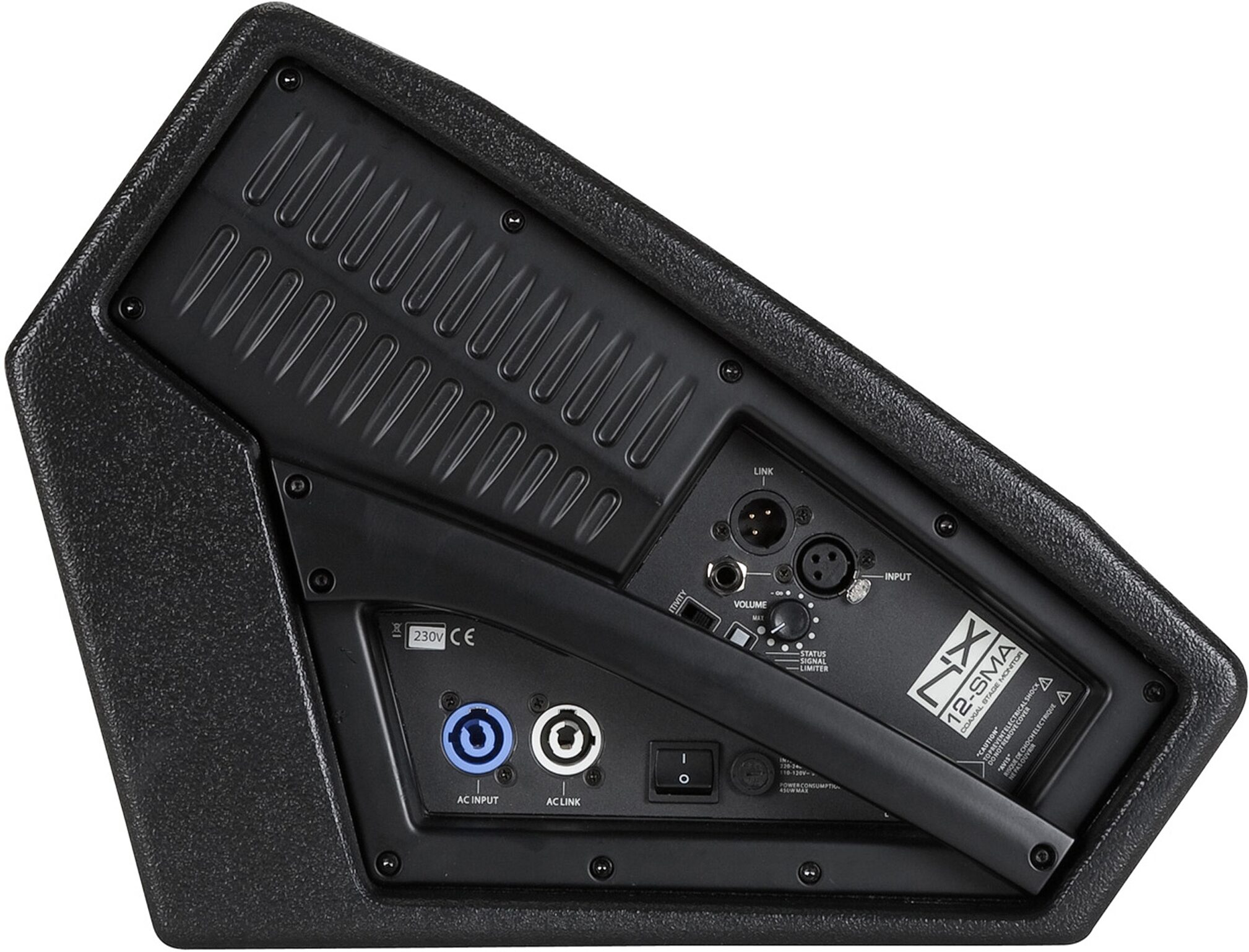

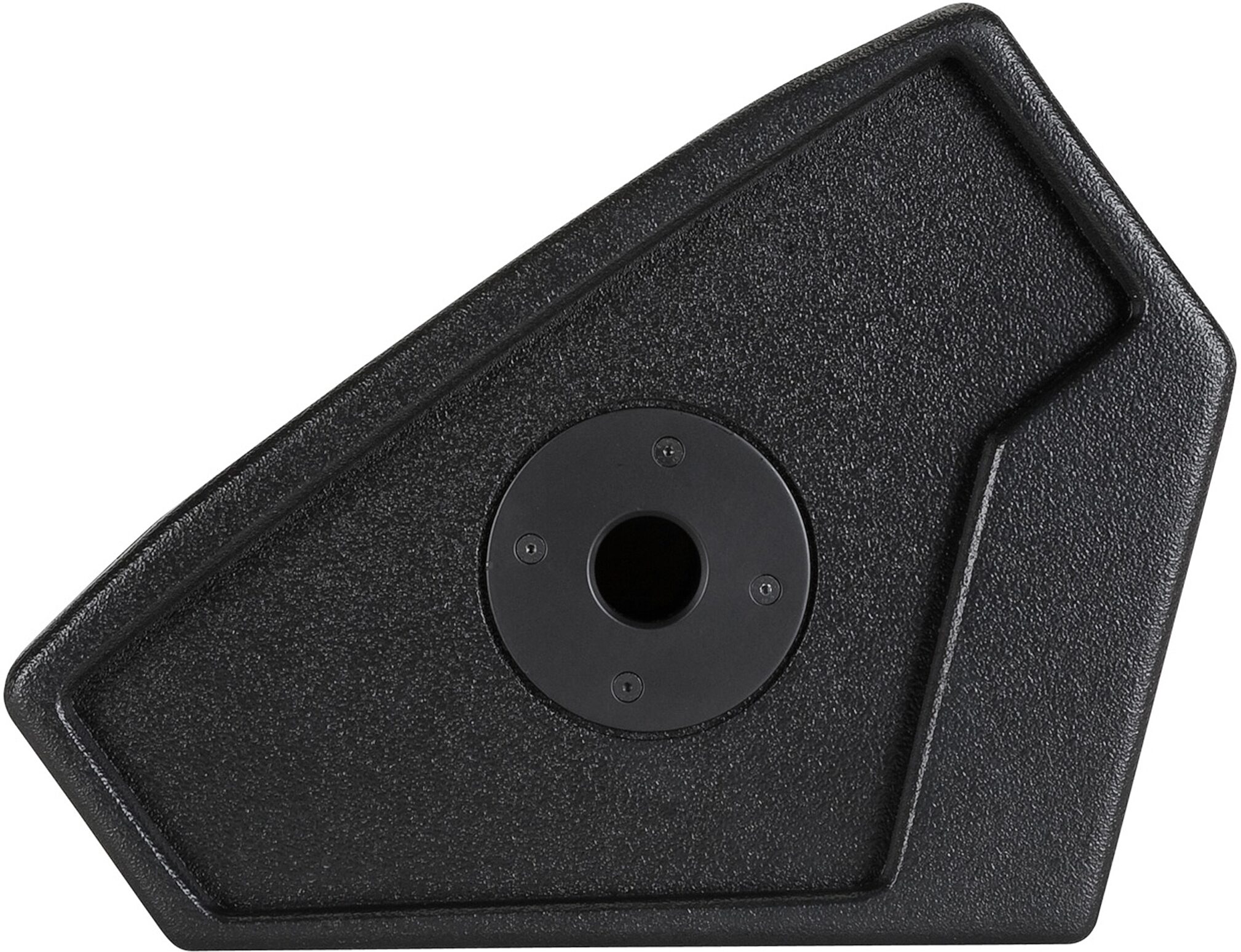

Designed as a floor monitor, NX 12-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for easier transport.
Designed as a floor monitor, NX 12-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for easier transport.
Specs
- Frequency Response: 50 Hz - 20000 Hz
- Max SPL @ 1M: 129 dB
- Horizontal Coverage Angle: 60
- Vertical Coverage Angle: 60
- Compression Driver: Coaxial 1.0" neo, 1.75" v.c
- Woofer: 12" neo, 2.5" v.c
- Input Signal: bal/unbal
- Input Connectors: XRL, Jack
- Output Connectors: XLR
- Input Sensitivity: +4 dBu
- Protections: RMS, HF
- Limiter: Soft Limiter
- Controls: Freefield, floor
- Total Power: 1400 W Peak, 700 W RMS
- High Frequencies: 400 W Peak, 200 W RMS
- Low Frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- CE Marking: Yes
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 on side
- Pole Mount/Cap: Yes
- Grille: Steel
- Color: Black
- Height: 324 mm / 12.76 inches
- Width: 550 mm / 21.65 inches
- Depth: 417 mm / 16.42 inches
- Weight: 16.6 kg / 36.6 lbs
- Max SPL @ 1M: 129 dB
- Horizontal Coverage Angle: 60
- Vertical Coverage Angle: 60
- Compression Driver: Coaxial 1.0" neo, 1.75" v.c
- Woofer: 12" neo, 2.5" v.c
- Input Signal: bal/unbal
- Input Connectors: XRL, Jack
- Output Connectors: XLR
- Input Sensitivity: +4 dBu
- Protections: RMS, HF
- Limiter: Soft Limiter
- Controls: Freefield, floor
- Total Power: 1400 W Peak, 700 W RMS
- High Frequencies: 400 W Peak, 200 W RMS
- Low Frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- CE Marking: Yes
- Cabinet/Case Material: Baltic birch plywood
- Handles: 1 on side
- Pole Mount/Cap: Yes
- Grille: Steel
- Color: Black
- Height: 324 mm / 12.76 inches
- Width: 550 mm / 21.65 inches
- Depth: 417 mm / 16.42 inches
- Weight: 16.6 kg / 36.6 lbs
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 44.5 lbs
- Shipping Dimensions: 24 x 20 x 16 in
- Manufacturer Part Number (MPN): NX12-SMA
