Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver

open zoom image for Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Rear

open zoom image for Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Angle

open zoom image for Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Action Position Front

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Main

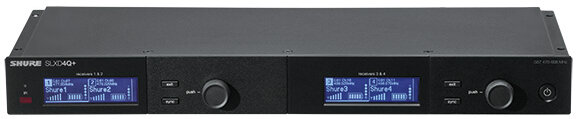

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Front

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Rear

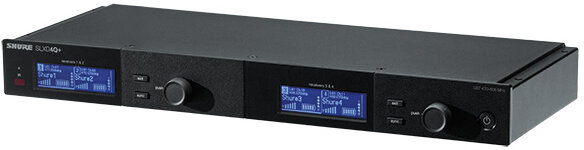

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Angle

Shure SLXD4Q+ Quad-Channel Digital Wireless Receiver, Band G57 (470 - 608 MHz), Action Position Front

zZounds Gear Experts Say...

Experience rock-solid wireless performance with the Shure SLXD4Q+, a quad-channel digital wireless receiver with pristine audio quality and easy setup.

Overview

SLXD4Q+ Digital 19" Quad Receiver with 19" rack mount kit, includes two 1/4-wave antennas and short BNC cables for front mounting; with 24 bit/48 kHz audio conversion and 120 dB dynamic range, wide tuning bandwidth, mic/line level switchable, frequency band G57 (470-608 MHz).

Pair with Shure SLX-D and SLX-D+ Transmitters

Any Shure SLX-D transmitters that operate on Band G58 (470-514 MHz), Band H55 (514-558 MHz), and Band J52 (558-602, 614-616 MHz) are compatible to pair with this receiver, since the receiver operates on the wide G57 frequency band of 470-608 MHz. When choosing transmitters to pair with this receiver, select from Band G58, H55, or Band J52 to find the frequency band that works best for your region. Of course, this receiver also pairs with any Shure SLX-D+ transmitters that operate on the G57 frequency band.

Features:

- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Compatible with Shure Wireless Workbench control software
- Remote control via ShurePlus Channels mobile app
- Transmitters run up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery

Specs

- Frequency Band: 470–937.5 MHz (varies by region)
- Switching Bandwidth: 138 MHz
- Number of Channels: 32 available channels per frequency band (region dependent)
- Receiver Sensitivity: −97 dBm at 10-5 BER
- Audio Frequency Response: 20 Hz–20 kHz (+1, −2 dB)
- Dynamic Range: 118 dB @ 1% THD, A-weighted, typical
- Diversity Type: Digital predictive switching diversity
- Antenna Inputs: 2 BNC connectors
- Output Connectors: 4 XLR, 4 1/4" outputs, 2 Ethernet connections
- Audio Output Level: 60 dB of adjustable gain control
- Power Requirements: 15 V @ 0.9 A
- Modulation Type: 24-bit digital
- Audio Latency: 3.2 ms
- RF Input Spurious Rejection: 75 dB (typical)
- Image Rejection: >85 dB (typical)
- RF Tuning Step Size: 25 kHz (varies by region)

Dimensions and Weight in Packaging

Band G57 (470 - 608 MHz)

Shipping Weight: 8.58 lbs
Shipping Dimensions: 18 x 14 x 5 in
Manufacturer Part Number (MPN): SLXD4Q+=-G57

Consumer Alert

Most users do not need a license to operate this wireless system. Nevertheless, operating this system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
