RockBoard FlaX Plug MIDI Cable

The RockBoard FlaX Plug MIDI cable has ends that can be either straight or angled, making them a fitting choice for complex, tightly packed rigs.

Overview

After the introduction of their Flat MIDI Cables, Rockboard got a lot of feedback, regarding orientation and size of plugs as well as requests for affordable MIDI Cables with plugs that could be both - angled and straight. They're happy to oblige and took their design team to the task. The result you can see in the RockBoard FlaX Plug MIDI Cables. Based on their slimmed down Flat MIDI Cable design, these cables offer flat and compact plugs with a omni-directional construction. They can be adjusted to be either straight or angled to the left as well as to the right, and locked into place using two hex key set screws. Anything goes with the RockBoard FlaX Plug MIDI Cables.

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Flat midi cables with rectangular profile with omni-directional, lockable compact plugs

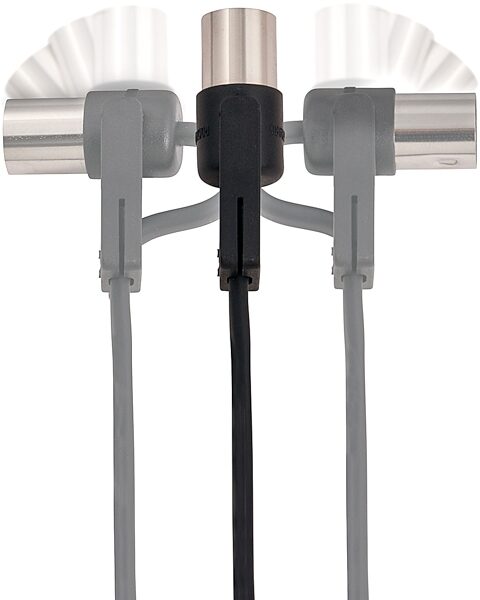

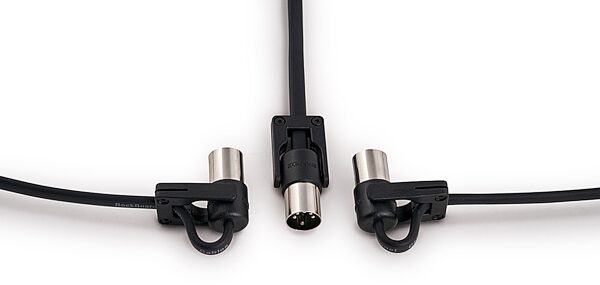

- Plug orientation alterable from straight to angled to the left or right
- Orientation lockable via 1.5 mm hex key wrench (not included)
- Compact design saves pedalboard real estate
- Flat rectangular cable prevents cable breakage, cable jams and keeps your setup tidy
- Suitable for clock/sync capabilities & phantom power
- Flexible oxygen free copper conductors 5 x 7 x 0.12 mm
- Din 5-pin connectors
- Max. rated current 1a
- Outer pvc insulation
- Operating temperature -20 c to +60 c
- Outer dimensions cable (w x h) 6.5 x 3.5 mm (rectangular)
- Plug dimensions straight (l x w x h) 33 x 20 x 15 mm / 1 5/16" x 13/16" x 9/16"
- Plug dimensions angled (l x w x h) 33 x 20 x 20 mm / 1 5/16" x 13/16" x 13/16"
- Black

Dimensions and Weight in Packaging
30 centimeter: Shipping Weight: 0.25 lbs; Shipping Dimensions: 6 x 4 x 1 in; Manufacturer Part Number (MPN): RBO CAB MD FX 30 BK
60 centimeter: Shipping Weight: 0.25 lbs; Shipping Dimensions: 7 x 4 x 1 in; Manufacturer Part Number (MPN): RBO CAB MD FX 60 BK
100 centimeter: Shipping Weight: 0.25 lbs; Shipping Dimensions: 7 x 4 x 1 in; Manufacturer Part Number (MPN): RBO CAB MD FX 100 BK
200 centimeter: Shipping Weight: 0.25 lbs; Shipping Dimensions: 8 x 4 x 1 in; Manufacturer Part Number (MPN): RBO CAB MD FX 200 BK
500 centimeter: Shipping Weight: 0.5 lbs; Shipping Dimensions: 7 x 6 x 1 in; Manufacturer Part Number (MPN): RBO CAB MD FX 500 BK

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: +49-37422-555-0
Email: info@rockboard.de
Web: https://www.rockboard.de/en/contact

Reviews

(2 ratings)

Submitted July 7, 2019 by ALLAN B in Tempe, AZ

"Do the job"

Overall:

(see rating details)

Verified Customer zZounds has verified that this reviewer made a purchase from us.

Simple to use and work great. Not super low profile, but they don't stick out much more than the $$$ One Control low profile cables and these are 1/2 the cost. Be aware they don't come with a tool to adjust so have a hex key or very small flat head screwdriver handy. Also the Rockboard/Warwick website never responded to any of my questions so they get low marks on support.

Musical Background:

Most of my life

Musical Style:

Rock, prog, blues, CCM

5 of 6 people (83%) people found this review helpful. Did you?
