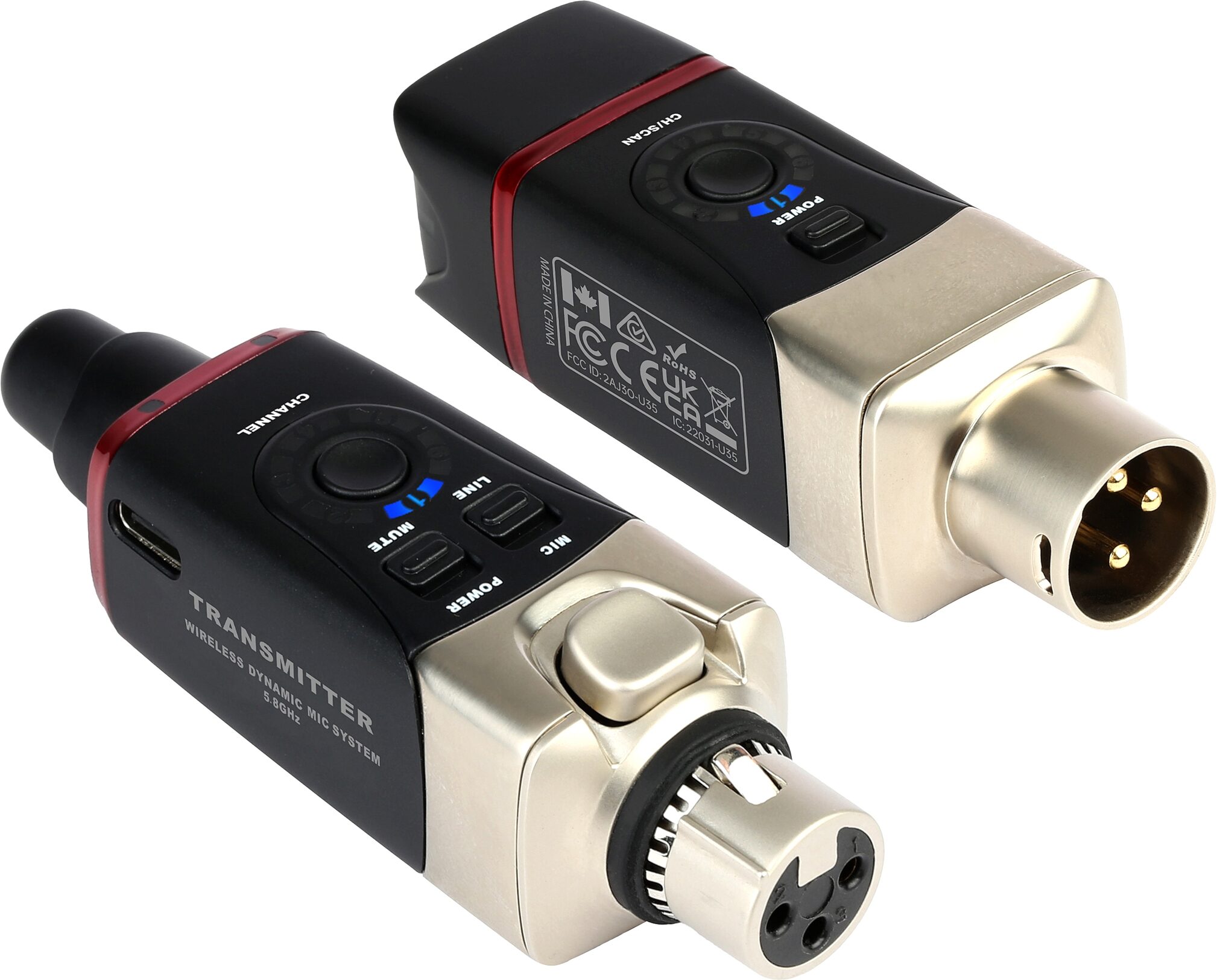

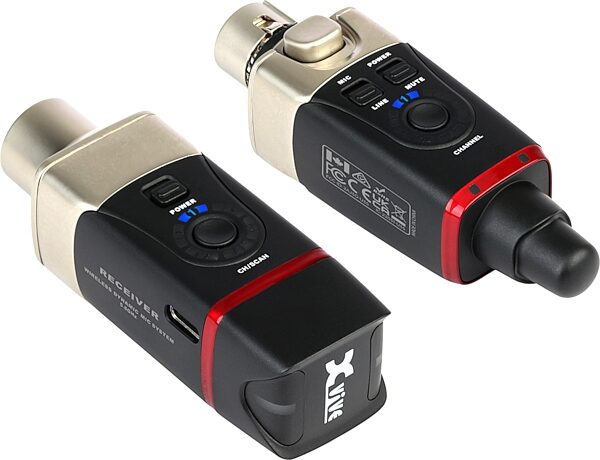

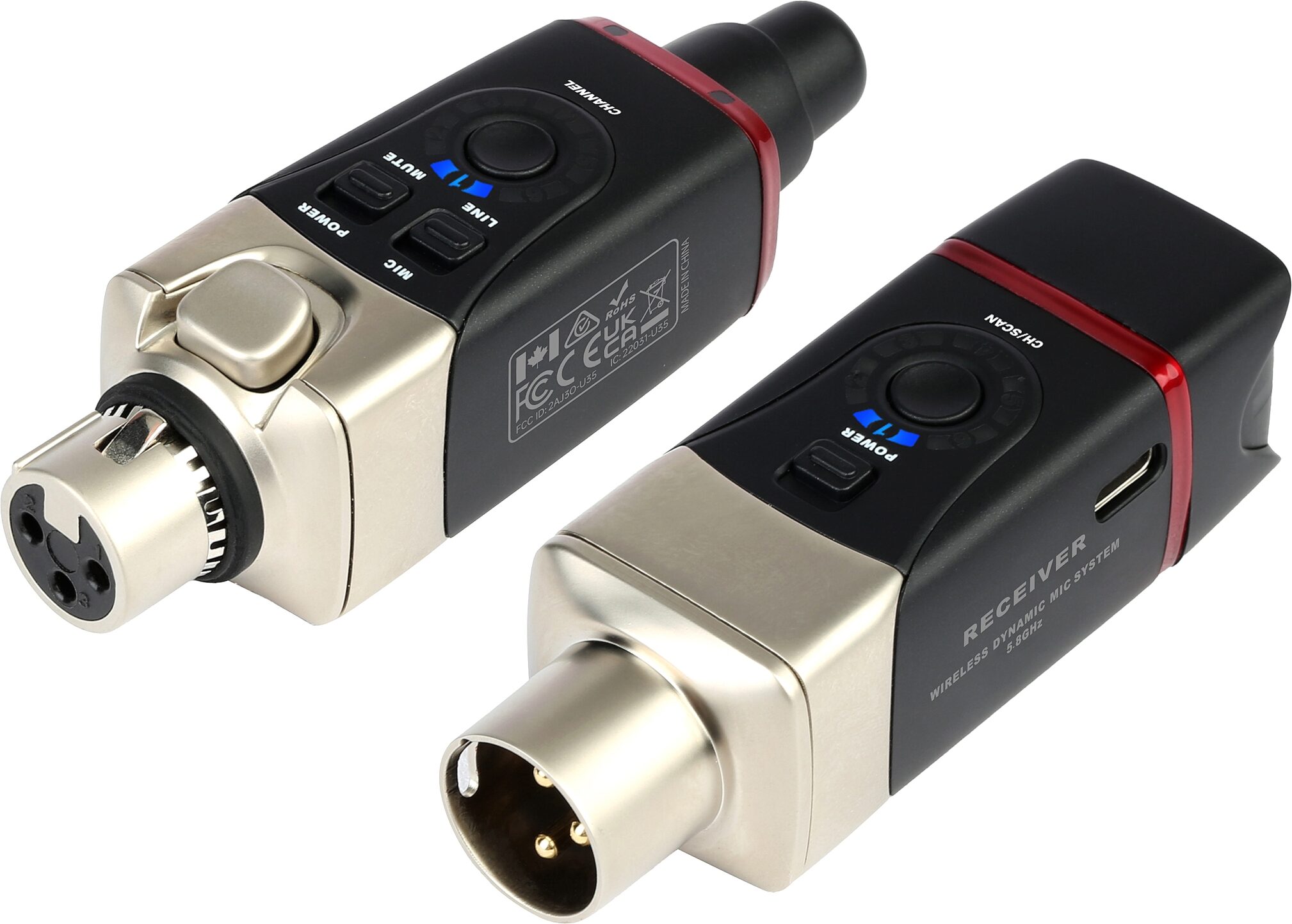

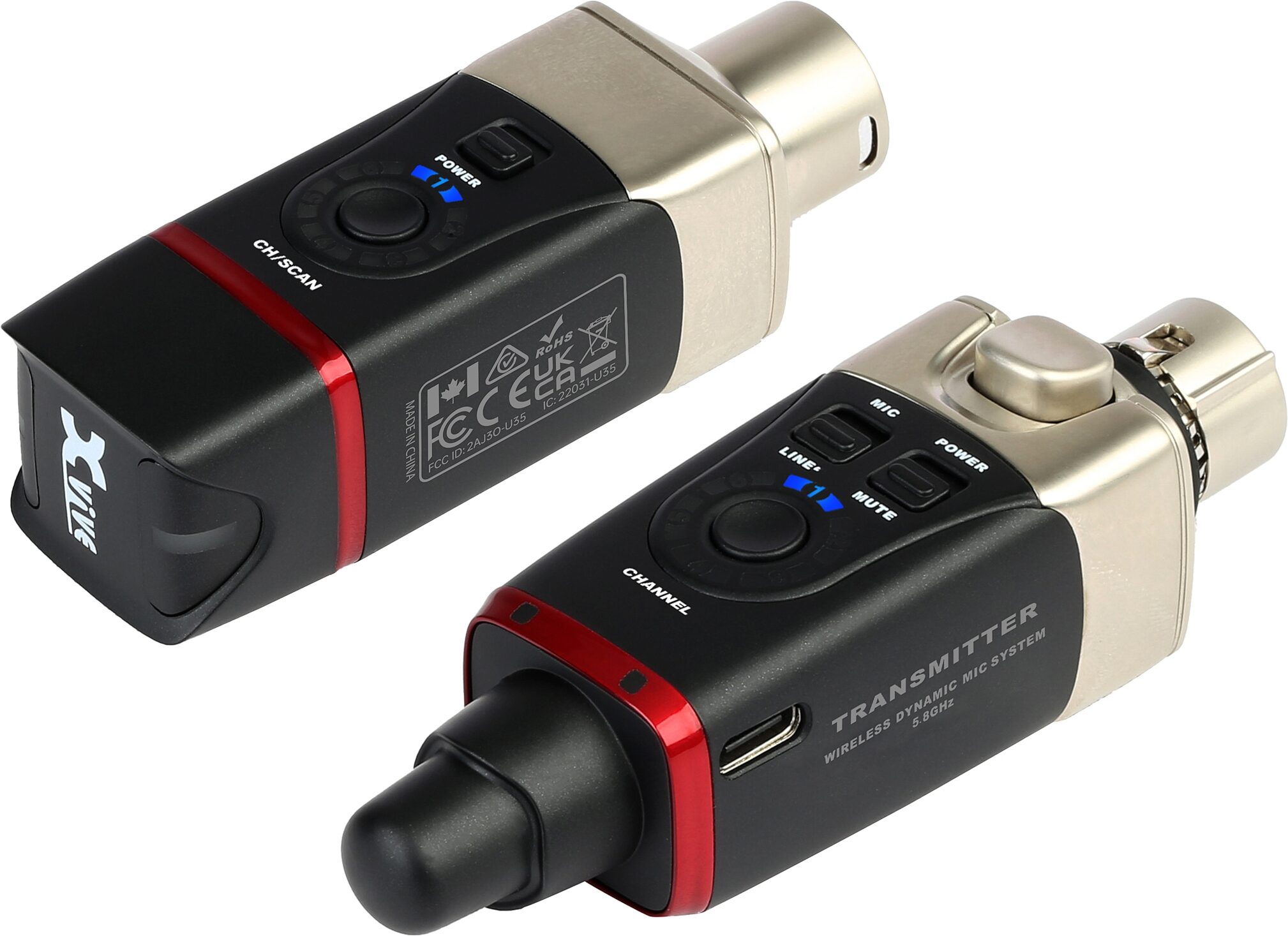

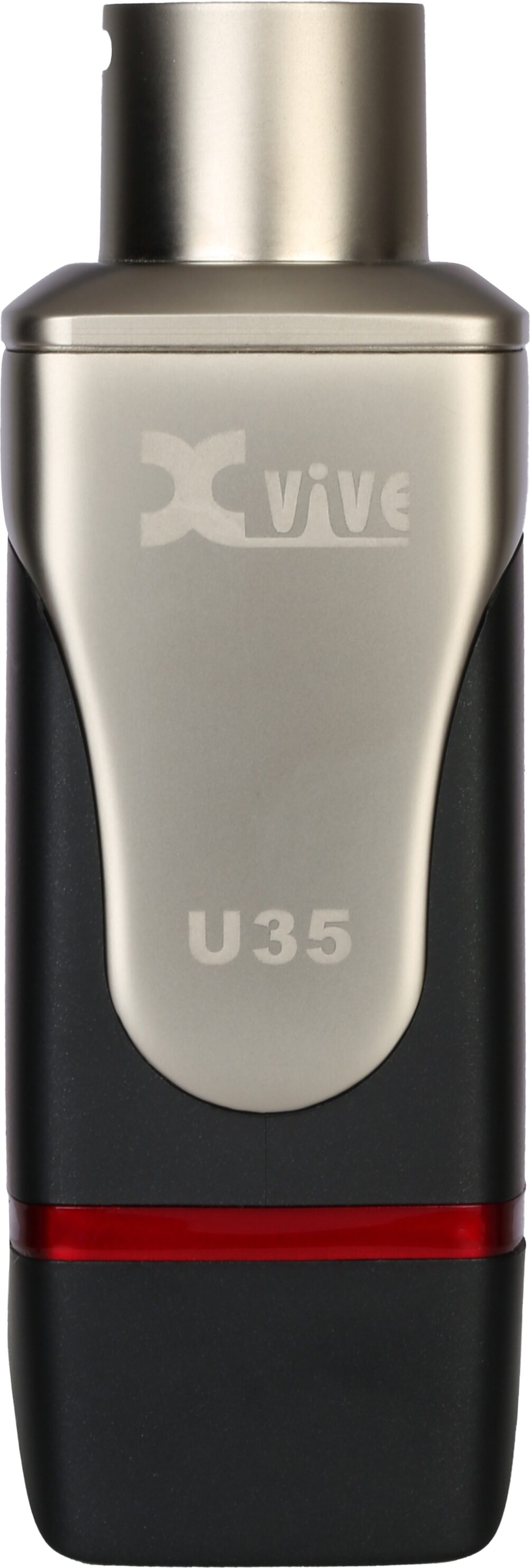

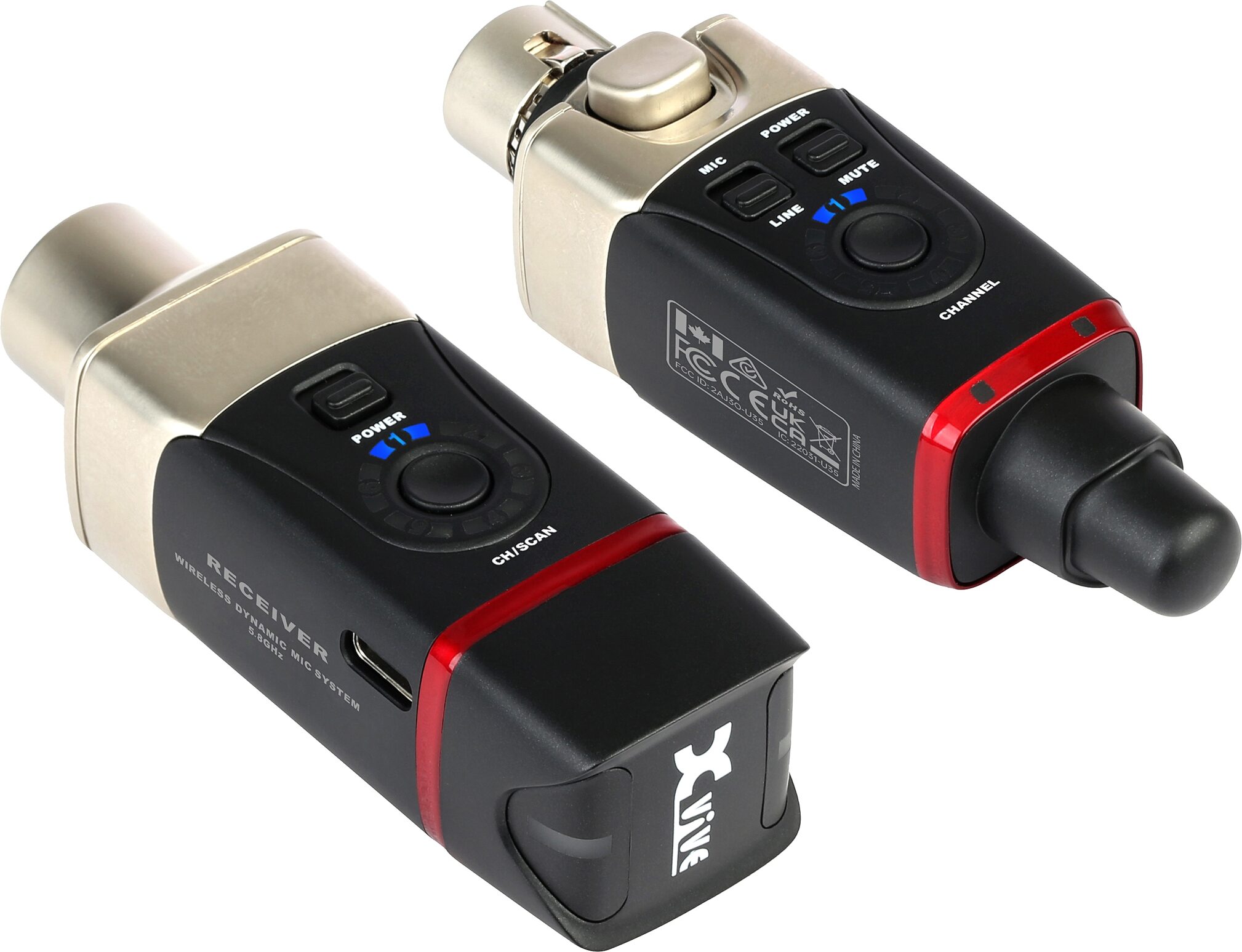

Xvive U35 Digital Plug-On Wireless System for XLR Dynamic Microphones









Overview
The Xvive U35 dynamic microphone wireless system operates on the 5.8GHz frequency for stable, interference-free signal. Its compact transmitter and receiver deliver high-quality audio with low latency. Ideal for live performances, recordings, and content creation, it turns any dynamic microphone wireless, and also wirelessly transmit audio signals with easy setup and reliable performance.
As an alternative to the Xvive U3 series which uses the 2.4GHz band, Xvive U35 series wireless systems run on the 5.8GHz band.
Designed to make microphones wireless, the U35 system features audiophile sound quality, compact size and stable, reliable wireless transmission. The U35 is suitable for live music performance, recording sessions, theatrical productions, public speaking, outdoor applications and more. The U35 even works as a wireless unit for active loudspeakers, and as a wireless extension for XLR cables! It's small and light enough to fit in your pocket--and sets up in seconds. Plug it in, power on, set the channel... And just like that, your microphone is wireless!
- 6 wireless channels
- Less than 5 ms latency
- 5 hours of battery life
- Mic Mode for microphone and Line Mode for audio transmission
- Wide 20 Hz - 20 kHz frequency response
- High-resolution 24-bit / 48 kHz audio
- 110 dB dynamic range
- 110 dB signal-to-noise ratio
- Wireless range: up to 100 ft (depends on RF signal absorption, reflection and interference)
-… read more For use with XLR dynamic microphones, battery-powered condenser microphones and wireless audio transmission from a mixer to active PA speakers
- The U35 system allows you to avoid the hassles and tangles of cables, with a flexible, all-in-one solution that turns your favorite dynamic microphone into a wireless microphone
read less
As an alternative to the Xvive U3 series which uses the 2.4GHz band, Xvive U35 series wireless systems run on the 5.8GHz band.
Designed to make microphones wireless, the U35 system features audiophile sound quality, compact size and stable, reliable wireless transmission. The U35 is suitable for live music performance, recording sessions, theatrical productions, public speaking, outdoor applications and more. The U35 even works as a wireless unit for active loudspeakers, and as a wireless extension for XLR cables! It's small and light enough to fit in your pocket--and sets up in seconds. Plug it in, power on, set the channel... And just like that, your microphone is wireless!
Features:
- 5.8 GHz True Diversity wireless system- 6 wireless channels
- Less than 5 ms latency
- 5 hours of battery life
- Mic Mode for microphone and Line Mode for audio transmission
- Wide 20 Hz - 20 kHz frequency response
- High-resolution 24-bit / 48 kHz audio
- 110 dB dynamic range
- 110 dB signal-to-noise ratio
- Wireless range: up to 100 ft (depends on RF signal absorption, reflection and interference)
-… read more For use with XLR dynamic microphones, battery-powered condenser microphones and wireless audio transmission from a mixer to active PA speakers
- The U35 system allows you to avoid the hassles and tangles of cables, with a flexible, all-in-one solution that turns your favorite dynamic microphone into a wireless microphone
Specs
U35 Wireless In-Ear Monitor System
Tuning Bandwidth: Int: 5730-5844 MHz; Korea: 5729-5821MHz
Working Range: Up to 100 ft actual range; depends on RF signal absorption, reflection and interference
Frequency Response: 20 Hz - 20 KHz (-3 dB) dependent on microphone type / input signal
Dynamic Range: 110 dB
Signal-to-Noise Ratio: 110 dB
RF Sensitivity: -88 dBm
Battery Life: Up to 5 hours
Total Harmonic Distortion: 0.20%
RF Output Power: 25 mW E.I.R.P. max
Operating Temperature Range: 0*C to 45*C (battery characteristics may limit this range)
Channel Count: Six (up to 6 sets can be used in one area simultaneously)
Latency: Less Than 5 ms
Audio Resolution: 24-bit / 48 kHz
Charging Voltage and Current: 5V / 2A

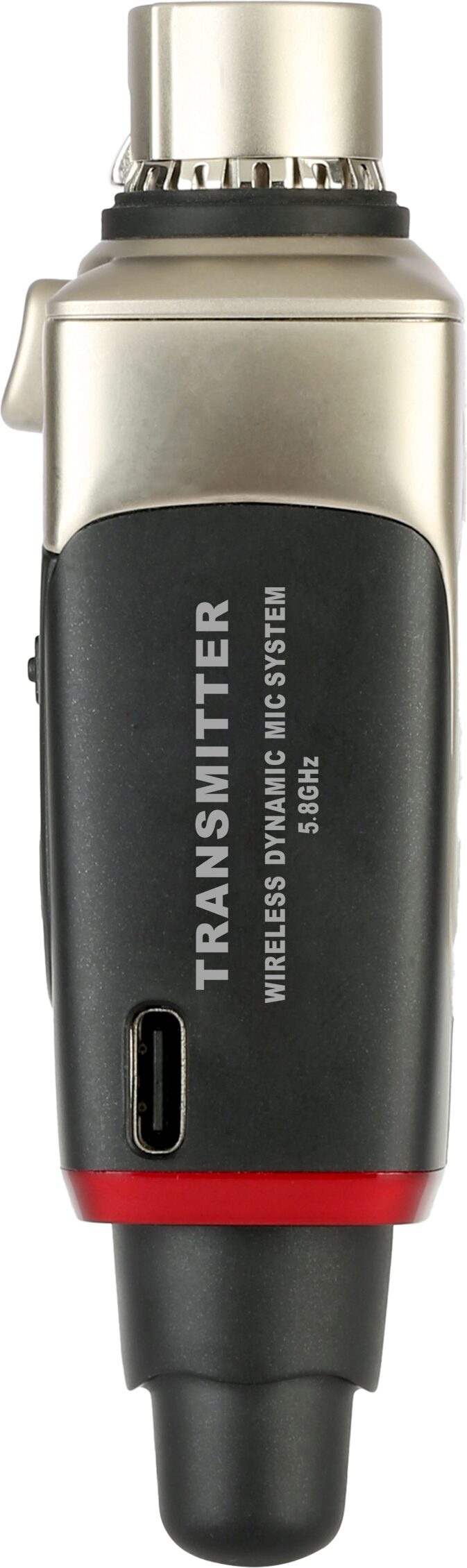

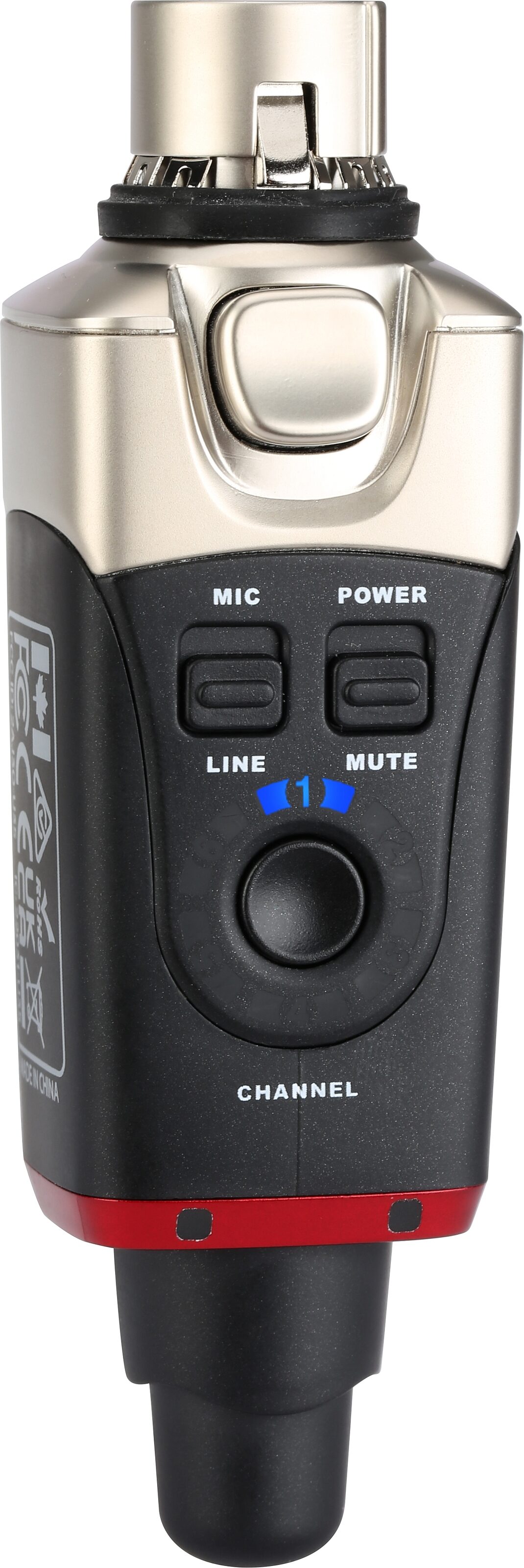

U35 Transmitter
Dimensions: 31 x 29 x 98 mm
Weight: 93 g
Housing: Molded Plastic and Cast Metal
Battery: 3.7V rechargeable Li-ion, 860 mAh
Impedance: Input: 220Ohm (1 KHz\0xFF09
Audio Input Connector: Balanced XLR Female Input
Maximum Input Level: Mic mode: 2.8 Vp-p / Line mode: 7 Vp-p
Gain Adjustment Range: Mic mode: 0 dB / Line mode: -10 dB
Battery Life: Up to 5 hours
Microphone Types Supported:XLR-output dynamic and battery-powered XLR-output condenser
Antenna Impedance: 50Ohm
Antenna Type: 1/4 wave sleeve dipole, non-removable
Number of Antennas: 1

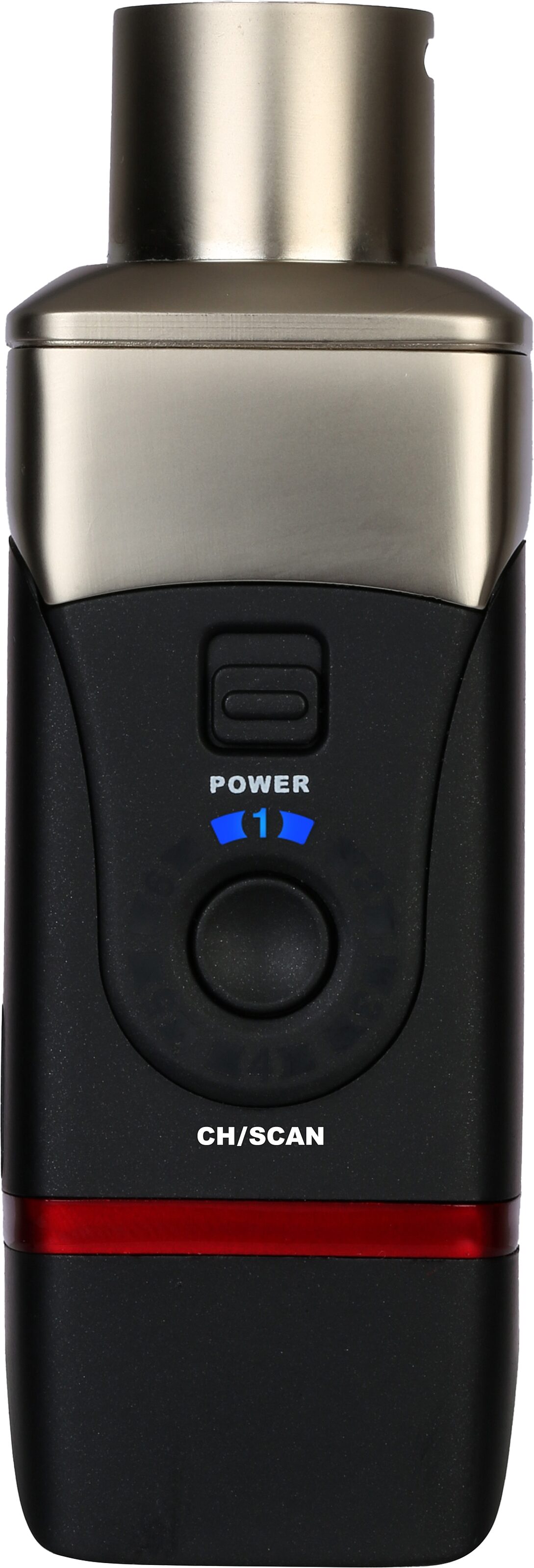

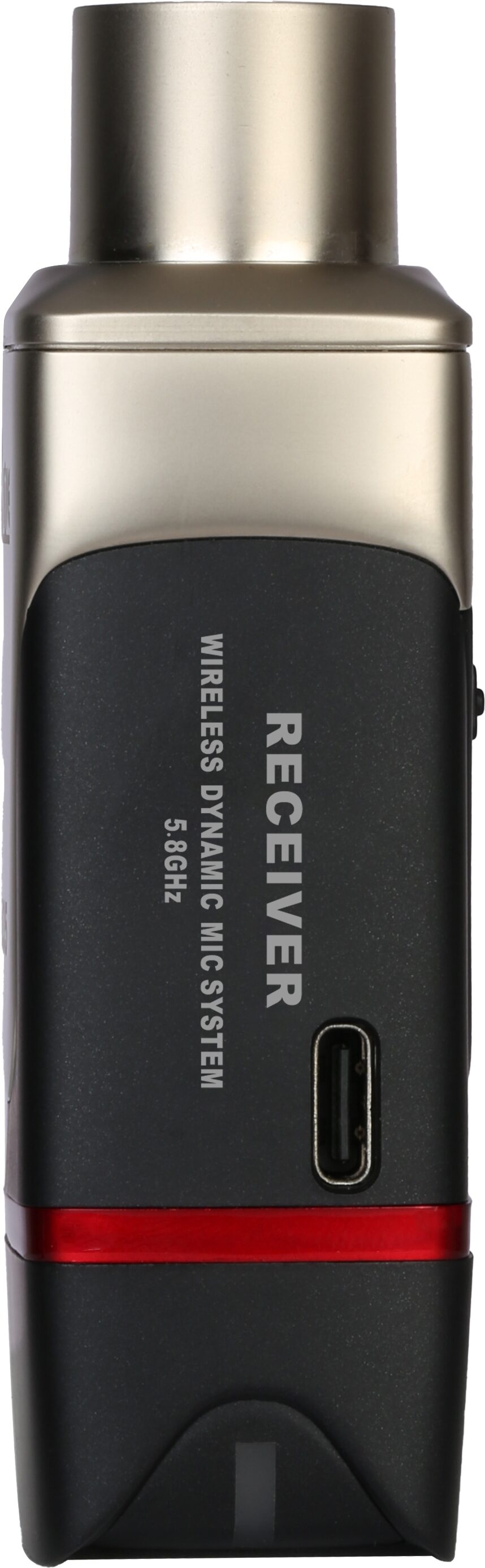

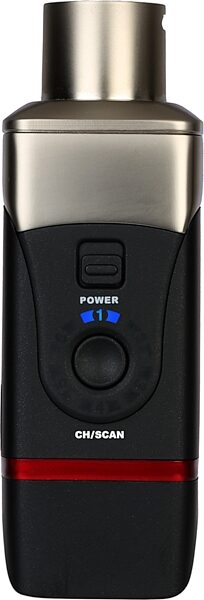

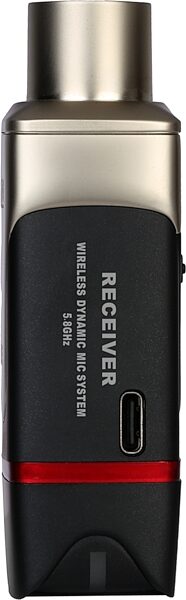

U35 Receiver
Dimensions : 31 x 29 x 81 mm
Weight: 92g
Housing: Molded Plastic and Cast Metal
Battery: 3.7V Rechargeable Li-ion, 860 mAh
Impedance: Output: 470 Ohm (1 kHz)
Audio Output Connector: Unbalanced XLR male
Maximum output level2.8 Vp-p
Battery Life: Up to 5 Hours
Antenna Impedance: 50Ohm
Antenna Type: 1/4 Wave Sleeve Dipole, Non-Removable
Number of Antennas: 2
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Tuning Bandwidth: Int: 5730-5844 MHz; Korea: 5729-5821MHz
Working Range: Up to 100 ft actual range; depends on RF signal absorption, reflection and interference
Frequency Response: 20 Hz - 20 KHz (-3 dB) dependent on microphone type / input signal
Dynamic Range: 110 dB
Signal-to-Noise Ratio: 110 dB
RF Sensitivity: -88 dBm
Battery Life: Up to 5 hours
Total Harmonic Distortion: 0.20%
RF Output Power: 25 mW E.I.R.P. max
Operating Temperature Range: 0*C to 45*C (battery characteristics may limit this range)
Channel Count: Six (up to 6 sets can be used in one area simultaneously)
Latency: Less Than 5 ms
Audio Resolution: 24-bit / 48 kHz
Charging Voltage and Current: 5V / 2A
U35 Transmitter
Dimensions: 31 x 29 x 98 mm
Weight: 93 g
Housing: Molded Plastic and Cast Metal
Battery: 3.7V rechargeable Li-ion, 860 mAh
Impedance: Input: 220Ohm (1 KHz\0xFF09
Audio Input Connector: Balanced XLR Female Input
Maximum Input Level: Mic mode: 2.8 Vp-p / Line mode: 7 Vp-p
Gain Adjustment Range: Mic mode: 0 dB / Line mode: -10 dB
Battery Life: Up to 5 hours
Microphone Types Supported:XLR-output dynamic and battery-powered XLR-output condenser
Antenna Impedance: 50Ohm
Antenna Type: 1/4 wave sleeve dipole, non-removable
Number of Antennas: 1
U35 Receiver
Dimensions : 31 x 29 x 81 mm
Weight: 92g
Housing: Molded Plastic and Cast Metal
Battery: 3.7V Rechargeable Li-ion, 860 mAh
Impedance: Output: 470 Ohm (1 kHz)
Audio Output Connector: Unbalanced XLR male
Maximum output level2.8 Vp-p
Battery Life: Up to 5 Hours
Antenna Impedance: 50Ohm
Antenna Type: 1/4 Wave Sleeve Dipole, Non-Removable
Number of Antennas: 2
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.79 lbs
- Shipping Dimensions: 7 x 5 x 3 in
- Manufacturer Part Number (MPN): U35
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophonesNOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
