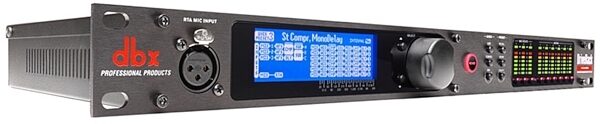

DBX DriveRack VENU360 Complete Speaker Manager

Get more out of your PA! The DriveRack Venu360 packs powerful AutoEQ, feedback suppression, dbx compression and more -- controllable from your mobile device.
All the processing needed to supercharge your sound system. Now with complete control from your mobile device. dbx took the dominant DriveRack 260, improved its features, and added more. The result? The 3-input, 6-output DriveRack VENU360.

The VENU360 provides all the processing and flexibility you need between your mixer and amplifiers to optimize and protect your loudspeakers. With advancements in dbx's proprietary AutoEQ and AFS algorithms, additional input channels, ethernet control via an Android, iOS, Mac, or Windows device, and updated wizards, the DriveRack VENU360 continues the DriveRack legacy of great-sounding, powerful, and affordable loudspeaker management processors, for a whole new generation.

AutoEQ

Improved AutoEQ algorithm ensures an extremely accurate, fast, and non-intrusive automatic EQ experience. With a RTA Mic "listening" to your room, the updated DriveRack VENU360 AutoEQ algorithm sets speaker levels and room EQ automatically in a matter of seconds using sine sweeps. This means room adjustments can now be made very quickly, without subjecting the audience to annoying, lengthy broadcasts of pink noise.

The AutoEQ is now located in the output processing stage, which means independent sections of a system can be equalized automatically. This allows AutoEQ to be used on the FOH system as well as the stage monitors, zones and tower delays!

Enhanced AFS Feedback Elimination

Enhanced AFS algorithm for faster, more precise feedback read more elimination, without adversely affecting your system's tone. Nothing turns audiences away like annoying and potentially painful audio feedback. Fortunately, dbx engineers have revisited their already-stellar Advanced Feedback Suppression algorithm and made it work even better. The DriveRack VENU360 listens for and anticipates feedback and automatically removes it before it even has a chance, while never altering your sound.

Updated Wizard Setup Functions

Updated Wizards make initial set up easy, while ensuring speaker tunings and other settings are up-to-date. Wizard functions in the DriveRack VENU360 guide you through easy, step-by-step processes to help you get the most from your loudspeaker system. The Wizards help you configure routing, level balancing, AutoEQ, Advanced Feedback Suppression, and provide access to updated speaker tunings -- available for most major speaker brands. The addition of a Monitor Wizard makes it easy to configure and optimize stage monitors.

Mobile Control

Connect to the DriveRack VENU360 through your local network with your Android, iOS, Mac, or Windows device to customize the sound of your loudspeaker system so it sounds and performs optimally. The app lets you directly manipulate the Compressor, Graphic EQ, Parametric EQ, Crossover settings, Speaker profiles, and more with its attractive, easy-to-use graphical user interface.

Features:

- Input Processing
- dbx Compression
- AFS (Advanced Feedback Suppression)
- 31-Band Graphic EQ
- 12-Band Parametric EQ (with narrow notch capabilities)
- Subharmonic Synthesis
- Backline Delay
- Noise Gate
- - Output Processing
- Crossover (supports full range up to mono 6-way systems)
- 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
- dbx Compression
- Automatic Gain Control
- Subharmonic Synthesis
- Noise Gate
- Tower Delays (up to 1000ms per output)
- 8-Band Parametric EQs (used for speaker tunings)
- dbx Limiting
- Driver Alignment Delays
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Inputs: Number of Inputs: 3 x analog line inputs / 2 x AES digital inputs (shared connectors), 1 x RTA mic input

Connectors: 3 x female XLRs (2 x selectable between analog / AES digital audio formats), 1 x female XLR RTA mic input

Type: Electronically balanced, RF filtered

Impedance: > 30 kOhms, balanced line to line

Max Input Level (Line Inputs): > +28 dBu, balanced, ≤ 1% THD

CMRR: > 50 dB at 1 kHz

RTA Mic Preamp Phantom Power: +48 VDC
Analog Outputs: Number of Outputs: 6 x line outputs

Connectors: Male XLR

Type: Electronically balanced, RF filtered

Impedance: 120 Ohms, balanced line to line

Max Output Level: +22 dBu, balanced, ≤1% THD

Alignment Delay: Up to 1000 ms per output channel
A/D Conversion: A/D Converter: 24-bit with dbx Type IV conversion system

A/D Dynamic Range: 117 dB A-weighted, 114 dB unweighted, 22 kHz BW

Type IV Dynamic Range (22 kHz BW): 129 dB with transient material / A-weighted, 126 dB with transient material / unweighted, 121 dB typical with program material / A-weighted
D/A Conversion: D/A Converter: 24-bit

D/A Dynamic Range: 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
System Performance: Internal Processing Wordlength: 32-bit floating point

Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion)

Dynamic Range: 114 dB A-weighted, 110 dB unweighted

THD+Noise: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain

Frequency Response: 20 Hz - 20 kHz, +0 /- 0.5 dB

Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured

Latency: 2.57 ms at 48 kHz, 2.28 ms at 96 kHz (Analog input to output) / 2.31 ms at 48 kHz, 2.15 ms at 96 kHz (Digital AES input to output)

Operating Temperature: 32 to 104° F / 0 to 40° C
Compatibility: N/A
Power Supply: Operating Voltage: 100-240 VAC, 50/60 Hz

Power Consumption: 30 W
Dimensions (H x W x D): 1.75 x 19.00 x 8.00" / 4.45 x 48.26 x 20.32 cm
Weight: 5.48 lb / 2.49 kg
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 7.25 lbs
Shipping Dimensions: 22 x 12 x 4 in
Manufacturer Part Number (MPN): DBX DR360VENUE
