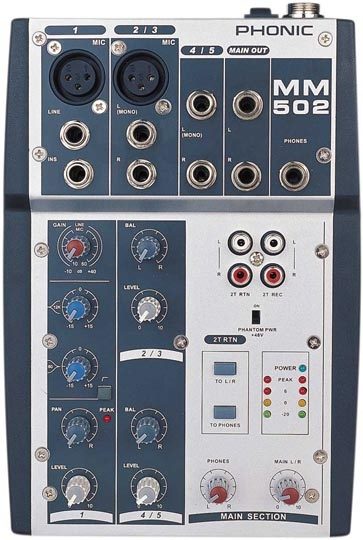

Phonic MM502 Micro Mixer

No longer available at zZounds

zZounds Gear Experts Say...

1 mic/line input with phantom power. 1 stereo input.

Overview

The Phonic MM502 is an extraordinary mixer, which features 2 studio-quality, balanced microphone inputs, 2 stereo inputs, an insert on the first microphone channel, as well as RCA 2T recording outputs and returns (for playback). The mono mic channel features 2 band EQ. The 2 additional channels (both stereo) provide balanced and level controls. Need phantom power? Any self-respecting musician or audio professional would. So, the MM502 delivers that, too -- and it's switchable. All this and other fantastic features makes the MM502 a mixer with everything you need, but nothing you don't.

Specs

Inputs:
-- Balanced mono mic/ line channels: 1

-- Balanced stereo line input: 1

-- Channels: 2 (1 including mic preamp)

-- Unbalanced 2T RTN input: 1

Outputs:
-- Main L/R stereo: 1/4 in. TRS, balanced

-- Phones: 1

Inputs:
-- Balanced mono mic/ line channels: 2

-- Balanced stereo line channels: 2 (1 including mic preamp)

-- Unbalanced 2T RTN input: 2

-- LED indicators: peak (mono channel only)

-- Volume controls: rotary

-- Inserts: 1

Master Section:
-- Phones / control RM level control: yes

-- Faders: main (rotary)

Metering:
-- ST number of channels: 2

-- Segments: 4

Phantom power supply: +48VDC
-- Switches: master

Noise (20Hz to 20KHz bandwidth, line inputs to main L/R outputs, all channels assigned, panned L/R)
-- Master @ unity, channel fader down: -89dBu

-- Master @ unity, channel fader @ unity: -86dBu

-- S/N ratio, ref to +4: >90dB

THD (Any output, 1KHz @ +14dBu, 20Hz to 20KHz, channel inputs): <0.005%

CMRR (1KHz @ -60dBu, gain at maximum): 80dB

Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main L/R outputs):
-- Channel fader down, other channels at unity: <-86dB

-- Channel muted, other channels at unity: <-85dB

Frequency response:
-- 10Hz - 150KHz: -1dB

-- 10Hz - 200KHz: -3dB

-- 20Hz - 20KHz (gain minimum)

-- 20Hz - 20KHz (gain maximum)

-- 10Hz - 30KHz (mic input to any output): +0/-1 dB

Maximum level:
-- Mic preamp input: +10dBu

-- All other inputs: +22dBu

-- Balanced output: +28dBu

-- Unbalanced output: +22dBu

Impedance:
-- Mic preamp input: 2 kilohms

-- All other inputs (except insert): 10 kilohms

-- RCA 2T outputs: 1 kilohms

-- All other outputs: 100 ohms

Equalization:
-- 2-band +/-15dB

-- Low EQ: 80Hz

-- Hi EQ: 12KHz

-- Low cut filter: 75Hz (-12dB/oct)

Microphone preamp E.I.N. (150 ohms terminated, max gain): <-129.5dBm

Other power consumption: 10 watts

Power requirement: 100-120V AC, 60Hz

Weight: 2.4 lbs. (1.1 kg)

Dimensions (WxHxD): 8.82 in. x 1.99 in. x 6.13 in. (224x50.5x155.6mm)
