Fender Tone Master Pro Guitar Workstation Pedal

Musician-friendly multieffects! Loaded with superb models of classic Fender and EVH tube amps and so much more, this powerhouse pedal is truly easy to use.

Overview

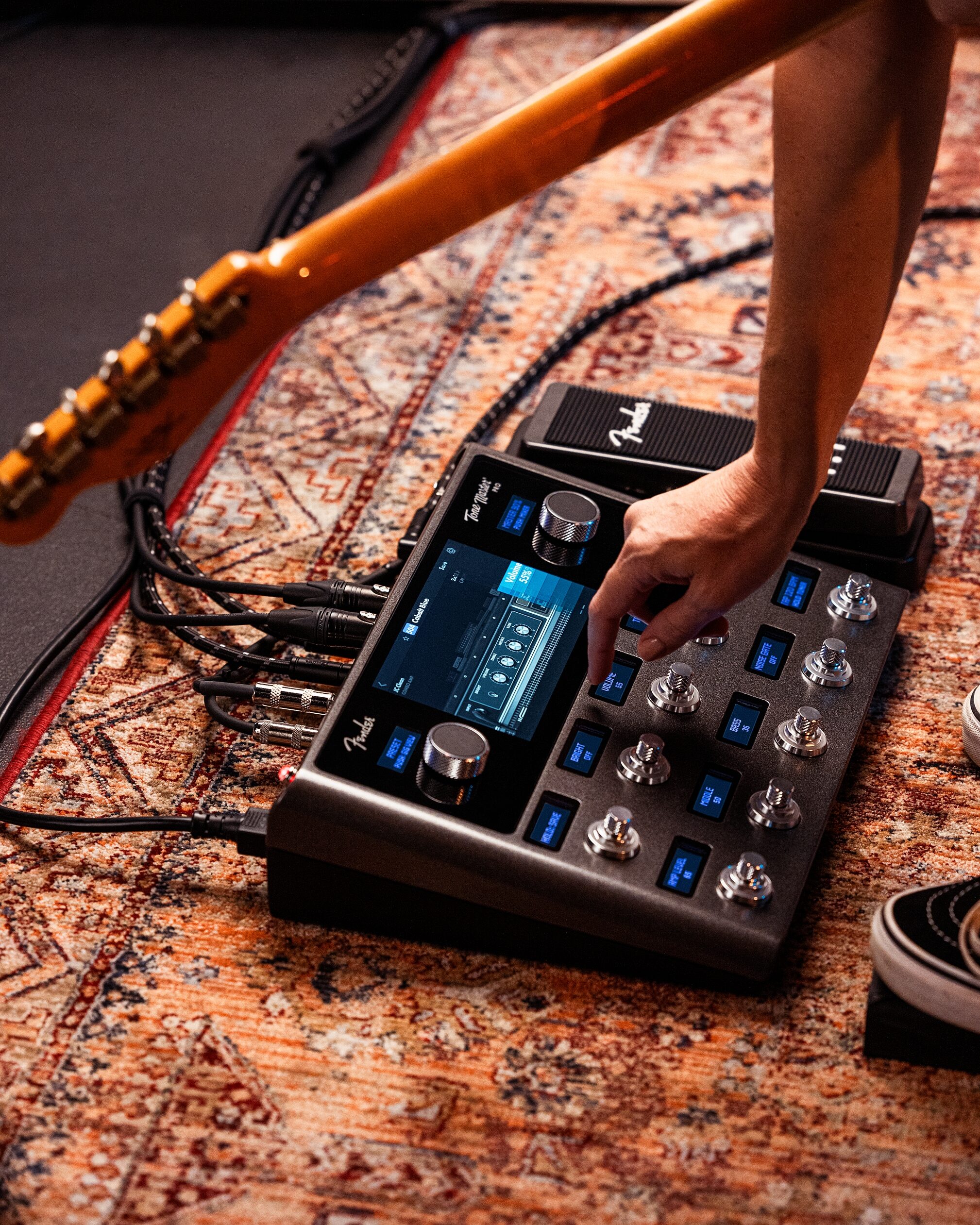

Fender Tone Master Pro is the first no-compromise multi-effects guitar workstation that features the amazing sound quality the Tone Master series is known for, combined with a powerfully intuitive interface and complement of I/O that makes Tone Master Pro the best sounding, most powerful and easiest to use guitar processor ever.

Hear what the Tone Master Pro can do in our zZounds Live demo:

Tone Master Pro features over 100 of the world's most popular amps and effects, including all of the classic Tone Master Fender models, the first officially licensed EVH 5150 III Stealth model, and other can't-liv- without classics that have all been perfectly replicated using Fender's proprietary Tone Master Modeling process. Tone Master Pro's lightweight, rugged, stage-friendly form factor is as beautiful as it is functional. With a full-color touchscreen, stunning graphics, and intuitive user interface, dialing in the perfect tone has never been easier or more inspired.

Create Presets, customize your footswitch assignments and combine them to create Songs and organize into Setlists with ease. Tone Master Pro's 10 custom-designed footswitch encoders make editing a breeze, giving you instant access to all your presets and parameters and make adjustments just like you would on the real thing. Connect to Fender's Tone Master Pro Control app via USB for creating, editing and sharing your own presets or for auditioning and downloading thousands of tones created by Fender's community of players… read more and artists.

Features:

- Over 100 Tone Master quality Amp & Effect Models
- Thousands of built-in Impulse Responses with a variety of cabinet and microphone options
- 3rd Party IR support

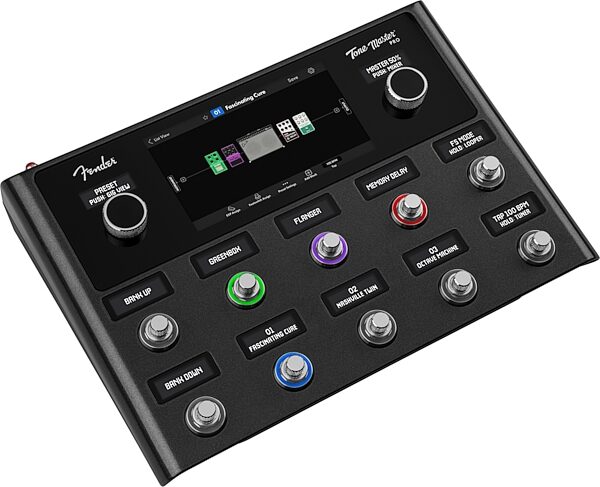

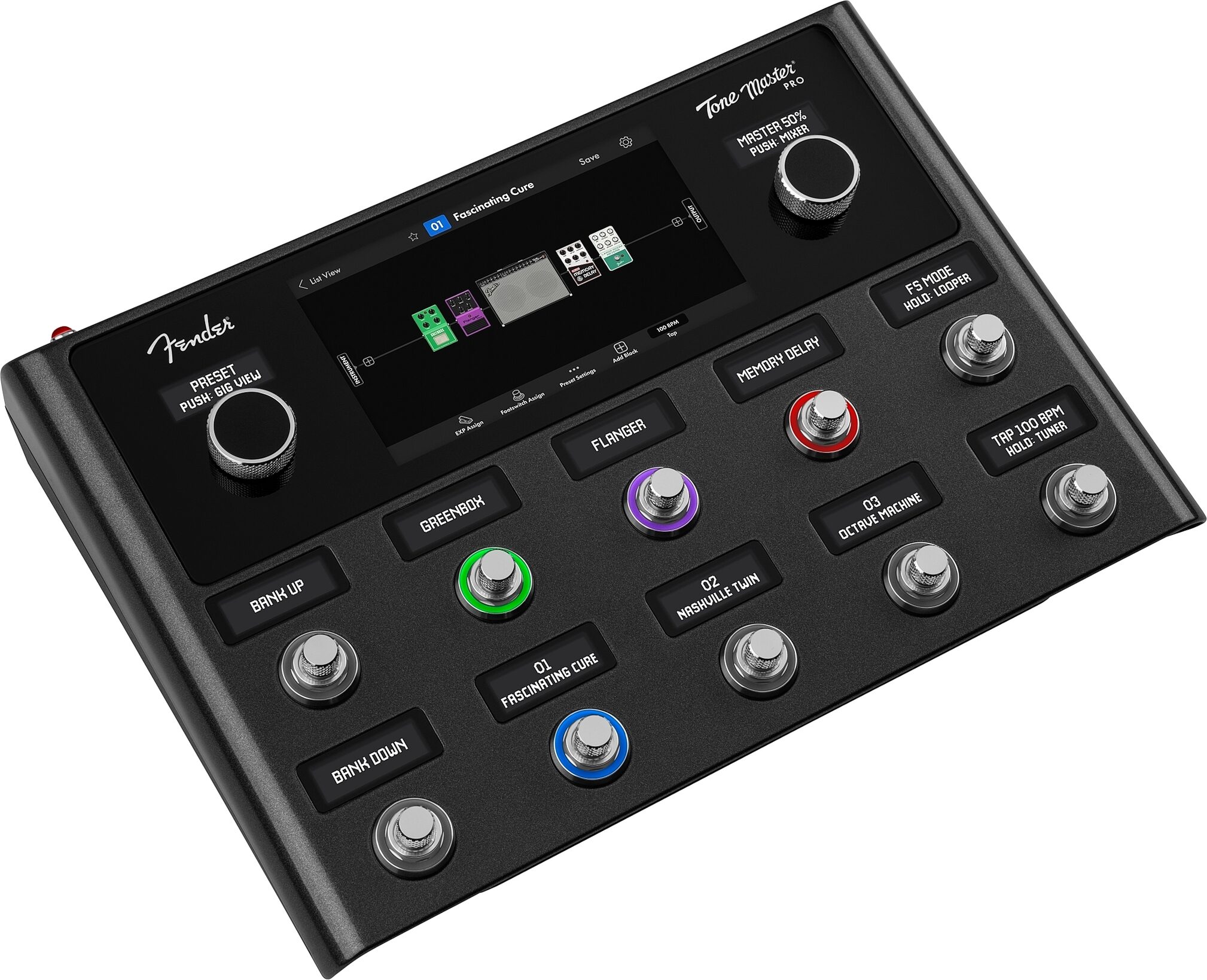

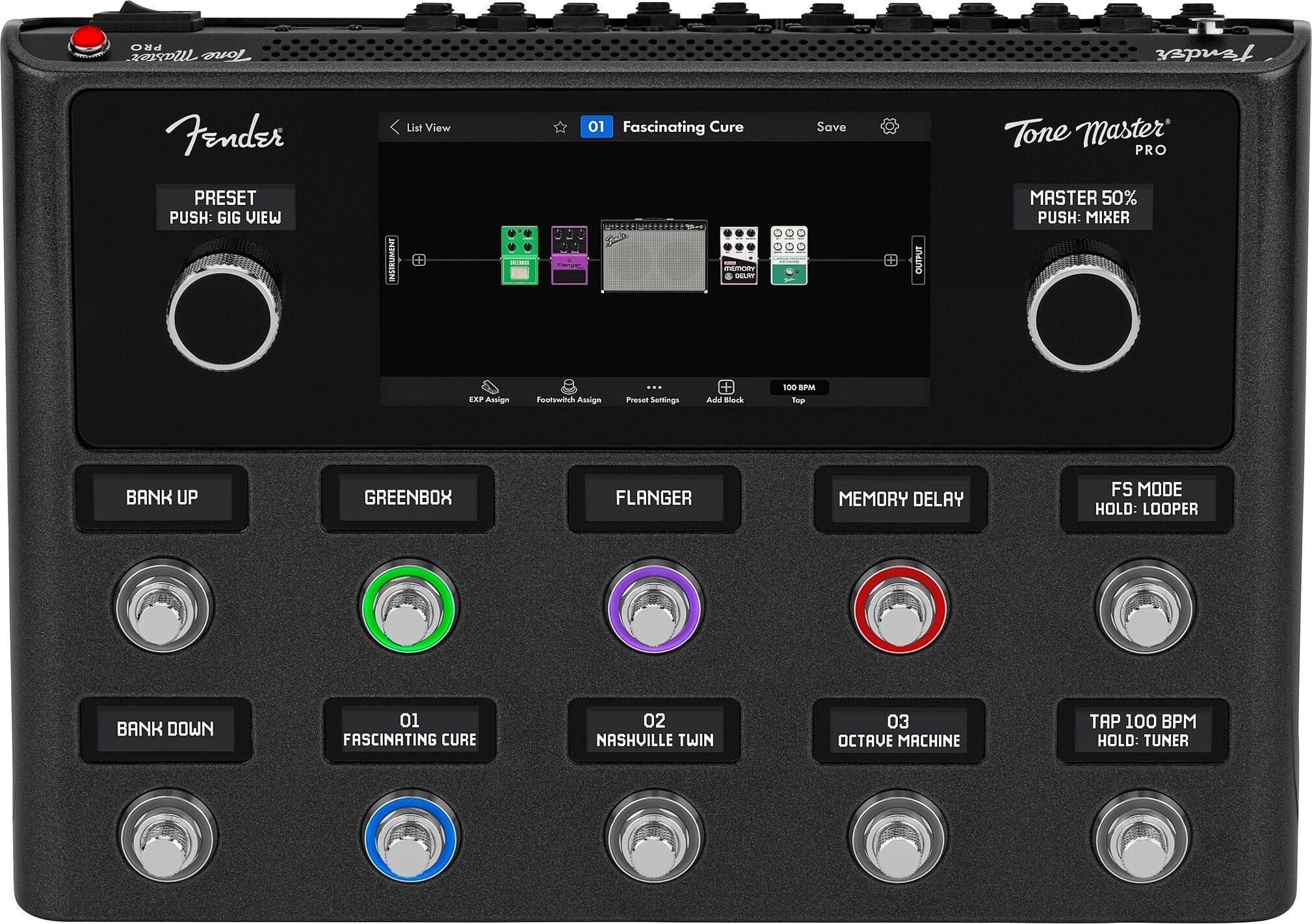

- 7" Color Touch-screen
- Innovative Song & Setlist modes
- 60 second Stereo Looper
- 4 Effects Loops for integrating your favorite pedals
- Instrument and XLR mic inputs

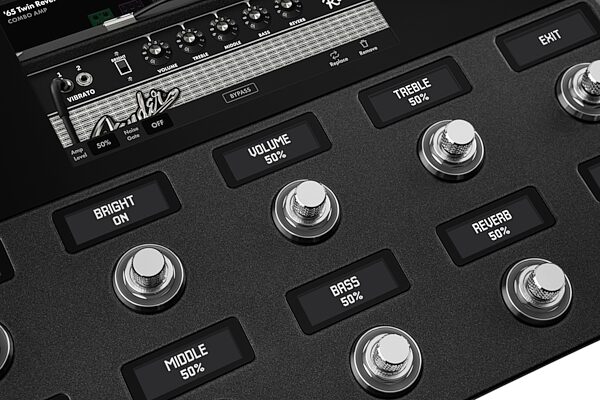

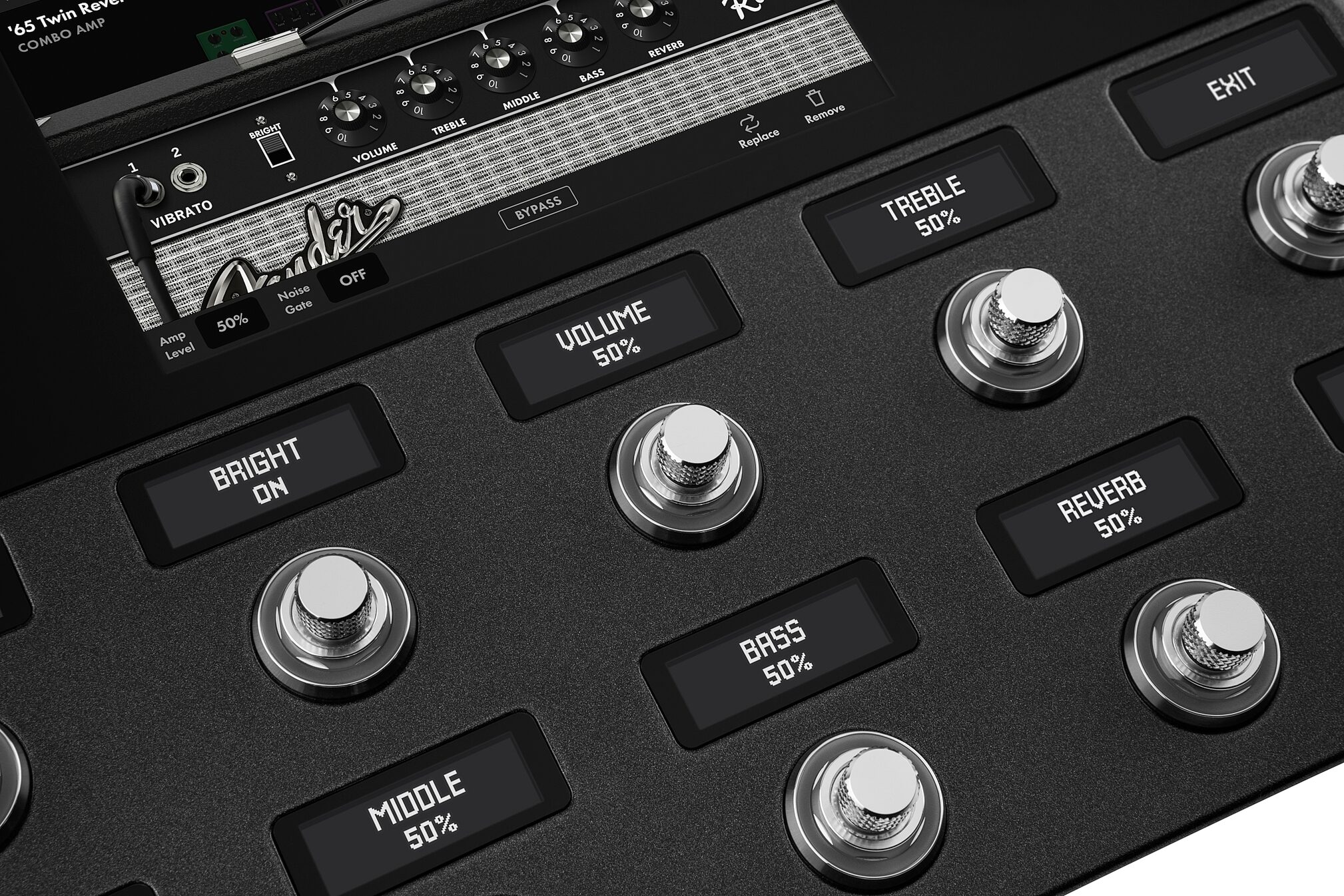

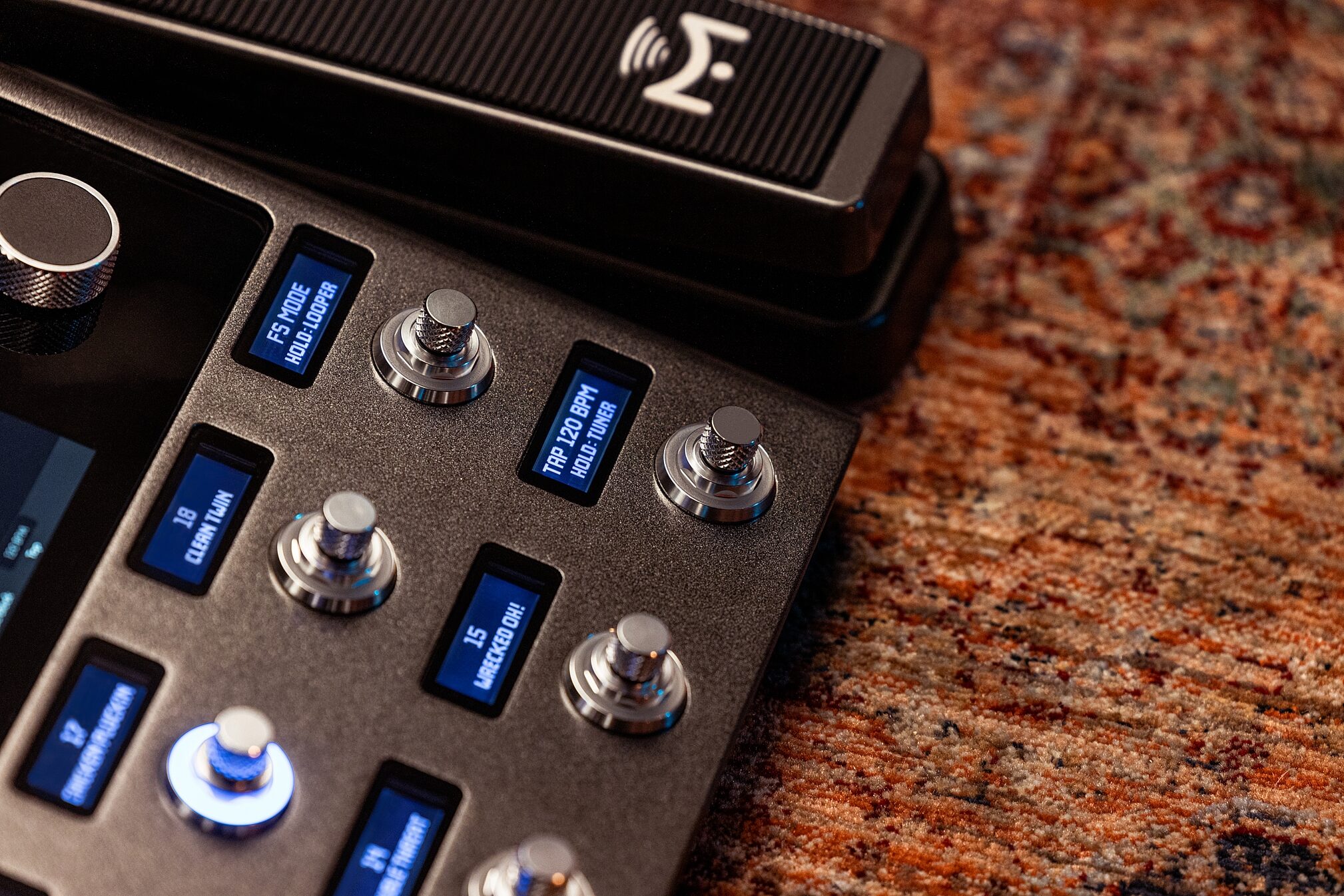

- 10 proprietary footswitch/encoders with LCD "scribble strips"
- Firmware updates over USB
- Compatible with Tone Master Pro Control desktop app for editing, sharing and downloading presets
- Bluetooth wireless connection for streaming audio from a mobile device
- Stereo 1/4" Headphone output jack for silent practice
- Over 500 User Presets with access to thousands more from the Cloud using the Tone Master Pro Control App
- Lightweight, under 9 lbs.

Specs

-Series: Tone Master
-Model Name: Tone Master Pro

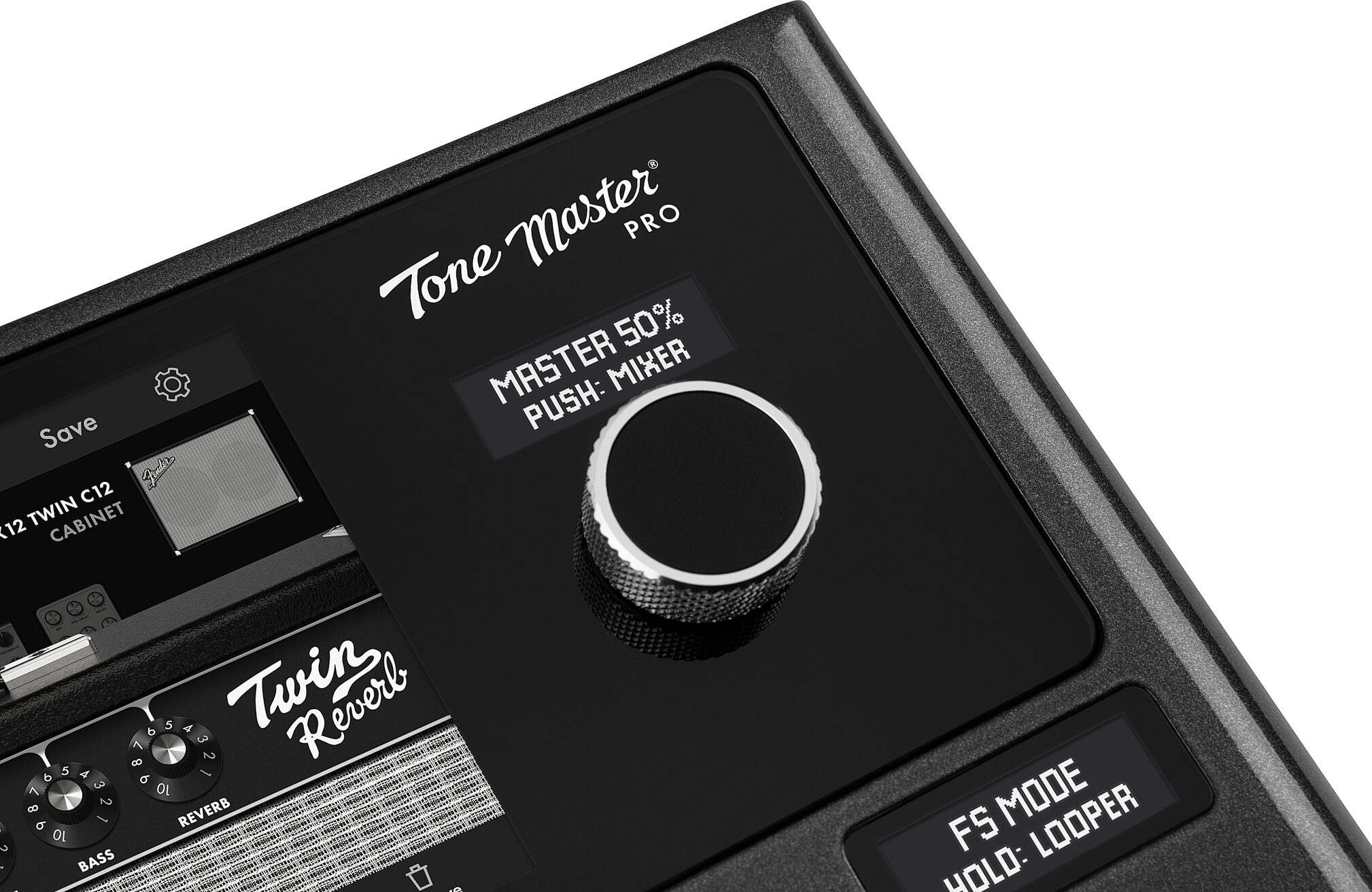

-Controls: Navigation Control, Master Volume Control, 10 Footswitch/Encoders with LCD "Scribble Strips"

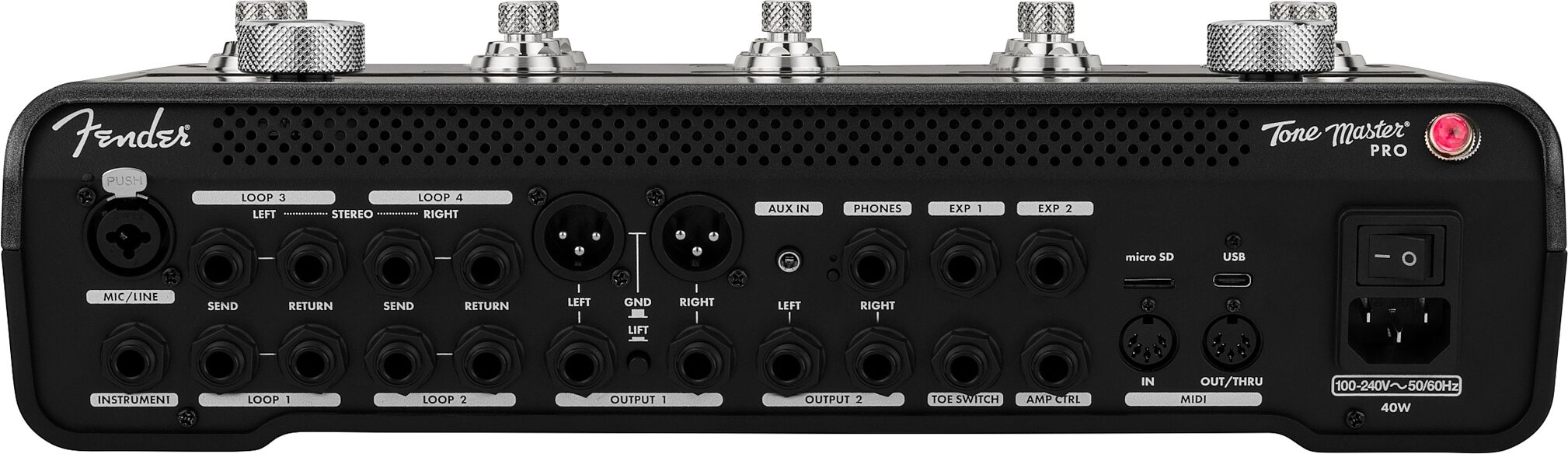

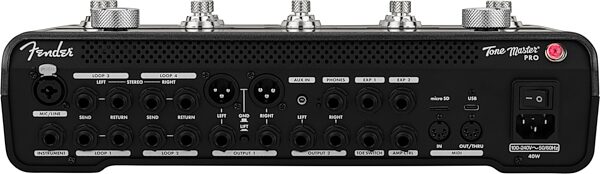

-Connectivity: USB-C, Bluetooth, MIDI: Dual 5-Pin DIN (In/Out-Through-Merge)
-Power Requirements: 40W
-Input-Voltage Range: 100-220 VAC, 50/60Hz
-Microphone Input: XLR Female (Combo), Balanced
-Microphone Input Impedance: 1.8 k Balanced
-Microphone Preamp Maximum Input Level: 4.7V; Phantom Power: +48 VDC (XLR Only)
-Instrument Input: 1/4"
-Instrument Input Impedance: 1 M, 330 k, 22 k Configurable Unbalanced
-Instrument Input Maximum Level: 5.6V (2.8V with Input Pad Off)
-Line Input: 1/4" TRS Female (Combo), Balanced
-Line Input Maximum Level: 7.8V Balanced, 4.5V Unbalanced
-Line Input Impedance: 1M
-Aux Input: 3.5 mm Stereo
-Aux Input Impedance: 10 k
-Aux Max Input Level: 2.4V
-XLR Outputs: XLR Male, Balanced (Stereo Pair)
-Line Outputs: 1/4" TRS Female, Balanced (Stereo Pairs Output 1 and 2)
-Output Max Level: Output 1 - 12V (Line) 3.9V (Instrument), Balanced; 6.1V (Line) 2.8V (Instrument), Unbalanced; Output 2 - 4.7V (Line) 2.8V (Instrument)
-Output Impedance: Output 1 - 200 (Line) 290 Balanced, 400 Unbalanced (Instrument); Output 2 - 170
-Headphone Output: 1/4" TRS Stereo, Unbalanced
-Headphone Maximum Output: 110mW x2
-Headphone Impedance Working Range: 33 x2 (16 x2 Minimum)
-Digital Audio Bit Depth: 32 Bit
-Supported Sample Rates: 48 kHz Internal (Project Sync 44.1/48/88.2/96 kHz)
-Digital Audio Frequency Response: 20 Hz - 20 kHz (+0.1/-0.7 dB)
-Effect Loop: 4 Total - Mono Loops (1 & 2) 1/4" Unbalanced, Mono Loops (3 & 4) 1/4" TRS Balanced (Can Be Combined into Stereo Pair)
-Effect Loop Impedance: 10 k
-Other Connections: 1/4" Expression Pedal 1 and 2, Amp Control
-Power Cable: IEC
-Dimensions: 3.8" (96.4 mm) H x 14.6" (37.1 cm) W x 10.3" (26.16 cm) D
-Weight: 8.8 lbs (4 kg)

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 15.5 lbs; Shipping Dimensions: 20 x 16 x 9 in; Manufacturer Part Number (MPN): 2274900000
