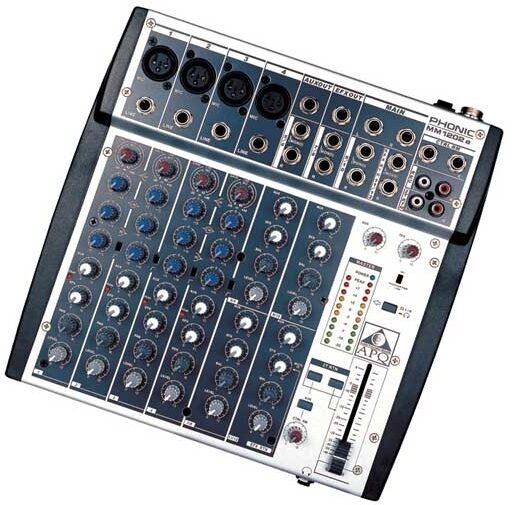

Phonic MM1202A Rackmount Mixer

No longer available at zZounds

zZounds Gear Experts Say...

4 balanced mic/line input channels with 3-band EQ. 4 stereo inputs.

Overview

The Phonic MM1202A is an extraordinary mixer, which features 4 balanced microphone and line inputs, as well as 4 stereo inputs, and studio quality microphone preamps. Each mono input features a 3-band equalizer, and can uniquely be set between 4 mono or 2 stereo channels. +48V phantom power can be applied to the mono input socket for condenser microphones, for more versatile use. All this -- and other fantastic features -- makes the MM1202a a mixer with everything you need, but nothing you don't.

Features
4 balanced mic/line input channels with 3-band EQ

4 stereo inputs

Additional 2T return inputs, for tape input or link to submixer, can be routed to main l/ R and control room / headphones

Global +48V phantom power switch for channels 1-4 on master section

Pre-fader AUX, post- fader EFX sends on every input channel

Record output

10 segement level meter and switch for main L/R and headphones

Control room / headphones output with volume control

Peak indicator and low pass filter on each mono input channel

Pan control on mono channel and balance control on stereo input channel

60mm fader control for main L/ R output

Balanced main L/ R output

Specs

Inputs balanced mono mic/line channels: 4

Balanced stereo input channels: 4

2T return: 1

Outputs:
-- Main L/R stereo: 1/4 in. TRS, balanced

-- AUX sends: 1/4 in. TS, unbalanced

-- EFX sends: 1/4 in. TS, unbalanced

-- Phones: 1

-- Control RM: 2 1/4 in. TS, unbalanced

Channel:
-- AUX/EFX send controls: 2

-- Pan/balance control: yes

-- Volume control: rotary

Master Section:
-- Master AUX send solo: yes

-- Phones/control RM level control: yes

-- Phones/control RM source switch: yes

-- Fader: ST/60mm

Metering headphones/ST:
-- Number of channels: 2

-- Segments: 10

Phantom power supply: +48VDC

Switch: master

Noise (20Hz to 20KHz bandwidth, line inputs to main L/R outputs, all channels assigned, panned L/R):
-- Master @ unity, channel fader down: -89dBu

-- Master @ unity, channel fader @ Unity: -86dBu

-- S/N ratio, ref. to +4 dBu: >90dB

THD (any output, 1KHz @ +14dBu, 20Hz to 20KHz, channel inputs): <0.005%

CMRR (1 KHz @ -60dBu, gain at maximum): 80dB

Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main L/R outputs) channel fader down, other channels at unity: <-83dB

Frequency response (mic input to any output): 10Hz ~ 30KHz: +0/-1 dB

Maximum levels:
-- Mic preamp input: +10dbu

-- All other input: +22dbu

-- Unbalanced output: +22dBu

Impedance:
-- Mic preamp inputs: 2 kohms

-- All other inputs: 10 kohms

-- RCA 2t outputs: 1.1k ohms

-- All other outputs: 100ohms

Equalization:
-- 3-band, +/-15dB

-- Low EQ: 80Hz

-- Mid EQ: 2.5KHz

-- Hi EQ: 12KHz

-- Low cut filter: 75Hz(-12dB/oct)

Microphone preamp E.I.N. (150 ohm terminated, max gain): <129.5dBm

Power consumption: 20 watts

Weight: 6.6 lbs. (3 kg)

Dimensions (WxHxD): 9.4 in. x 2.2 in. x 10.9 in. (240 x 56 x 276mm)
